SXA11L-AWMGKV (1997)

Toyota Rav4

Production Sep 1997 - Aug 2000
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9709- )

Click highlighted areas on diagram

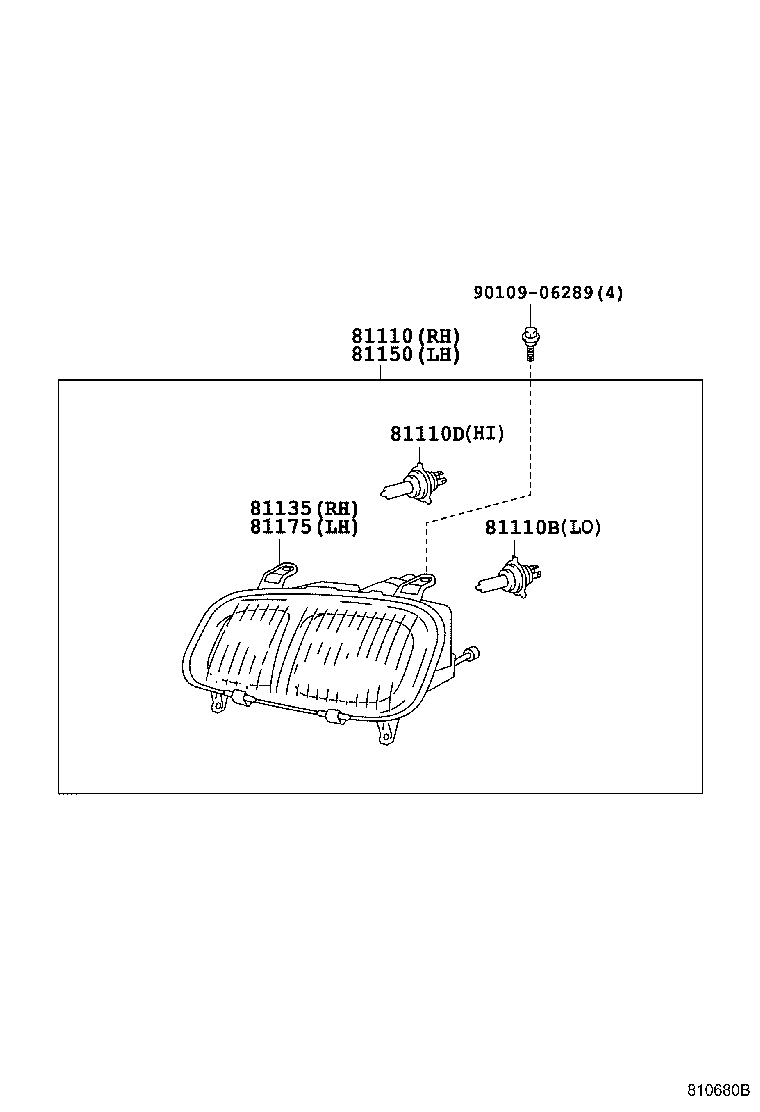

diagram 81110 81110B 81110D 81135 81150 81175 9010906289
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-42020

SXA1#..LHD

 1
81110-42100

SXA1#..EUR,GCC;SXA1#..LHD..GEN

W(RH AIMING FOR LHD)

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-22003

SXA1#

12V 60/55W,*HAL *WH

 2
90080-81040

SXA1#

12V 51W

 2
81110D - BULB(FOR HEADLAMP, NO.2)
90080-81041

SXA1#

12V 65W

 2
81135 - UNIT ASSY, HEADLAMP, RH
81105-42020

SXA1#..LHD

 1
81105-42100

SXA1#..EUR,GCC;SXA1#..LHD..GEN

W(RH AIMING FOR LHD)

 1
81150 - HEADLAMP ASSY, LH
81150-42020

SXA1#..LHD

 1
81150-42100

SXA1#..EUR,GCC;SXA1#..LHD..GEN

W(RH AIMING FOR LHD)

 1
81175 - UNIT ASSY, HEADLAMP, LH
81106-42020

SXA1#..LHD

 1
81106-42100

SXA1#..EUR,GCC;SXA1#..LHD..GEN

W(RH AIMING FOR LHD)

 1
Common parts
90109-06289

(9709- )

Click highlighted areas on diagram

diagram 81110 81110B 81110D 81135 81150 81175 9010906289
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-42020

SXA1#..LHD

 1
81110-42100

SXA1#..EUR,GCC;SXA1#..LHD..GEN

W(RH AIMING FOR LHD)

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-22003

SXA1#

12V 60/55W,*HAL *WH

 2
90080-81040

SXA1#

12V 51W

 2
81110D - BULB(FOR HEADLAMP, NO.2)
90080-81041

SXA1#

12V 65W

 2
81135 - UNIT ASSY, HEADLAMP, RH
81105-42020

SXA1#..LHD

 1
81105-42100

SXA1#..EUR,GCC;SXA1#..LHD..GEN

W(RH AIMING FOR LHD)

 1
81150 - HEADLAMP ASSY, LH
81150-42020

SXA1#..LHD

 1
81150-42100

SXA1#..EUR,GCC;SXA1#..LHD..GEN

W(RH AIMING FOR LHD)

 1
81175 - UNIT ASSY, HEADLAMP, LH
81106-42020

SXA1#..LHD

 1
81106-42100

SXA1#..EUR,GCC;SXA1#..LHD..GEN

W(RH AIMING FOR LHD)

 1
Common parts
90109-06289
