SXA11L-AWMGKV (1997)
Toyota Rav4
Production
Sep 1997
-
Aug 2000
Engine
3SFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)

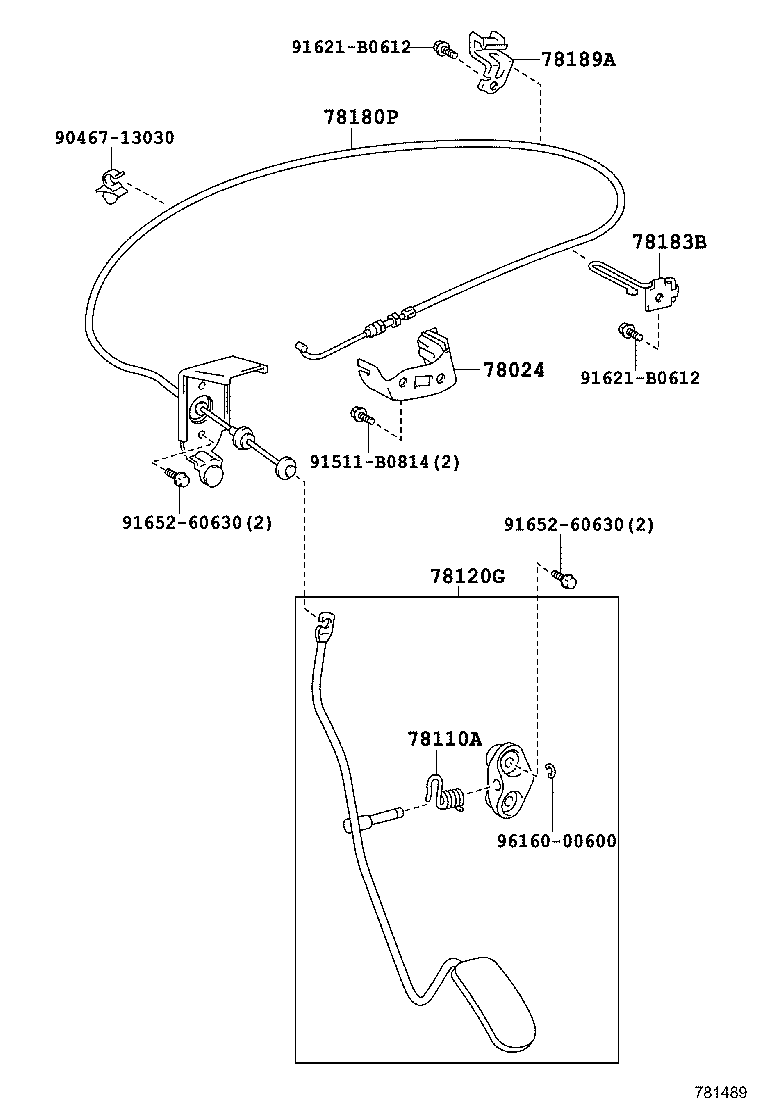

(9404- )LHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE | ||||
| 78024-20140 |
SXA1# |
1 | ||
| 78024-44020 |
SXA1# |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90959-03050 |
SXA1#..LHD..MTM |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90959-03050 |
SXA1#..LHD..MTM |
1 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-42020 |
SXA1#..LHD..MTM |
1 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-42020 |
SXA1#..LHD..MTM |
1 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-42020 |
SXA1#..LHD |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-42010 |
SXA1#..LHD |
1 | ||
| 78189A - SUPPORT, ACCELERATOR CONTROL CABLE, NO.2 | ||||
| 78189-20150 |
SXA1#..LHD |
1 | ||
| Common parts | ||||
| 90467-13030 | ||||
| 91511-B0814 | ||||
| 91621-B0612 | ||||
| 91652-60630 | ||||
| 96160-00600 | ||||
(9511- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90467-13030 | ||||
| 91511-B0814 | ||||
| 91621-B0612 | ||||
| 91652-60630 | ||||
| 96160-00600 | ||||

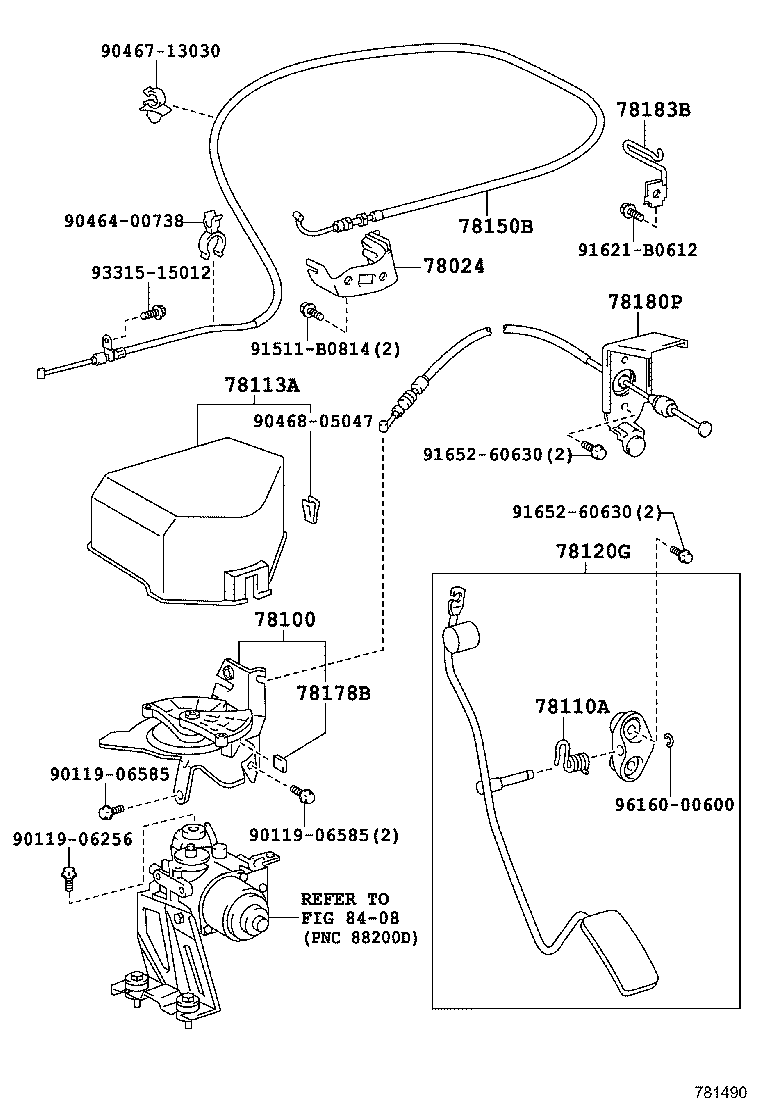

(9511- )
Click highlighted areas on diagram
W(CRUISE CONTROL)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06256 | ||||
| 90119-06585 | ||||
| 90464-00738 | ||||
| 90467-13030 | ||||
| 90468-05047 | ||||
| 91511-B0814 | ||||
| 91621-B0612 | ||||
| 91652-60630 | ||||
| 93315-15012 | ||||
| 96160-00600 | ||||
| Linked diagrams | ||||
| 8408 | ||||
