SXA11L-AWMGKV (1997)
Toyota Rav4
ILLUST NO. 3 OF 3(9404- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-42031 |
SXA11 |
1 | ||
| 71075S - COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE) | ||||
| 71075-42021B6 |
SXA11 SHADOW GRAY,TRIM12 |
1 | ||
| 71075-42021B4 |
SXA11 SHADOW GRAY,TRIM10 |
1 | ||
| 71075-42140B0 |
SXA11..ARL,EUR,GCC W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71076S - COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71076-42021B4 |
SXA11 SHADOW GRAY,TRIM10 |
1 | ||
| 71076-42021B6 |
SXA11 SHADOW GRAY,TRIM12 |
1 | ||
| 71076-42140B0 |
SXA11..ARL,EUR,GCC W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-42022B6 |
SXA11 SHADOW GRAY,TRIM12 |
1 | ||
| 71077-42140B0 |
SXA11..ARL,EUR,GCC W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71077-42022B4 |
SXA11 SHADOW GRAY,TRIM10 |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-42140B0 |
SXA11..ARL,EUR,GCC W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71078-42022B6 |
SXA11 SHADOW GRAY,TRIM12 |
1 | ||
| 71078-42022B4 |
SXA11 SHADOW GRAY,TRIM10 |
1 | ||
| 71301D - HINGE SUB-ASSY, REAR SEAT, RH | ||||
| 71301-42020 |
SXA11 NO.1 |
2 | ||
| 71301D - HINGE SUB-ASSY, REAR SEAT, RH | ||||
| 71301-42020 |
SXA11 NO.1 |
2 | ||
| 71324D - CUSHION, REAR SEAT, RH | ||||
| 71324-42020 |
SXA11 |
2 | ||
| 71331A - PIN, REAR SEAT HINGE | ||||
| 71331-42010 |
SXA1# |
4 | ||
| 71331A - PIN, REAR SEAT HINGE | ||||
| 71331-42010 |
SXA1# |
4 | ||
| 71331A - PIN, REAR SEAT HINGE | ||||
| 71331-42010 |
SXA1# |
4 | ||
| 71331A - PIN, REAR SEAT HINGE | ||||
| 71331-42010 |
SXA1# |
4 | ||
| 71460S - CUSHION ASSY, REAR SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71460-42171B5 |
SXA11 SHADOW GRAY,TRIM12 |
1 | ||
| 71460-42270B0 |
SXA11..ARL,EUR,GCC W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71460-42171B2 |
SXA11 SHADOW GRAY,TRIM10 |
1 | ||
| 71470S - CUSHION ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71470-42032B4 |
SXA11 SHADOW GRAY,TRIM12 |
1 | ||
| 71470-42220B0 |
SXA11..ARL,EUR,GCC W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71470-42032B2 |
SXA11 SHADOW GRAY,TRIM10 |
1 | ||
| 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) | ||||
| 71480-42180B0 |
SXA11..ARL,EUR,GCC W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71480-42062B3 |
SXA11 SHADOW GRAY,TRIM10 |
1 | ||
| 71480-42062B5 |
SXA11 SHADOW GRAY,TRIM12 |
1 | ||
| 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71490-42062B5 |
SXA11 SHADOW GRAY,TRIM12 |
1 | ||
| 71490-42180B0 |
SXA11..ARL,EUR,GCC W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71490-42062B3 |
SXA11 SHADOW GRAY,TRIM10 |
1 | ||
| 71833A - COVER, REAR SEAT RECLINING, NO.1 RH | ||||
| 71833-42020B1 |
SXA11 SHADOW GRAY,TRIM10,12,NO.1 |
1 | ||
| 71834-42020B1 |
SXA11..ARL,EUR,GCC SHADOW GRAY,TRIM10,11,12,NO.2 |
1 | ||
| 71833-42020B1 |
SXA11..ARL,EUR,GCC SHADOW GRAY,TRIM10,11,12,NO.1 |
1 | ||
| 71834-42020B1 |
SXA11 SHADOW GRAY,TRIM10,12,NO.2 |
1 | ||
| 71833A - COVER, REAR SEAT RECLINING, NO.1 RH | ||||
| 71833-42020B1 |
SXA11 SHADOW GRAY,TRIM10,12,NO.1 |
1 | ||
| 71834-42020B1 |
SXA11..ARL,EUR,GCC SHADOW GRAY,TRIM10,11,12,NO.2 |
1 | ||
| 71833-42020B1 |
SXA11..ARL,EUR,GCC SHADOW GRAY,TRIM10,11,12,NO.1 |
1 | ||
| 71834-42020B1 |
SXA11 SHADOW GRAY,TRIM10,12,NO.2 |
1 | ||
| 71834A - COVER, REAR SEAT RECLINING, NO.1 LH | ||||
| 71833-42020B1 |
SXA11..ARL,EUR,GCC SHADOW GRAY,TRIM10,11,12,NO.1 |
1 | ||
| 71834-42020B1 |
SXA11 SHADOW GRAY,TRIM10,12,NO.2 |
1 | ||
| 71834-42020B1 |
SXA11..ARL,EUR,GCC SHADOW GRAY,TRIM10,11,12,NO.2 |
1 | ||
| 71833-42020B1 |
SXA11 SHADOW GRAY,TRIM10,12,NO.1 |
1 | ||
| 71834A - COVER, REAR SEAT RECLINING, NO.1 LH | ||||
| 71833-42020B1 |
SXA11..ARL,EUR,GCC SHADOW GRAY,TRIM10,11,12,NO.1 |
1 | ||
| 71834-42020B1 |
SXA11 SHADOW GRAY,TRIM10,12,NO.2 |
1 | ||
| 71834-42020B1 |
SXA11..ARL,EUR,GCC SHADOW GRAY,TRIM10,11,12,NO.2 |
1 | ||
| 71833-42020B1 |
SXA11 SHADOW GRAY,TRIM10,12,NO.1 |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-44010B1 |
SXA11..ARL,EUR,GCC W(LOCK),SHADOW GRAY,TRIM10,1#,12 |
2 | ||
| 71931-12040B0 |
SXA11 W/O(LOCK),SHADOW GRAY,TRIM10,12 |
2 | ||
| 71930-44010B1 |
SXA11 W(LOCK),SHADOW GRAY,TRIM10,12 |
2 | ||
| 71931-12040B0 |
SXA11..ARL,EUR,GCC W/O(LOCK),SHADOW GRAY,TRIM10,11,12 |
8 | ||
| 71930-44010B1 |
SXA11..ARL,EUR,GCC W(LOCK),SHADOW GRAY,TRIM10,11,12 |
8 | ||
| 71931-12040B0 |
SXA11..ARL,EUR,GCC W/O(LOCK),SHADOW GRAY,TRIM10,1#,12 |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-44010B1 |
SXA11..ARL,EUR,GCC W(LOCK),SHADOW GRAY,TRIM10,1#,12 |
2 | ||
| 71931-12040B0 |
SXA11 W/O(LOCK),SHADOW GRAY,TRIM10,12 |
2 | ||
| 71930-44010B1 |
SXA11 W(LOCK),SHADOW GRAY,TRIM10,12 |
2 | ||
| 71931-12040B0 |
SXA11..ARL,EUR,GCC W/O(LOCK),SHADOW GRAY,TRIM10,11,12 |
8 | ||
| 71930-44010B1 |
SXA11..ARL,EUR,GCC W(LOCK),SHADOW GRAY,TRIM10,11,12 |
8 | ||
| 71931-12040B0 |
SXA11..ARL,EUR,GCC W/O(LOCK),SHADOW GRAY,TRIM10,1#,12 |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-44010B1 |
SXA11..ARL,EUR,GCC W(LOCK),SHADOW GRAY,TRIM10,1#,12 |
2 | ||
| 71931-12040B0 |
SXA11 W/O(LOCK),SHADOW GRAY,TRIM10,12 |
2 | ||
| 71930-44010B1 |
SXA11 W(LOCK),SHADOW GRAY,TRIM10,12 |
2 | ||
| 71931-12040B0 |
SXA11..ARL,EUR,GCC W/O(LOCK),SHADOW GRAY,TRIM10,11,12 |
8 | ||
| 71930-44010B1 |
SXA11..ARL,EUR,GCC W(LOCK),SHADOW GRAY,TRIM10,11,12 |
8 | ||
| 71931-12040B0 |
SXA11..ARL,EUR,GCC W/O(LOCK),SHADOW GRAY,TRIM10,1#,12 |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-44010B1 |
SXA11..ARL,EUR,GCC W(LOCK),SHADOW GRAY,TRIM10,1#,12 |
2 | ||
| 71931-12040B0 |
SXA11 W/O(LOCK),SHADOW GRAY,TRIM10,12 |
2 | ||
| 71930-44010B1 |
SXA11 W(LOCK),SHADOW GRAY,TRIM10,12 |
2 | ||
| 71931-12040B0 |
SXA11..ARL,EUR,GCC W/O(LOCK),SHADOW GRAY,TRIM10,11,12 |
8 | ||
| 71930-44010B1 |
SXA11..ARL,EUR,GCC W(LOCK),SHADOW GRAY,TRIM10,11,12 |
8 | ||
| 71931-12040B0 |
SXA11..ARL,EUR,GCC W/O(LOCK),SHADOW GRAY,TRIM10,1#,12 |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71910-42010B0 |
SXA1# BLUISH GRAY,TRIM1# |
2 | ||
| 71910-42040B1 |
SXA11 BLUISH GRAY,TRIM10 |
2 | ||
| 71910-42040B0 |
SXA11 DARK CHARCOAL,TRIM12 |
2 | ||
| 71910-42011B5 |
SXA11..ARL,EUR,GCC W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71910-42010B0 |
SXA1# BLUISH GRAY,TRIM1# |
2 | ||
| 71910-42040B1 |
SXA11 BLUISH GRAY,TRIM10 |
2 | ||
| 71910-42040B0 |
SXA11 DARK CHARCOAL,TRIM12 |
2 | ||
| 71910-42011B5 |
SXA11..ARL,EUR,GCC W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
2 | ||
| 72501C - PIPE SUB-ASSY, RECLINING CONNECTING | ||||
| 72345-42010 |
SXA1# |
2 | ||
| 72507B - HANDLE SUB-ASSY, RECLINING RELEASE, RH | ||||
| 72507-42030B1 |
SXA11 SHADOW GRAY,TRIM10,12 |
2 | ||
| 72507-42030B1 |
SXA11..ARL,EUR,GCC SHADOW GRAY,TRIM10,11,12 |
2 | ||
| 72593A - KNOB, REMOTE CONTROL LEVER, RH | ||||
| 72593-60010B1 |
SXA11..ARL,EUR,GCC SHADOW GRAY,TRIM10,1#,12 |
1 | ||
| 72593-60010B1 |
SXA11 SHADOW GRAY,TRIM10,12 |
1 | ||
| 72594 - KNOB, REMOTE CONTROL LEVER, LH | ||||
| 72593-60010B1 |
SXA11..ARL,EUR,GCC SHADOW GRAY,TRIM10,1#,12 |
1 | ||
| 72593-60010B1 |
SXA11 SHADOW GRAY,TRIM10,12 |
1 | ||
| 72927 - COVER, REAR SEAT CUSHION UNDER, RH | ||||
| 72927-42020B1 |
SXA11 SHADOW GRAY,TRIM10,12 |
1 | ||
| 72927-42020B1 |
SXA11..ARL,EUR,GCC SHADOW GRAY,TRIM10,1#,12 |
1 | ||
| 72928 - COVER, REAR SEAT CUSHION UNDER, LH | ||||
| 72928-42020B1 |
SXA11..ARL,EUR,GCC SHADOW GRAY,TRIM10,1#,12 |
1 | ||
| 72928-42020B1 |
SXA11 SHADOW GRAY,TRIM10,12 |
1 | ||
| 78950 - BAND ASSY, FOLD SEAT STOPPER, NO.1 | ||||
| 78950-42010B1 |
SXA11 SHADOW GRAY,TRIM10,12 |
1 | ||
| 78950-42010B1 |
SXA11..ARL,EUR,GCC SHADOW GRAY,TRIM10,1#,12 |
1 | ||
| 78960 - BAND ASSY, FOLD SEAT STOPPER, NO.2 | ||||
| 78950-42010B1 |
SXA11..ARL,EUR,GCC SHADOW GRAY,TRIM10,1#,12 |
1 | ||
| 78950-42010B1 |
SXA11 SHADOW GRAY,TRIM10,12 |
1 | ||
| Common parts | ||||
| 90119-06350 | ||||
| 90119-10229 | ||||
| 90119-10299 | ||||
| 90119-10349 | ||||
| 90167-40044 | ||||
| 90168-40043 | ||||
| 90179-06007 | ||||
| 90183-06044 | ||||
| 90201-06012 | ||||
| 90206-08010 | ||||
| 90206-08038 | ||||
| 90206-10011 | ||||
| 90206-15006 | ||||
| 90386-11018 | ||||
| 90386-11020 | ||||
| 90389-10041 | ||||
| 90468-18007 | ||||
| 90468-18071 | ||||
| 90901-19019 | ||||
| 91626-60616 | ||||
| 91656-60616 | ||||
| 93310-53510 | ||||
| 93510-53510 | ||||
| 93560-54016 | ||||
| 96160-00600 | ||||
| Linked diagrams | ||||
| 7152 | ||||

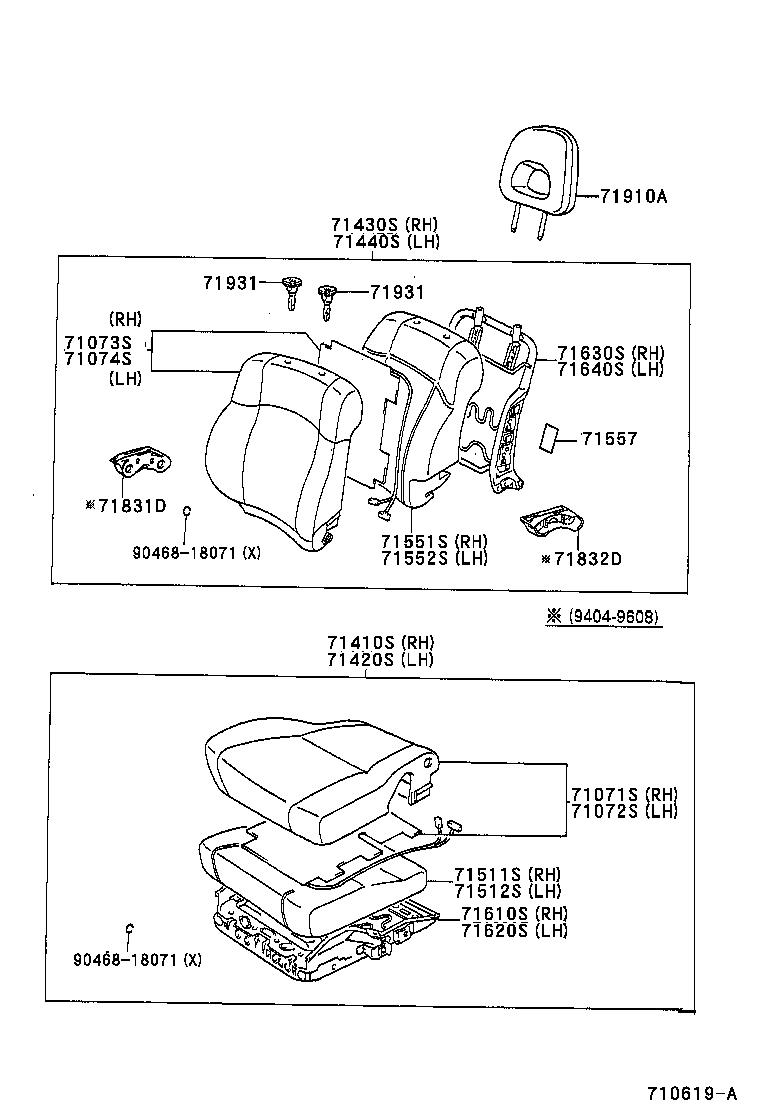

ILLUST NO. 1 OF 3(9404- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-42131B2 |
SXA11 SHADOW GRAY,TRIM10 |
1 | ||
| 71071-42131B4 |
SXA11 SHADOW GRAY,TRIM12 |
1 | ||
| 71071-42200B0 |
SXA11..ARL,EUR,GCC W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71071-42131B4 |
SXA11 SHADOW GRAY,TRIM12 |
1 | ||
| 71071-42200B0 |
SXA11..ARL,EUR,GCC W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71071-42131B2 |
SXA11 SHADOW GRAY,TRIM10 |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-42131B2 |
SXA11 SHADOW GRAY,TRIM10 |
1 | ||
| 71073-42240B0 |
SXA11..ARL,EUR,GCC W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71073-42131B4 |
SXA11 SHADOW GRAY,TRIM12 |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-42131B4 |
SXA11 SHADOW GRAY,TRIM12 |
1 | ||
| 71073-42131B2 |
SXA11 SHADOW GRAY,TRIM10 |
1 | ||
| 71073-42240B0 |
SXA11..ARL,EUR,GCC W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-42121B4 |
SXA11 SHADOW GRAY,TRIM12 |
1 | ||
| 71410-42121B2 |
SXA11 SHADOW GRAY,TRIM10 |
1 | ||
| 71410-42190B0 |
SXA11..ARL,EUR,GCC W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71410-42121B4 |
SXA11 SHADOW GRAY,TRIM12 |
1 | ||
| 71410-42121B2 |
SXA11 SHADOW GRAY,TRIM10 |
1 | ||
| 71410-42190B0 |
SXA11..ARL,EUR,GCC W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-42121B2 |
SXA11 SHADOW GRAY,TRIM10 |
1 | ||
| 71430-42230B0 |
SXA11..ARL,EUR,GCC W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71430-42121B4 |
SXA11 SHADOW GRAY,TRIM12 |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71430-42121B2 |
SXA11 SHADOW GRAY,TRIM10 |
1 | ||
| 71430-42121B4 |
SXA11 SHADOW GRAY,TRIM12 |
1 | ||
| 71430-42230B0 |
SXA11..ARL,EUR,GCC W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-42020 |
SXA1# |
1 | ||
| 71511-42010 |
SXA1# |
1 | ||
| 71511-42020 |
SXA11;SXA10..RHD;SXA10..GCC;SXA10..LHD..CVT |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-42020 |
SXA11;SXA10..RHD;SXA10..GCC;SXA10..LHD..CVT |
1 | ||
| 71511-42020 |
SXA1# |
1 | ||
| 71511-42010 |
SXA1# |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-42020 |
SXA1# |
2 | ||
| 71551-42010 |
SXA1# |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-42020 |
SXA1# |
2 | ||
| 71551-42010 |
SXA1# |
1 | ||
| 71557 - CLOTH, FRONT SEAT BACK UNDER | ||||
| 71557-42030 |
SXA1# |
4 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-42020 |
SXA11;SXA10..RHD;SXA10..GCC;SXA10..LHD..CVT |
1 | ||
| 71610-42010 |
SXA1# |
1 | ||
| 71610-42020 |
SXA1# |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71610-42020 |
SXA11;SXA10..RHD;SXA10..GCC;SXA10..LHD..CVT |
1 | ||
| 71610-42020 |
SXA1# |
1 | ||
| 71610-42010 |
SXA1# |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-42020 |
SXA11;SXA10..RHD;SXA10..GCC;SXA10..LHD..CVT |
1 | ||
| 71630-42020 |
SXA1# |
1 | ||
| 71630-42010 |
SXA1# |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71630-42020 |
SXA1# |
1 | ||
| 71630-42010 |
SXA1# |
1 | ||
| 71630-42020 |
SXA11;SXA10..RHD;SXA10..GCC;SXA10..LHD..CVT |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-20030 |
SXA1# |
2 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71832-20010 |
SXA1# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-42011B5 |
SXA11..ARL,EUR,GCC SHADOW GRAY,TRIM1# |
2 | ||
| 71910-42040B0 |
SXA11 DARK CHARCOAL,TRIM12 |
2 | ||
| 71910-42040B1 |
SXA11 BLUISH GRAY,TRIM10 |
2 | ||
| 71910-42010B0 |
SXA1# BLUISH GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-44010B1 |
SXA11 W(LOCK),SHADOW GRAY,TRIM10,12 |
2 | ||
| 71930-44010B1 |
SXA11..ARL,EUR,GCC W(LOCK),SHADOW GRAY,TRIM10,1#,12 |
2 | ||
| 71931-12040B0 |
SXA11 W/O(LOCK),SHADOW GRAY,TRIM10,12 |
2 | ||
| 71930-44010B1 |
SXA11..ARL,EUR,GCC W(LOCK),SHADOW GRAY,TRIM10,11,12 |
8 | ||
| 71931-12040B0 |
SXA11..ARL,EUR,GCC W/O(LOCK),SHADOW GRAY,TRIM10,1#,12 |
2 | ||
| 71931-12040B0 |
SXA11..ARL,EUR,GCC W/O(LOCK),SHADOW GRAY,TRIM10,11,12 |
8 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-44010B1 |
SXA11 W(LOCK),SHADOW GRAY,TRIM10,12 |
2 | ||
| 71930-44010B1 |
SXA11..ARL,EUR,GCC W(LOCK),SHADOW GRAY,TRIM10,1#,12 |
2 | ||
| 71931-12040B0 |
SXA11 W/O(LOCK),SHADOW GRAY,TRIM10,12 |
2 | ||
| 71930-44010B1 |
SXA11..ARL,EUR,GCC W(LOCK),SHADOW GRAY,TRIM10,11,12 |
8 | ||
| 71931-12040B0 |
SXA11..ARL,EUR,GCC W/O(LOCK),SHADOW GRAY,TRIM10,1#,12 |
2 | ||
| 71931-12040B0 |
SXA11..ARL,EUR,GCC W/O(LOCK),SHADOW GRAY,TRIM10,11,12 |
8 | ||
| Common parts | ||||
| 90468-18071 | ||||

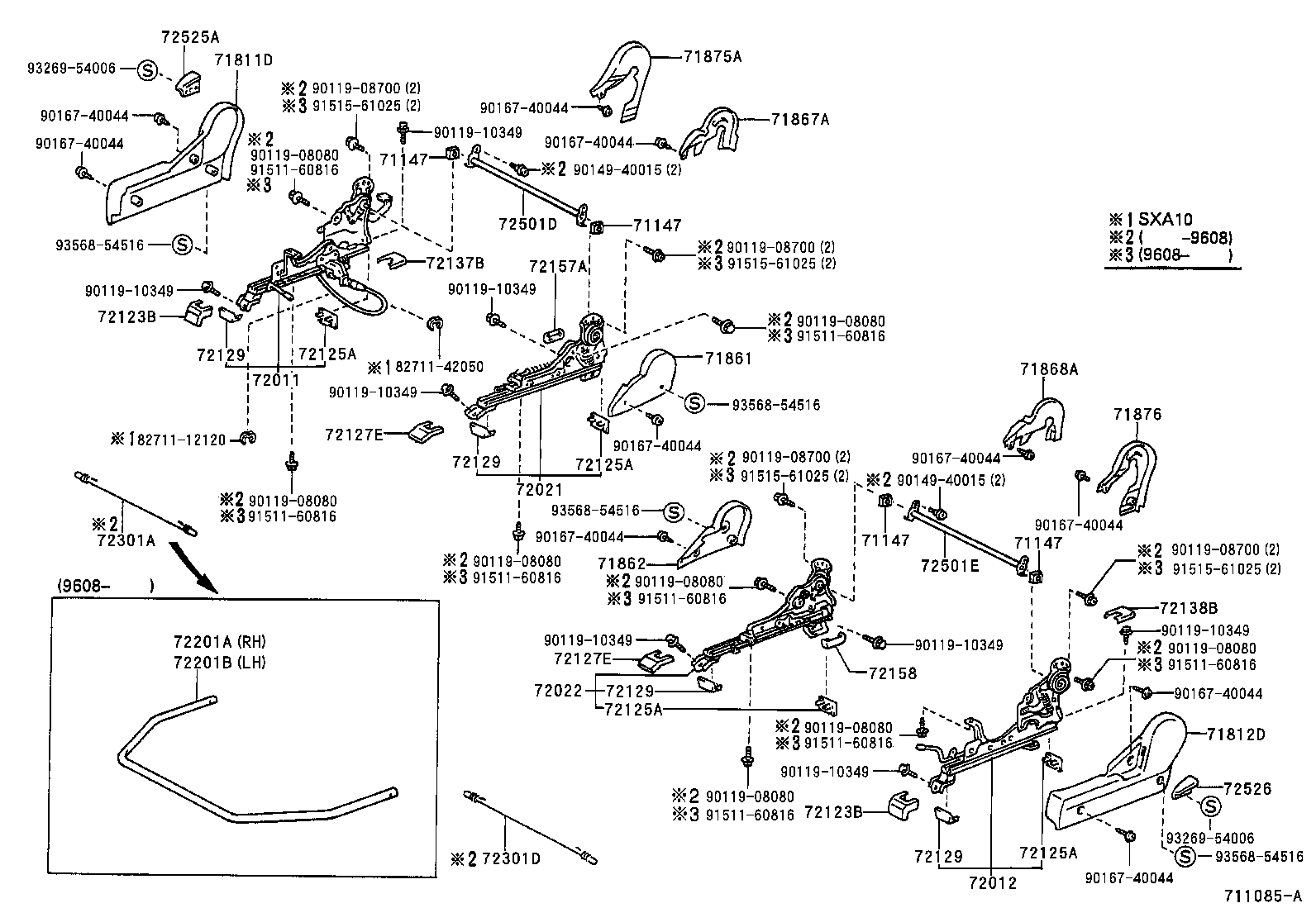

ILLUST NO. 2 OF 3(9404- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71147 - SILENCER, SEAT SPRING | ||||
| 71147-35010 |
SXA1# |
4 | ||
| 71147 - SILENCER, SEAT SPRING | ||||
| 71147-35010 |
SXA1# |
4 | ||
| 71147 - SILENCER, SEAT SPRING | ||||
| 71147-35010 |
SXA1# |
4 | ||
| 71147 - SILENCER, SEAT SPRING | ||||
| 71147-35010 |
SXA1# |
4 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-42020B1 |
SXA11 SHADOW GRAY,TRIM10,12 |
1 | ||
| 71811-42010B0 |
SXA1# BLUISH GRAY,TRIM1# |
1 | ||
| 71811-42020B1 |
SXA11..ARL,EUR,GCC SHADOW GRAY,TRIM10,11,12 |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-42020B1 |
SXA11 SHADOW GRAY,TRIM10,12 |
1 | ||
| 71812-42010B0 |
SXA1# BLUISH GRAY,TRIM1# |
1 | ||
| 71812-42020B1 |
SXA11..ARL,EUR,GCC SHADOW GRAY,TRIM10,1#,12 |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-42010B0 |
SXA1# BLUISH GRAY,TRIM1# |
1 | ||
| 71861-42020B1 |
SXA11 SHADOW GRAY,TRIM10,12 |
1 | ||
| 71861-42020B1 |
SXA11..ARL,EUR,GCC SHADOW GRAY,TRIM10,11,12 |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-42010B0 |
SXA1# BLUISH GRAY,TRIM1# |
1 | ||
| 71862-42020B1 |
SXA11..ARL,EUR,GCC SHADOW GRAY,TRIM10,11,12 |
1 | ||
| 71862-42020B1 |
SXA11 SHADOW GRAY,TRIM10,12 |
1 | ||
| 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-42020B1 |
SXA11 SHADOW GRAY,TRIM10,12 |
1 | ||
| 71867-42020B1 |
SXA11..ARL,EUR,GCC SHADOW GRAY,TRIM10,11,12 |
1 | ||
| 71867-42010B0 |
SXA1# BLUISH GRAY,TRIM1# |
1 | ||
| 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-42020B1 |
SXA11..ARL,EUR,GCC SHADOW GRAY,TRIM10,11,12 |
1 | ||
| 71868-42020B1 |
SXA11 SHADOW GRAY,TRIM10,12 |
1 | ||
| 71868-42010B0 |
SXA1# BLUISH GRAY,TRIM1# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-42010B0 |
SXA1# BLUISH GRAY,TRIM1# |
1 | ||
| 71875-42020B1 |
SXA11 SHADOW GRAY,TRIM10,12 |
1 | ||
| 71875-42020B1 |
SXA11..ARL,EUR,GCC SHADOW GRAY,TRIM10,11,12 |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-42020B1 |
SXA11 SHADOW GRAY,TRIM10,12 |
1 | ||
| 71876-42010B0 |
SXA1# BLUISH GRAY,TRIM1# |
1 | ||
| 71876-42020B1 |
SXA11..ARL,EUR,GCC SHADOW GRAY,TRIM10,11,12 |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72011-42051 |
SXA11;SXA10..RHD |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72012-42051 |
SXA11;SXA10..LHD |
1 | ||
| 72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH | ||||
| 72021-42051 |
SXA11;SXA10..RHD |
1 | ||
| 72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH | ||||
| 72022-42051 |
SXA11;SXA10..LHD |
1 | ||
| 72123B - COVER, SEAT TRACK BRACKET, OUTER FRONT | ||||
| 72123-20130B1 |
SXA1# BLUISH GRAY,TRIM1# |
2 | ||
| 72123-20130B0 |
SXA11 SHADOW GRAY,TRIM10,12 |
2 | ||
| 72123-20130B0 |
SXA11..ARL,EUR,GCC SHADOW GRAY,TRIM10,11,12 |
2 | ||
| 72123B - COVER, SEAT TRACK BRACKET, OUTER FRONT | ||||
| 72123-20130B1 |
SXA1# BLUISH GRAY,TRIM1# |
2 | ||
| 72123-20130B0 |
SXA11 SHADOW GRAY,TRIM10,12 |
2 | ||
| 72123-20130B0 |
SXA11..ARL,EUR,GCC SHADOW GRAY,TRIM10,11,12 |
2 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-10010 |
SXA11;SXA10..RHD;SXA10..LHD..MTM;SXA10..LHD..ATM..(EUR,GCC) |
4 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-10010 |
SXA11;SXA10..RHD;SXA10..LHD..MTM;SXA10..LHD..ATM..(EUR,GCC) |
4 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-10010 |
SXA11;SXA10..RHD;SXA10..LHD..MTM;SXA10..LHD..ATM..(EUR,GCC) |
4 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-10010 |
SXA11;SXA10..RHD;SXA10..LHD..MTM;SXA10..LHD..ATM..(EUR,GCC) |
4 | ||
| 72127E - COVER, SEAT TRACK BRACKET, INNER FRONT | ||||
| 72127-12010B0 |
SXA1# BLUISH GRAY,TRIM1# |
2 | ||
| 72127-12010P0 |
SXA11..ARL,EUR,GCC SHADOW GRAY,TRIM10,11,12 |
2 | ||
| 72127-12010P0 |
SXA11 SHADOW GRAY,TRIM10,12 |
2 | ||
| 72127E - COVER, SEAT TRACK BRACKET, INNER FRONT | ||||
| 72127-12010B0 |
SXA1# BLUISH GRAY,TRIM1# |
2 | ||
| 72127-12010P0 |
SXA11..ARL,EUR,GCC SHADOW GRAY,TRIM10,11,12 |
2 | ||
| 72127-12010P0 |
SXA11 SHADOW GRAY,TRIM10,12 |
2 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-20040 |
SXA11;SXA10..RHD;SXA10..LHD..MTM;SXA10..LHD..ATM..(EUR,GCC) |
4 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-20040 |
SXA11;SXA10..RHD;SXA10..LHD..MTM;SXA10..LHD..ATM..(EUR,GCC) |
4 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-20040 |
SXA11;SXA10..RHD;SXA10..LHD..MTM;SXA10..LHD..ATM..(EUR,GCC) |
4 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-20040 |
SXA11;SXA10..RHD;SXA10..LHD..MTM;SXA10..LHD..ATM..(EUR,GCC) |
4 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-42010B0 |
SXA1# BLUISH GRAY,TRIM1# |
1 | ||
| 72137-42010B1 |
SXA11..ARL,EUR,GCC SHADOW GRAY,TRIM10,11,12 |
1 | ||
| 72137-42010B1 |
SXA11 SHADOW GRAY,TRIM10,12 |
1 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72137-42010B0 |
SXA1# BLUISH GRAY,TRIM1# |
1 | ||
| 72137-42010B1 |
SXA11..ARL,EUR,GCC SHADOW GRAY,TRIM10,11,12 |
1 | ||
| 72137-42010B1 |
SXA11 SHADOW GRAY,TRIM10,12 |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-10060B1 |
SXA11..ARL,EUR,GCC SHADOW GRAY,TRIM10,1#,12 |
1 | ||
| 72157-10060B1 |
SXA11 SHADOW GRAY,TRIM10,12 |
1 | ||
| 72157-10060B0 |
SXA1# BLUISH GRAY,TRIM1# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-10030B1 |
SXA11 SHADOW GRAY,TRIM10,12 |
1 | ||
| 72158-10030B0 |
SXA1# BLUISH GRAY,TRIM1# |
1 | ||
| 72158-10030B1 |
SXA11..ARL,EUR,GCC SHADOW GRAY,TRIM10,1#,12 |
1 | ||
| 72201A - HANDLE SUB-ASSY, SEAT TRACK RH | ||||
| 72201-42010 |
SXA1# |
2 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-42010 |
SXA1# |
1 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-42010 |
SXA1# |
1 | ||
| 72501D - PIPE SUB-ASSY, RECLINING CONNECTING, RH | ||||
| 72501-42030 |
SXA1# |
2 | ||
| 72501-42010 |
SXA1# |
1 | ||
| 72501E - PIPE SUB-ASSY, RECLINING CONNECTING, LH | ||||
| 72501-42010 |
SXA1# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-10040B0 |
SXA1# BLUISH GRAY,TRIM1# |
1 | ||
| 72525-10041P0 |
SXA11 GRAY,TRIM10,12 |
1 | ||
| 72525-10041P0 |
SXA11..ARL,EUR,GCC GRAY,TRIM10,11,12 |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-10040B0 |
SXA1# BLUISH GRAY,TRIM1# |
1 | ||
| 72526-10041P0 |
SXA11 GRAY,TRIM10,12 |
1 | ||
| 72526-10041P0 |
SXA11..ARL,EUR,GCC GRAY,TRIM10,11,12 |
1 | ||
| Common parts | ||||
| 82711-12120 | ||||
| 82711-42050 | ||||
| 90119-08080 | ||||
| 90119-08700 | ||||
| 90119-10349 | ||||
| 90149-40015 | ||||
| 90167-40044 | ||||
| 91511-60816 | ||||
| 91515-61025 | ||||
| 93269-54006 | ||||
| 93568-54516 | ||||
ILLUST NO. 2 OF 3(9511- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12120 | ||||
| 82711-42050 | ||||
| 90119-08080 | ||||
| 90119-08700 | ||||
| 90119-10349 | ||||
| 90149-40015 | ||||
| 90167-40044 | ||||
| 91511-60816 | ||||
| 91515-61025 | ||||
| 93269-54006 | ||||
| 93568-54516 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
