SXA11L-AWMGKV (1997)
Toyota Rav4
Production
Sep 1997
-
Aug 2000
Engine
3SFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9404- )

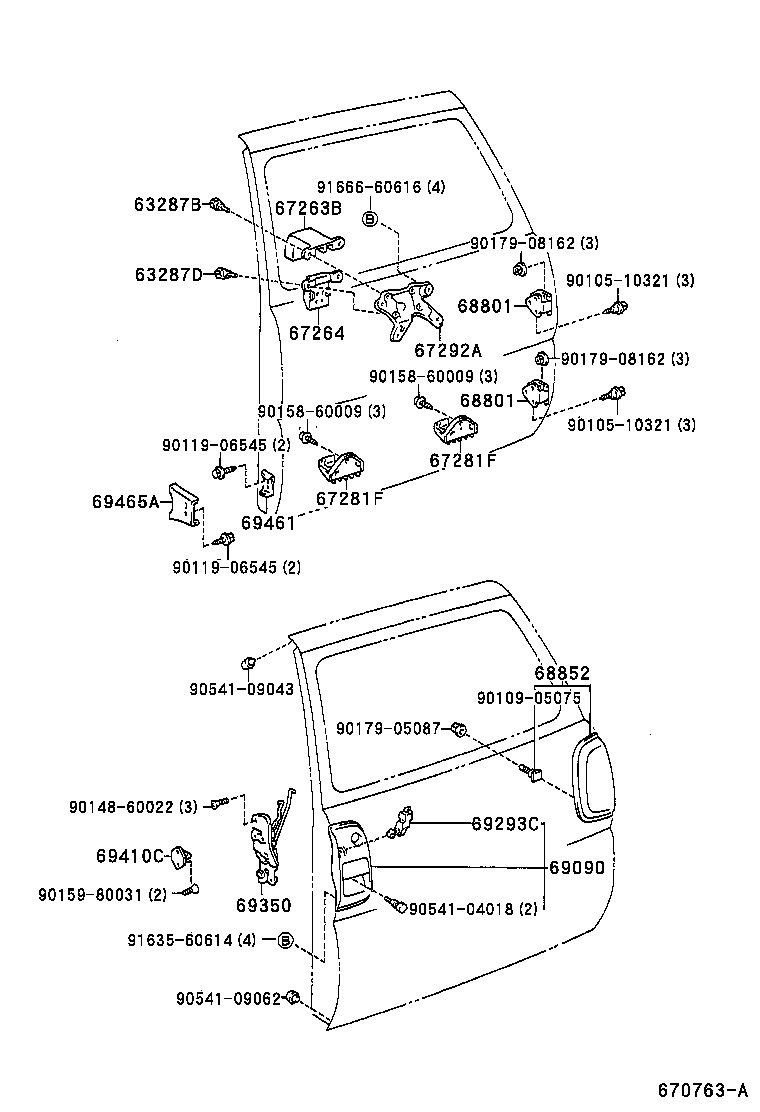

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68801 - HINGE SUB-ASSY, BACK DOOR, UPPER RH | ||||
| 68801-42020 |
SXA1# |
2 | ||
| 68801 - HINGE SUB-ASSY, BACK DOOR, UPPER RH | ||||
| 68801-42020 |
SXA1# |
2 | ||
| 68852 - COVER, BACK DOOR HINGE | ||||
| 68851-42010 |
SXA1# |
1 | ||
| 69090 - HANDLE ASSY, BACK DOOR, OUTSIDE | ||||
| 69090-42010 |
SXA1# |
1 | ||
| 69293C - SNAP, BACK DOOR HANDLE | ||||
| 69293-12030 |
SXA1# |
1 | ||
| 69350 - LOCK ASSY, BACK DOOR | ||||
| 69110-42010 |
SXA1#..GCC,GEN W(POWER DOOR LOCK) |
1 | ||
| 69350-42011 |
SXA1#..EUR,GCC,GEN |
1 | ||
| 69350-42010 |
SXA1#..GCC,GEN |
1 | ||
| 69410C - PLATE ASSY, BACK DOOR LOCK STRIKER | ||||
| 69410-20070 |
SXA1# |
1 | ||
| 69461 - STOPPER, BACK DOOR SIDE MALE, RH | ||||
| 69461-42010 |
SXA1# |
1 | ||
| 69465A - STOPPER, BACK DOOR SIDE FEMALE | ||||
| 69465-42010 |
SXA1# |
1 | ||
| Common parts | ||||
| 90105-10321 | ||||
| 90109-05075 | ||||
| 90119-06545 | ||||
| 90148-60022 | ||||
| 90158-60009 | ||||
| 90159-80031 | ||||
| 90179-05087 | ||||
| 90179-08162 | ||||
| 90541-04018 | ||||
| 90541-09043 | ||||
| 90541-09062 | ||||
| 91635-60614 | ||||
| 91666-60616 | ||||
(9511- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68801 - HINGE SUB-ASSY, BACK DOOR, UPPER RH | ||||
| 68801-42020 |
SXA1# |
2 | ||
| 68801 - HINGE SUB-ASSY, BACK DOOR, UPPER RH | ||||
| 68801-42020 |
SXA1# |
2 | ||
| 68852 - COVER, BACK DOOR HINGE | ||||
| 68851-42010 |
SXA1# |
1 | ||
| 69090 - HANDLE ASSY, BACK DOOR, OUTSIDE | ||||
| 69090-42010 |
SXA1# |
1 | ||
| 69293C - SNAP, BACK DOOR HANDLE | ||||
| 69293-12030 |
SXA1# |
1 | ||
| 69350 - LOCK ASSY, BACK DOOR | ||||
| 69110-42010 |
SXA1#..GCC,GEN W(POWER DOOR LOCK) |
1 | ||
| 69350-42011 |
SXA1#..EUR,GCC,GEN |
1 | ||
| 69350-42010 |
SXA1#..GCC,GEN |
1 | ||
| 69410C - PLATE ASSY, BACK DOOR LOCK STRIKER | ||||
| 69410-20070 |
SXA1# |
1 | ||
| 69461 - STOPPER, BACK DOOR SIDE MALE, RH | ||||
| 69461-42010 |
SXA1# |
1 | ||
| 69465A - STOPPER, BACK DOOR SIDE FEMALE | ||||
| 69465-42010 |
SXA1# |
1 | ||
| Common parts | ||||
| 90105-10321 | ||||
| 90109-05075 | ||||
| 90119-06545 | ||||
| 90148-60022 | ||||
| 90158-60009 | ||||
| 90159-80031 | ||||
| 90179-05087 | ||||
| 90179-08162 | ||||
| 90541-04018 | ||||
| 90541-09043 | ||||
| 90541-09062 | ||||
| 91635-60614 | ||||
| 91666-60616 | ||||
