SXA11L-AWMGKV (1997)
Toyota Rav4
ILLUST NO. 2 OF 2(9404- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64818B - SPACER, BACK DOOR GLASS, NO.1 | ||||
| 64818-42010 |
SXA1#..HT |
1 | ||
| 64819 - SPACER, BACK WINDOW GLASS, NO.2 | ||||
| 64819-42010 |
SXA1#..HT |
1 | ||
| 67005 - PANEL SUB-ASSY, BACK DOOR | ||||
| 67005-42080 |
SXA1#..ARL,GCC,GEN |
1 | ||
| 67005 - PANEL SUB-ASSY, BACK DOOR | ||||
| 67005-42080 |
SXA1#..ARL,GCC,GEN |
1 | ||
| 67847A - COVER, BACK DOOR SERVICE HOLE | ||||
| 67847-42010 |
SXA1# |
1 | ||
| 67881A - WEATHERSTRIP, BACK DOOR | ||||
| 67881-42010 |
SXA1# |
1 | ||
| 67881A - WEATHERSTRIP, BACK DOOR | ||||
| 67881-42010 |
SXA1# |
1 | ||
| 68131 - GLASS, BACK DOOR | ||||
| 68131-42060 |
SXA1#..HT *EHTT,T=3.1,GREEN |
1 | ||
| 68611A - BASE, BACK DOOR CHECK | ||||
| 68611-42010 |
SXA1# |
1 | ||
| 68617B - PIN, BACK DOOR CHECK | ||||
| 68617-50010 |
SXA1# |
1 | ||
| 68650 - CHECK ASSY, BACK DOOR | ||||
| 68650-42010 |
SXA1# |
1 | ||
| 75081A - PANEL SUB-ASSY, BACK DOOR FINISH | ||||
| 75081-42040 |
SXA1#..ARL,GCC,GEN |
1 | ||
| Common parts | ||||
| 67869-30050 | ||||
| 90119-06473 | ||||
| 90179-05102 | ||||
| 90179-06224 | ||||
| 90333-25001 | ||||
| 90333-35004 | ||||
| 90467-11063 | ||||
| 90950-01620 | ||||

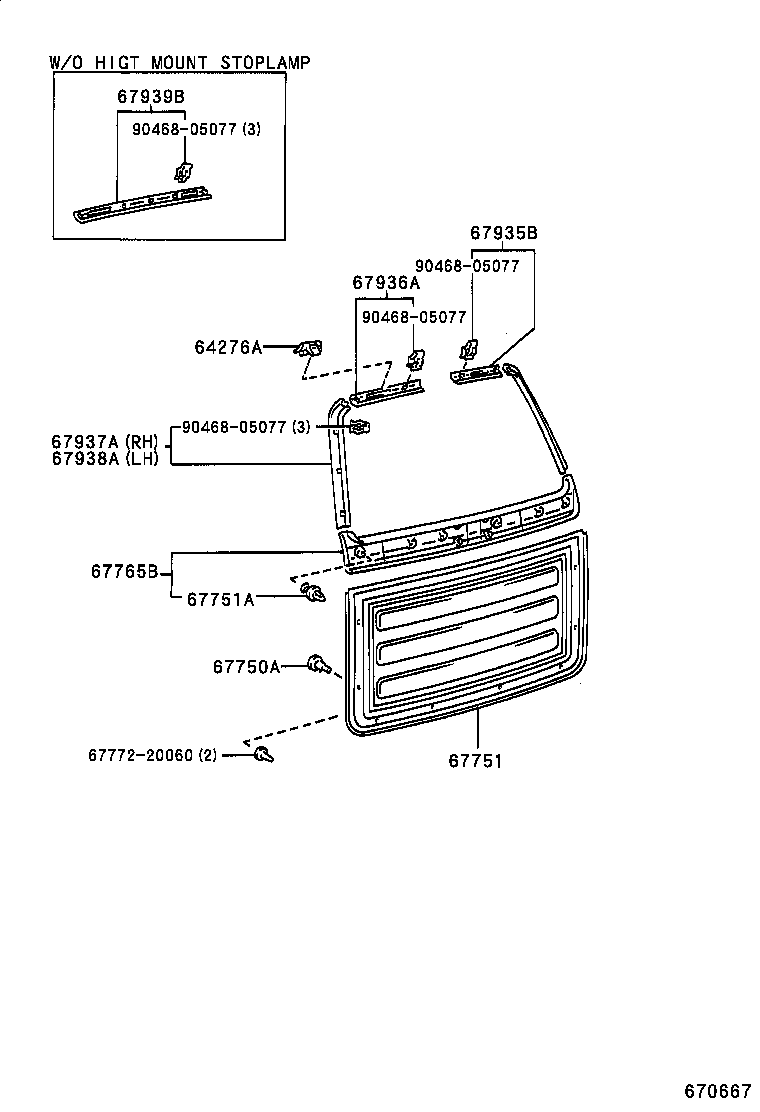

ILLUST NO. 1 OF 2(9404- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64276A - BRACKET, BACK PANEL TRIM, UPPER | ||||
| 64276-42010 |
SXA1#..HT |
2 | ||
| 67750A - CLIP(FOR BACK DOOR TRIM) | ||||
| 90467-07121B2 |
SXA11..ARL,EUR,GCC SHADOW GRAY,TRIM10,11,12 |
11 | ||
| 90467-07121B0 |
SXA1# BLUISH GRAY,TRIM1# |
11 | ||
| 90467-07121B2 |
SXA11 SHADOW GRAY,TRIM10,12 |
11 | ||
| 67751 - BOARD, BACK DOOR TRIM | ||||
| 67751-42010B1 |
SXA11..ARL,EUR,GCC SHADOW GRAY,TRIM10,11,12 |
1 | ||
| 67751-42010B1 |
SXA11 SHADOW GRAY,TRIM10,12 |
1 | ||
| 67751A - CLIP(FOR BACK DOOR TRIM BOARD) | ||||
| 90467-10161 |
SXA1# |
6 | ||
| 67765B - COVER, BACK DOOR TRIM, UPPER | ||||
| 67765-42010B1 |
SXA11 SHADOW GRAY,TRIM10,12 |
1 | ||
| 67765-42010B1 |
SXA11..ARL,EUR,GCC SHADOW GRAY,TRIM10,11,12 |
1 | ||
| 67935B - GARNISH, BACK DOOR | ||||
| 67935-42010B0 |
SXA1#..ARL,GCC,GEN BLUISH GRAY,TRIM1# |
1 | ||
| 67935-42010B1 |
SXA11 SHADOW GRAY,TRIM10,12 |
1 | ||
| 67935-42010B1 |
SXA11..ARL,EUR,GCC SHADOW GRAY,TRIM10,11,12 |
1 | ||
| 67936A - GARNISH, BACK DOOR, LH | ||||
| 67936-42010B1 |
SXA11..ARL,EUR,GCC SHADOW GRAY,TRIM10,11,12 |
1 | ||
| 67936-42010B1 |
SXA11 SHADOW GRAY,TRIM10,12 |
1 | ||
| 67936-42010B0 |
SXA1#..ARL,GCC,GEN BLUISH GRAY,TRIM1# |
1 | ||
| 67937A - GARNISH, BACK DOOR SIDE | ||||
| 67937-42010B1 |
SXA11 SHADOW GRAY,TRIM10,12 |
1 | ||
| 67937-42010B1 |
SXA11..ARL,EUR,GCC SHADOW GRAY,TRIM10,11,12 |
1 | ||
| 67937-42010B0 |
SXA1# BLUISH GRAY,TRIM1# |
1 | ||
| 67938A - GARNISH, BACK DOOR SIDE, LH | ||||
| 67938-42010B0 |
SXA1# BLUISH GRAY,TRIM1# |
1 | ||
| 67938-42010B1 |
SXA11 SHADOW GRAY,TRIM10,12 |
1 | ||
| 67938-42010B1 |
SXA11..ARL,EUR,GCC SHADOW GRAY,TRIM10,11,12 |
1 | ||
| 67939B - GARNISH, BACK DOOR, CENTER | ||||
| 67939-42010B0 |
SXA1#..EUR,GCC,GEN BLUISH GRAY,TRIM1# |
1 | ||
| 67939-42010B1 |
SXA11..GCC,GEN SHADOW GRAY,TRIM10,12 |
1 | ||
| 67939-42010B1 |
SXA11..GCC SHADOW GRAY,TRIM10,1#,12 |
1 | ||
| Common parts | ||||
| 67772-20060 | ||||
| 90468-05077 | ||||
ILLUST NO. 2 OF 2(9511- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 67869-30050 | ||||
| 90119-06473 | ||||
| 90179-05102 | ||||
| 90179-06224 | ||||
| 90333-25001 | ||||
| 90333-35004 | ||||
| 90467-11063 | ||||
| 90950-01620 | ||||

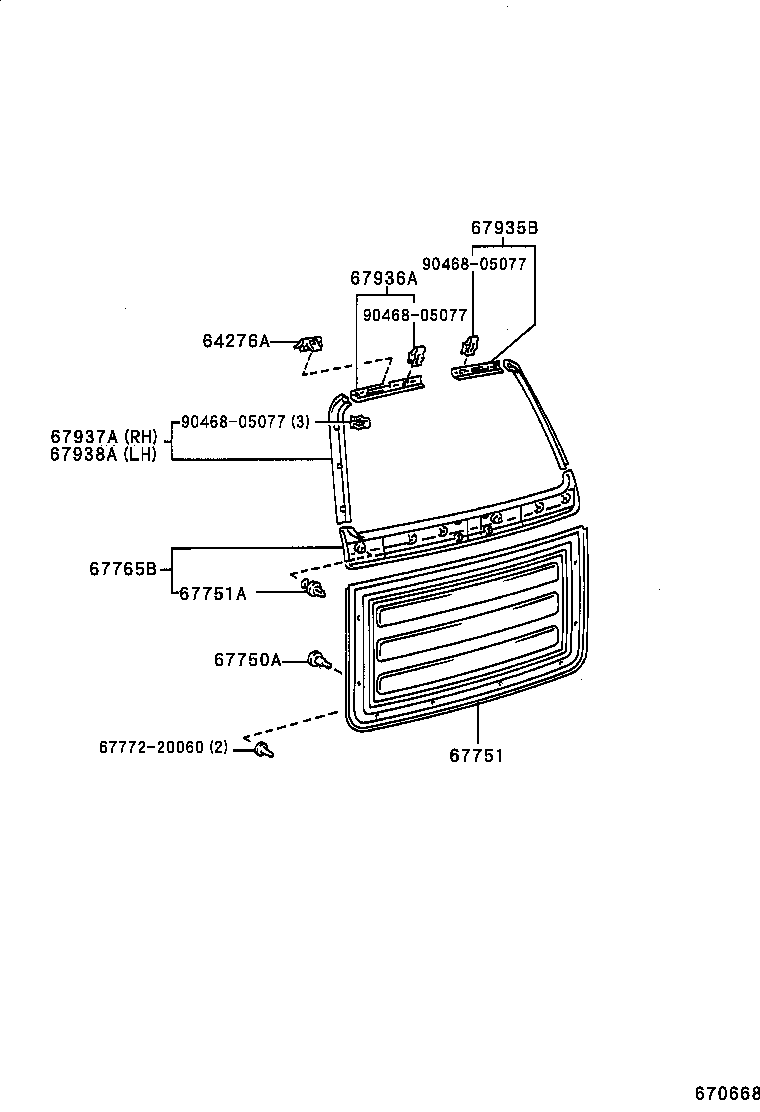

ILLUST NO. 1 OF 2(9511- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 67772-20060 | ||||
| 90468-05077 | ||||
