SXA11L-AWMGKV (1997)

Toyota Rav4

Production Sep 1997 - Aug 2000
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9511- )SXA11,16

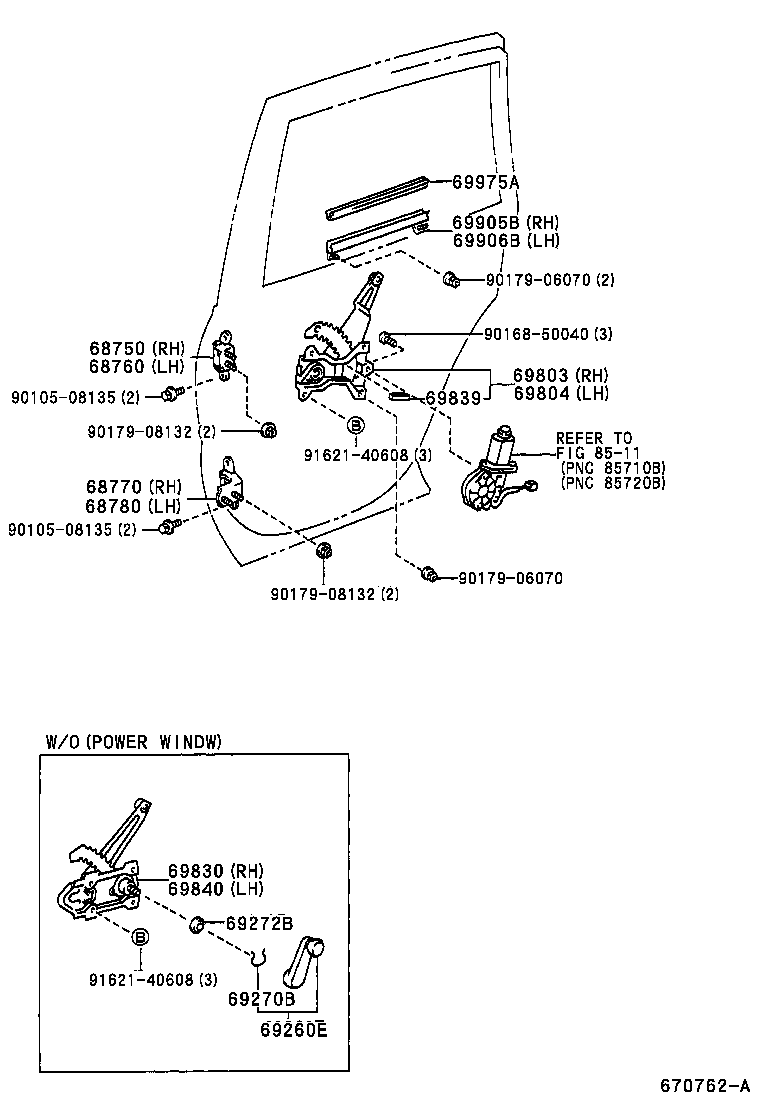

Click highlighted areas on diagram

diagram 68750 68760 68770 68780 69260E 69270B 69272B 69803 69804 69830 69839 69840 69905B 69906B 69975A 8511 9010508135 9010508135 9016850040 9017906070 9017906070 9017908132 9017908132 9162140608 9162140608
Part # Description Qty Price
69260E - HANDLE ASSY, REAR DOOR WINDOW REGULATOR
69260-20090B1

SXA11

SHADOW GRAY,TRIM10,12

 2
69260-20090B1

SXA11..ARL,GCC,GEN

SHADOW GRAY,TRIM10,12

 2
69270B - RING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)
90520-01274

SXA11

 2
69272B - PLATE, REAR DOOR REGULATOR INSIDE HANDLE
69285-2201008

SXA11

NATURAL WHITE,TRIM10,12

 2
69285-2201008

SXA11..ARL,EUR,GCC

NATURAL WHITE,TRIM10,11,12

 2
Common parts
90105-08135
90168-50040
90179-06070
90179-08132
91621-40608
Linked diagrams
8511
