SXA11L-AWMGKV (1997)

Toyota Rav4

Production Sep 1997 - Aug 2000
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9511- )SXA11,16

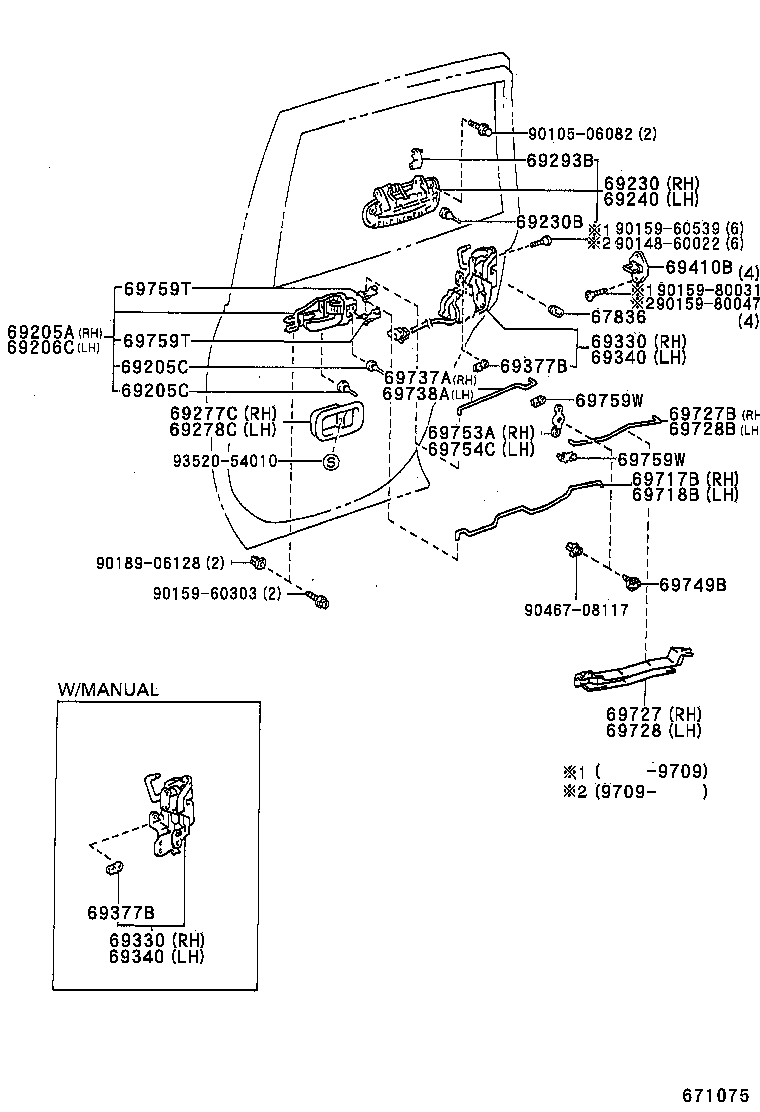

Click highlighted areas on diagram

diagram 67836 69205A 69205C 69205C 69206C 69230 69230B 69240 69277C 69278C 69293B 69330 69330 69340 69340 69377B 69377B 69410B 69717B 69718B 69727 69727B 69728 69728B 69737A 69738A 69749B 69753A 69754C 69759T 69759T 69759W 69759W 9010506082 9014860022 9015960303 9015960539 9015980031 9015980047 9018906128 9046708117 9352054010
Part # Description Qty Price
69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69205-42010B1

SXA11

SHADOW GRAY,TRIM10,12

 1
69205-42010B1

SXA11..ARL,EUR,GCC

SHADOW GRAY,TRIM10,1#,12

 1
69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69206-42010B1

SXA11..ARL,EUR,GCC

SHADOW GRAY,TRIM10,1#,12

 1
69206-42010B1

SXA11

SHADOW GRAY,TRIM10,12

 1
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69230-42010

SXA11

 1
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69240-42010

SXA11

 1
69277C - BEZEL, REAR DOOR INSIDE HANDLE, RH
69277-22070B1

SXA11

SHADOW GRAY,TRIM10,12

 1
69277-22070B1

SXA11..ARL,EUR,GCC

SHADOW GRAY,TRIM10,1#,12

 1
69278C - BEZEL, REAR DOOR INSIDE HANDLE, LH
69278-22030B1

SXA11..ARL,EUR,GCC

SHADOW GRAY,TRIM10,1#,12

 1
69278-22030B1

SXA11

SHADOW GRAY,TRIM10,12

 1
69410B - PLATE ASSY, REAR DOOR LOCK STRIKER
69410-87001

SXA11

 2
Common parts
90105-06082
90148-60022
90159-60303
90159-60539
90159-80031
90159-80047
90189-06128
90467-08117
93520-54010
