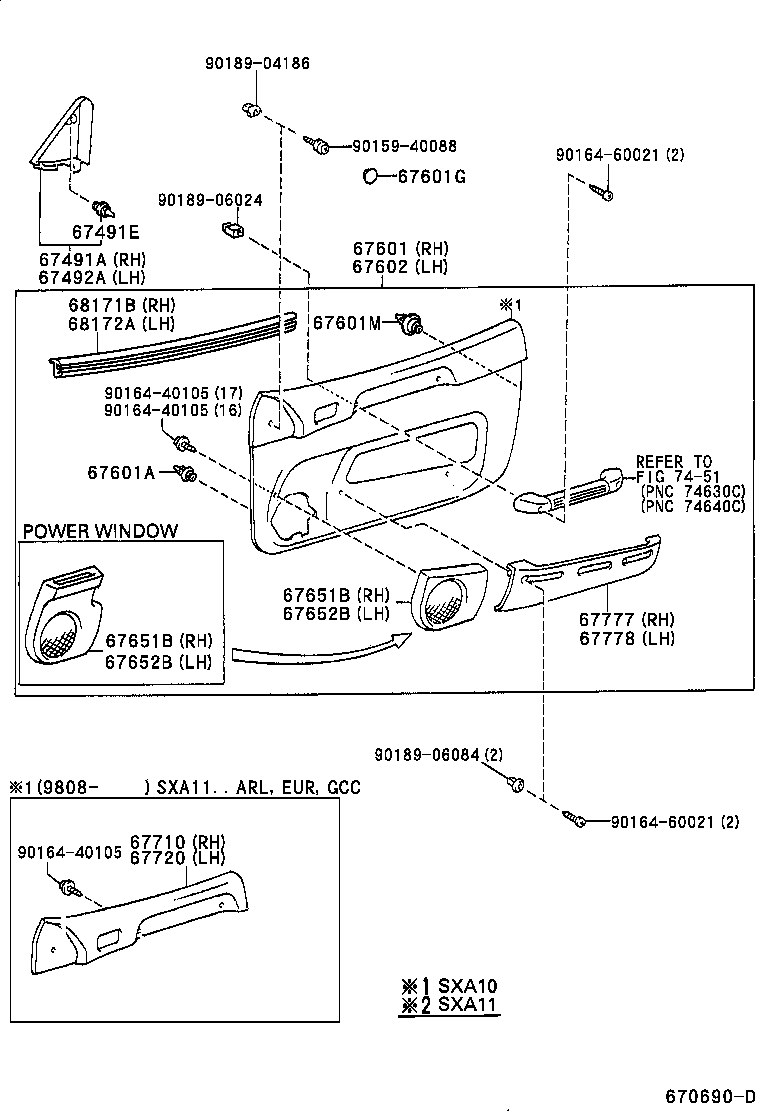

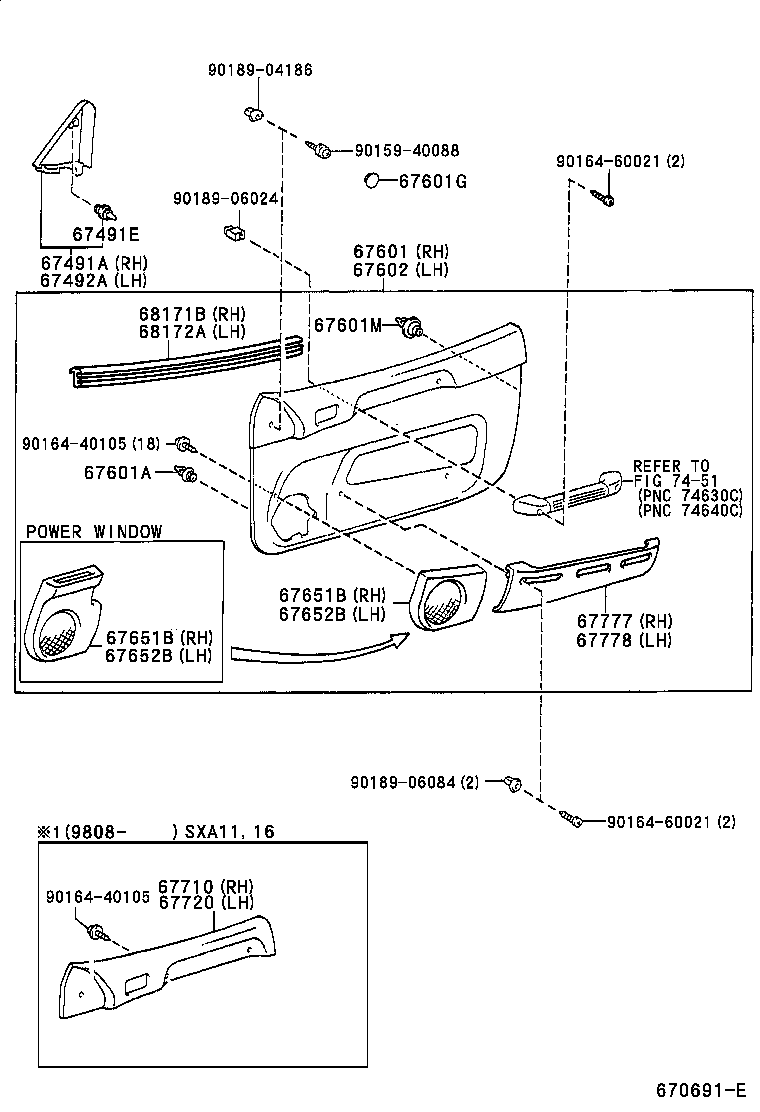

Toyota Rav4 SXA11 FRONT DOOR PANEL & GLASS

Part #	Description	Period	Qty
67491E - RETAINER, DOOR TRIM
67771-30070	SXA1#	04/1994 - 10/1999	2
90467-10167	SXA11	10/1999 - 12/2999	2
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-42300B1	SXA11 SHADOE GRAY,TRIM12	09/1997 - 12/2999	1
67610-42500B0	SXA11..ARL,EUR,GCC SHADOW GRAY,TRIM11	08/1998 - 12/2999	1
67610-42310B1	SXA11 W(POWER WINDOW),SHADOW GRAY,TRIM12	09/1997 - 12/2999	1
67610-42310B0	SXA11 W(POWER WINDOW),SHADOW GRAY,TRIM10	09/1997 - 12/2999	1
67610-42300B0	SXA11 SHADOE GRAY,TRIM10	09/1997 - 12/2999	1
67601A - RETAINER(FOR FRONT DOOR TRIM BOARD)
67771-20110	SXA1# GREEN	09/1997 - 02/1998	16
67771-16080	SXA11 WHITE	09/1997 - 02/1998	12
67771-20110	SXA11 GREEN	02/1998 - 12/2999	20
67771-16080	SXA11 WHITE	02/1998 - 12/2999	8
67601G - PLUG, HOLE(FOR FRONT DOOR TRIM BOARD)
90950-01746P0	SXA11..ARL,EUR,GCC SHADOW GRAY,TRIM10,11,12	08/1998 - 08/2000	2
90950-01746P0	SXA11 SHADOW GRAY,TRIM10,12	09/1997 - 08/1998	2
90950-01746B1	SXA1# BLUISH GRAY,TRIM1#	04/1994 - 09/1997	2
67601M - RETAINER, DOOR TRIM, NO.2
67771-33020	SXA11	09/1997 - 12/2999	2
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-42300B1	SXA11 W/O(POWER WINDOW),SHADOW GRAY,TRIM12	09/1997 - 12/2999	1
67620-42310B0	SXA11 W(POWER WINDOW),SHADOW GRAY,TRIM10	09/1997 - 12/2999	1
67620-42500B0	SXA11..ARL,EUR,GCC SHADOW GRAY,TRIM11	08/1998 - 12/2999	1
67620-42310B1	SXA11 W(POWER WINDOW),SHADOW GRAY,TRIM12	09/1997 - 12/2999	1
67620-42300B0	SXA11 W/O(POWER WINDOW),SHADOW GRAY,TRIM10	09/1997 - 12/2999	1
67651B - GRILLE, SPEAKER DOOR, RH
67651-42010B0	SXA1# W/O(POWER WINDOW),BLUISH GRAY,TRIM1#	04/1994 - 09/1997	1
67651-42020B1	SXA11 W(POWER WINDOW),SHADOW GRAY,TRIM10,12	09/1997 - 08/1998	1
67651-42020B0	SXA1# W(POWER WINDOW),BLUISH GRAY,TRIM1#	04/1994 - 09/1997	1
67651-42010B1	SXA11 W/O(POWER WINDOW),SHADOW GRAY,TRIM10,12	09/1997 - 08/2000	1
67651-42020B1	SXA11..ARL,GCC,GEN W(POWER WINDOW),SHADOW GRAY,TRIM10,12	08/1998 - 08/2000	1
67651B - GRILLE, SPEAKER DOOR, RH
67651-42010B0	SXA1# W/O(POWER WINDOW),BLUISH GRAY,TRIM1#	04/1994 - 09/1997	1
67651-42020B1	SXA11 W(POWER WINDOW),SHADOW GRAY,TRIM10,12	09/1997 - 08/1998	1
67651-42020B0	SXA1# W(POWER WINDOW),BLUISH GRAY,TRIM1#	04/1994 - 09/1997	1
67651-42010B1	SXA11 W/O(POWER WINDOW),SHADOW GRAY,TRIM10,12	09/1997 - 08/2000	1
67651-42020B1	SXA11..ARL,GCC,GEN W(POWER WINDOW),SHADOW GRAY,TRIM10,12	08/1998 - 08/2000	1
67652B - GRILLE, SPEAKER DOOR, LH
67652-42020B1	SXA11 W(POWER WINDOW),SHADOW GRAY,TRIM10,12	09/1997 - 08/1998	1
67652-42010B0	SXA1# W/O(POWER WINDOW),BLUISH GRAY,TRIM1#	04/1994 - 09/1997	1
67652-42010B1	SXA11 W/O(POWER WINDOW),SHADOW GRAY,TRIM10,12	09/1997 - 08/2000	1
67652-42020B1	SXA11..ARL,GCC,GEN W(POWER WINDOW),SHADOW GRAY,TRIM10,12	08/1998 - 08/2000	1
67652-42020B0	SXA1# W(POWER WINDOW),BLUISH GRAY,TRIM1#	04/1994 - 09/1997	1
67652B - GRILLE, SPEAKER DOOR, LH
67652-42020B1	SXA11 W(POWER WINDOW),SHADOW GRAY,TRIM10,12	09/1997 - 08/1998	1
67652-42010B0	SXA1# W/O(POWER WINDOW),BLUISH GRAY,TRIM1#	04/1994 - 09/1997	1
67652-42010B1	SXA11 W/O(POWER WINDOW),SHADOW GRAY,TRIM10,12	09/1997 - 08/2000	1
67652-42020B1	SXA11..ARL,GCC,GEN W(POWER WINDOW),SHADOW GRAY,TRIM10,12	08/1998 - 08/2000	1
67652-42020B0	SXA1# W(POWER WINDOW),BLUISH GRAY,TRIM1#	04/1994 - 09/1997	1
67710 - PANEL ASSY, FRONT DOOR TRIM, UPPER RH
67710-42110B0	SXA11..ARL,EUR,GCC LEATHER,SHADOW GRAY,TRIM10,12	08/1998 - 08/2000	1
67720 - PANEL ASSY, FRONT DOOR TRIM, UPPER LH
67720-42110B0	SXA11..ARL,EUR,GCC SHADOW GRAY,TRIM10,12	08/1998 - 12/2999	1
67777 - POCKET, FRONT DOOR TRIM, RH
67777-42020B1	SXA11 SHADOW GRAY,TRIM10,12	09/1997 - 08/1998	1
67777-42020B1	SXA11..ARL,GCC,GEN SHADOW GRAY,TRIM10,12	08/1998 - 08/2000	1
67778 - POCKET, FRONT DOOR TRIM, LH
67778-42020B1	SXA11 SHADOW GRAY,TRIM10,12	09/1997 - 08/1998	1
67778-42020B1	SXA11..ARL,GCC,GEN SHADOW GRAY,TRIM10,12	08/1998 - 08/2000	1
Common parts
90159-40088
90164-40105
90164-60021
90189-04186
90189-06024
90189-06084
Linked diagrams

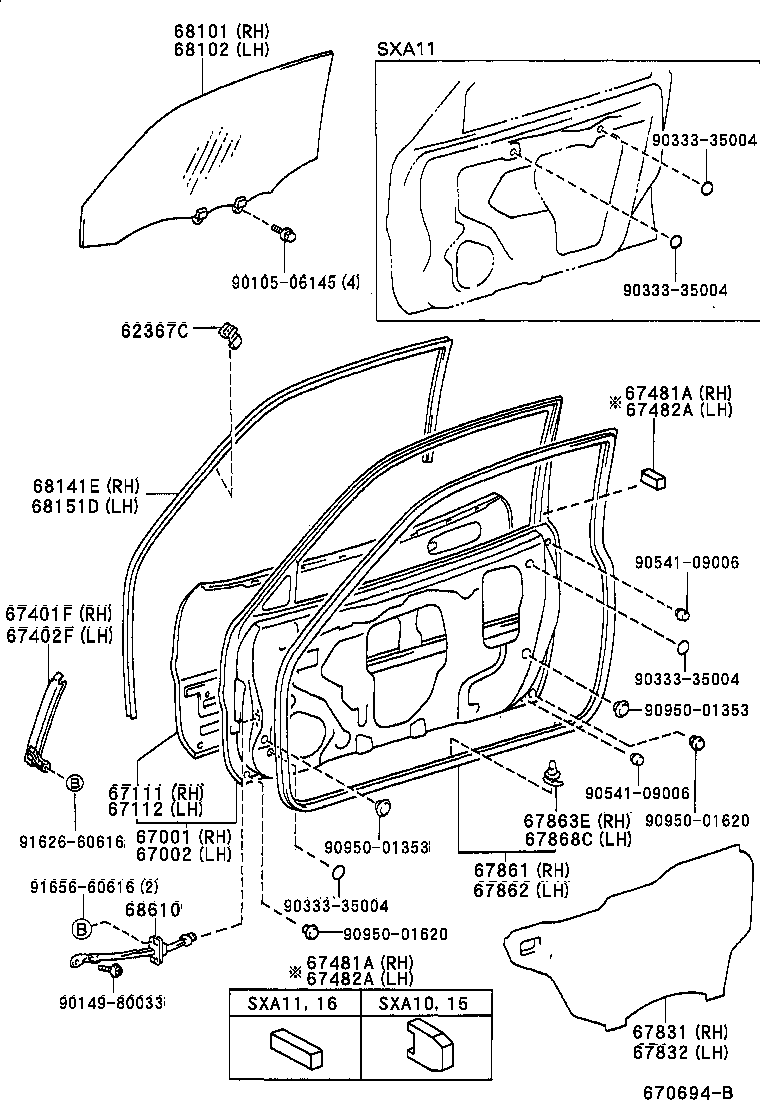

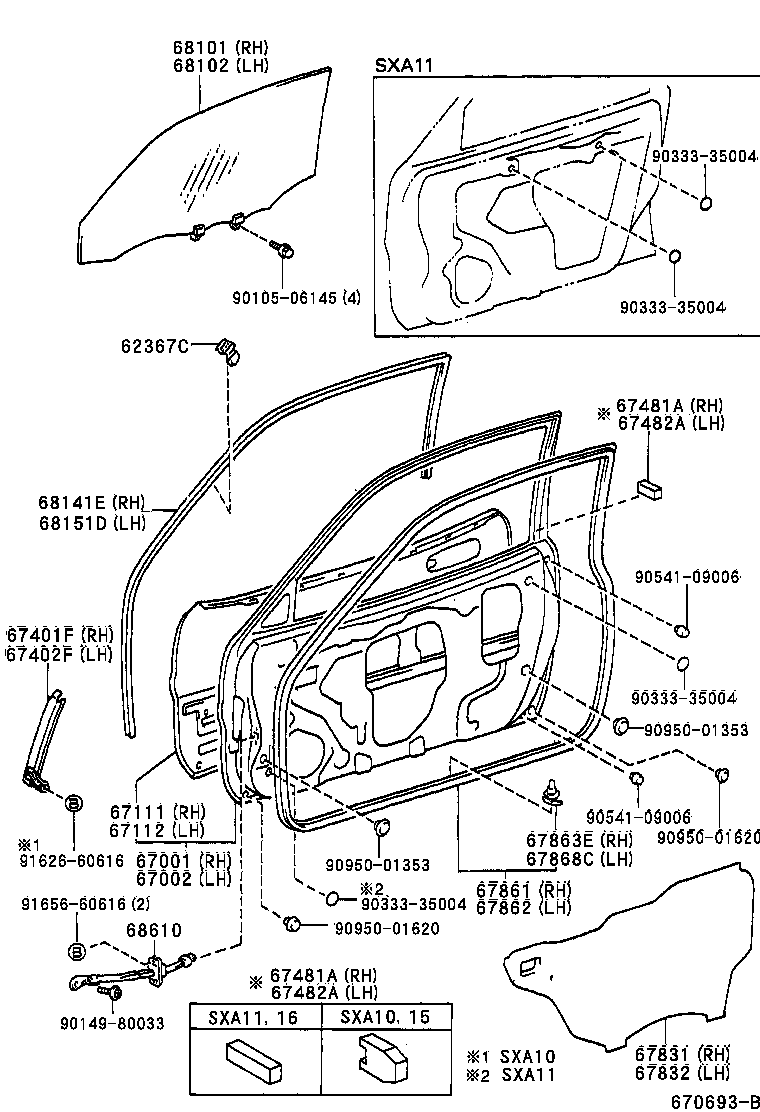

7451

Part #	Description	Period	Qty
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-42060	SXA11	09/1997 - 12/2999	1
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-42060	SXA11	09/1997 - 12/2999	1
67481A - SEAL, FRONT DOOR FRONT LOWER FRAME, RH
67481-42010	SXA11	10/1998 - 12/2999	1
67481A - SEAL, FRONT DOOR FRONT LOWER FRAME, RH
67481-42010	SXA11	10/1998 - 12/2999	1
67482A - SEAL, FRONT DOOR FRONT LOWER FRAME, LH
67481-42010	SXA11	10/1998 - 12/2999	1
67482A - SEAL, FRONT DOOR FRONT LOWER FRAME, LH
67481-42010	SXA11	10/1998 - 12/2999	1
Common parts
90105-06145
90149-80033
90333-35004
90541-09006
90950-01353
90950-01620
91626-60616
91656-60616

Part #	Description	Period	Qty	Price
Common parts
90105-06145
90149-80033
90333-35004
90541-09006
90950-01353
90950-01620
91626-60616
91656-60616

SXA11L-AWMGKV (1997)

ILLUST NO. 1 OF 2(9404- )

ILLUST NO. 2 OF 2(9404- )

ILLUST NO. 1 OF 2(9511- )

ILLUST NO. 2 OF 2(9511- )
