SXA11L-AWMGKV (1997)

Toyota Rav4

Production Sep 1997 - Aug 2000
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9511- )SXA11,16

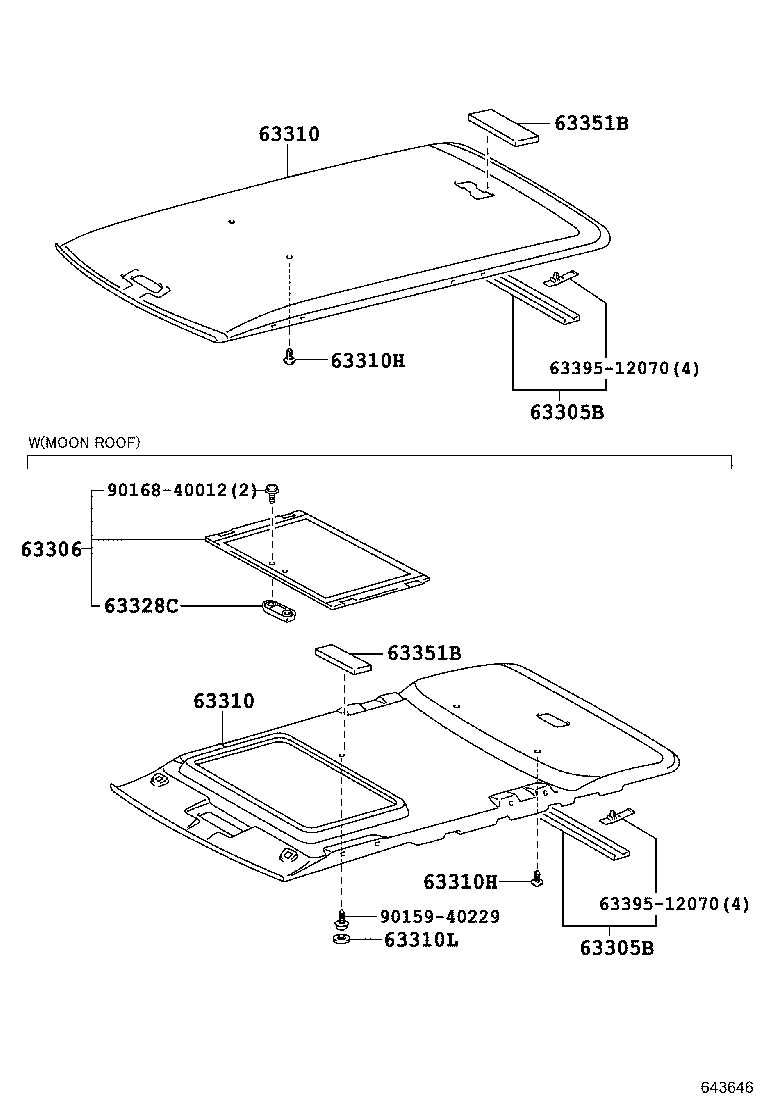

Click highlighted areas on diagram

diagram 63305B 63305B 63306 63310 63310 63310H 63310H 63310L 63328C 63351B 63351B 6339512070 6339512070 9015940229 9016840012
Part # Description Qty Price
63305B - TRIM SUB-ASSY, ROOF HEADLINING, REAR
63305-42010B1

SXA11

SHADOW GRAY,TRIM10,12

 1
63305-42010B1

SXA11..ARL,EUR,GCC

SHADOW GRAY,TRIM10,11,12

 1
63305-42010B0

SXA1#

BLUISH GRAY,TRIM1#

 1
63305B - TRIM SUB-ASSY, ROOF HEADLINING, REAR
63305-42010B1

SXA11

SHADOW GRAY,TRIM10,12

 1
63305-42010B1

SXA11..ARL,EUR,GCC

SHADOW GRAY,TRIM10,11,12

 1
63305-42010B0

SXA1#

BLUISH GRAY,TRIM1#

 1
63306 - TRIM SUB-ASSY, SUNSHADE
63306-32020B2

SXA11..ARL,EUR,GCC

LT. GRAY,TRIM10,1#,12

 1
63306-32020B2

SXA11

LT. GRAY,TRIM10,12

 1
63310 - HEADLINING ASSY, ROOF
63310-42030B1

SXA11

LT. GRAY,TRIM10,12

 1
63310-42040B1

SXA11

W(MOON ROOF),LT. GRAY,TRIM10,12

 1
63310-42040B1

SXA11..ARL,EUR,GCC

W(MOON ROOF),LT. GRAY,TRIM10,1#,12

 1
63310-42030B1

SXA11..ARL,EUR,GCC

LT. GRAY,TRIM10,1#,12

 1
63310 - HEADLINING ASSY, ROOF
63310-42030B1

SXA11

LT. GRAY,TRIM10,12

 1
63310-42040B1

SXA11

W(MOON ROOF),LT. GRAY,TRIM10,12

 1
63310-42040B1

SXA11..ARL,EUR,GCC

W(MOON ROOF),LT. GRAY,TRIM10,1#,12

 1
63310-42030B1

SXA11..ARL,EUR,GCC

LT. GRAY,TRIM10,1#,12

 1
63310H - CLIP(FOR ROOF HEADLINING)
90467-06070B4

SXA11

LT.GRAY,TRIM10,12

 2
90467-06070B4

SXA11..ARL,EUR,GCC

LT.GRAY,TRIM10,11,12

 2
63310H - CLIP(FOR ROOF HEADLINING)
90467-06070B4

SXA11

LT.GRAY,TRIM10,12

 2
90467-06070B4

SXA11..ARL,EUR,GCC

LT.GRAY,TRIM10,11,12

 2
63310L - CAP(FOR ROOF HEADLINING)
90339-10006B2

SXA11..ARL,EUR,GCC

LT.GRAY,TRIM10,1#,12

 1
90339-10006B2

SXA11

LT.GRAY,TRIM10,12

 1
63328C - KNOB, SUNSHADE TRIM
63328-33010B5

SXA11..ARL,EUR,GCC

LT.GRAY,TRIM10,1#,12

 1
63328-33010B5

SXA11

LT.GRAY,TRIM10,12

 1
63351B - PAD, ROOF HEADLINING
63351-42010

SXA1#..HT

 1
63351B - PAD, ROOF HEADLINING
63351-42010

SXA1#..HT

 1
Common parts
63395-12070
90159-40229
90168-40012
