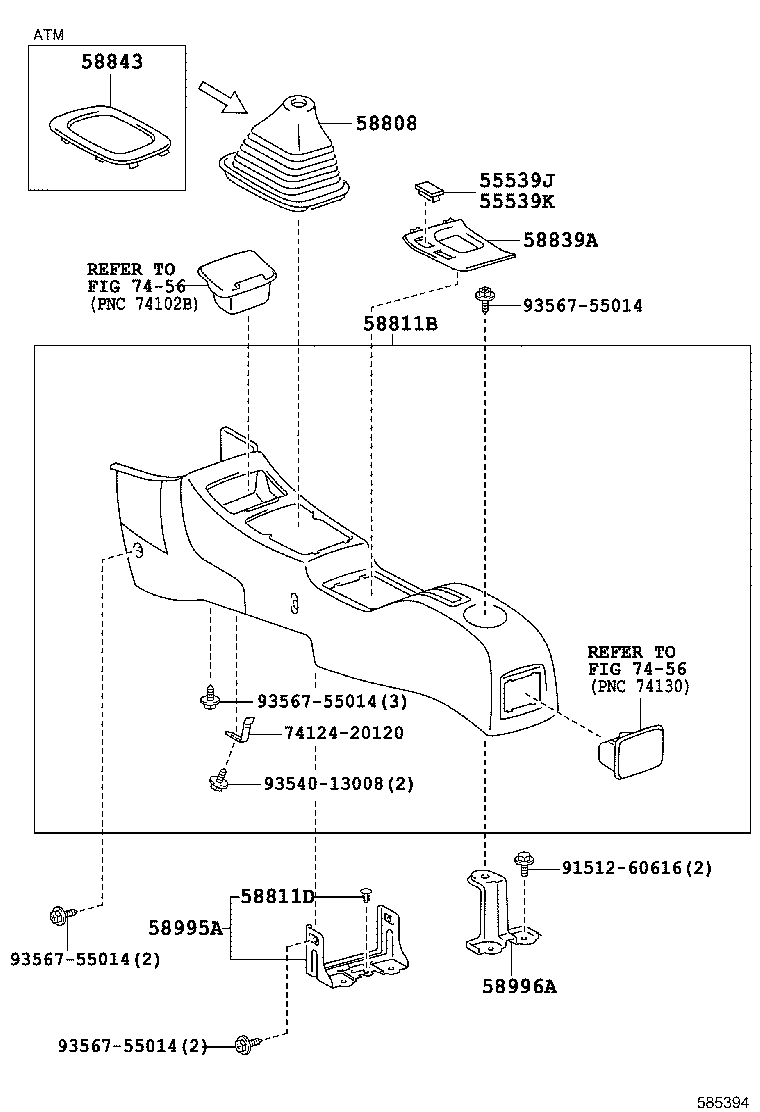

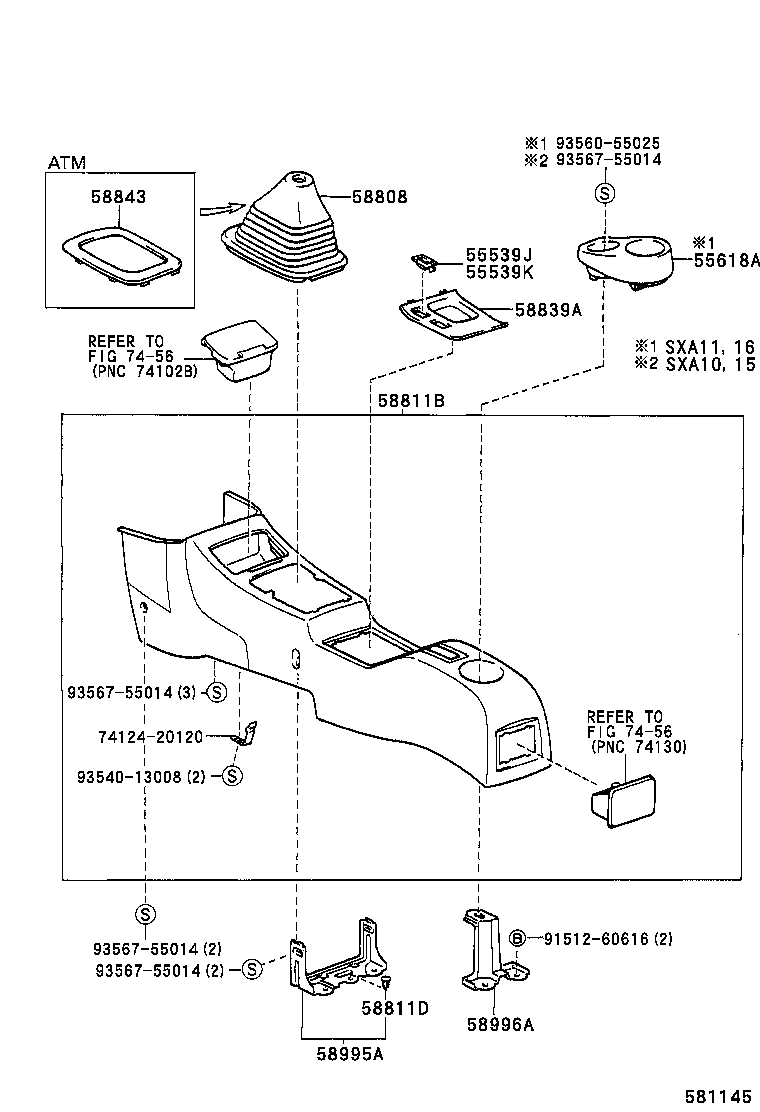

Toyota Rav4 SXA11 CONSOLE BOX & BRACKET

Part #	Description	Period	Qty
55539J - COVER, SPARE SWITCH HOLE
55539-20020P0	SXA11..ARL,EUR,GCC SHADOW GRAY,TRIM10,1#,12	08/1998 - 12/2999	1
55539-20020B1	SXA1# BLUISH GRAY,TRIM1#	04/1994 - 09/1997	1
55539-20020P0	SXA11 SHADOW GRAY,TRIM10,12	09/1997 - 08/1998	1
55539K - COVER, SPARE SWITCH HOLE
55539-20020P0	SXA11 SHADOW GRAY,TRIM10,12	09/1997 - 08/1998	1
55539-20020P0	SXA11..ARL,EUR,GCC SHADOW GRAY,TRIM10,1#,12	08/1998 - 12/2999	1
55539-20020B1	SXA1# BLUISH GRAY,TRIM1#	04/1994 - 09/1997	1
58808 - COVER SUB-ASSY, SHIFTING HOLE
58808-12112C0	SXA1#..MTM BLACK,TRIM1#	04/1994 - 09/1997	1
58808-12112C0	SXA11..MTM..(ARL,EUR,GCC) BLACK,TRIM10,1#,12	08/1998 - 12/2999	1
58808-12112C0	SXA11..MTM BLACK,TRIM10,12	09/1997 - 08/1998	1
58811B - BOX, CONSOLE
58801-42010B1	SXA11 SHADOW GRAY,TRIM10,12	09/1997 - 08/1998	1
58801-42010B0	SXA1# BLUISH GRAY,TRIM1#	04/1994 - 09/1997	1
58801-42010B1	SXA11..ARL,EUR,GCC SHADOW GRAY,TRIM10,11,12	08/1998 - 08/2000	1
58811D - CLIP(FOR CONSOLE BOX)
90467-10130	SXA1#..MTM	04/1994 - 12/2999	1
58839A - COVER, CONSOLE BOX HOLE
58839-42010B0	SXA1# BLUISH GRAY,TRIM1#	04/1994 - 09/1997	1
58839-42010B1	SXA11..ARL,EUR,GCC SHADOW GRAY,TRIM10,11,12	08/1998 - 08/2000	1
58839-42010B1	SXA11 SHADOW GRAY,TRIM10,12	09/1997 - 08/1998	1
58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1
58995-12080	SXA1#..MTM	04/1994 - 12/2999	1
58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2
58996-42010	SXA1#	04/1994 - 12/2999	1
Common parts
74124-20120
91512-60616
93540-13008
93567-55014
Linked diagrams
7456

SXA11L-AWMGKV (1997)
