5551 - INSTRUMENT PANEL & GLOVE COMPARTMENT

SXA11L-AWMGKV (1997)

Toyota Rav4

Production Sep 1997 - Aug 2000

Engine 3SFE

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

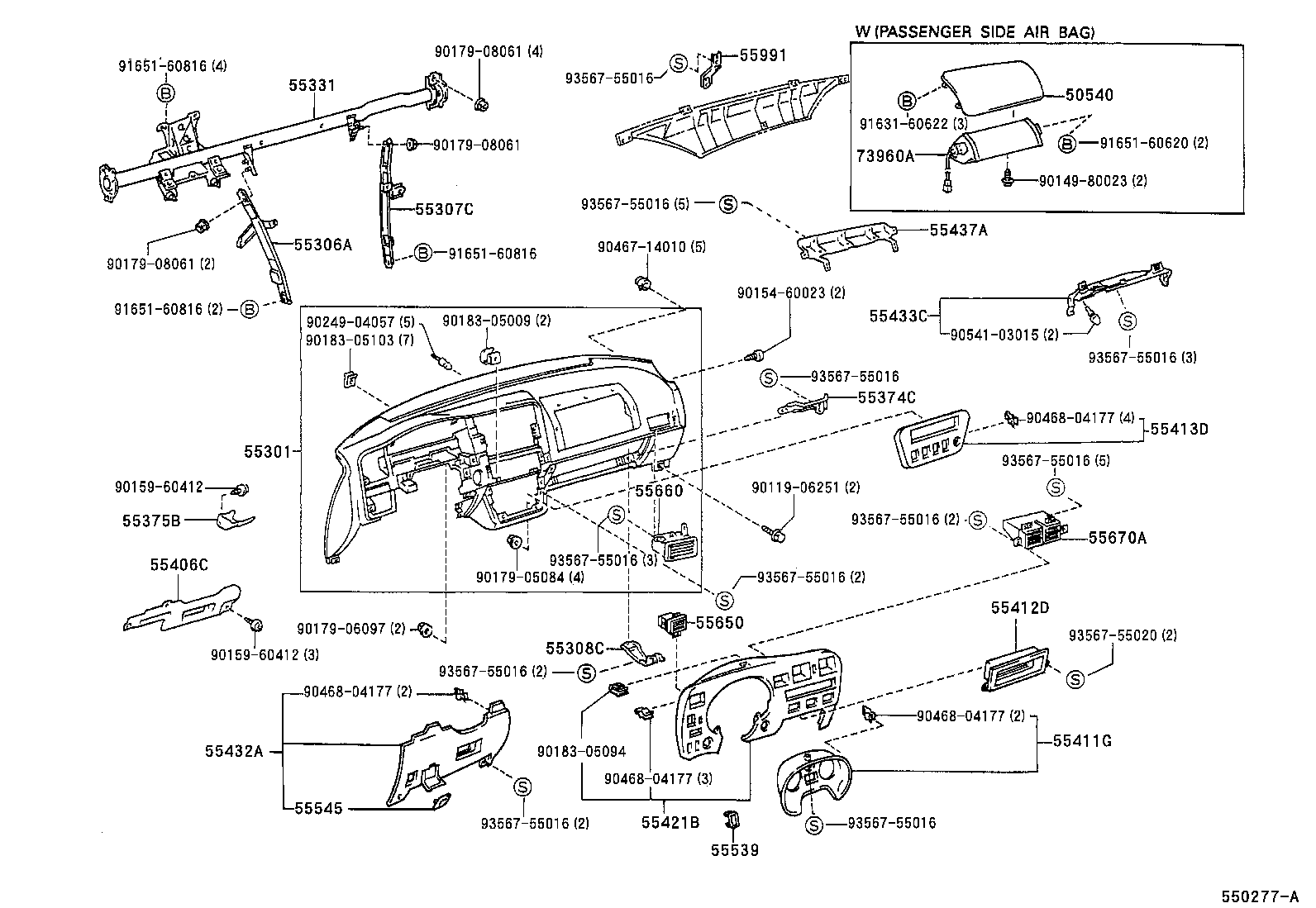

ILLUST NO. 1 OF 2(9404- )LHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
50540 - DO0R ASSY, AIR BAG PASSENGER
50540-42040B0	SXA11..LHD SHADOW GRAY,TRIM10,12	09/1997 - 08/1998	1
50540-42040B0	SXA11..LHD..(EUR,GCC) SHADOW GRAY,TRIM10,1#,12	08/1998 - 08/2000	1
55301 - PANEL SUB-ASSY, INSTRUMENT
55301-42020B0	SXA1#..LHD BLUISH GRAY,TRIM1#	04/1994 - 08/1996	1
55301-42040B1	SXA11..LHD..(EUR,GCC) SHADOW GRAY,TRIM10,12	09/1997 - 08/1998	1
55301-42040B1	SXA11..LHD..(EUR,GCC) SHADOW GRAY,TRIM10,1#,12	08/1998 - 08/2000	1
55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER
55308-42010	SXA1#	04/1994 - 08/1996	1
55331 - REINFORCEMENT, INSTRUMENT PANEL
55330-42020	SXA1#..LHD	04/1994 - 08/1996	1
55330-42110	SXA1#..LHD W(*80,DRIVER SIDE & FRONT PASSENGER SIDE)	08/1998 - 12/2999	1
55374C - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1
55374-42020	SXA1#..LHD	04/1994 - 12/2999	1
55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1
55411-42010	SXA1#	04/1994 - 12/2999	1
55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER
55412-42020C0	SXA1#..LHD..(GCC,GEN) BLACK,TRIM1#	04/1994 - 09/1997	1
55412-42020C0	SXA11..LHD..(GCC,GEN) BLACK,TRIM10,12	09/1997 - 08/1998	1
55412-42020C0	SXA11..GCC BLACK,TRIM10,1#,12	08/1998 - 08/2000	1
55413D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER LOWER
55413-42020B0	SXA1#..EUR,GCC;SXA1#..LHD..GEN BLUISH GRAY,TRIM1#	04/1994 - 09/1997	1
55413-42020B1	SXA11..EUR,GCC SHADOW GRAY,TRIM10,1#,12	08/1998 - 12/2999	1
55413-42020B1	SXA11..EUR,GCC;SXA11..LHD..GEN SHADOW GRAY,TRIM10,12	09/1997 - 08/1998	1
55421B - PANEL, INSTRUMENT CLUSTER FINISH, UPPER
55421-42020C0	SXA1#..LHD..(GCC,GEN) BLACK,TRIM1#	04/1994 - 09/1997	1
55421-42070B0	SXA11..LHD..(GCC,GEN) DARK GRAY,TRIM10,12	09/1997 - 08/1998	1
55421-42070B0	SXA11..GCC DARK GRAY,TRIM10,1#,12	08/1998 - 08/2000	1
55432A - PANEL, INSTRUMENT PANEL FINISH, LOWER RH
55432-42040B0	SXA11..LHD SHADOW GRAY,TRIM10,12	09/1997 - 08/1998	1
55432-42020B0	SXA1#..LHD BLUISH GRAY,TRIM1#	04/1994 - 09/1997	1
55432-42040B0	SXA11..LHD..(EUR,GCC) SHADOW GRAY,TRIM10,1#,12	08/1998 - 08/2000	1
55433C - PANEL, INSTRUMENT PANEL FINISH, LOWER LH
55433-42010	SXA1#	04/1994 - 12/2999	1
55545 - COVER, FUSE BOX OPENING
55545-42020B0	SXA11..LHD SHADOW GRAY,TRIM10,12	09/1997 - 08/1998	1
55545-42020B0	SXA11..LHD..(EUR,GCC) SHADOW GRAY,TRIM10,1#,12	08/1998 - 08/2000	1
55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1
55650-42020C0	SXA11..LHD..(EUR,GCC) BLACK,TRIM10,1#,12	08/1998 - 02/1999	1
55650-42020C0	SXA11..LHD BLACK,TRIM10,12	09/1997 - 08/1998	1
55650-42021C0	SXA11..LHD..(EUR,GCC) BLACK,TRIM1#	04/1999 - 08/2000	1
55650-42020C0	SXA1#..LHD BLACK,TRIM1#	04/1994 - 09/1997	1
55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2
55660-42020B0	SXA1#..LHD BLUISH GRAY,TRIM1#	04/1994 - 09/1997	1
55660-42020B1	SXA11..LHD..(EUR,GCC) SHADOW GRAY,TRIM10,1#,12	08/1998 - 08/2000	1
55660-42020B1	SXA11..LHD SHADOW GRAY,TRIM10,12	09/1997 - 08/1998	1
55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER
55670-42010C0	SXA1#..ARL,GCC,GEN BLACK,TRIM1#	04/1994 - 09/1997	1
55670-42010C0	SXA11..ARL,GCC,GEN BLACK,TRIM10,12	09/1997 - 08/1998	1
55670-42010C0	SXA11..ARL,GCC BLACK,TRIM10,11,12	08/1998 - 02/1999	1
55670-42011C0	SXA11..ARL,GCC BLACK,TRIM1#	04/1999 - 08/2000	1
55991 - BRACKET, DEFROSTER DUCT, NO.1
55991-42010	SXA1#	04/1994 - 12/2999	1
73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
73960-0W191	SXA1#..LHD	09/1997 - 12/2999	1
Common parts
90119-06251
90149-80023
90154-60023
90179-05084
90179-06097
90179-08061
90183-05009
90183-05094
90183-05103
90249-04057
90467-14010
90468-04177
90541-03015
91631-60622
91651-60620
91651-60816
93567-55016
93567-55020

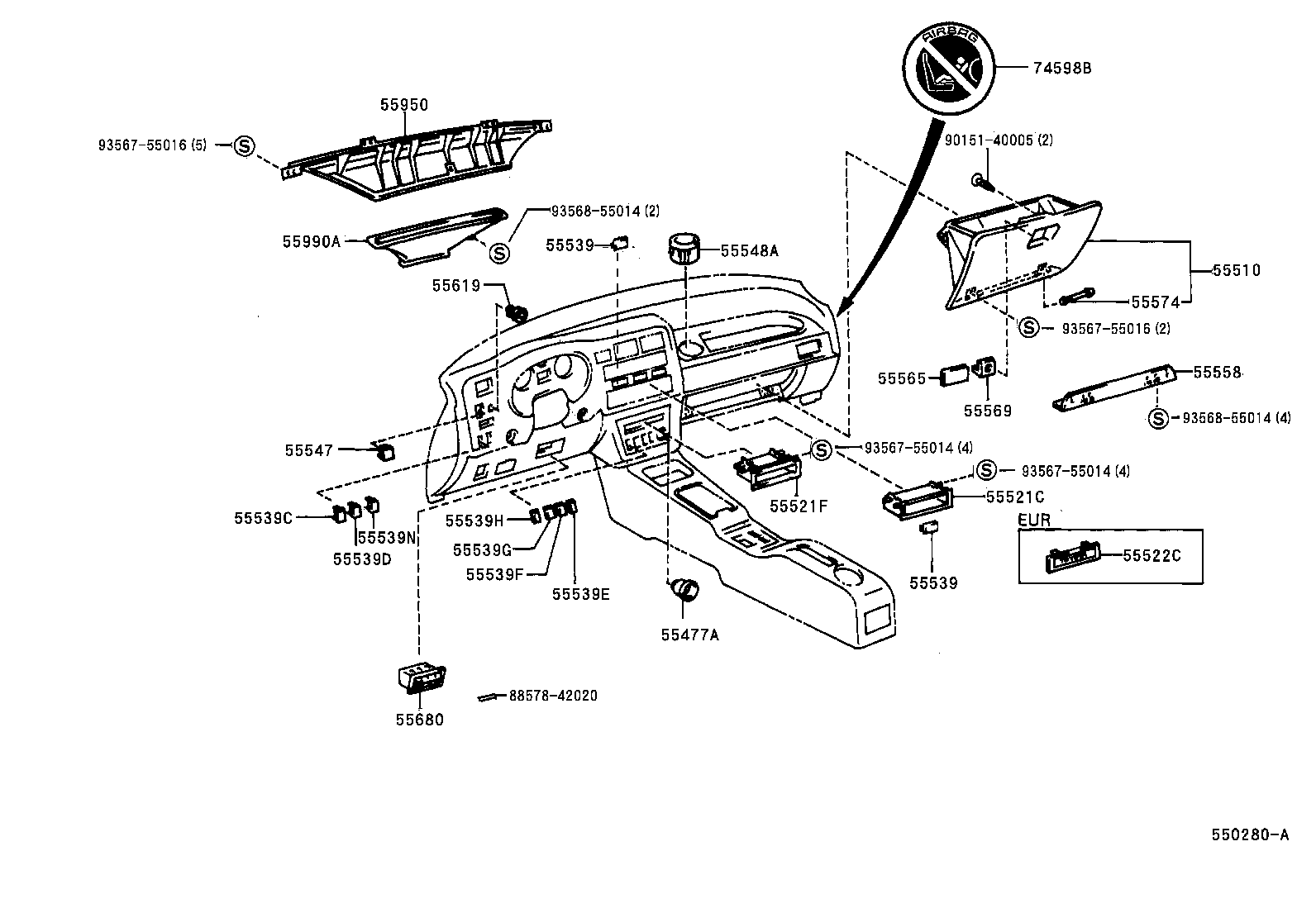

ILLUST NO. 2 OF 2(9404- )LHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
55477A - BEZEL, CIGARETTE LIGHTER HOLE
55477-33010	SXA1#	04/1994 - 12/2999	1
55510 - DOOR ASSY, GLOVE COMPARTMENT
55550-42010B0	SXA1# BLUISH GRAY,TRIM1#	04/1994 - 09/1997	1
55550-42010B1	SXA11 SHADOW GRAY,TRIM10,12	09/1997 - 08/1998	1
55550-42010B1	SXA11..ARL,EUR,GCC SHADOW GRAY,TRIM10,11,12	08/1998 - 08/2000	1
55521C - COVER, STEREO OPENING
55521-16030	SXA1#..ARL,GCC,GEN	04/1994 - 12/2999	1
55521F - COVER, STEREO OPENING, NO.2
55521-16030	SXA1#..EUR,GCC;SXA1#..LHD..GEN	04/1994 - 08/1998	1
55521-16030	SXA1#..EUR,GCC,GEN 1DIN	08/1998 - 12/2999	1
55539C - COVER, SPARE SWITCH HOLE
55539-42020	SXA1#	09/1997 - 11/1997	1
55539-32010C0	SXA1# BLACK,TRIM1#	04/1994 - 09/1997	1
55539-42021B0	SXA11..ARL,EUR,GCC DARK GRAY,TRIM10,11,12	08/1998 - 08/2000	1
55539-42021B0	SXA11 DARK GRAY,TRIM10,12	11/1997 - 08/1998	1
55539D - COVER, SPARE SWITCH HOLE
55539-42021B0	SXA11..ARL,GCC DARK GRAY,TRIM10,11,12	08/1998 - 08/2000	1
55539-42021B0	SXA11..ARL,GCC,GEN DARK GRAY,TRIM10,12	11/1997 - 08/1998	1
55539-42020	SXA1#..ARL,GCC,GEN	09/1997 - 11/1997	1
55539-32010C0	SXA1#..ARL,GCC,GEN BLACK,TRIM1#	04/1994 - 09/1997	1
55539E - COVER, SPARE SWITCH HOLE
55539-12130B0	SXA1#..EUR,GCC;SXA1#..LHD..GEN BLUISH GRAY,TRIM1#	04/1994 - 09/1997	1
55539-12130B1	SXA11..EUR,GCC;SXA11..LHD..GEN SHADOW GRAY,TRIM10,12	09/1997 - 08/1998	1
55539-12130B1	SXA11..EUR,GCC SHADOW GRAY,TRIM10,1#,12	08/1998 - 12/2999	1
55539F - COVER, SPARE SWITCH HOLE
55539-12130B1	SXA11..EUR,GCC;SXA11..LHD..GEN SHADOW GRAY,TRIM10,12	09/1997 - 08/1998	1
55539-12130B1	SXA11..EUR,GCC SHADOW GRAY,TRIM10,1#,12	08/1998 - 12/2999	1
55539-12130B0	SXA1#..EUR,GCC;SXA1#..LHD..GEN BLUISH GRAY,TRIM1#	04/1994 - 09/1997	1
55539G - COVER, SPARE SWITCH HOLE
55539-12130B1	SXA11..EUR,GCC;SXA11..LHD..GEN SHADOW GRAY,TRIM10,12	09/1997 - 08/1998	1
55539-12130B0	SXA1#..EUR,GCC;SXA1#..LHD..GEN BLUISH GRAY,TRIM1#	04/1994 - 09/1997	1
55539-12130B1	SXA11..EUR,GCC SHADOW GRAY,TRIM10,1#,12	08/1998 - 12/2999	1
55539H - COVER, SPARE SWITCH HOLE
55539-12130B1	SXA11..EUR,GCC SHADOW GRAY,TRIM10,1#,12	08/1998 - 12/2999	1
55539-12130B0	SXA1#..EUR,GCC;SXA1#..LHD..GEN BLUISH GRAY,TRIM1#	04/1994 - 09/1997	1
55539-12130B1	SXA11..EUR,GCC;SXA11..LHD..GEN SHADOW GRAY,TRIM10,12	09/1997 - 08/1998	1
55539N - COVER, SPARE SWITCH HOLE
55539-32010C0	SXA1#..LHD BLACK,TRIM1#	04/1994 - 09/1997	1
55539-42020	SXA1#..LHD	09/1997 - 11/1997	1
55539-42021B0	SXA11..LHD DARK GRAY,TRIM10,12	11/1997 - 08/1998	1
55539-42021B0	SXA11..LHD..(EUR,GCC) DARK GRAY,TRIM10,11,12	08/1998 - 08/2000	1
55547 - COVER, REMOTE CONTROL MIRROR HOLE
55547-95J00	SXA1#	04/1994 - 09/1997	1
55547-42010	SXA1#	09/1997 - 12/2999	1
55548A - COVER, INSTRUMENT PANEL HOLE
55548-42010B0	SXA1# BLUISH GRAY,TRIM1#	04/1994 - 08/1996	1
55565 - HANDLE, GLOVE COMPARTMENT DOOR LOCK
55565-22020B1	SXA11 SHADOW GRAY,TRIM10,12	09/1997 - 08/1998	1
55565-22020B2	SXA1# BLUISH GRAY,TRIM1#	04/1994 - 09/1997	1
55565-22020B1	SXA11..ARL,EUR,GCC SHADOW GRAY,TRIM10,11,12	08/1998 - 08/2000	1
55569 - COVER, GLOVE COMPARTMENT DOOR LOCK
55569-22030B1	SXA11..ARL,EUR,GCC SHADOW GRAY,TRIM10,11,12	08/1998 - 08/2000	1
55569-22030B2	SXA1# BLUISH GRAY,TRIM1#	04/1994 - 09/1997	1
55569-22030B1	SXA11 SHADOW GRAY,TRIM10,12	09/1997 - 08/1998	1
55574 - SHAFT, GLOVE COMPARTMENT DOOR HINGE
55574-10010	SXA1#	04/1994 - 12/2999	2
55619 - COVER, SWITCH HOLE
55539-42010	SXA1#..GCC,GEN	09/1997 - 12/2999	1
55680 - REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1
55680-14030C0	SXA11..ARL,GCC,GEN BLACK,TRIM10,12	09/1997 - 08/1998	1
55680-14030P0	SXA11 SHADOW GRAY,TRIM10,12	09/1997 - 08/1998	1
55680-14030B1	SXA1# BLUISH GRAY,TRIM1#	04/1994 - 09/1997	1
55680-14030C0	SXA11..ARL,EUR,GCC BLACK,TRIM10,11,12	08/1998 - 08/2000	1
55950 - NOZZLE ASSY, DEFROSTER
55950-42010	SXA1#	04/1994 - 12/2999	1
55990A - NOZZLE ASSY, DEFROSTER, LOWER
55990-42020	SXA1#..LHD	04/1994 - 12/2999	1
74598B - LABEL, PASSENGER AIR BAG CAUTION
74598-20010	SXA1#	09/1997 - 12/2999	1
Common parts
88578-42020
90151-40005
93567-55014
93567-55016
93568-55014

ILLUST NO. 1 OF 2(9511- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90119-06251
90149-80023
90154-60023
90159-60412
90179-05084
90179-06097
90179-08061
90183-05009
90183-05094
90183-05103
90249-04057
90467-14010
90468-04177
90541-03015
91631-60622
91651-60620
91651-60816
93567-55016
93567-55020

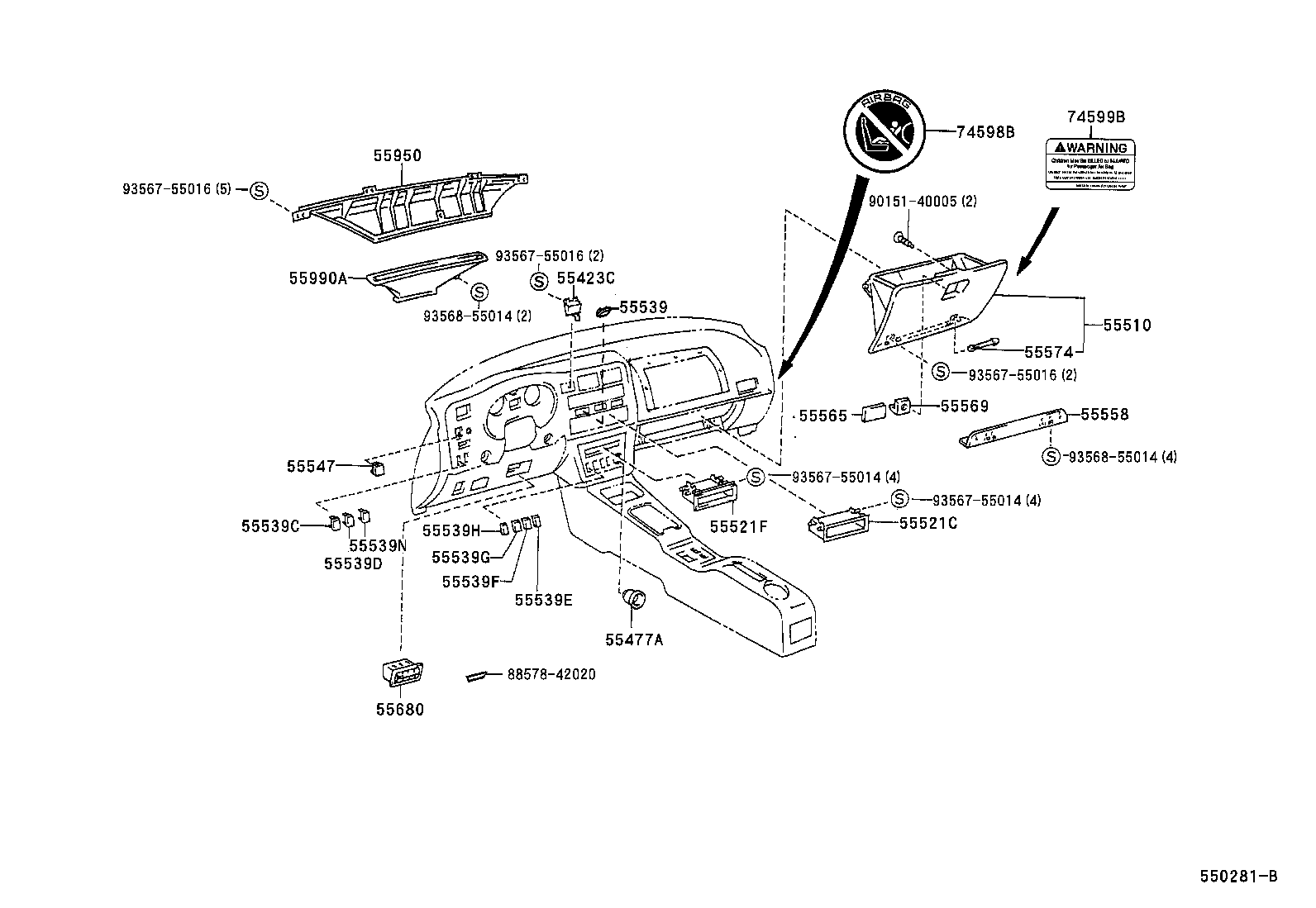

ILLUST NO. 2 OF 2(9511- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
88578-42020
90151-40005
93567-55014
93567-55016
93568-55014
