SXA11L-AWMGKV (1997)

Toyota Rav4

Production Sep 1997 - Aug 2000
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

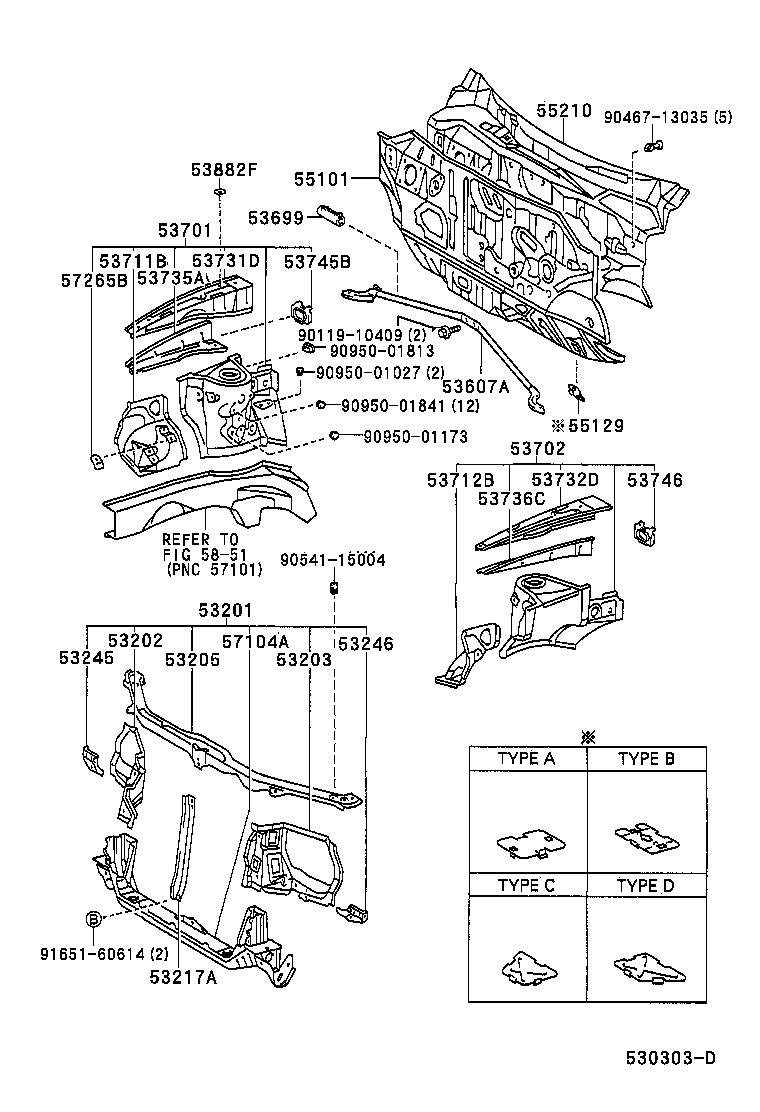

(9404- )

Click highlighted areas on diagram

diagram 53201 53202 53203 53205 53217A 53245 53246 53607A 53699 53701 53702 53711B 53712B 53731D 53732D 53735A 53736C 53745B 53746 53882F 55101 55129 55210 57104A 57265B 5851 9011910409 9046713035 9054115004 9095001027 9095001173 9095001813 9095001841 9165160614
Part # Description Qty Price
53201 - SUPPORT SUB-ASSY, RADIATOR
53201-42010

SXA1#

 1
53202 - SUPPORT SUB-ASSY, RADIATOR, RH
53211-42010

SXA1#

 1
53203 - SUPPORT SUB-ASSY, RADIATOR, LH
53212-42010

SXA1#

 1
53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER
53205-42010

SXA1#

 1
53217A - BRACE, HOOD LOCK SUPPORT
53217-42010

SXA1#

 1
53245 - BRACKET, HEADLAMP, RH
53245-42010

SXA1#

 1
53246 - BRACKET, HEADLAMP, LH
53246-42010

SXA1#

 1
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53701-42021

SXA1#..LHD

 1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53702-42020

SXA1#..LHD

 1
53702-42110

SXA1#..LHD

 1
53711B - APRON, FRONT FENDER, FRONT RH
53711-42010

SXA1#

 1
53712B - APRON, FRONT FENDER, FRONT LH
53712-42010

SXA1#

 1
53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53731-42010

SXA1#

 1
53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53732-42010

SXA1#

 1
53735A - MEMBER, FRONT APRON TO COWL SIDE, LOWER RH
53735-42010

SXA1#

 1
53736C - MEMBER, FRONT APRON TO COWL SIDE, LOWER LH
53736-42010

SXA1#

 1
53745B - REINFORCEMENT, FRONT FENDER APRON, REAR RH
53745-42010

SXA1#

 1
53746 - REINFORCEMENT, FRONT FENDER APRON, REAR LH
53746-42010

SXA1#

 1
53882F - SEAL, FRONT FENDER
53882-16030

SXA1#

 6
55101 - PANEL SUB-ASSY, DASH
55101-42170

SXA1#..LHD..MTM

W(*66)

 1
55129 - COVER, DASH PANEL HOLE
55129-20010

SXA1#

TYPE B:REFER TO ILLUSTRATION

 4
55139-30040

SXA1#

TYPE D (LH)

 1
55129-30020

SXA1#

TYPE C (RH)

 1
55129-12030

SXA1#

TYPE A:REFER TO ILLUSTRATION

 2
55210 - INSULATOR ASSY, DASH PANEL
55210-42020

SXA1#..LHD

 1
55210-42023

SXA1#..LHD

 1
57104A - MEMBER SUB-ASSY, FRONT CROSS
57104-42010

SXA1#

 1
57265B - BRACKET, ENGINE MOUNTING, RH
57265-42010

SXA1#

 1
Common parts
90119-10409
90467-13035
90541-15004
90950-01027
90950-01173
90950-01813
90950-01841
91651-60614
Linked diagrams
5851

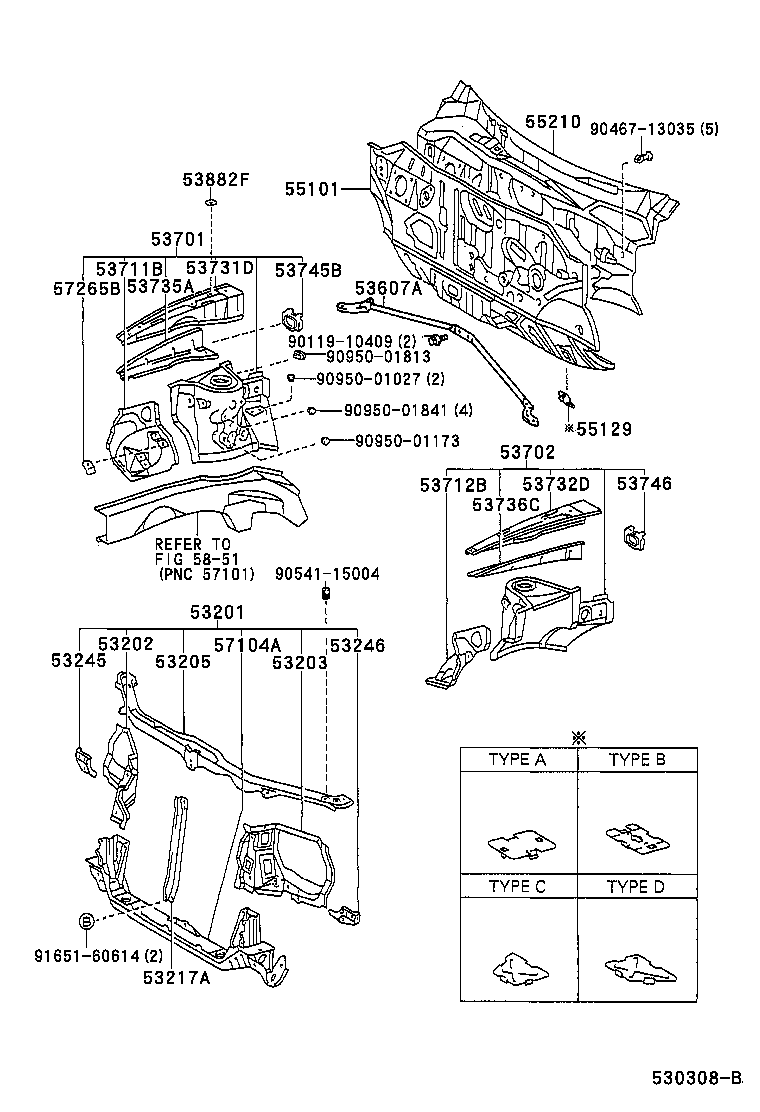

(9511- )

Click highlighted areas on diagram

diagram 53201 53202 53203 53205 53217A 53245 53246 53607A 53701 53702 53711B 53712B 53731D 53732D 53735A 53736C 53745B 53746 53882F 55101 55129 55210 57104A 57265B 5851 9011910409 9046713035 9054115004 9095001027 9095001173 9095001813 9095001841 9165160614
Part # Description Qty Price
Common parts
90119-10409
90467-13035
90541-15004
90950-01027
90950-01173
90950-01813
90950-01841
91651-60614
Linked diagrams
5851
