SXA11L-AWMGKV (1997)

Toyota Rav4

Production Sep 1997 - Aug 2000
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9511- )SXA11,16

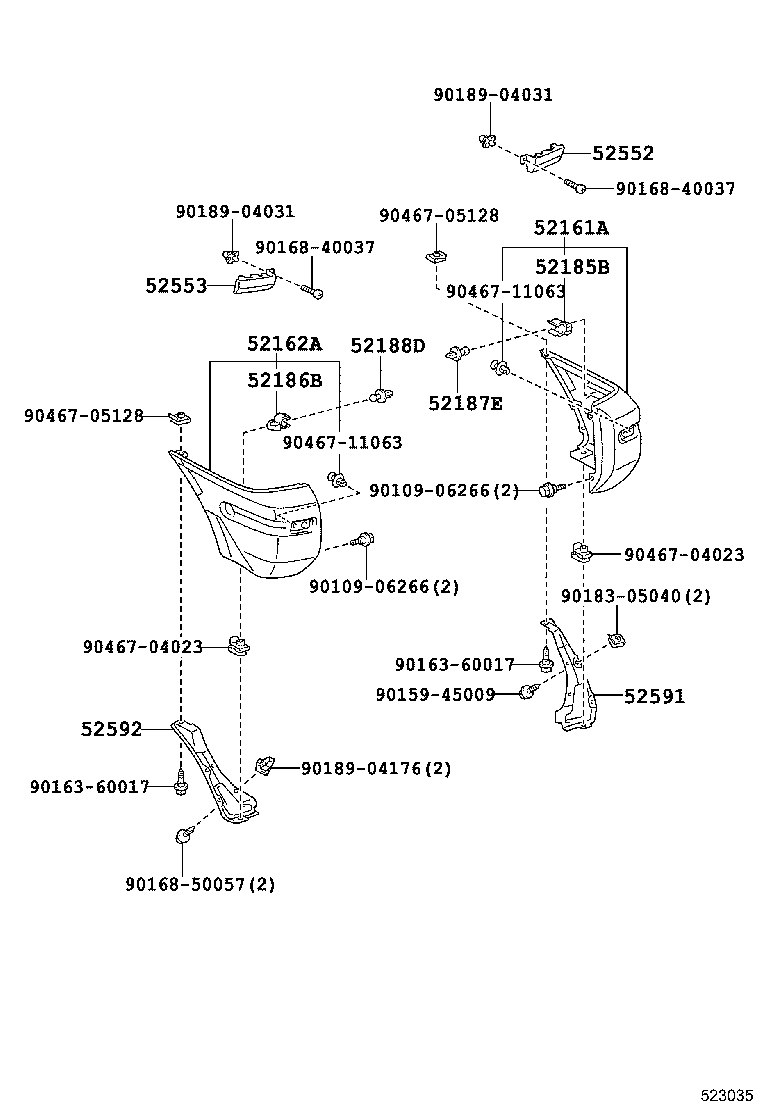

Click highlighted areas on diagram

diagram 52161A 52162A 52185B 52186B 52187E 52188D 52552 52553 52591 52592 9010906266 9010906266 9015945009 9016360017 9016360017 9016840037 9016840037 9016850057 9018305040 9018904031 9018904031 9018904176 9046704023 9046704023 9046705128 9046705128 9046711063 9046711063
Part # Description Qty Price
Common parts
90109-06266
90159-45009
90163-60017
90168-40037
90168-50057
90183-05040
90189-04031
90189-04176
90467-04023
90467-05128
90467-11063
