SXA11L-AWMGKV (1997)
Toyota Rav4
(9404- )

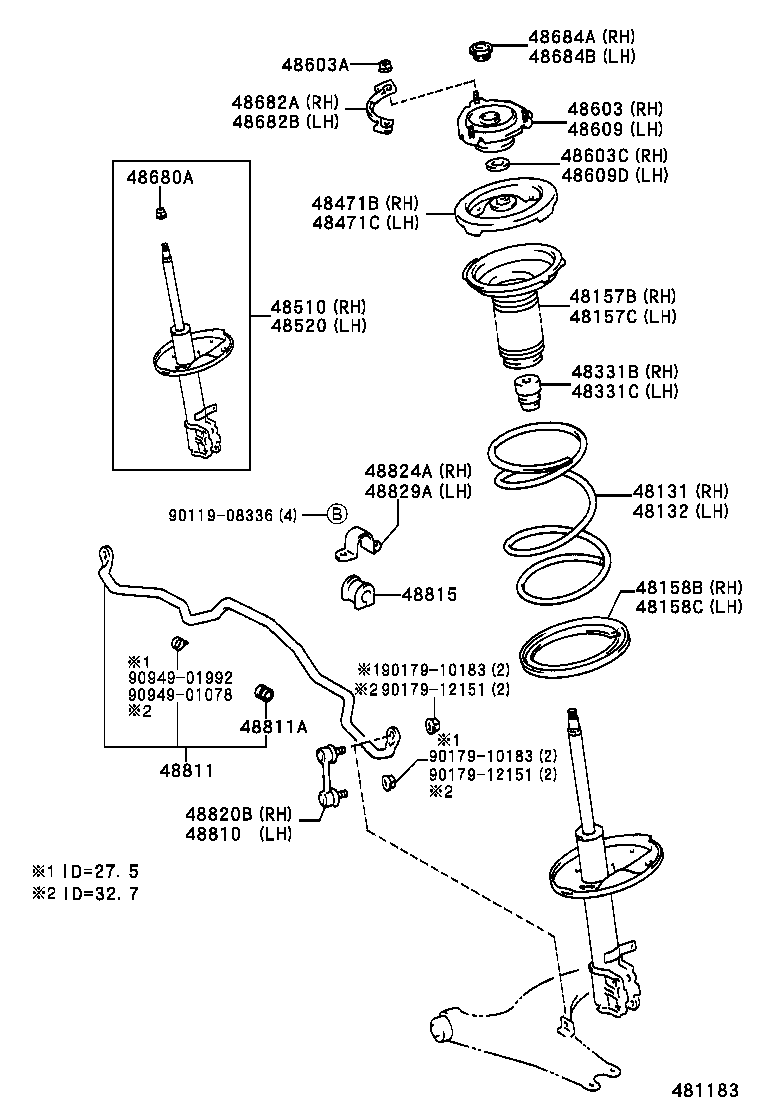

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-42050 |
SXA11..MTM |
1 | ||
| 48131-42060 |
SXA11..MTM..(EUR,GCC,GEN) W(MANUAL AIR CONDITIONER) |
1 | ||
| 48131-42051 |
SXA11..MTM W(AIR CONDITIONER) |
1 | ||
| 48131-42061 |
SXA11..MTM..(EUR,GCC,GEN) W(MANUAL AIR CONDITIONER) |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-42050 |
SXA11..MTM |
1 | ||
| 48131-42060 |
SXA11..MTM..(EUR,GCC,GEN) W(MANUAL AIR CONDITIONER) |
1 | ||
| 48131-42061 |
SXA11..MTM..(EUR,GCC,GEN) W(MANUAL AIR CONDITIONER) |
1 | ||
| 48131-42051 |
SXA11..MTM W(AIR CONDITIONER) |
1 | ||
| 48157B - INSULATOR, FRONT COIL SPRING, UPPER RH | ||||
| 48157-42010 |
SXA1# |
1 | ||
| 48157C - INSULATOR, FRONT COIL SPRING, UPPER LH | ||||
| 48157-42010 |
SXA1# |
1 | ||
| 48158B - INSULATOR, FRONT COIL SPRING, LOWER RH | ||||
| 48158-32030 |
SXA1# |
1 | ||
| 48158C - INSULATOR, FRONT COIL SPRING, LOWER LH | ||||
| 48158-32030 |
SXA1# |
1 | ||
| 48331B - BUMPER, FRONT SPRING, RH | ||||
| 48331-42010 |
SXA1# |
1 | ||
| 48331C - BUMPER, FRONT SPRING, LH | ||||
| 48331-42010 |
SXA1# |
1 | ||
| 48471B - SEAT, FRONT COIL SPRING, UPPER RH | ||||
| 48044-32030 |
SXA1# |
1 | ||
| 48471C - SEAT, FRONT COIL SPRING, UPPER LH | ||||
| 48044-32030 |
SXA1# |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-49026 |
SXA11 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-49026 |
SXA11 |
1 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48609-42010 |
SXA1# |
1 | ||
| 48603A - NUT(FOR FRONT SUSPENSION SUPPORT) | ||||
| 90179-10095 |
SXA1# |
6 | ||
| 48603C - SEAL, DUST(FOR FRONT SUSPENSION SUPPORT RH) | ||||
| 90303-22049 |
SXA1# |
1 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48609-42010 |
SXA1# |
1 | ||
| 48609D - SEAL, DUST(FOR FRONT SUSPENSION SUPPORT LH) | ||||
| 90303-22049 |
SXA1# |
1 | ||
| 48680A - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER) | ||||
| 94184-61401 |
SXA1# |
2 | ||
| 48682A - SUPPORT, FRONT SUSPENSION, NO.2 RH | ||||
| 48682-42010 |
SXA1# |
1 | ||
| 48682B - SUPPORT, FRONT SUSPENSION, NO.2 LH | ||||
| 48682-42010 |
SXA1# |
1 | ||
| 48684A - COVER, FRONT SUSPENSION SUPPORT DUST, RH | ||||
| 48684-32010 |
SXA1# |
1 | ||
| 48684B - COVER, FRONT SUSPENSION SUPPORT DUST, LH | ||||
| 48684-32010 |
SXA1# |
1 | ||
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| 48820-42010 |
SXA11;SXA10..LHD..EUR;SXA10..RHD..(EUR,GEN) W(235/60R16 TIRE);W(215/70R16 TIRE) |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-42021 |
SXA11 |
1 | ||
| 48820B - LINK ASSY, FRONT STABILIZER, RH | ||||
| 48820-42010 |
SXA11;SXA10..LHD..EUR;SXA10..RHD..(EUR,GEN) W(235/60R16 TIRE);W(215/70R16 TIRE) |
1 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48824-30050 |
SXA11;SXA10..LHD..EUR;SXA10..RHD..(EUR,GEN) W(235/60R16 TIRE) |
1 | ||
| Common parts | ||||
| 90119-08336 | ||||
| 90179-10183 | ||||
| 90179-12151 | ||||
| 90949-01078 | ||||
| 90949-01992 | ||||
(9511- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08336 | ||||
| 90179-10183 | ||||
| 90179-12151 | ||||
| 90949-01078 | ||||
| 90949-01992 | ||||
