SXA11L-AWMGKV (1997)
Toyota Rav4
(9404- )

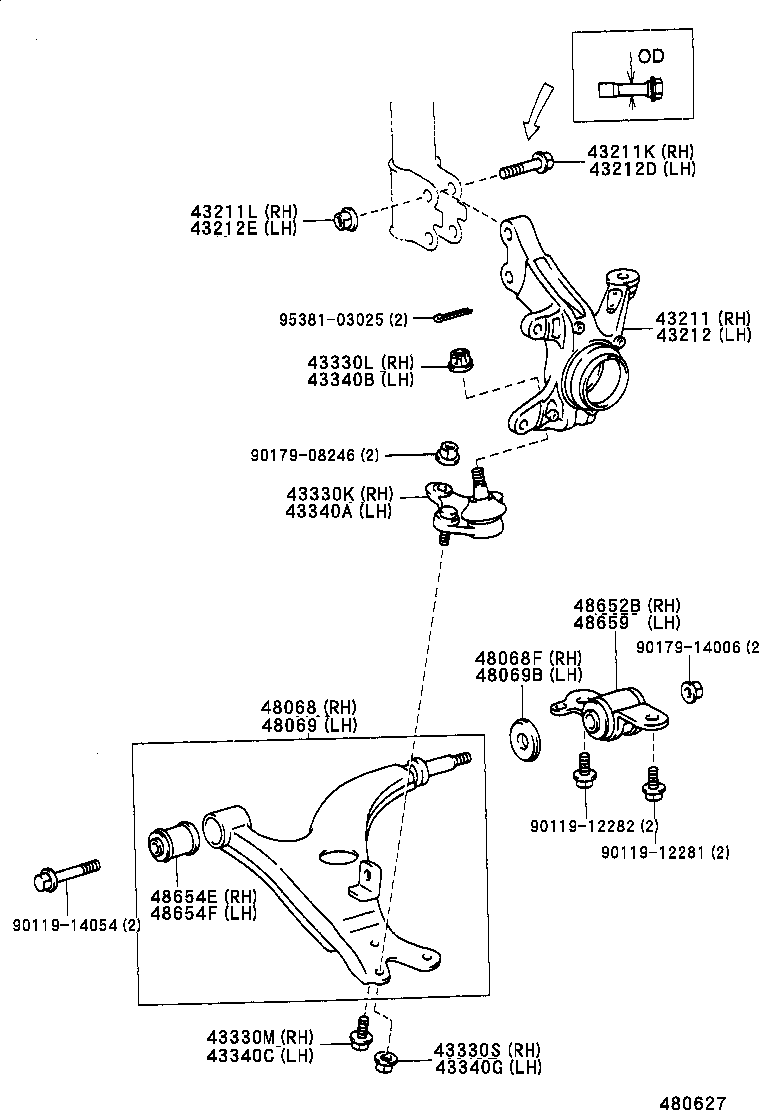

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43211 - KNUCKLE, STEERING, RH | ||||
| 43211-42021 |
SXA1# W(ABS) |
1 | ||
| 43211-42010 |
SXA1# |
1 | ||
| 43211K - BOLT (FOR STEERING KNUCKLE RH) | ||||
| 90105-15008 |
SXA1# OD=15.0 |
2 | ||
| 90105-15009 |
SXA1# OD=13.9 |
1 | ||
| 90105-15011 |
SXA1# OD=12.4 |
1 | ||
| 90105-15010 |
SXA1# OD=13.3 |
1 | ||
| 43211L - NUT (FOR STEERING KNUCKLE RH) | ||||
| 90179-15006 |
SXA1# |
2 | ||
| 43212 - KNUCKLE, STEERING, LH | ||||
| 43212-42021 |
SXA1# W(ABS) |
1 | ||
| 43212-42010 |
SXA1# |
1 | ||
| 43212D - BOLT (FOR STEERING KNUCKLE LH) | ||||
| 90105-15008 |
SXA1# OD=15.0 |
2 | ||
| 90105-15011 |
SXA1# OD=12.4 |
1 | ||
| 90105-15010 |
SXA1# OD=13.3 |
1 | ||
| 90105-15009 |
SXA1# OD=13.9 |
1 | ||
| 43212E - NUT (FOR STEERING KNUCKLE LH) | ||||
| 90179-15006 |
SXA1# |
2 | ||
| 43330K - JOINT ASSY, LOWER BALL, FRONT RH | ||||
| 43330-49025 |
SXA1# |
1 | ||
| 43330L - NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH) | ||||
| 90171-14003 |
SXA1# |
1 | ||
| 43330M - BOLT (FOR FRONT LOWER BALL JOINT RH) | ||||
| 90105-12122 |
SXA1# |
1 | ||
| 43330S - NUT (FOR FRONT LOWER BALL JOINT RH) | ||||
| 90179-12052 |
SXA1# |
2 | ||
| 43340A - JOINT ASSY, LOWER BALL, FRONT LH | ||||
| 43330-49025 |
SXA1# |
1 | ||
| 43340B - NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH) | ||||
| 90171-14003 |
SXA1# |
1 | ||
| 43340C - BOLT (FOR FRONT LOWER BALL JOINT LH) | ||||
| 90105-12122 |
SXA1# |
1 | ||
| 43340G - NUT (FOR FRONT LOWER BALL JOINT LH) | ||||
| 90179-12052 |
SXA1# |
2 | ||
| 48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH | ||||
| 48068-42022 |
SXA11;SXA10..EUR..CVT;SXA10..RHD..GEN W(ALUMINIUM WHEEL) |
1 | ||
| 48068-42022 |
SXA11;SXA10..EUR..CVT W(ALUMINIUM WHEEL) |
1 | ||
| 48068F - RETAINER, CUSHION(FOR FRONT SUSPENSION LOWER ARM NO.1 R | ||||
| 90948-02090 |
SXA1# |
1 | ||
| 48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH | ||||
| 48069-42022 |
SXA11;SXA10..EUR..CVT;SXA10..RHD..GEN W(ALUMINIUM WHEEL) |
1 | ||
| 48069-42022 |
SXA11;SXA10..EUR..CVT W(ALUMINIUM WHEEL) |
1 | ||
| 48069B - RETAINER, CUSHION(FOR FRONT SUSPENSION LOWER ARM NO.1 L | ||||
| 90948-02090 |
SXA1# |
1 | ||
| 48652B - BRACKET, FRONT LOWER ARM, RH | ||||
| 48075-42010 |
SXA1# |
1 | ||
| 48075-42050 |
SXA1# |
1 | ||
| 48654E - BUSH, FRONT LOWER ARM, NO.1 RH | ||||
| 48654-42010 |
SXA1# |
1 | ||
| 48654F - BUSH, FRONT LOWER ARM, NO.1 LH | ||||
| 48654-42010 |
SXA1# |
1 | ||
| 48659 - BRACKET, FRONT LOWER ARM, LH | ||||
| 48076-42050 |
SXA1# |
1 | ||
| 48076-42010 |
SXA1# |
1 | ||
| Common parts | ||||
| 90119-12281 | ||||
| 90119-12282 | ||||
| 90119-14054 | ||||
| 90179-08246 | ||||
| 90179-14006 | ||||
| 95381-03025 | ||||
(9511- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43211 - KNUCKLE, STEERING, RH | ||||
| 43211-42021 |
SXA1# W(ABS) |
1 | ||
| 43211-42010 |
SXA1# |
1 | ||
| 43211K - BOLT (FOR STEERING KNUCKLE RH) | ||||
| 90105-15008 |
SXA1# OD=15.0 |
2 | ||
| 90105-15009 |
SXA1# OD=13.9 |
1 | ||
| 90105-15011 |
SXA1# OD=12.4 |
1 | ||
| 90105-15010 |
SXA1# OD=13.3 |
1 | ||
| 43211L - NUT (FOR STEERING KNUCKLE RH) | ||||
| 90179-15006 |
SXA1# |
2 | ||
| 43212 - KNUCKLE, STEERING, LH | ||||
| 43212-42021 |
SXA1# W(ABS) |
1 | ||
| 43212-42010 |
SXA1# |
1 | ||
| 43212D - BOLT (FOR STEERING KNUCKLE LH) | ||||
| 90105-15008 |
SXA1# OD=15.0 |
2 | ||
| 90105-15011 |
SXA1# OD=12.4 |
1 | ||
| 90105-15010 |
SXA1# OD=13.3 |
1 | ||
| 90105-15009 |
SXA1# OD=13.9 |
1 | ||
| 43212E - NUT (FOR STEERING KNUCKLE LH) | ||||
| 90179-15006 |
SXA1# |
2 | ||
| 43330K - JOINT ASSY, LOWER BALL, FRONT RH | ||||
| 43330-49025 |
SXA1# |
1 | ||
| 43330L - NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH) | ||||
| 90171-14003 |
SXA1# |
1 | ||
| 43330M - BOLT (FOR FRONT LOWER BALL JOINT RH) | ||||
| 90105-12122 |
SXA1# |
1 | ||
| 43330S - NUT (FOR FRONT LOWER BALL JOINT RH) | ||||
| 90179-12052 |
SXA1# |
2 | ||
| 43340A - JOINT ASSY, LOWER BALL, FRONT LH | ||||
| 43330-49025 |
SXA1# |
1 | ||
| 43340B - NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH) | ||||
| 90171-14003 |
SXA1# |
1 | ||
| 43340C - BOLT (FOR FRONT LOWER BALL JOINT LH) | ||||
| 90105-12122 |
SXA1# |
1 | ||
| 43340G - NUT (FOR FRONT LOWER BALL JOINT LH) | ||||
| 90179-12052 |
SXA1# |
2 | ||
| 48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH | ||||
| 48068-42022 |
SXA11;SXA10..EUR..CVT;SXA10..RHD..GEN W(ALUMINIUM WHEEL) |
1 | ||
| 48068-42022 |
SXA11;SXA10..EUR..CVT W(ALUMINIUM WHEEL) |
1 | ||
| 48068F - RETAINER, CUSHION(FOR FRONT SUSPENSION LOWER ARM NO.1 R | ||||
| 90948-02090 |
SXA1# |
1 | ||
| 48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH | ||||
| 48069-42022 |
SXA11;SXA10..EUR..CVT;SXA10..RHD..GEN W(ALUMINIUM WHEEL) |
1 | ||
| 48069-42022 |
SXA11;SXA10..EUR..CVT W(ALUMINIUM WHEEL) |
1 | ||
| 48069B - RETAINER, CUSHION(FOR FRONT SUSPENSION LOWER ARM NO.1 L | ||||
| 90948-02090 |
SXA1# |
1 | ||
| 48652B - BRACKET, FRONT LOWER ARM, RH | ||||
| 48075-42010 |
SXA1# |
1 | ||
| 48075-42050 |
SXA1# |
1 | ||
| 48654E - BUSH, FRONT LOWER ARM, NO.1 RH | ||||
| 48654-42010 |
SXA1# |
1 | ||
| 48654F - BUSH, FRONT LOWER ARM, NO.1 LH | ||||
| 48654-42010 |
SXA1# |
1 | ||
| 48659 - BRACKET, FRONT LOWER ARM, LH | ||||
| 48076-42050 |
SXA1# |
1 | ||
| 48076-42010 |
SXA1# |
1 | ||
| Common parts | ||||
| 90119-12281 | ||||
| 90119-12282 | ||||
| 90119-14054 | ||||
| 90179-08246 | ||||
| 90179-14006 | ||||
| 95381-03025 | ||||
