SXA11L-AWMGKV (1997)

Toyota Rav4

Production Sep 1997 - Aug 2000
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9404- )LHD

Click highlighted areas on diagram

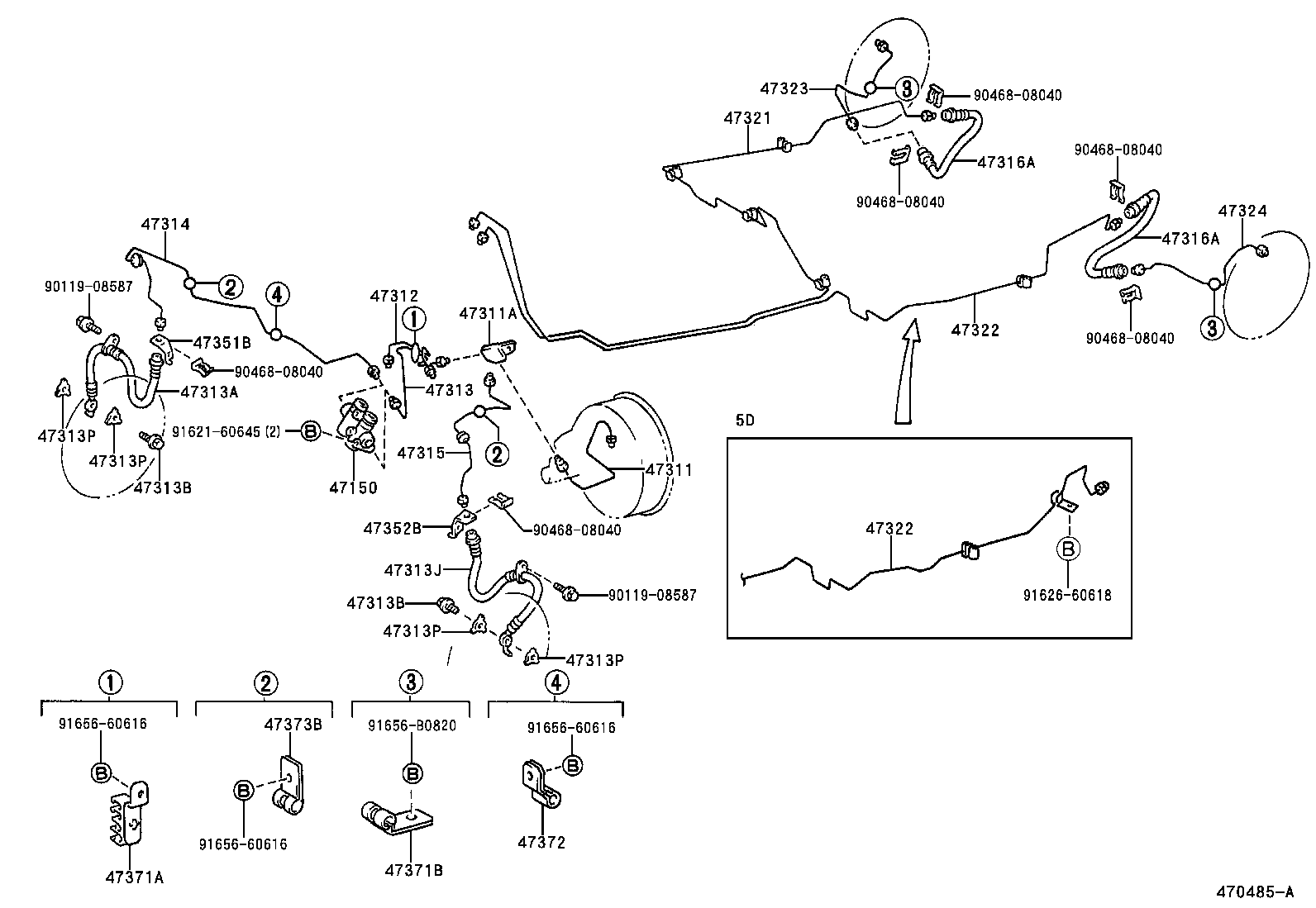

diagram 47150 47311 47311A 47312 47313 47313A 47313B 47313B 47313J 47313P 47313P 47313P 47313P 47314 47315 47316A 47316A 47321 47322 47322 47323 47324 47351B 47352B 47371A 47371B 47372 47373B 9011908587 9011908587 9046808040 9046808040 9046808040 9046808040 9046808040 9046808040 9162160645 9162660618 9165660616 9165660616 9165660616 91656B0820
Part # Description Qty Price
47150 - VALVE ASSY, PROPORTIONING
47150-20250

SXA11

W(ABS)

 1
47150-42030

SXA11

W(ABS)

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-42030

SXA1#..LHD..(EUR,GCC)

W(ABS)

 1
47311-42020

SXA1#..LHD

 1
47311A - WAY(FOR FRONT BRAKE TUBE)
90413-10253

SXA1#..LHD

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-42010

SXA1#..LHD..(EUR,GCC)

W(ABS)

 1
47312-42060

SXA1#..LHD

W(ABS)

 1
47312-42030

SXA1#..LHD

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-42030

SXA1#..LHD

 1
47313-42010

SXA1#..LHD..(EUR,GCC)

W(ABS)

 1
47313-42060

SXA1#..LHD

W(ABS)

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02781

SXA1#

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

SXA1#

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

SXA1#

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-02782

SXA1#

 1
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010

SXA1#

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010

SXA1#

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010

SXA1#

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010

SXA1#

 4
47314 - TUBE, FRONT BRAKE, NO.4
47314-42020

SXA1#..LHD

 1
47314-42010

SXA1#..ARL,EUR,GCC

W(ABS)

 1
47314-42040

SXA1#

W(ABS)

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-42030

SXA1#..LHD

 1
47315-42010

SXA1#..LHD..(EUR,GCC)

W(ABS)

 1
47315-42060

SXA1#..LHD

W(ABS)

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02780

SXA1#

 2
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02780

SXA1#

 2
47323 - TUBE, REAR BRAKE, NO.3
47323-42010

SXA1#..EUR,GCC,GEN

 1
47323-42010

SXA1#

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-42010

SXA1#

 1
47324-42010

SXA1#..EUR,GCC,GEN

 1
47351B - BRACKET, FLEXIBLE HOSE, NO.1
47351-42020

SXA11;SXA10..EUR,GCC,GEN

 1
47351-42020

SXA1#

 1
47352B - BRACKET, FLEXIBLE HOSE, NO.2
47352-42020

SXA11;SXA10..EUR,GCC,GEN

 1
47352-42020

SXA1#

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-20250

SXA1#..LHD

 1
47371-42070

SXA1#

W(ABS)

 1
47371-20250

SXA1#..LHD..(EUR,GCC)

W(ABS)

 2
47371B - CLAMP, BRAKE TUBE, NO.6
90461-06112

SXA1#

 2
47372 - CLAMP, BRAKE TUBE, NO.2
47371-20070

SXA1#..LHD

W(ABS)

 1
47371-20270

SXA1#..LHD..(EUR,GCC)

W(ABS)

 1
90461-06119

SXA1#..LHD

 1
47373B - CLAMP, BRAKE TUBE, NO.3
47371-42010

SXA1#..LHD..(EUR,GCC)

W(ABS)

 1
90461-06957

SXA1#..LHD

 2
47371-42060

SXA1#..LHD

W(ABS)

 1
Common parts
90119-08587
90468-08040
91621-60645
91626-60618
91656-60616
91656-B0820

(9511- )

Click highlighted areas on diagram

diagram 47150 47311 47311A 47312 47313 47313A 47313B 47313B 47313J 47313P 47313P 47313P 47313P 47314 47315 47316A 47316A 47321 47322 47322 47323 47324 47351B 47352B 47371A 47371B 47372 47373B 9011908587 9011908587 9046808040 9046808040 9046808040 9046808040 9046808040 9046808040 9162160645 9162660618 9165660616 9165660616 9165660616 91656B0820
Part # Description Qty Price
47150 - VALVE ASSY, PROPORTIONING
47150-20250

SXA11

W(ABS)

 1
47150-42030

SXA11

W(ABS)

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-42030

SXA1#..LHD..(EUR,GCC)

W(ABS)

 1
47311-42020

SXA1#..LHD

 1
47311A - WAY(FOR FRONT BRAKE TUBE)
90413-10253

SXA1#..LHD

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-42010

SXA1#..LHD..(EUR,GCC)

W(ABS)

 1
47312-42060

SXA1#..LHD

W(ABS)

 1
47312-42030

SXA1#..LHD

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-42030

SXA1#..LHD

 1
47313-42010

SXA1#..LHD..(EUR,GCC)

W(ABS)

 1
47313-42060

SXA1#..LHD

W(ABS)

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02781

SXA1#

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

SXA1#

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

SXA1#

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-02782

SXA1#

 1
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010

SXA1#

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010

SXA1#

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010

SXA1#

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010

SXA1#

 4
47314 - TUBE, FRONT BRAKE, NO.4
47314-42020

SXA1#..LHD

 1
47314-42010

SXA1#..ARL,EUR,GCC

W(ABS)

 1
47314-42040

SXA1#

W(ABS)

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-42030

SXA1#..LHD

 1
47315-42010

SXA1#..LHD..(EUR,GCC)

W(ABS)

 1
47315-42060

SXA1#..LHD

W(ABS)

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02780

SXA1#

 2
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02780

SXA1#

 2
47323 - TUBE, REAR BRAKE, NO.3
47323-42010

SXA1#..EUR,GCC,GEN

 1
47323-42010

SXA1#

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-42010

SXA1#

 1
47324-42010

SXA1#..EUR,GCC,GEN

 1
47351B - BRACKET, FLEXIBLE HOSE, NO.1
47351-42020

SXA11;SXA10..EUR,GCC,GEN

 1
47351-42020

SXA1#

 1
47352B - BRACKET, FLEXIBLE HOSE, NO.2
47352-42020

SXA11;SXA10..EUR,GCC,GEN

 1
47352-42020

SXA1#

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-20250

SXA1#..LHD

 1
47371-42070

SXA1#

W(ABS)

 1
47371-20250

SXA1#..LHD..(EUR,GCC)

W(ABS)

 2
47371B - CLAMP, BRAKE TUBE, NO.6
90461-06112

SXA1#

 2
47372 - CLAMP, BRAKE TUBE, NO.2
47371-20070

SXA1#..LHD

W(ABS)

 1
47371-20270

SXA1#..LHD..(EUR,GCC)

W(ABS)

 1
90461-06119

SXA1#..LHD

 1
47373B - CLAMP, BRAKE TUBE, NO.3
47371-42010

SXA1#..LHD..(EUR,GCC)

W(ABS)

 1
90461-06957

SXA1#..LHD

 2
47371-42060

SXA1#..LHD

W(ABS)

 1
Common parts
90119-08587
90468-08040
91621-60645
91626-60618
91656-60616
91656-B0820
