SXA11L-AWMGKV (1997)
Toyota Rav4
Production
Sep 1997
-
Aug 2000
Engine
3SFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9404- )LHD

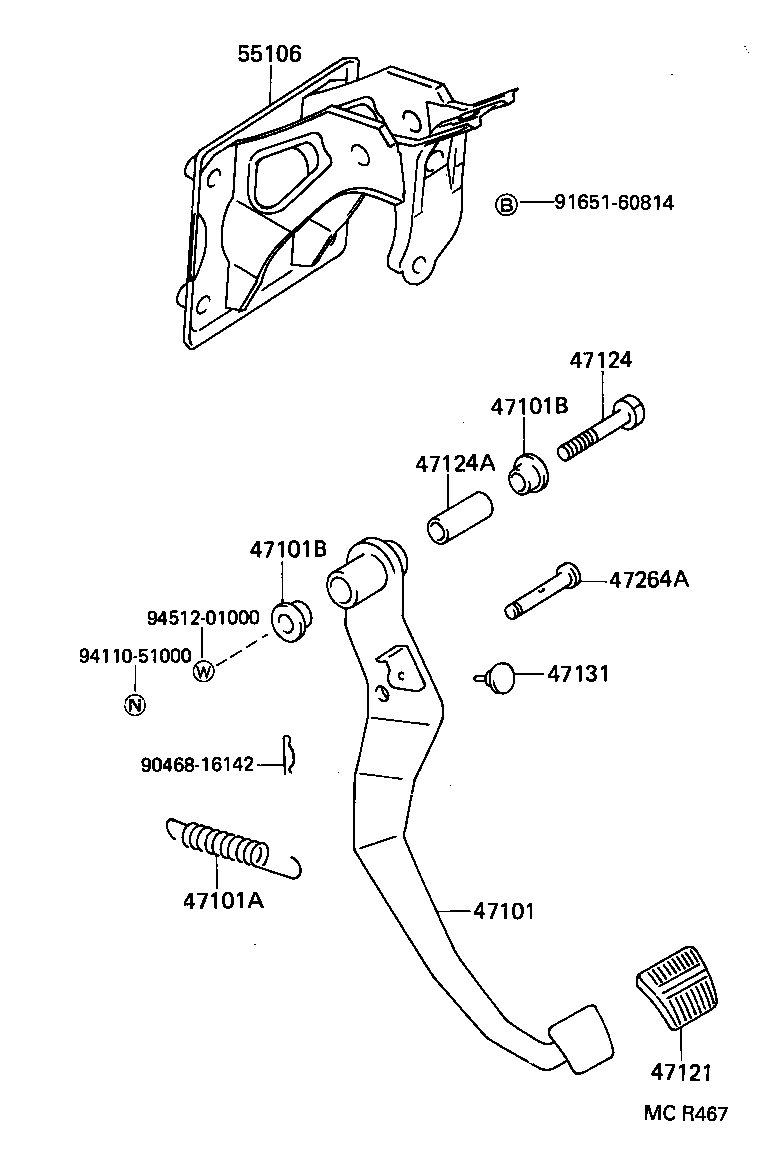

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47101 - PEDAL SUB-ASSY, BRAKE | ||||
| 47101-42030 |
SXA1#..LHD..MTM |
1 | ||
| 47101-42032 |
SXA1#..LHD..MTM |
1 | ||
| 47101A - SPRING(FOR BRAKE PEDAL RETURN) | ||||
| 90507-14034 |
SXA1# |
1 | ||
| 47101B - BUSH(FOR BRAKE PEDAL) | ||||
| 90386-13015 |
SXA1# |
2 | ||
| 47101B - BUSH(FOR BRAKE PEDAL) | ||||
| 90386-13015 |
SXA1# |
2 | ||
| 47121 - PAD, BRAKE PEDAL | ||||
| 31321-14020 |
SXA1#..MTM |
1 | ||
| 47124 - SHAFT, BRAKE PEDAL | ||||
| 90101-10015 |
SXA1# |
1 | ||
| 47124A - COLLAR(FOR BRAKE PEDAL SHAFT) | ||||
| 90387-10003 |
SXA1# |
1 | ||
| 47131 - CUSHION(FOR STOP LAMP SWITCH) | ||||
| 90541-06036 |
SXA1# |
1 | ||
| 47264A - PIN(FOR PUSH ROD) | ||||
| 47148-35010 |
SXA1# |
1 | ||
| 90249-10064 |
SXA1#..LHD |
1 | ||
| 55106 - SUPPORT SUB-ASSY, BRAKE PEDAL | ||||
| 55106-42070 |
SXA1#..LHD |
1 | ||
| 55106-42060 |
SXA1#..LHD |
1 | ||
| 55106-42020 |
SXA1#..LHD |
1 | ||
| Common parts | ||||
| 90468-16142 | ||||
| 91651-60814 | ||||
| 94110-51000 | ||||
| 94512-01000 | ||||
(9511- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47101 - PEDAL SUB-ASSY, BRAKE | ||||
| 47101-42030 |
SXA1#..LHD..MTM |
1 | ||
| 47101-42032 |
SXA1#..LHD..MTM |
1 | ||
| 47101A - SPRING(FOR BRAKE PEDAL RETURN) | ||||
| 90507-14034 |
SXA1# |
1 | ||
| 47101B - BUSH(FOR BRAKE PEDAL) | ||||
| 90386-13015 |
SXA1# |
2 | ||
| 47101B - BUSH(FOR BRAKE PEDAL) | ||||
| 90386-13015 |
SXA1# |
2 | ||
| 47121 - PAD, BRAKE PEDAL | ||||
| 31321-14020 |
SXA1#..MTM |
1 | ||
| 47124 - SHAFT, BRAKE PEDAL | ||||
| 90101-10015 |
SXA1# |
1 | ||
| 47124A - COLLAR(FOR BRAKE PEDAL SHAFT) | ||||
| 90387-10003 |
SXA1# |
1 | ||
| 47131 - CUSHION(FOR STOP LAMP SWITCH) | ||||
| 90541-06036 |
SXA1# |
1 | ||
| 47264A - PIN(FOR PUSH ROD) | ||||
| 47148-35010 |
SXA1# |
1 | ||
| 90249-10064 |
SXA1#..LHD |
1 | ||
| 55106 - SUPPORT SUB-ASSY, BRAKE PEDAL | ||||
| 55106-42070 |
SXA1#..LHD |
1 | ||
| 55106-42060 |
SXA1#..LHD |
1 | ||
| 55106-42020 |
SXA1#..LHD |
1 | ||
| Common parts | ||||
| 90468-16142 | ||||
| 91651-60814 | ||||
| 94110-51000 | ||||
| 94512-01000 | ||||
