SXA11L-AWMGKV (1997)
Toyota Rav4
Production
Sep 1997
-
Aug 2000
Engine
3SFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9404- )EUR,GCC,GEN

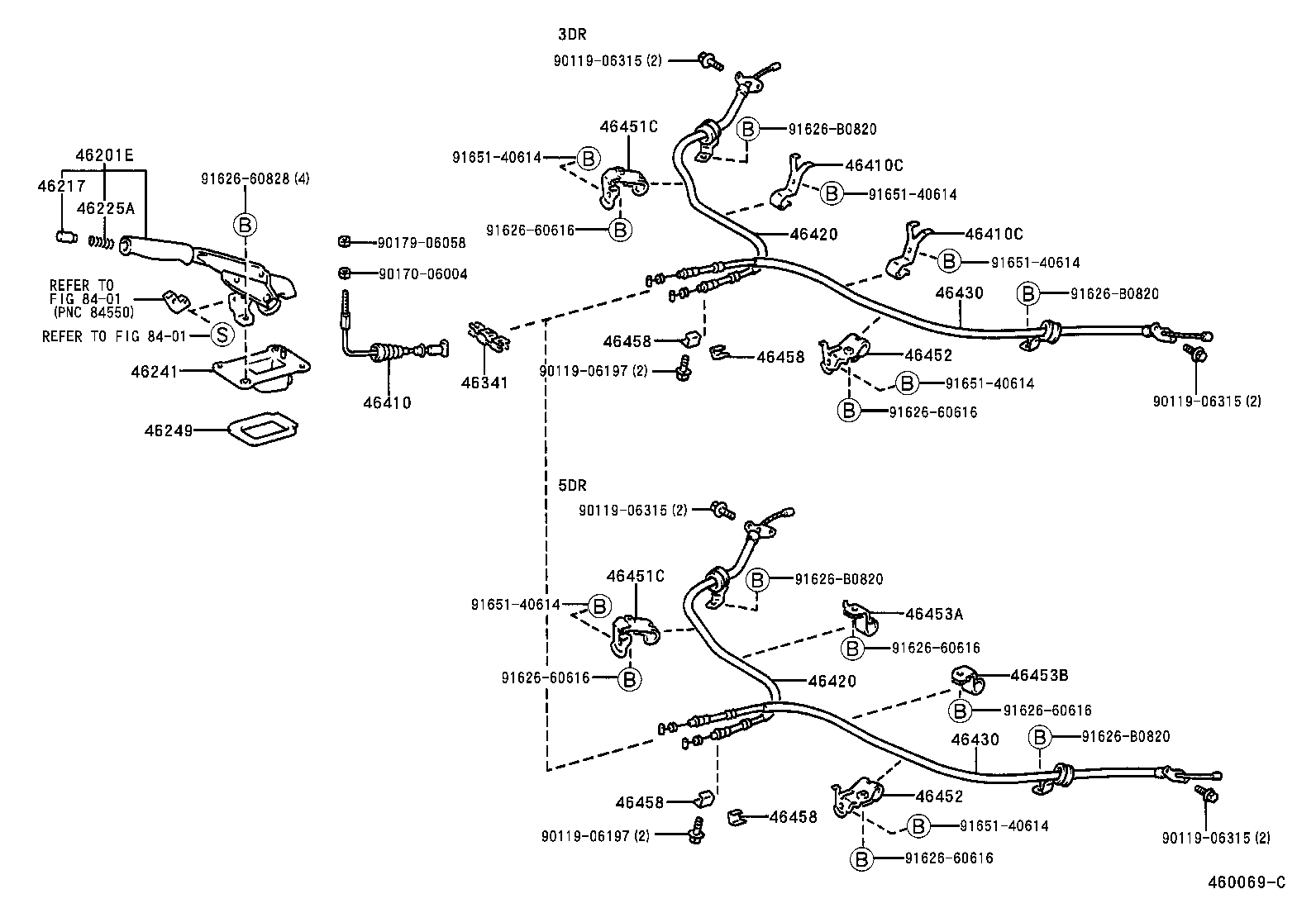

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46201E - LEVER SUB-ASSY, PARKING BRAKE | ||||
| 46201-42010C0 |
SXA1#..EUR,GCC,GEN BLACK,TRIM1# |
1 | ||
| 46201-42040C0 |
SXA1#..EUR,GCC,GEN BLACK,TRIM1# |
1 | ||
| 46217 - KNOB, PARKING BRAKE RELEASE ROD | ||||
| 46217-12020C0 |
SXA1#..EUR,GCC,GEN GRAY,TRIM1# |
1 | ||
| 46225A - SPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD) | ||||
| 90501-10069 |
SXA1#..EUR,GCC,GEN |
1 | ||
| 46241 - BOOT, PARKING BRAKE LEVER | ||||
| 46241-42010 |
SXA1# |
1 | ||
| 46249 - SHIELD, PARKING BRAKE HOLE | ||||
| 46249-20030 |
SXA1# |
1 | ||
| 46341 - EQUALIZER, PARKING BRAKE | ||||
| 46341-24010 |
SXA1# |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-42010 |
SXA1# |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-42020 |
SXA11..EUR,GCC,GEN |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-42020 |
SXA11..EUR,GCC,GEN |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-42020 |
SXA11..EUR,GCC,GEN |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-42020 |
SXA11..EUR,GCC,GEN |
1 | ||
| 46451C - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.1 | ||||
| 46451-42011 |
SXA1# |
1 | ||
| 46451-42010 |
SXA1# |
1 | ||
| 46451C - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.1 | ||||
| 46451-42011 |
SXA1# |
1 | ||
| 46451-42010 |
SXA1# |
1 | ||
| 46452 - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2 | ||||
| 46452-42011 |
SXA1# |
1 | ||
| 46452-42010 |
SXA1# |
1 | ||
| 46452 - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2 | ||||
| 46452-42011 |
SXA1# |
1 | ||
| 46452-42010 |
SXA1# |
1 | ||
| Common parts | ||||
| 90119-06197 | ||||
| 90119-06315 | ||||
| 90170-06004 | ||||
| 90179-06058 | ||||
| 91626-60616 | ||||
| 91626-60828 | ||||
| 91626-B0820 | ||||
| 91651-40614 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(9511- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46201E - LEVER SUB-ASSY, PARKING BRAKE | ||||
| 46201-42010C0 |
SXA1#..EUR,GCC,GEN BLACK,TRIM1# |
1 | ||
| 46201-42040C0 |
SXA1#..EUR,GCC,GEN BLACK,TRIM1# |
1 | ||
| 46217 - KNOB, PARKING BRAKE RELEASE ROD | ||||
| 46217-12020C0 |
SXA1#..EUR,GCC,GEN GRAY,TRIM1# |
1 | ||
| 46225A - SPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD) | ||||
| 90501-10069 |
SXA1#..EUR,GCC,GEN |
1 | ||
| 46241 - BOOT, PARKING BRAKE LEVER | ||||
| 46241-42010 |
SXA1# |
1 | ||
| 46249 - SHIELD, PARKING BRAKE HOLE | ||||
| 46249-20030 |
SXA1# |
1 | ||
| 46341 - EQUALIZER, PARKING BRAKE | ||||
| 46341-24010 |
SXA1# |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-42010 |
SXA1# |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-42020 |
SXA11..EUR,GCC,GEN |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-42020 |
SXA11..EUR,GCC,GEN |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-42020 |
SXA11..EUR,GCC,GEN |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-42020 |
SXA11..EUR,GCC,GEN |
1 | ||
| 46451C - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.1 | ||||
| 46451-42011 |
SXA1# |
1 | ||
| 46451-42010 |
SXA1# |
1 | ||
| 46451C - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.1 | ||||
| 46451-42011 |
SXA1# |
1 | ||
| 46451-42010 |
SXA1# |
1 | ||
| 46452 - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2 | ||||
| 46452-42011 |
SXA1# |
1 | ||
| 46452-42010 |
SXA1# |
1 | ||
| 46452 - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2 | ||||
| 46452-42011 |
SXA1# |
1 | ||
| 46452-42010 |
SXA1# |
1 | ||
| Common parts | ||||
| 90119-06197 | ||||
| 90119-06315 | ||||
| 90170-06004 | ||||
| 90179-06058 | ||||
| 91626-60616 | ||||
| 91626-60828 | ||||
| 91626-B0820 | ||||
| 91651-40614 | ||||
| Linked diagrams | ||||
| 8401 | ||||
