SXA11L-AWMGKV (1997)

Toyota Rav4

Production Sep 1997 - Aug 2000
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9709- )

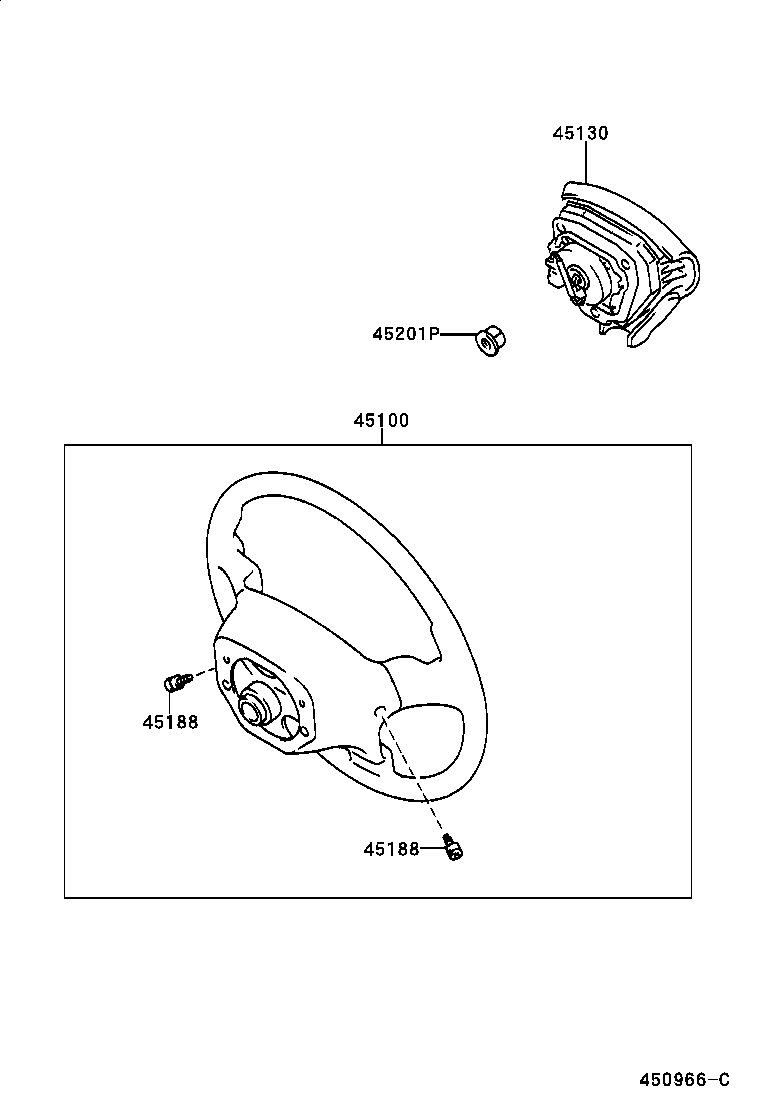

Click highlighted areas on diagram

3-SPOKE, W(*80)

diagram 45100 45130 45188 45188 45201P
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-2B290C0

SXA1#

3-SPOKE,URETHANE,BLACK,TRIM1#

 1
45100-42040C0

SXA1#

3-SPOKE,W(*80),BLACK,TRIM1#

 1
45130 - BUTTON ASSY, HORN
45130-42010C0

SXA1#

W/O(*80),BLACK,TRIM1#

 1
45130-14360C0

SXA1#

W(*80),BLACK,TRIM1#

 1
45188 - SCREW, STEERING WHEEL PAD ATTACHING
90148-60007

SXA1#

L=18

 2
90148-60036

SXA1#

L=18.0

 2
45188 - SCREW, STEERING WHEEL PAD ATTACHING
90148-60007

SXA1#

L=18

 2
90148-60036

SXA1#

L=18.0

 2
45201P - NUT, STEERING WHEEL SET
90179-12071

SXA1#

 1

(9404- )

Click highlighted areas on diagram

3-SPOKE

diagram 45100 45105 45105A 45130 45155 45180 45201P 9015950238 9016840103 9016841001
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-2B290C0

SXA1#

3-SPOKE,URETHANE,BLACK,TRIM1#

 1
45100-42040C0

SXA1#

3-SPOKE,W(*80),BLACK,TRIM1#

 1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-20500

SXA1#

 1
45105A - CUSHION(FOR HORN BUTTON CONTACT PLATE)
90540-08014

SXA1#

 3
45130 - BUTTON ASSY, HORN
45130-42010C0

SXA1#

W/O(*80),BLACK,TRIM1#

 1
45130-14360C0

SXA1#

W(*80),BLACK,TRIM1#

 1
45155 - SPACER, HORN BUTTON CONTACT PLATE
45155-22040

SXA1#

 3
45180 - COVER SUB-ASSY, STEERING WHEEL
45180-20270C0

SXA1#

BLACK,TRIM1#

 1
45201P - NUT, STEERING WHEEL SET
90179-12071

SXA1#

 1
Common parts
90159-50238
90168-40103
90168-41001

(9709- )

Click highlighted areas on diagram

3-SPOKE,W(*80)

diagram 45100 45130 45188 45188 45201P
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-2B290C0

SXA1#

3-SPOKE,URETHANE,BLACK,TRIM1#

 1
45100-42040C0

SXA1#

3-SPOKE,W(*80),BLACK,TRIM1#

 1
45130 - BUTTON ASSY, HORN
45130-42010C0

SXA1#

W/O(*80),BLACK,TRIM1#

 1
45130-14360C0

SXA1#

W(*80),BLACK,TRIM1#

 1
45188 - SCREW, STEERING WHEEL PAD ATTACHING
90148-60007

SXA1#

L=18

 2
90148-60036

SXA1#

L=18.0

 2
45188 - SCREW, STEERING WHEEL PAD ATTACHING
90148-60007

SXA1#

L=18

 2
90148-60036

SXA1#

L=18.0

 2
45201P - NUT, STEERING WHEEL SET
90179-12071

SXA1#

 1

(9709- )

Click highlighted areas on diagram

3-SPOKE, W(*80 & CRUISE CONTROL)

diagram 45100 45130 45188 45188 45201P 8401 8408
Part # Description Qty Price
Linked diagrams
8401
8408
