SXA11L-AWMGKV (1997)

Toyota Rav4

Production Sep 1997 - Aug 2000
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9404- )

Click highlighted areas on diagram

W/O(TILT STEERING)

diagram 45026 45201B 45201B 45210 45253 45260 45271 45273 45280A 45286 45286B 45287 45292A 45802 45870 45874B 45874D 45897 9011908560 9011908560 9011910478 9016450034 9017906158 9017910016 9046081003 9162660618 9165160614 9165160616 9165160616 9331315012 9331514010 9331514012 9356615514 9356855016
Part # Description Qty Price
45026 - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2
45026-42010

SXA1#

 1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17042

SXA1#

T=1.20,W(TILT STEERING)

 2
90520-17042

SXA1#

T=1.20,NO.2

 1
90520-17269

SXA1#

T=1.20,NO.1

 1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17042

SXA1#

T=1.20,W(TILT STEERING)

 2
90520-17042

SXA1#

T=1.20,NO.2

 1
90520-17269

SXA1#

T=1.20,NO.1

 1
45210 - SHAFT ASSY, STEERING MAIN
45210-12400

SXA1#

W(TILT STEERING)

 1
45210-20260

SXA1#

W/O(TILT STEERING)

 1
45253 - COVER, STEERING COLUMN HOLE
45253-42010

SXA1#..LHD

 1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-42010

SXA1#..LHD

 1
45271 - CLAMP, STEERING COLUMN, UPPER
45271-12070

SXA1#

W/O(TILT STEERING)

 1
45271-12080

SXA1#

W(TILT STEERING)

 1
45273 - BUSH, STEERING MAIN SHAFT
45273-20040

SXA1#

W(TILT STEERING)

 1
45273-20030

SXA1#

W/O(TILT STEERING)

 1
45292A - COVER, MAIN SHAFT LOWER DUST
45292-42010

SXA1#..LHD

 1
45802 - PROTECTOR SUB-ASSY, STEERING COLUMN, NO.1
45802-12020

SXA1#

 1
45870 - TUBE ASSY, STEERING COLUMN
45870-42020

SXA1#..LHD

 1
45897 - BOLT, STEERING LOCK SET
45897-12020

SXA1#

 2
Common parts
90119-08560
90119-10478
90164-50034
90179-06158
90179-10016
90460-81003
91626-60618
91651-60614
91651-60616
93313-15012
93315-14010
93315-14012
93566-15514
93568-55016

(9709- )

Click highlighted areas on diagram

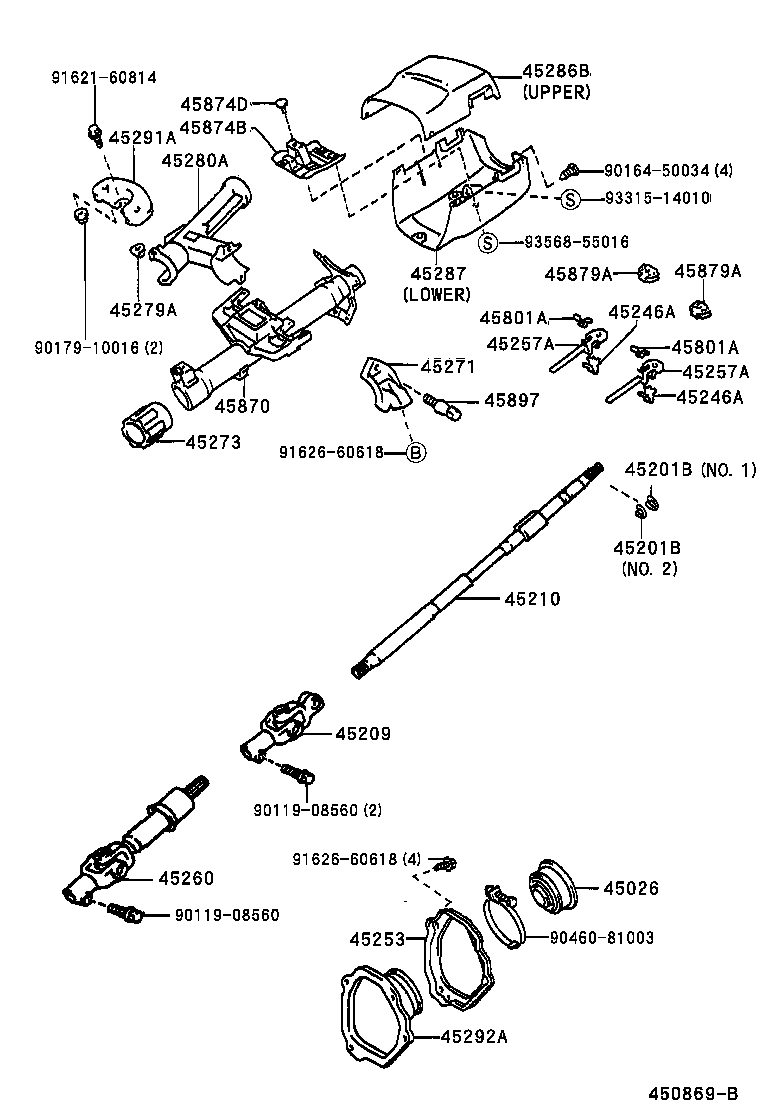

W/O(TILT STEERING:USA TYPE)

diagram 45026 45201B 45201B 45209 45210 45246A 45246A 45253 45257A 45257A 45260 45271 45273 45279A 45280A 45286B 45287 45291A 45292A 45801A 45801A 45870 45874B 45874D 45879A 45879A 45897 9011908560 9011908560 9016450034 9017910016 9046081003 9162160814 9162660618 9162660618 9331514010 9356855016
Part # Description Qty Price
Common parts
90119-08560
90164-50034
90179-10016
90460-81003
91621-60814
91626-60618
93315-14010
93568-55016

(9709- )

Click highlighted areas on diagram

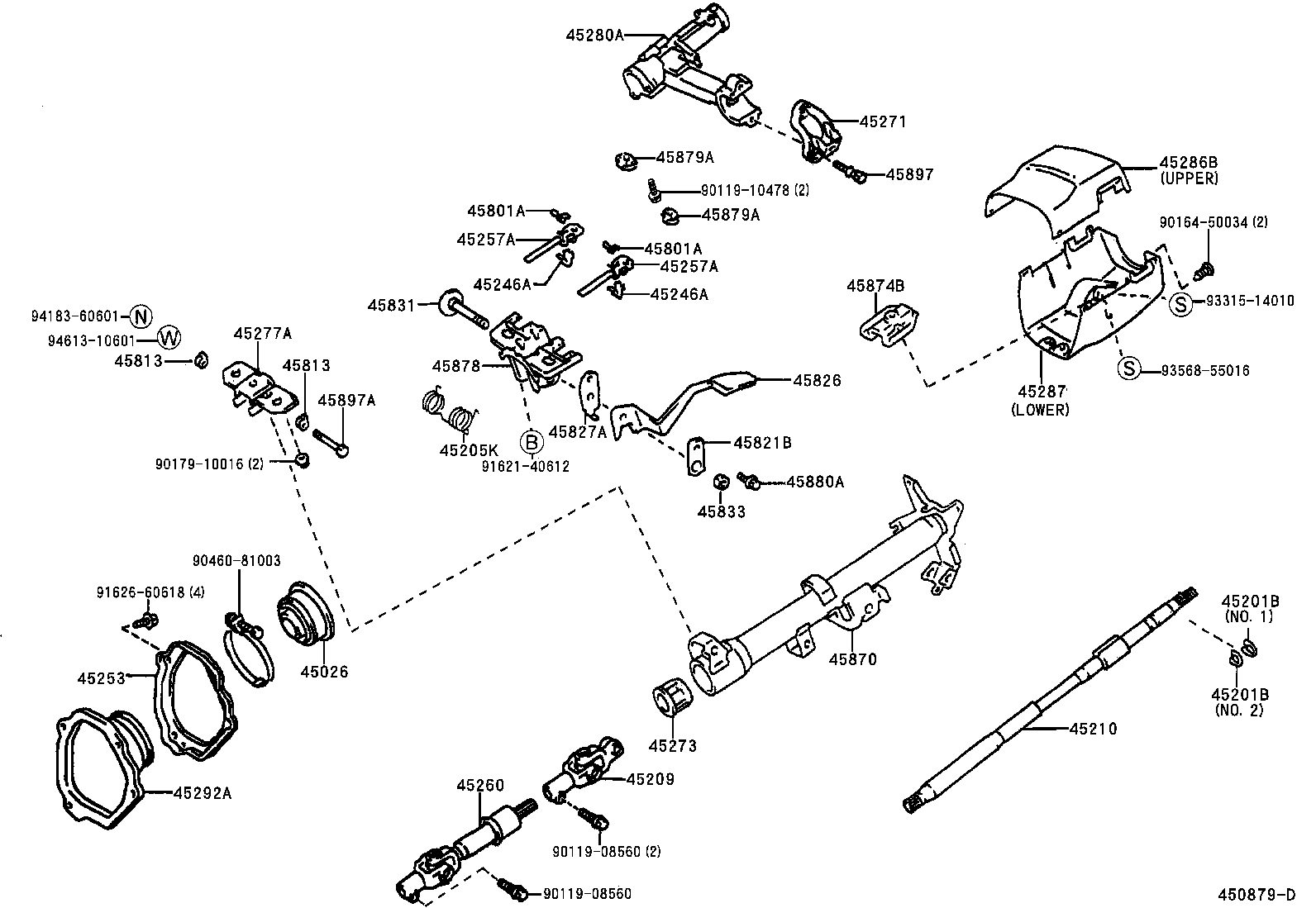

W(TILT STEERING:USA TYPE)

diagram 45026 45201B 45201B 45205K 45209 45210 45246A 45246A 45253 45257A 45257A 45260 45271 45273 45277A 45280A 45286B 45287 45292A 45801A 45801A 45813 45813 45821B 45826 45827A 45831 45833 45870 45874B 45878 45879A 45879A 45880A 45897 45897A 9011908560 9011908560 9011910478 9016450034 9017910016 9046081003 9162140612 9162660618 9331514010 9356855016 9418360601 9461310601
Part # Description Qty Price
Common parts
90119-08560
90119-10478
90164-50034
90179-10016
90460-81003
91621-40612
91626-60618
93315-14010
93568-55016
94183-60601
94613-10601

(9709- )

Click highlighted areas on diagram

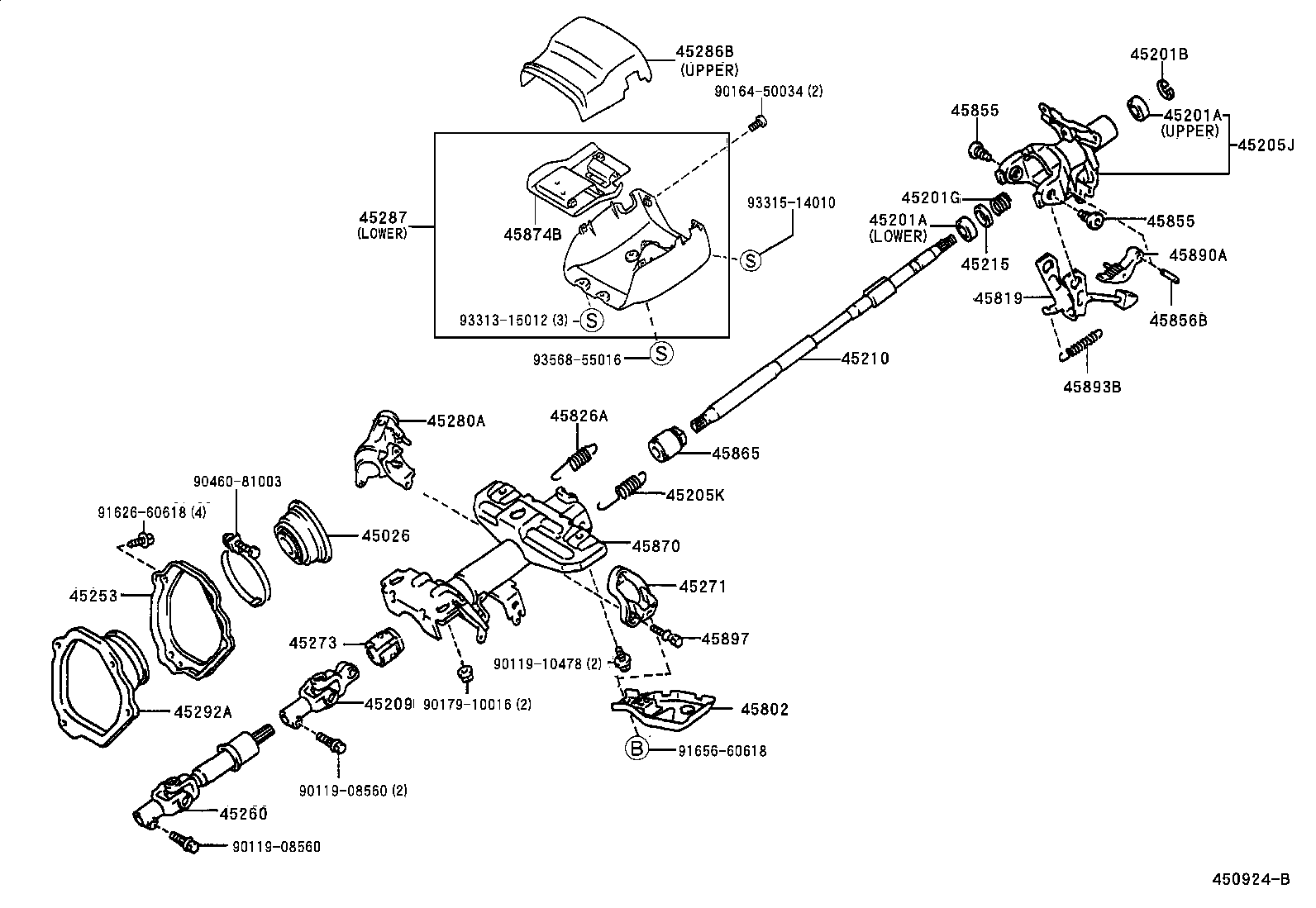

W(TILT STEERING:CANADA TYPE)

diagram 45026 45201A 45201A 45201B 45201G 45205J 45205K 45209 45210 45215 45253 45260 45271 45273 45280A 45286B 45287 45292A 45802 45819 45826A 45855 45855 45856B 45865 45870 45874B 45890A 45893B 45897 9011908560 9011908560 9011910478 9016450034 9017910016 9046081003 9162660618 9165660618 9331315012 9331514010 9356855016
Part # Description Qty Price
Common parts
90119-08560
90119-10478
90164-50034
90179-10016
90460-81003
91626-60618
91656-60618
93313-15012
93315-14010
93568-55016

(9709- )

Click highlighted areas on diagram

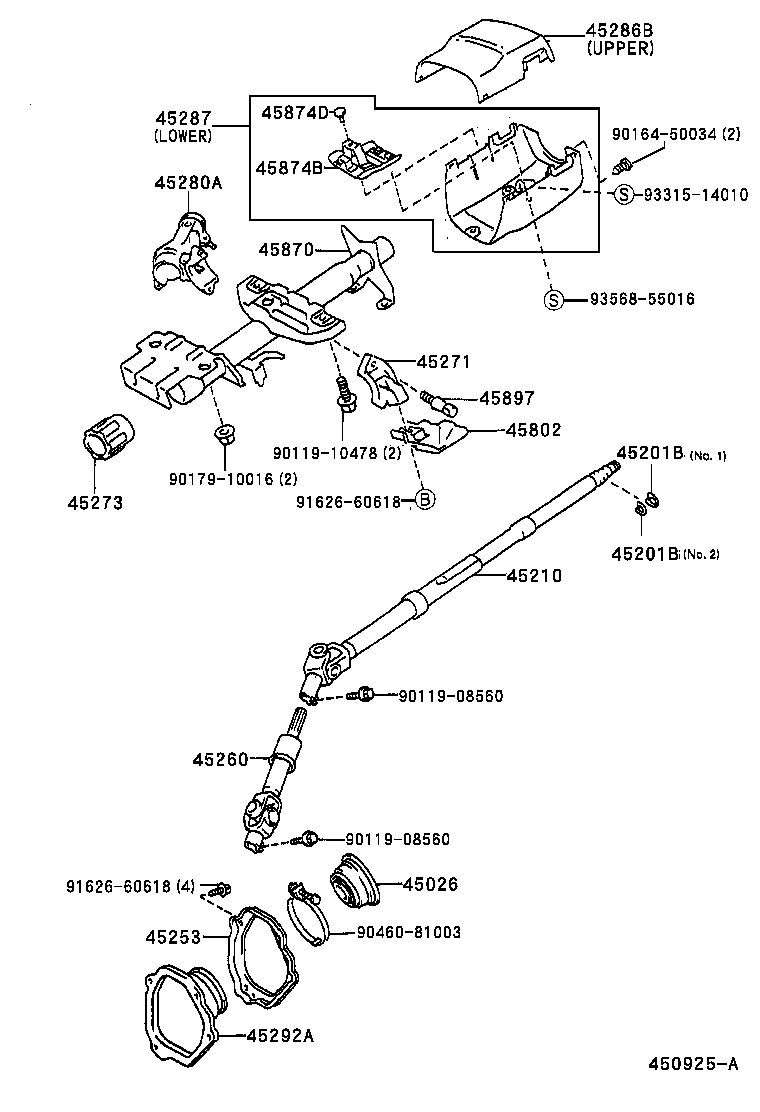

W/O(TILT STEERING:CANADA TYPE)

diagram 45026 45201B 45201B 45210 45253 45260 45271 45273 45280A 45286B 45287 45292A 45802 45870 45874B 45874D 45897 9011908560 9011908560 9011910478 9016450034 9017910016 9046081003 9162660618 9162660618 9331514010 9356855016
Part # Description Qty Price
Common parts
90119-08560
90119-10478
90164-50034
90179-10016
90460-81003
91626-60618
93315-14010
93568-55016
