SXA11L-AWMGKV (1997)

Toyota Rav4

Production Sep 1997 - Aug 2000
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9709- )

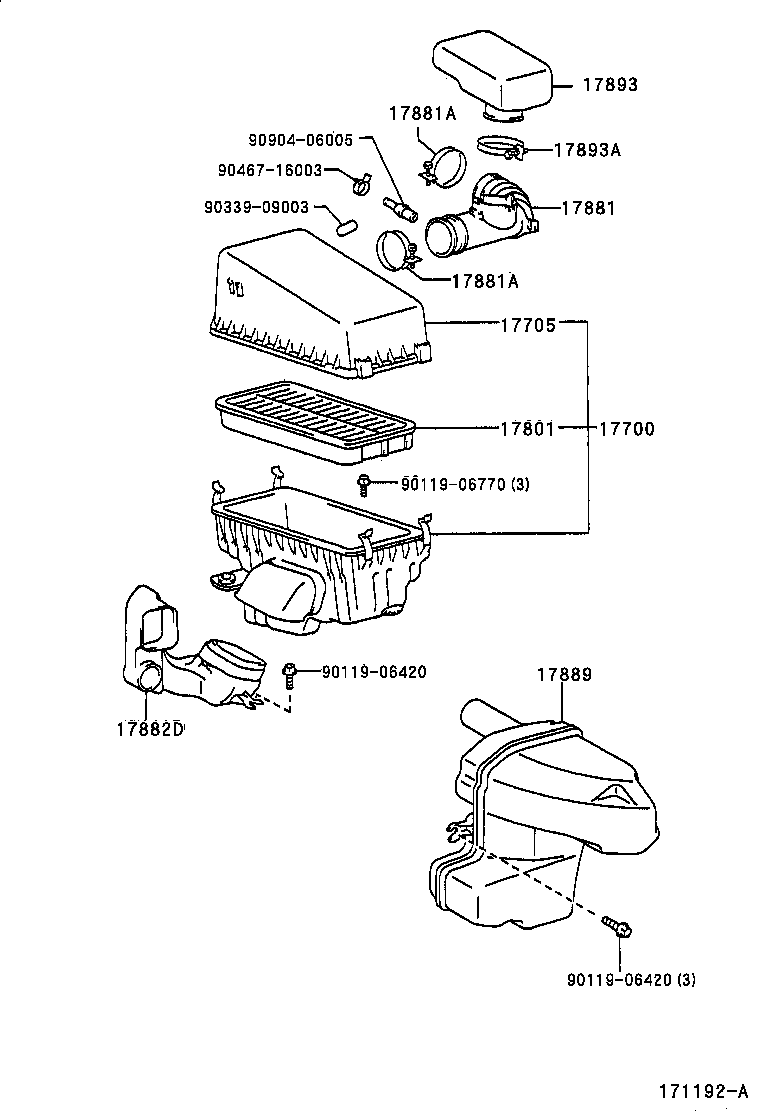

Click highlighted areas on diagram

diagram 17700 17705 17801 17881 17881A 17881A 17882D 17889 17893 17893A 9011906420 9011906420 9011906770 9033909003 9046716003 9090406005
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-74540

3SFE..SXA1#

 1
17700-74543

3SFE..SXA1#

 1
17700-74542

3SFE..SXA1#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-74380

3SFE..SXA1#

 1
17705-74382

3SFE..SXA1#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-74020

3SFE..SXA1#

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-74600

3SFE..SXA1#

 1
17881-74801

3SFE..SXA1#

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10710

3SFE..SXA1#

 2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10710

3SFE..SXA1#

 2
17882D - HOSE, COOL AIR INTAKE
17882-74290

3SFE..SXA1#

 1
17889 - BOX, AIR CLEANER HOSE, NO.2
17889-74050

3SFE..SXA1#

 1
17893 - RESONATOR, INTAKE AIR
17893-74330

3SFE..SXA1#

 1
17893A - CLAMP, HOSE
96111-10670

3SFE..SXA1#

 1
Common parts
90119-06420
90119-06770
90339-09003
90467-16003
90904-06005

(9709- )

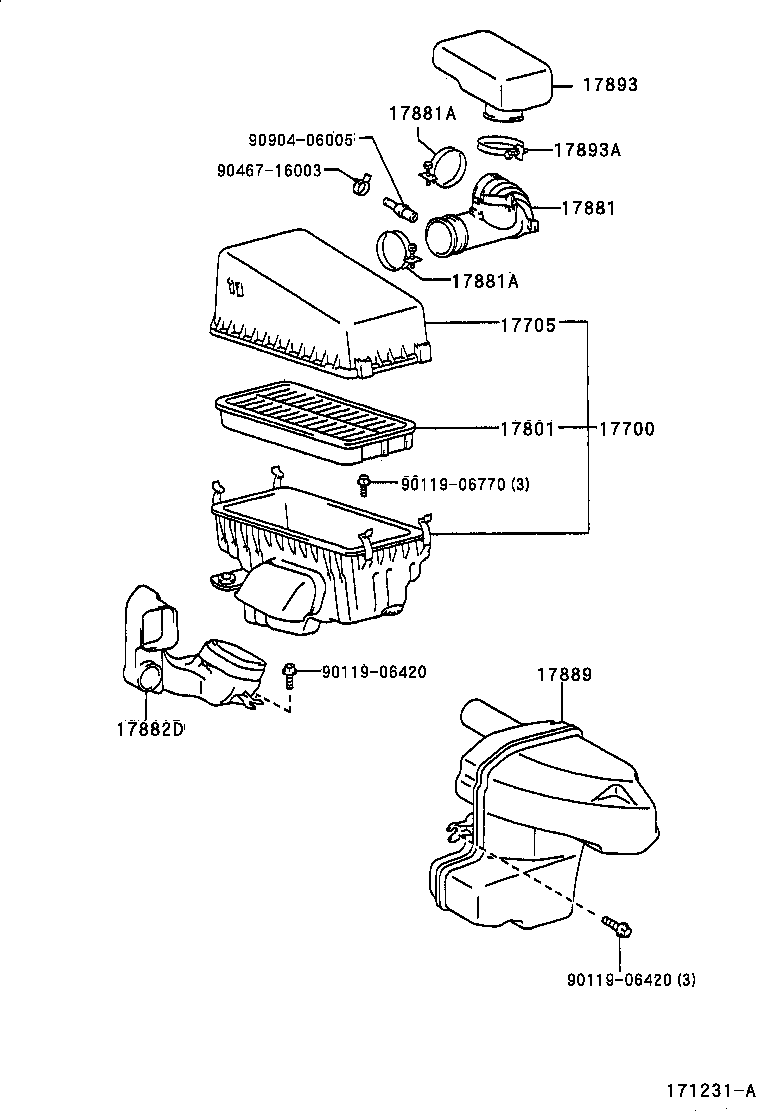

Click highlighted areas on diagram

diagram 17700 17705 17801 17881 17881A 17881A 17882D 17889 17893 17893A 9011906420 9011906420 9011906770 9046716003 9090406005
Part # Description Qty Price
Common parts
90119-06420
90119-06770
90467-16003
90904-06005
