SXA11L-AWMGKV (1997)

Toyota Rav4

Production Sep 1997 - Aug 2000
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9404- )3SFE..GCC,GEN

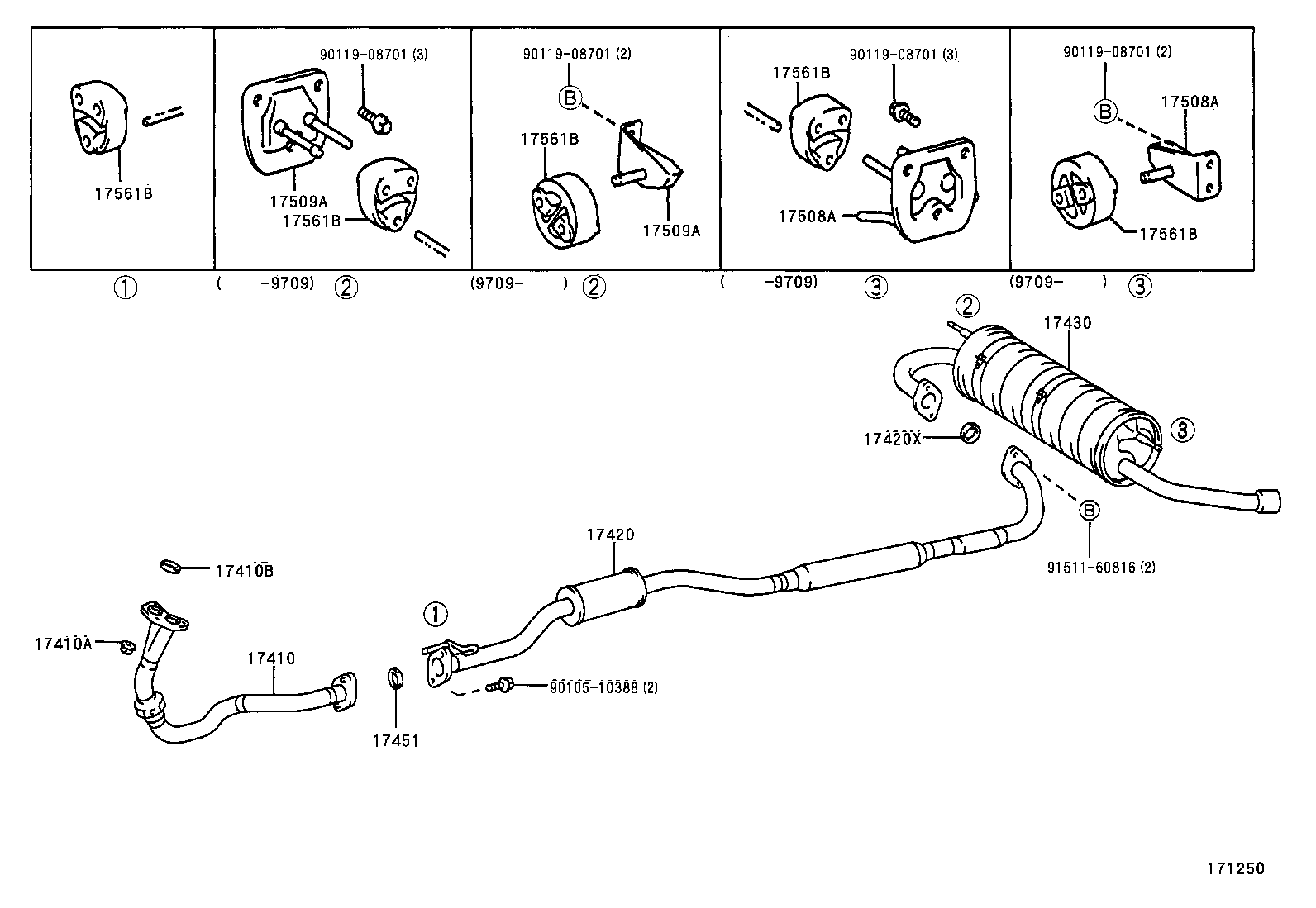

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17420 17420X 17430 17451 17508A 17508A 17509A 17509A 17561B 17561B 17561B 17561B 17561B 9010510388 9011908701 9011908701 9011908701 9011908701 9151160816
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17401-74390

3SFE..SXA1#..GCC,GEN

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

3SFE..SXA1#

 3
17410B - GASKET, EXHAUST PIPE
90917-06061

3SFE..SXA1#..EUR,GCC,GEN

 2
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06062

3SFE..SXA1#

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-7A530

3SFE..SXA1#

 1
17430-7B040

3SFE..SXA1#

 1
17451 - GASKET, EXHAUST PIPE
90917-06062

3SFE..SXA1#..ARL,GCC,GEN

 1
17508A - BRACKET SUB-ASSY, EXHAUST PIPE NO.3 SUPPORT
17508-74120

3SFE..SXA1#

 1
17508A - BRACKET SUB-ASSY, EXHAUST PIPE NO.3 SUPPORT
17508-74120

3SFE..SXA1#

 1
17509A - BRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT
17509-74210

3SFE..SXA1#

 1
17509A - BRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT
17509-74210

3SFE..SXA1#

 1
17561B - SUPPORT, EXHAUST PIPE, NO.1
17565-46010

3SFE..SXA1#

REAR

 2
17561B - SUPPORT, EXHAUST PIPE, NO.1
17565-46010

3SFE..SXA1#

REAR

 2
17561B - SUPPORT, EXHAUST PIPE, NO.1
17565-46010

3SFE..SXA1#

REAR

 2
17561B - SUPPORT, EXHAUST PIPE, NO.1
17565-46010

3SFE..SXA1#

REAR

 2
17561B - SUPPORT, EXHAUST PIPE, NO.1
17565-46010

3SFE..SXA1#

REAR

 2
Common parts
90105-10388
90119-08701
91511-60816

(9709- )

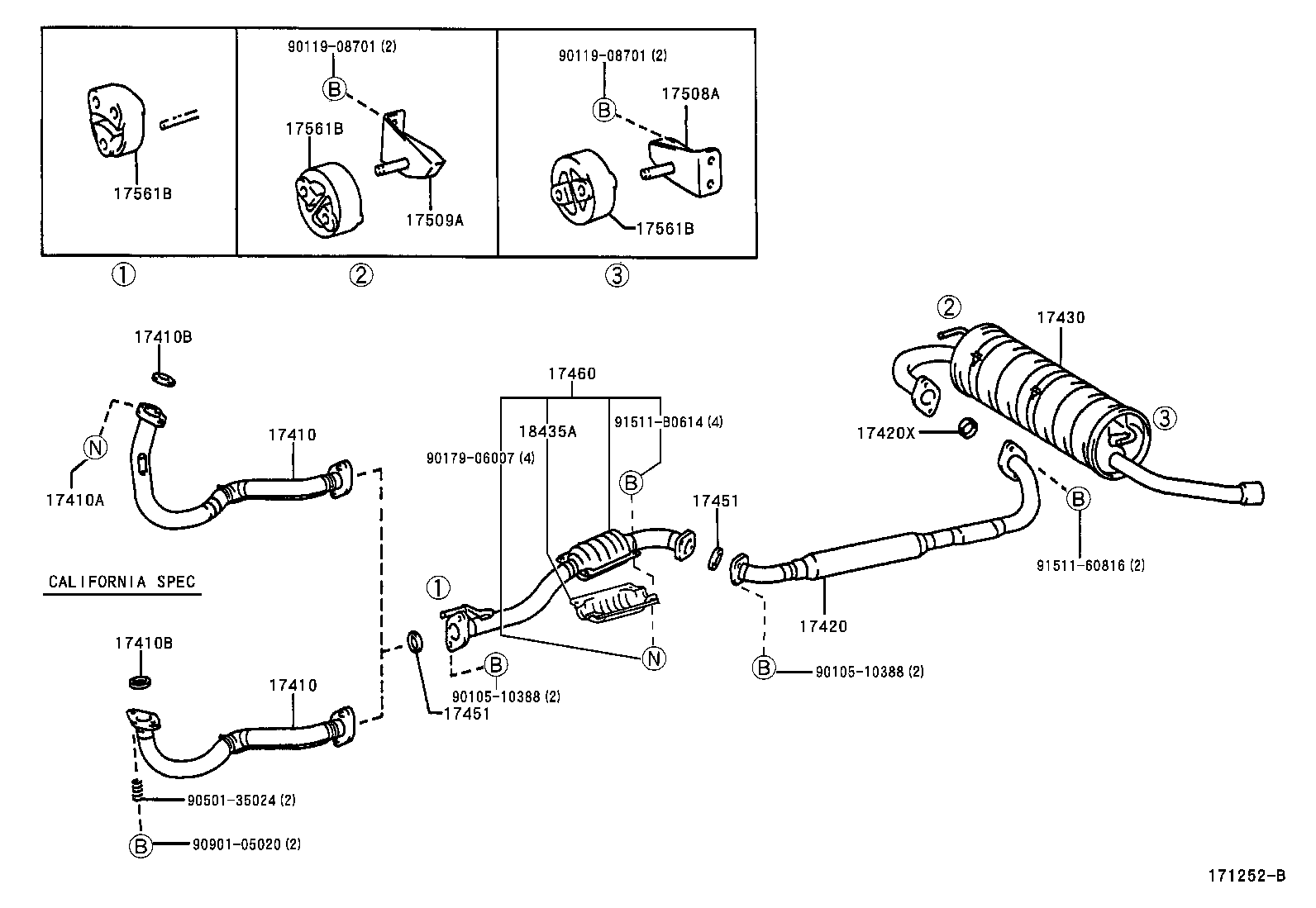

Click highlighted areas on diagram

diagram 17410 17410 17410A 17410B 17410B 17420 17420X 17430 17451 17451 17460 17508A 17509A 17561B 17561B 17561B 18435A 9010510388 9010510388 9011908701 9011908701 9017906007 9050135024 9090105020 9151160816 91511B0614
Part # Description Qty Price
Common parts
90105-10388
90119-08701
90179-06007
90501-35024
90901-05020
91511-60816
91511-B0614
