SXA11L-AWMGKV (1997)
Toyota Rav4
Production
Sep 1997
-
Aug 2000
Engine
3SFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9709- )

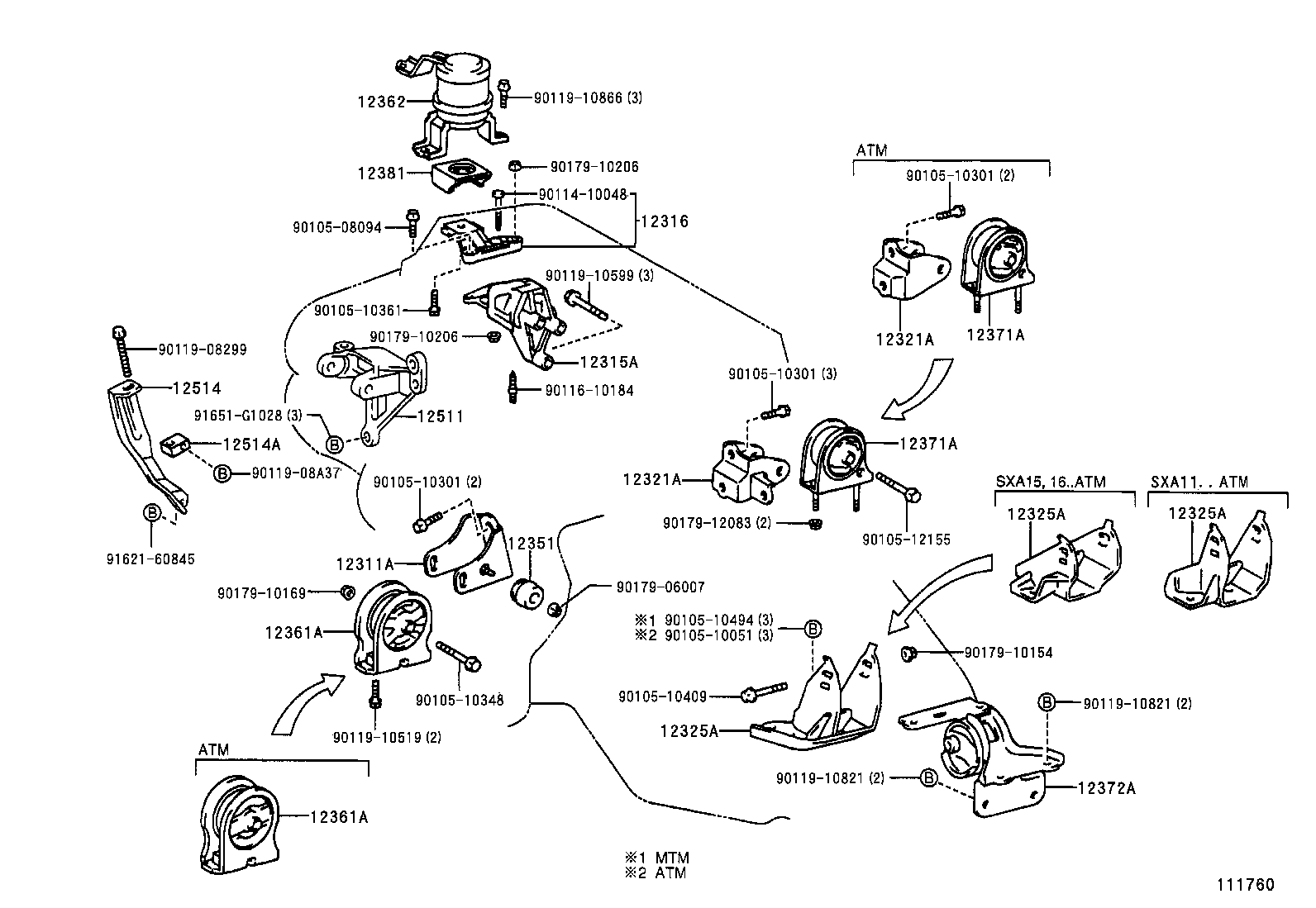

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) | ||||
| 12311-74190 |
3SFE..SXA1# |
1 | ||
| 12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12315-74120 |
3SFE..SXA1# |
1 | ||
| 12316 - BRACKET, ENGINE MOUNTING, NO.2 RH | ||||
| 12316-74100 |
3SFE..SXA1# |
1 | ||
| 12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) | ||||
| 12321-74280 |
3SFE..SXA1#..MTM |
1 | ||
| 12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) | ||||
| 12321-74280 |
3SFE..SXA1#..MTM |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12325-74200 |
3SFE..SXA1#..MTM |
1 | ||
| 12325-74380 |
3SFE..SXA1#..MTM |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12325-74200 |
3SFE..SXA1#..MTM |
1 | ||
| 12325-74380 |
3SFE..SXA1#..MTM |
1 | ||
| 12351 - DAMPER, ENGINE MOUNTING | ||||
| 12351-63010 |
3SFE..SXA1# |
1 | ||
| 12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE | ||||
| 12361-74340 |
3SFE..SXA1#..MTM |
1 | ||
| 12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE | ||||
| 12361-74340 |
3SFE..SXA1#..MTM |
1 | ||
| 12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12362-74390 |
3SFE..SXA1# |
1 | ||
| 12371A - INSULATOR, ENGINE MOUNTING, REAR | ||||
| 12371-74460 |
3SFE..SXA1#..MTM |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-74400 |
3SFE..SXA1#..MTM |
1 | ||
| 12372-74610 |
3SFE..SXA1#..MTM |
1 | ||
| 12381 - STABILIZER, ENGINE MOUNTING | ||||
| 12381-74050 |
3SFE..SXA1# |
1 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12511-74051 |
3SFE..SXA1# |
1 | ||
| 12514 - BAR, ALTERNATOR BELT ADJUSTING | ||||
| 12514-74051 |
3SFE..SXA1# |
1 | ||
| 12514-74011 |
3SFE..SXA1# |
1 | ||
| 12514A - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-64011 |
3SFE..SXA1# |
1 | ||
| Common parts | ||||
| 90105-08094 | ||||
| 90105-10051 | ||||
| 90105-10301 | ||||
| 90105-10348 | ||||
| 90105-10361 | ||||
| 90105-10409 | ||||
| 90105-10494 | ||||
| 90105-12155 | ||||
| 90114-10048 | ||||
| 90116-10184 | ||||
| 90119-08299 | ||||
| 90119-08A37 | ||||
| 90119-10519 | ||||
| 90119-10599 | ||||
| 90119-10821 | ||||
| 90119-10866 | ||||
| 90179-06007 | ||||
| 90179-10154 | ||||
| 90179-10169 | ||||
| 90179-10206 | ||||
| 90179-12083 | ||||
| 91621-60845 | ||||
| 91651-G1028 | ||||
(9709- )

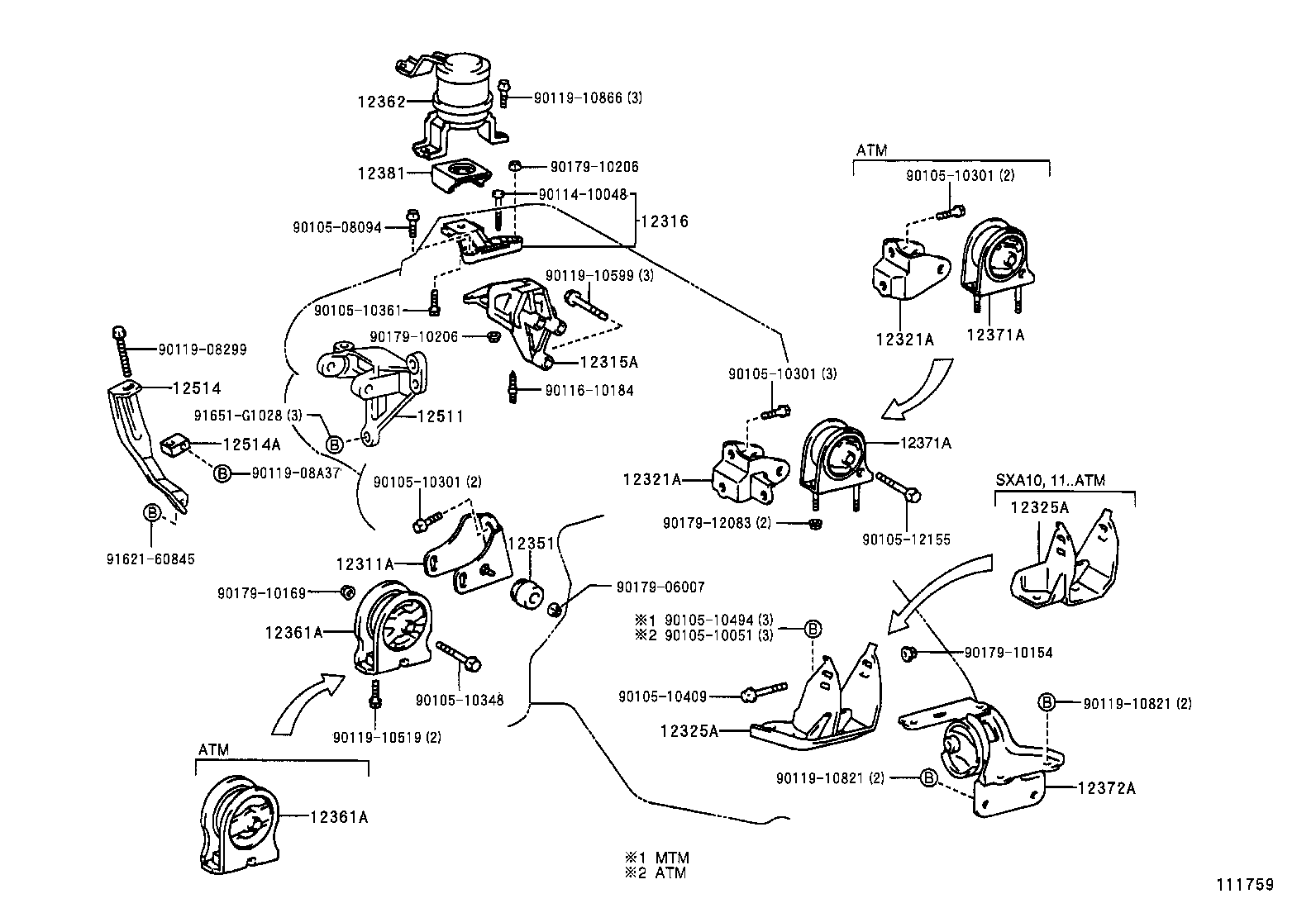

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-08094 | ||||
| 90105-10051 | ||||
| 90105-10301 | ||||
| 90105-10348 | ||||
| 90105-10361 | ||||
| 90105-10409 | ||||
| 90105-10494 | ||||
| 90105-12155 | ||||
| 90114-10048 | ||||
| 90116-10184 | ||||
| 90119-08299 | ||||
| 90119-08A37 | ||||
| 90119-10519 | ||||
| 90119-10599 | ||||
| 90119-10821 | ||||
| 90119-10866 | ||||
| 90179-06007 | ||||
| 90179-10154 | ||||
| 90179-10169 | ||||
| 90179-10206 | ||||
| 90179-12083 | ||||
| 91621-60845 | ||||
| 91651-G1028 | ||||
