SXA11L-AWMGKV (1997)
Toyota Rav4
Production
Sep 1997
-
Aug 2000
Engine
3SFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)

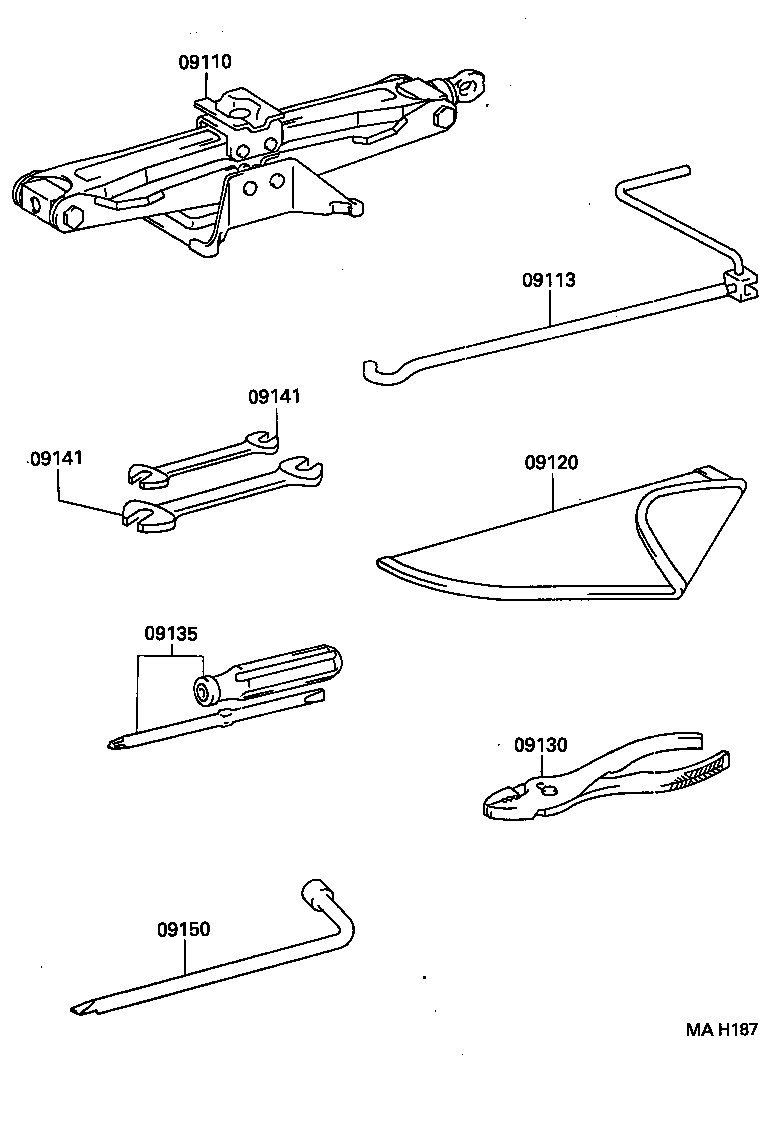

(9404- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 09110 - JACK ASSY | ||||
| 09111-42010 |
SXA1#..EUR,GCC,GEN |
1 | ||
| 09113 - HANDLE, JACK | ||||
| 09113-42010 |
SXA1# |
1 | ||
| 09120 - BAG, TOOL | ||||
| 09120-30050 |
SXA1# |
1 | ||
| 09130 - PLIERS | ||||
| 99913-11500 |
SXA1#..GCC,GEN;SXA1#..LHD..EUR |
1 | ||
| 09135 - DRIVER, SCREW | ||||
| 99915-10700 |
SXA1#..GCC,GEN;SXA1#..LHD..EUR |
1 | ||
| 09141 - SPANNER | ||||
| 99914-10810 |
SXA1#..GCC,GEN;SXA1#..LHD..EUR 8 X 10 |
1 | ||
| 99914-11214 |
SXA1#..GCC,GEN;SXA1#..LHD..EUR 12 X 14 |
1 | ||
| 09141 - SPANNER | ||||
| 99914-10810 |
SXA1#..GCC,GEN;SXA1#..LHD..EUR 8 X 10 |
1 | ||
| 99914-11214 |
SXA1#..GCC,GEN;SXA1#..LHD..EUR 12 X 14 |
1 | ||
| 09150 - WRENCH, HUB NUT BOX | ||||
| 09150-40010 |
SXA1# |
1 | ||

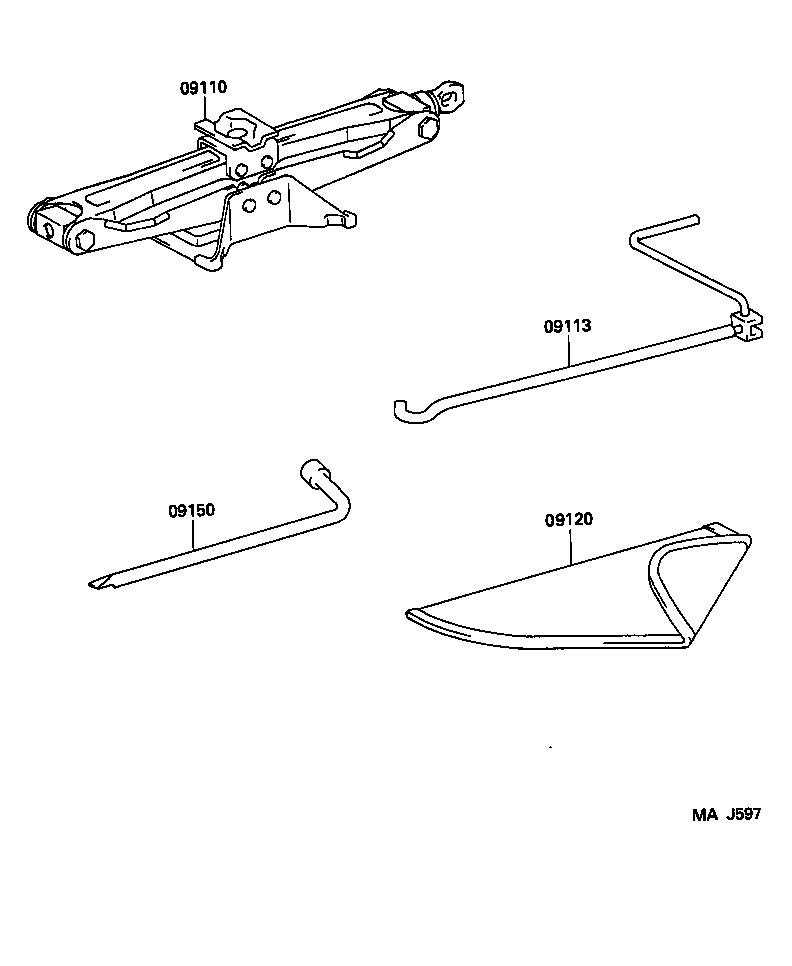

(9511- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price |
|---|
