SXA11L-AWMGKA (1995)
Toyota Rav4
Production
Nov 1995
-
Aug 2000
Engine
3SFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9709- )

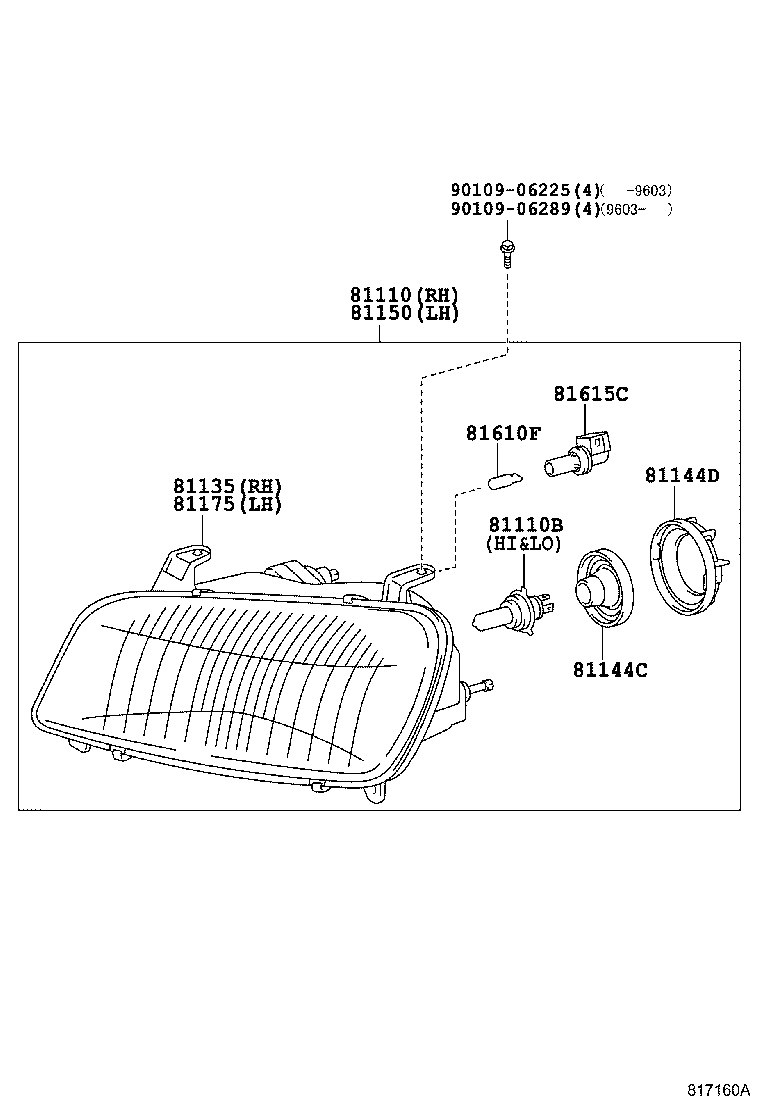

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-42090 |
SXA1# |
1 | ||
| 81110-42060 |
SXA1# |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90080-81040 |
SXA1# 12V 51W |
2 | ||
| 90981-13058 |
SXA1# 12V 60/55W,HALOGEN |
2 | ||
| 81110D - BULB(FOR HEADLAMP, NO.2) | ||||
| 90080-81041 |
SXA1# 12V 65W |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81105-42060 |
SXA1# |
1 | ||
| 81105-42090 |
SXA1# |
1 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-42090 |
SXA1# |
1 | ||
| 81150-42060 |
SXA1# |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81106-42060 |
SXA1# |
1 | ||
| 81106-42090 |
SXA1# |
1 | ||
| Common parts | ||||
| 90109-06289 | ||||
(9404-9709)

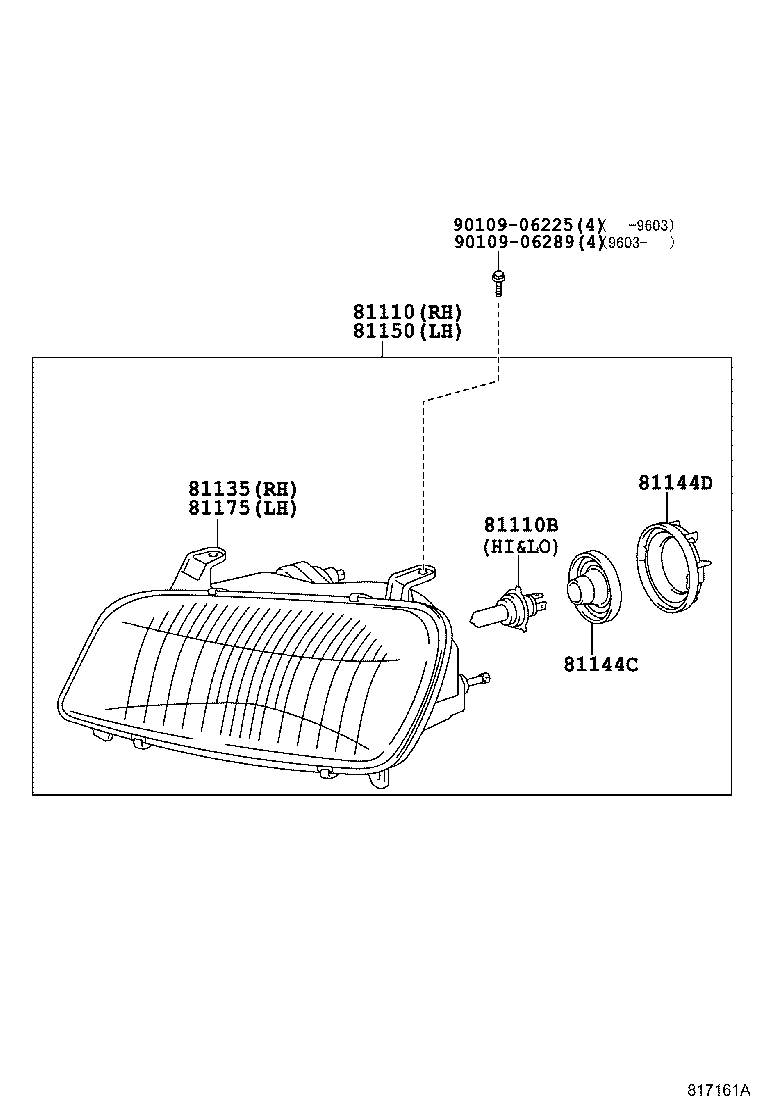

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90109-06225 | ||||
| 90109-06289 | ||||
(9709- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-42090 |
SXA1# |
1 | ||
| 81110-42060 |
SXA1# |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90080-81040 |
SXA1# 12V 51W |
2 | ||
| 90981-13058 |
SXA1# 12V 60/55W,HALOGEN |
2 | ||
| 81110D - BULB(FOR HEADLAMP, NO.2) | ||||
| 90080-81041 |
SXA1# 12V 65W |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81105-42060 |
SXA1# |
1 | ||
| 81105-42090 |
SXA1# |
1 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-42090 |
SXA1# |
1 | ||
| 81150-42060 |
SXA1# |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81106-42060 |
SXA1# |
1 | ||
| 81106-42090 |
SXA1# |
1 | ||
| Common parts | ||||
| 90109-06289 | ||||
(9511-9709)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-42090 |
SXA1# |
1 | ||
| 81110-42060 |
SXA1# |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90080-81040 |
SXA1# 12V 51W |
2 | ||
| 90981-13058 |
SXA1# 12V 60/55W,HALOGEN |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81105-42060 |
SXA1# |
1 | ||
| 81105-42090 |
SXA1# |
1 | ||
| 81144C - COVER, HEADLAMP SOCKET | ||||
| 81139-1E310 |
SXA1# |
2 | ||
| 81144D - CAP, HEADLAMP LOCKING | ||||
| 81112-1E310 |
SXA1# |
2 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-42090 |
SXA1# |
1 | ||
| 81150-42060 |
SXA1# |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81106-42060 |
SXA1# |
1 | ||
| 81106-42090 |
SXA1# |
1 | ||
| Common parts | ||||
| 90109-06225 | ||||
| 90109-06289 | ||||
