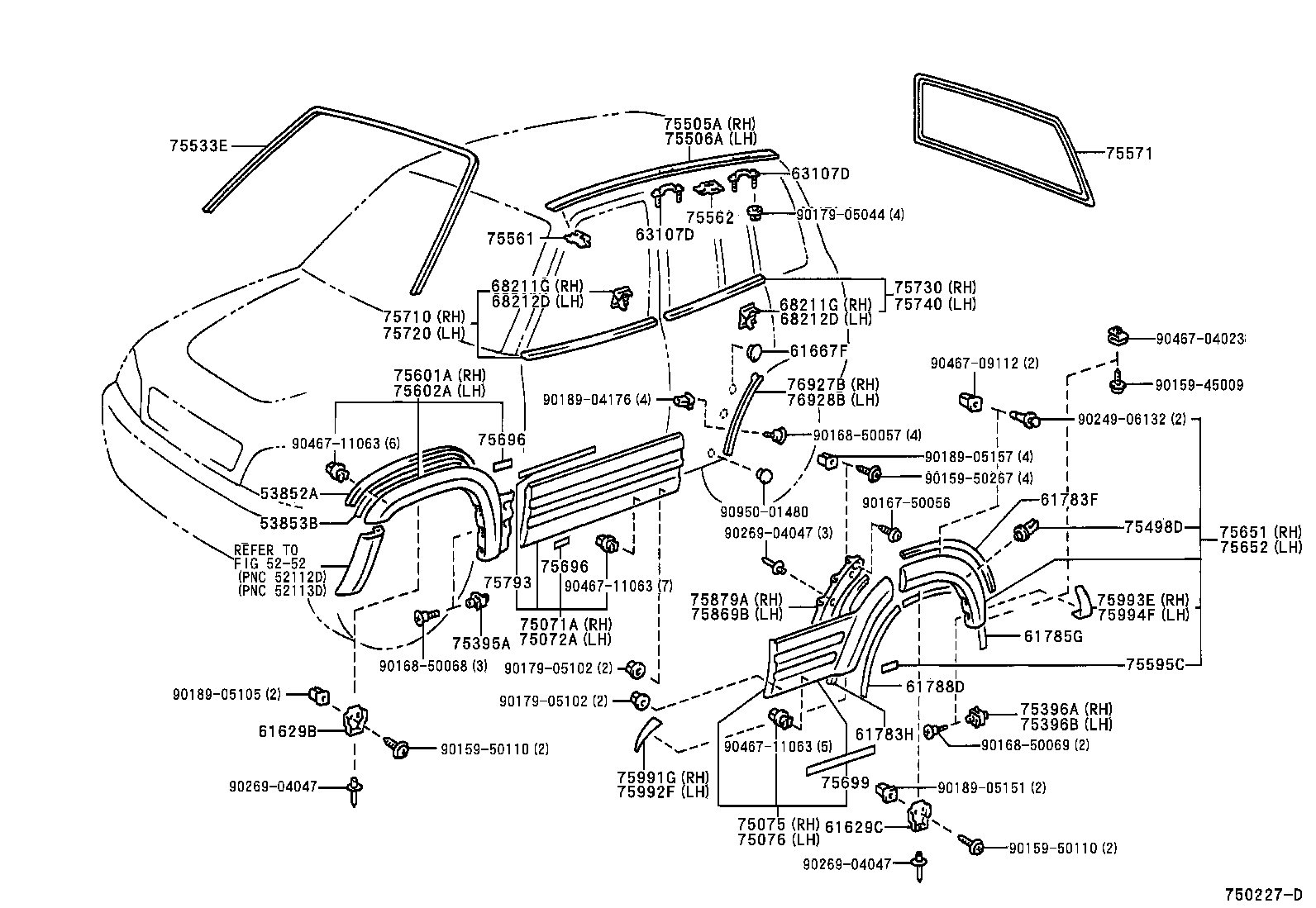

SXA11L-AWMGKA (1995)
Toyota Rav4
(9608- )SXA11
W(BUMPER EXTENTION)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53852A - PAD, FRONT WHEEL OPENING EXTENSION, NO.2 | ||||
| 53851-42030B0 |
SXA11 GRAY,056 ,199 ,202 ,3J8 ,6N5 ,748 ,8K4 ,8K5 ,925,RH |
1 | ||
| 53851-42040C0 |
SXA11 BLACK,056 ,199 ,202 ,3J8 ,4J6 ,6P3 ,8K5 ,8L5,LH |
1 | ||
| 53851-42040B1 |
SXA11 GRAY,K60 ,K61 ,K62 ,K64 ,K66 ,K68 ,K70 ,K71,LH |
1 | ||
| 53851-42040C0 |
SXA11 BLACK,056 ,202 ,4J6 ,6P3 ,8L5,LH |
1 | ||
| 53851-42060B1 |
SXA11 GRAY,K60 ,K61 ,K62 ,K64 ,K66 ,K68 ,K70 ,K71,RH |
1 | ||
| 53851-42070B1 |
SXA11 GRAY,K60 ,K61 ,K62 ,K64 ,K66 ,K68 ,K70 ,K71,LH |
1 | ||
| 53851-42060B1 |
SXA11 GRAY,KA0 ,KA1 ,KA2 ,K62 ,K71 ,K95 ,K96 ,K98,RH |
1 | ||
| 53851-42070B1 |
SXA11 GRAY,KA0 ,KA1 ,KA2 ,K62 ,K71 ,K95 ,K96 ,K98,LH |
1 | ||
| 53851-42030C0 |
SXA11 BLACK,056 ,202 ,4J6 ,6P3 ,8L5,RH |
1 | ||
| 53851-42040C0 |
SXA11 BLACK,056 ,1B9 ,202 ,3M8 ,4J6 ,6P3 ,760 ,8L5,LH |
1 | ||
| 53851-42030C0 |
SXA11 BLACK,056 ,1B9 ,202 ,3M8 ,4J6 ,6P3 ,760 ,8L5,RH |
1 | ||
| 53851-42040B0 |
SXA11 GRAY,056 ,199 ,202 ,3J8 ,6N5 ,748 ,8K4 ,8K5 ,925,LH |
1 | ||
| 53853B - PAD, FRONT WHEEL OPENING EXTENSION, NO.1 | ||||
| 53853-42010 |
SXA10,11 |
2 | ||
| 61629B - EXTENSION, QUARTER OUTER PANEL, RR | ||||
| 61629-42010 |
SXA10,11 |
2 | ||
| 61629C - EXTENSION, QUARTER OUTER PANEL, RR | ||||
| 61629-42010 |
SXA10,11 |
2 | ||
| 61667F - SEAL, QUARTER PANEL | ||||
| 61667-42010 |
SXA11 |
4 | ||
| 61783F - PAD, REAR WHEEL OPENING EXTENSION NO.1 | ||||
| 61783-42060B0 |
SXA11 GRAY,056 ,199 ,202 ,3J8 ,6N5 ,748 ,8K4 ,8K5 ,925,LH |
1 | ||
| 61783-42050B0 |
SXA11 GRAY,056 ,199 ,202 ,3J8 ,6N5 ,748 ,8K4 ,8K5 ,925,RH |
1 | ||
| 61783-42110B1 |
SXA11 GRAY,K60 ,K61 ,K62 ,K64 ,K66 ,K68 ,K70 ,K71,RH |
1 | ||
| 61783-42120B1 |
SXA11 GRAY,KA0 ,KA1 ,KA2 ,K62 ,K71 ,K95 ,K96 ,K98 |
1 | ||
| 61783-42050C0 |
SXA11 BLACK,056 ,1B9 ,202 ,3M8 ,4J6 ,6P3 ,760 ,8L5,RH |
1 | ||
| 61783-42060C0 |
SXA11 BLACK,056 ,1B9 ,202 ,3M8 ,4J6 ,6P3 ,760 ,8L5 |
1 | ||
| 61783-42060C0 |
SXA11 BLACK,056 ,202 ,4J6 ,6P3 ,8L5 |
1 | ||
| 61783-42050C0 |
SXA11 BLACK,056 ,202 ,4J6 ,6P3 ,8L5,RH |
1 | ||
| 61783-42120B1 |
SXA11 GRAY,K60 ,K61 ,K62 ,K64 ,K66 ,K68 ,K70 ,K71 |
1 | ||
| 61783-42110B1 |
SXA11 GRAY,KA0 ,KA1 ,KA2 ,K62 ,K71 ,K95 ,K96 ,K98,RH |
1 | ||
| 61783H - PAD, REAE WHEEL OPENING EXTENSION, NO.2 | ||||
| 61783-42040B0 |
SXA11 GRAY,056 ,199 ,202 ,3J8 ,6N5 ,748 ,8K4 ,8K5 ,925,LH |
1 | ||
| 61783-42090B1 |
SXA11 GRAY,K60 ,K61 ,K62 ,K64 ,K66 ,K68 ,K70 ,K71,RH |
1 | ||
| 61783-42030B0 |
SXA11 GRAY,056 ,199 ,202 ,3J8 ,6N5 ,748 ,8K4 ,8K5 ,925,RH |
1 | ||
| 61783-42030C0 |
SXA11 BLACK,056 ,202 ,4J6 ,6P3 ,8L5,RH |
1 | ||
| 61783-42090B1 |
SXA11 GRAY,KA0 ,KA1 ,KA2 ,K62 ,K71 ,K95 ,K96 ,K98,RH |
1 | ||
| 61783-42100B1 |
SXA11 GRAY,K60 ,K61 ,K62 ,K64 ,K66 ,K68 ,K70 ,K71,LH |
1 | ||
| 61783-42030C0 |
SXA11 BLACK,056 ,1B9 ,202 ,3M8 ,4J6 ,6P3 ,760 ,8L5,RH |
1 | ||
| 61783-42100B1 |
SXA11 GRAY,KA0 ,KA1 ,KA2 ,K62 ,K71 ,K95 ,K96 ,K98,LH |
1 | ||
| 61783-42040C0 |
SXA11 BLACK,056 ,1B9 ,202 ,3M8 ,4J6 ,6P3 ,760 ,8L5,LH |
1 | ||
| 61783-42040C0 |
SXA11 BLACK,056 ,202 ,4J6 ,6P3 ,8L5,LH |
1 | ||
| 61785G - PAD, REAR WHEEL OPENING EXTENSION, NO.3 | ||||
| 61785-42020 |
SXA11 |
2 | ||
| 61788D - PAD, REAR WHEEL OPENING EXTENSION PAD NO.4 | ||||
| 61788-42010 |
SXA11 |
2 | ||
| 63107D - BRACKET SUB-ASSY, ROOF MOULDING | ||||
| 63107-42010 |
SXA1# |
4 | ||
| 63107-42011 |
SXA1#..HT |
4 | ||
| 63107D - BRACKET SUB-ASSY, ROOF MOULDING | ||||
| 63107-42010 |
SXA1# |
4 | ||
| 63107-42011 |
SXA1#..HT |
4 | ||
| 68211G - CLIP(DOOR BELT MOULDING RH) | ||||
| 68212-16010 |
SXA11,16 |
9 | ||
| 68211G - CLIP(DOOR BELT MOULDING RH) | ||||
| 68212-16010 |
SXA11,16 |
9 | ||
| 68212D - CLIP(DOOR BELT MOULDING LH) | ||||
| 68212-16010 |
SXA11,16 |
9 | ||
| 68212D - CLIP(DOOR BELT MOULDING LH) | ||||
| 68212-16010 |
SXA11,16 |
9 | ||
| 75071A - MOULDING SUB-ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 75071-42021 |
SXA11,16 W(235/60R16 TIRE) OR PAINTED |
1 | ||
| 75071-42021 |
SXA11,16 |
1 | ||
| 75072A - MOULDING SUB-ASSY, FRONT DOOR, OUTSIDE LH | ||||
| 75072-42021 |
SXA11,16 |
1 | ||
| 75072-42021 |
SXA11,16 W(235/60R16 TIRE) OR PAINTED |
1 | ||
| 75075 - MOULDING SUB-ASSY, REAR DOOR, OUTSIDE RH | ||||
| 75075-42011 |
SXA11,16 |
1 | ||
| 75075-42900 |
SXA11 W(BUMPER EXTENTION) |
1 | ||
| 75076 - MOULDING SUB-ASSY, REAR DOOR, OUTSIDE LH | ||||
| 75076-42011 |
SXA11,16 |
1 | ||
| 75076-42900 |
SXA11 W(BUMPER EXTENTION) |
1 | ||
| 75395A - CLIP, OUTSIDE MOULDING, NO.1 | ||||
| 75395-42010 |
SXA10,11 |
6 | ||
| 75396A - CLIP, OUTSIDE MOULDING, NO.2 | ||||
| 75396-42010 |
SXA10,11 |
2 | ||
| 75396-42010 |
SXA10,11 |
4 | ||
| 75396B - CLIP, OUTSIDE MOULDING, NO.2 | ||||
| 75396-42010 |
SXA10,11 |
2 | ||
| 75498D - CLIP, QUARTER GARNISH, NO.1 | ||||
| 75498-42010 |
SXA10,11 |
6 | ||
| 75505A - MOULDING SUB-ASSY, ROOF DRIP SIDE FINISH, RH | ||||
| 75505-42020 |
SXA11,16 |
1 | ||
| 75506A - MOULDING SUB-ASSY, ROOF DRIP SIDE FINISH, LH | ||||
| 75506-42020 |
SXA11,16 |
1 | ||
| 75533E - MOULDING, WINDSHIELD, OUTSIDE | ||||
| 75533-42020 |
SXA1# |
1 | ||
| 75533-42030 |
SXA1# |
1 | ||
| 75561 - CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1 | ||||
| 75561-42020 |
SXA1# |
2 | ||
| 75562 - CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.2 | ||||
| 75562-42020 |
SXA1# |
12 | ||
| 75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER | ||||
| 75573-42010 |
SXA15;SXA10,11,16..HT |
1 | ||
| 75595C - PAD, QUARTER GARNISH, UPPER | ||||
| 75595-42010 |
SXA11 |
2 | ||
| 75601A - MOULDING SUB-ASSY, FRONT FENDER, RH | ||||
| 75601-42900 |
SXA10,11..HT W(BUMPER EXTENTION) |
1 | ||
| 75601-42011 |
SXA1# |
1 | ||
| 75602A - MOULDING SUB-ASSY, FRONT FENDER, LH | ||||
| 75602-42011 |
SXA1# |
1 | ||
| 75602-42900 |
SXA10,11..HT W(BUMPER EXTENTION) |
1 | ||
| 75651 - MOULDING, QUARTER, OUTSIDE RH | ||||
| 75651-42020 |
SXA11,16 |
1 | ||
| 75605-42901 |
SXA11 W(BUMPER EXTENTION) |
1 | ||
| 75652 - MOULDING, QUARTER, OUTSIDE LH | ||||
| 75606-42901 |
SXA11 W(BUMPER EXTENTION) |
1 | ||
| 75652-42020 |
SXA11,16 |
1 | ||
| 75696 - PAD, BODY OUTSIDE MOULDING, NO.1 | ||||
| 75696-42010 |
SXA11,16 |
10 | ||
| 75697-42030 |
SXA10,11 W(235/60R16 TIRE) |
2 | ||
| 75696-42010 |
SXA11,16 T=1.5 |
10 | ||
| 75696-42030 |
SXA11,16 T=5.0 |
2 | ||
| 75696-42010 |
SXA11,16 T=1.5 |
12 | ||
| 75696 - PAD, BODY OUTSIDE MOULDING, NO.1 | ||||
| 75696-42010 |
SXA11,16 |
10 | ||
| 75697-42030 |
SXA10,11 W(235/60R16 TIRE) |
2 | ||
| 75696-42010 |
SXA11,16 T=1.5 |
10 | ||
| 75696-42030 |
SXA11,16 T=5.0 |
2 | ||
| 75696-42010 |
SXA11,16 T=1.5 |
12 | ||
| 75699 - PAD, BODY OUTSIDE MOULDING, NO.4 | ||||
| 75699-42020 |
SXA11 W(235/60R16 TIRE),T=1.2 |
2 | ||
| 75699-42010 |
SXA11,16 T=1.2 |
2 | ||
| 75710 - MOULDING ASSY, FRONT DOOR BELT, RH | ||||
| 75710-42020 |
SXA11,16 |
1 | ||
| 75720 - MOULDING ASSY, FRONT DOOR BELT, LH | ||||
| 75720-42020 |
SXA11,16 |
1 | ||
| 75730 - MOULDING ASSY, REAR DOOR BELT, RH | ||||
| 75730-42010 |
SXA11,16 |
1 | ||
| 75740 - MOULDING ASSY, REAR DOOR BELT, LH | ||||
| 75740-42010 |
SXA11,16 |
1 | ||
| 75793 - PAD, FRONT DOOR OUTSIDE MOULDING, UPPER | ||||
| 75793-42020 |
SXA11,16 |
2 | ||
| 75869B - RETAINER, QUARTER OPENING, LH | ||||
| 75869-42010 |
SXA11 |
1 | ||
| 75879A - RETAINER, QUARTER OPENING, RH | ||||
| 75879-42010 |
SXA11 |
1 | ||
| 75991G - STRIPE, QUARTER, FRONT RH | ||||
| 75991-42020 |
SXA11 |
1 | ||
| 75992F - STRIPE, QUARTER, FRONT LH | ||||
| 75992-42020 |
SXA11 |
1 | ||
| 75993E - STRIPE, QUARTER, REAR RH | ||||
| 75993-42010 |
SXA11 |
1 | ||
| 75994F - STRIPE, QUARTER, REAR LH | ||||
| 75994-42010 |
SXA11 |
1 | ||
| 76927B - PROTECTOR, REAR MUDGUARD, RH | ||||
| 76927-42010 |
SXA11 |
1 | ||
| 76928B - PROTECTOR, REAR MUDGUARD, LH | ||||
| 76928-42010 |
SXA11 |
1 | ||
| Common parts | ||||
| 90159-45009 | ||||
| 90159-50110 | ||||
| 90159-50267 | ||||
| 90167-50056 | ||||
| 90168-50057 | ||||
| 90168-50068 | ||||
| 90168-50069 | ||||
| 90179-05044 | ||||
| 90179-05102 | ||||
| 90189-04176 | ||||
| 90189-05105 | ||||
| 90189-05151 | ||||
| 90189-05157 | ||||
| 90249-06132 | ||||
| 90269-04047 | ||||
| 90467-04023 | ||||
| 90467-09112 | ||||
| 90467-11063 | ||||
| 90950-01480 | ||||
| Linked diagrams | ||||
| 5252 | ||||
(9511- )SXA11,16
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63107D - BRACKET SUB-ASSY, ROOF MOULDING | ||||
| 63107-42010 |
SXA1# |
4 | ||
| 63107-42011 |
SXA1#..HT |
4 | ||
| 63107D - BRACKET SUB-ASSY, ROOF MOULDING | ||||
| 63107-42010 |
SXA1# |
4 | ||
| 63107-42011 |
SXA1#..HT |
4 | ||
| 68211G - CLIP(DOOR BELT MOULDING RH) | ||||
| 68212-16010 |
SXA11,16 |
9 | ||
| 68211G - CLIP(DOOR BELT MOULDING RH) | ||||
| 68212-16010 |
SXA11,16 |
9 | ||
| 68212D - CLIP(DOOR BELT MOULDING LH) | ||||
| 68212-16010 |
SXA11,16 |
9 | ||
| 68212D - CLIP(DOOR BELT MOULDING LH) | ||||
| 68212-16010 |
SXA11,16 |
9 | ||
| 75071A - MOULDING SUB-ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 75071-42021 |
SXA11,16 W(235/60R16 TIRE) OR PAINTED |
1 | ||
| 75071-42021 |
SXA11,16 |
1 | ||
| 75072A - MOULDING SUB-ASSY, FRONT DOOR, OUTSIDE LH | ||||
| 75072-42021 |
SXA11,16 |
1 | ||
| 75072-42021 |
SXA11,16 W(235/60R16 TIRE) OR PAINTED |
1 | ||
| 75075 - MOULDING SUB-ASSY, REAR DOOR, OUTSIDE RH | ||||
| 75075-42011 |
SXA11,16 |
1 | ||
| 75075-42900 |
SXA11 W(BUMPER EXTENTION) |
1 | ||
| 75076 - MOULDING SUB-ASSY, REAR DOOR, OUTSIDE LH | ||||
| 75076-42011 |
SXA11,16 |
1 | ||
| 75076-42900 |
SXA11 W(BUMPER EXTENTION) |
1 | ||
| 75505A - MOULDING SUB-ASSY, ROOF DRIP SIDE FINISH, RH | ||||
| 75505-42020 |
SXA11,16 |
1 | ||
| 75506A - MOULDING SUB-ASSY, ROOF DRIP SIDE FINISH, LH | ||||
| 75506-42020 |
SXA11,16 |
1 | ||
| 75533E - MOULDING, WINDSHIELD, OUTSIDE | ||||
| 75533-42020 |
SXA1# |
1 | ||
| 75533-42030 |
SXA1# |
1 | ||
| 75561 - CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1 | ||||
| 75561-42020 |
SXA1# |
2 | ||
| 75562 - CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.2 | ||||
| 75562-42020 |
SXA1# |
12 | ||
| 75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER | ||||
| 75573-42010 |
SXA15;SXA10,11,16..HT |
1 | ||
| 75601A - MOULDING SUB-ASSY, FRONT FENDER, RH | ||||
| 75601-42900 |
SXA10,11..HT W(BUMPER EXTENTION) |
1 | ||
| 75601-42011 |
SXA1# |
1 | ||
| 75602A - MOULDING SUB-ASSY, FRONT FENDER, LH | ||||
| 75602-42011 |
SXA1# |
1 | ||
| 75602-42900 |
SXA10,11..HT W(BUMPER EXTENTION) |
1 | ||
| 75651 - MOULDING, QUARTER, OUTSIDE RH | ||||
| 75651-42020 |
SXA11,16 |
1 | ||
| 75605-42901 |
SXA11 W(BUMPER EXTENTION) |
1 | ||
| 75652 - MOULDING, QUARTER, OUTSIDE LH | ||||
| 75606-42901 |
SXA11 W(BUMPER EXTENTION) |
1 | ||
| 75652-42020 |
SXA11,16 |
1 | ||
| 75696 - PAD, BODY OUTSIDE MOULDING, NO.1 | ||||
| 75696-42010 |
SXA11,16 |
10 | ||
| 75697-42030 |
SXA10,11 W(235/60R16 TIRE) |
2 | ||
| 75696-42010 |
SXA11,16 T=1.5 |
10 | ||
| 75696-42030 |
SXA11,16 T=5.0 |
2 | ||
| 75696-42010 |
SXA11,16 T=1.5 |
12 | ||
| 75696 - PAD, BODY OUTSIDE MOULDING, NO.1 | ||||
| 75696-42010 |
SXA11,16 |
10 | ||
| 75697-42030 |
SXA10,11 W(235/60R16 TIRE) |
2 | ||
| 75696-42010 |
SXA11,16 T=1.5 |
10 | ||
| 75696-42030 |
SXA11,16 T=5.0 |
2 | ||
| 75696-42010 |
SXA11,16 T=1.5 |
12 | ||
| 75699 - PAD, BODY OUTSIDE MOULDING, NO.4 | ||||
| 75699-42020 |
SXA11 W(235/60R16 TIRE),T=1.2 |
2 | ||
| 75699-42010 |
SXA11,16 T=1.2 |
2 | ||
| 75710 - MOULDING ASSY, FRONT DOOR BELT, RH | ||||
| 75710-42020 |
SXA11,16 |
1 | ||
| 75720 - MOULDING ASSY, FRONT DOOR BELT, LH | ||||
| 75720-42020 |
SXA11,16 |
1 | ||
| 75730 - MOULDING ASSY, REAR DOOR BELT, RH | ||||
| 75730-42010 |
SXA11,16 |
1 | ||
| 75740 - MOULDING ASSY, REAR DOOR BELT, LH | ||||
| 75740-42010 |
SXA11,16 |
1 | ||
| 75793 - PAD, FRONT DOOR OUTSIDE MOULDING, UPPER | ||||
| 75793-42020 |
SXA11,16 |
2 | ||
| Common parts | ||||
| 90168-50057 | ||||
| 90179-05044 | ||||
| 90179-05102 | ||||
| 90189-04014 | ||||
| 90189-04176 | ||||
| 90467-11063 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
