SXA11L-AWMGKA (1995)
Toyota Rav4
(9404-9709)

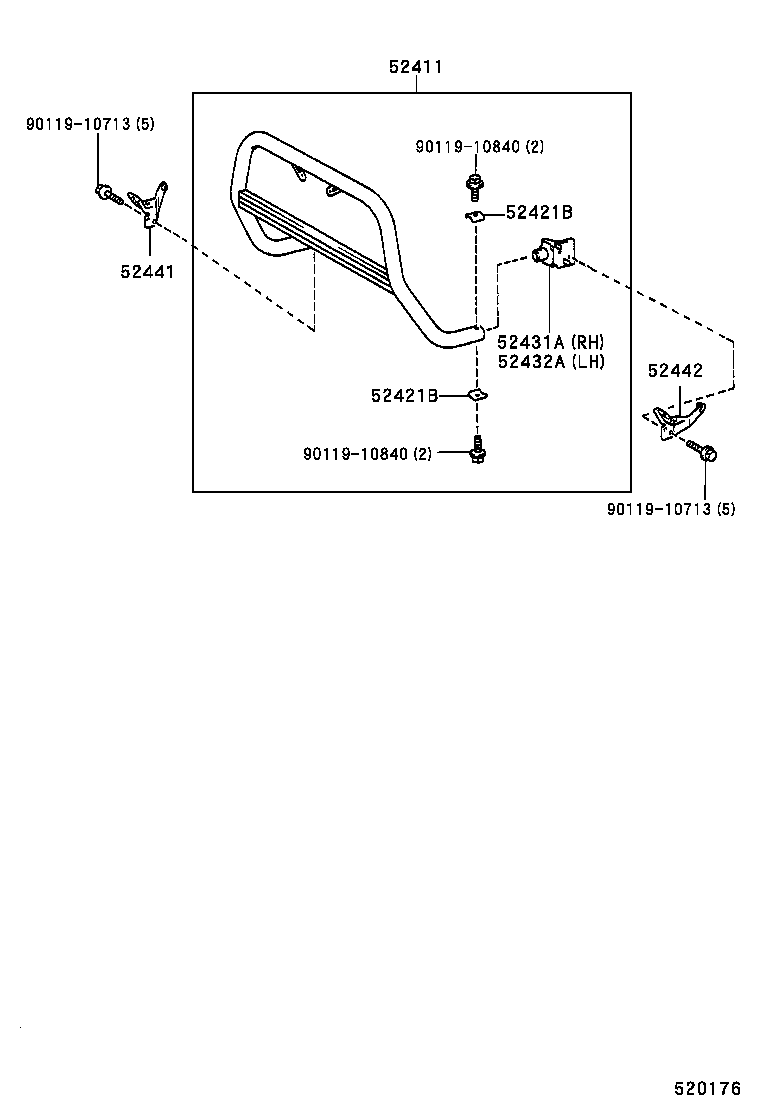

W(BUMPER GUARD)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-10713 | ||||
| 90119-10840 | ||||

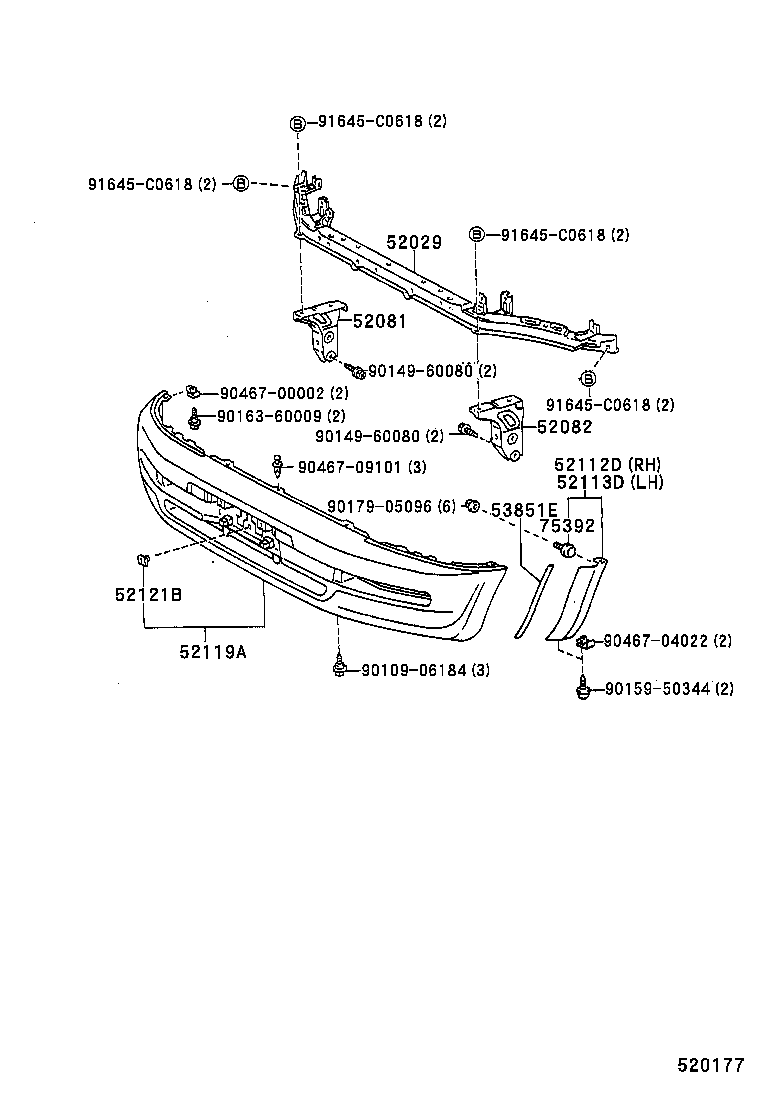

(9404-9709)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90109-06184 | ||||
| 90149-60080 | ||||
| 90159-50344 | ||||
| 90163-60009 | ||||
| 90179-05096 | ||||
| 90467-00002 | ||||
| 90467-04022 | ||||
| 90467-09101 | ||||
| 91645-C0618 | ||||
(9709- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-42010 |
SXA1# |
1 | ||
| 52029 - REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER | ||||
| 52029-42050 |
SXA1# |
1 | ||
| 52029-42011 |
SXA1# |
1 | ||
| 52081 - STAY SUB-ASSY, FRONT BUMPER | ||||
| 52145-42010 |
SXA1# |
1 | ||
| 52082 - STAY SUB-ASSY, FRONT BUMPER, LH | ||||
| 52146-42010 |
SXA1# |
1 | ||
| 52112D - EXTENSION, FRONT BUMPER, RH | ||||
| 52102-42900 |
SXA10,11 |
1 | ||
| 52113D - EXTENSION, FRONT BUMPER, LH | ||||
| 52103-42900 |
SXA10,11 |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-42050 |
SXA10,11 W(BUMPER EXTENTION) |
1 | ||
| 52119-42100E0 |
SXA11,16 WARM GRAY ME.,K60 ,K64 ,K66 ,K68 |
1 | ||
| 52119-42120B0 |
SXA11 UNPAINTED & W(OVER FENDER);L PACKAGE,GRAY,K18 ,K98 ,KA3 |
1 | ||
| 52119-42080B0 |
SXA11,16 L PACKAGE;UNPAINTED,GRAY,K18 |
1 | ||
| 52119-42100B1 |
SXA11,16 MD. GRAY ME.,K61 ,K62 ,K70 ,K71 |
1 | ||
| 52119-42080B0 |
SXA11,16 UNPAINTED,GRAY,TRIM1#&K60 ,K61 ,K62 ,K64 ,K66 ,K68 ,K70 ,K71 ,056 ,199 ,202 ,3J8 ,4J6 ,6P3 ,8K5 ,8L5 |
1 | ||
| 52119-42120B0 |
SXA11,16 UNPAINTED & W(OVER FENDER);L PACKAGE,GRAY,K18 |
1 | ||
| 52119-42120B0 |
SXA11 UNPAINTED & W(OVER FENDER),GRAY,TRIM1#&K60 ,K61 ,K62 ,K64 ,K66 ,K68 ,K70 ,K71 ,056 ,199 ,202 ,3J8 ,4J6 ,6P3 ,8K5 ,8L5 |
1 | ||
| 52119-42080B0 |
SXA11,16 UNPAINTED,GRAY,056 ,1B9 ,202 ,3M8 ,4J6 ,6P3 ,760 ,8L5 ,K62 ,K71 ,KD4 |
1 | ||
| 52119-42080B0 |
SXA11,16 L PACKAGE;UNPAINTED,GRAY,K18 ,K98 ,KA3 |
1 | ||
| 52119-42100B3 |
SXA11,16 SILVER ME.,KA0 ,KA1 ,KA2 ,K96 ,K98 |
1 | ||
| 52119-42120B0 |
SXA11 UNPAINTED & W(OVER FENDER),GRAY,K71 ,056 ,1B9 ,202 ,3M8 ,4J6 ,6P3 ,760 ,8L5 |
1 | ||
| 52119-42011 |
SXA1# |
1 | ||
| 52119-42100B1 |
SXA11,16 MD. GRAY ME.,K62 ,K71 ,K95 |
1 | ||
| 52121B - BRACKET, FRONT LICENCE PLATE MOUNTING | ||||
| 52121-42010 |
SXA1# |
2 | ||
| 52143D - BRACKET, FRONT BUMPER SIDE, RH | ||||
| 52143-42010 |
SXA1# |
1 | ||
| 52144D - BRACKET, FRONT BUMPER SIDE, LH | ||||
| 52144-42010 |
SXA1# |
1 | ||
| 53851E - PAD, FRONT WHEEL OPENING EXTENSION, NO.1 | ||||
| 53851-42010B0 |
SXA11 GRAY,KA0 ,KA1 ,KA2 ,K62 ,K71 ,K95 ,K96 ,K98 |
2 | ||
| 53851-42010C0 |
SXA11 BLACK,056 ,1B9 ,202 ,3M8 ,4J6 ,6P3 ,760 ,8L5 |
2 | ||
| 53851-42010B1 |
SXA11 GRAY,056 ,199 ,202 ,3J8 ,6N5 ,748 ,8K4 ,8K5 ,925 |
2 | ||
| 53851-42010B0 |
SXA11 GRAY,K60 ,K61 ,K62 ,K64 ,K66 ,K68 ,K70 ,K71 |
2 | ||
| 53851-42010C0 |
SXA11 BLACK,056 ,199 ,202 ,3J8 ,4J6 ,6P3 ,8K5 ,8L5 |
2 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-42011 |
SXA10,11 |
6 | ||
| Common parts | ||||
| 90109-06184 | ||||
| 90119-08A30 | ||||
| 90149-60080 | ||||
| 90159-50311 | ||||
| 90163-60009 | ||||
| 90179-05102 | ||||
| 90179-08241 | ||||
| 90467-00002 | ||||
| 90467-04022 | ||||
| 90467-09101 | ||||
| 91635-B0618 | ||||
| 91645-80618 | ||||
(9709- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-42010 |
SXA1# |
1 | ||
| 52029 - REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER | ||||
| 52029-42050 |
SXA1# |
1 | ||
| 52029-42011 |
SXA1# |
1 | ||
| 52081 - STAY SUB-ASSY, FRONT BUMPER | ||||
| 52145-42010 |
SXA1# |
1 | ||
| 52082 - STAY SUB-ASSY, FRONT BUMPER, LH | ||||
| 52146-42010 |
SXA1# |
1 | ||
| 52112D - EXTENSION, FRONT BUMPER, RH | ||||
| 52102-42900 |
SXA10,11 |
1 | ||
| 52113D - EXTENSION, FRONT BUMPER, LH | ||||
| 52103-42900 |
SXA10,11 |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-42050 |
SXA10,11 W(BUMPER EXTENTION) |
1 | ||
| 52119-42100E0 |
SXA11,16 WARM GRAY ME.,K60 ,K64 ,K66 ,K68 |
1 | ||
| 52119-42120B0 |
SXA11 UNPAINTED & W(OVER FENDER);L PACKAGE,GRAY,K18 ,K98 ,KA3 |
1 | ||
| 52119-42080B0 |
SXA11,16 L PACKAGE;UNPAINTED,GRAY,K18 |
1 | ||
| 52119-42100B1 |
SXA11,16 MD. GRAY ME.,K61 ,K62 ,K70 ,K71 |
1 | ||
| 52119-42080B0 |
SXA11,16 UNPAINTED,GRAY,TRIM1#&K60 ,K61 ,K62 ,K64 ,K66 ,K68 ,K70 ,K71 ,056 ,199 ,202 ,3J8 ,4J6 ,6P3 ,8K5 ,8L5 |
1 | ||
| 52119-42120B0 |
SXA11,16 UNPAINTED & W(OVER FENDER);L PACKAGE,GRAY,K18 |
1 | ||
| 52119-42120B0 |
SXA11 UNPAINTED & W(OVER FENDER),GRAY,TRIM1#&K60 ,K61 ,K62 ,K64 ,K66 ,K68 ,K70 ,K71 ,056 ,199 ,202 ,3J8 ,4J6 ,6P3 ,8K5 ,8L5 |
1 | ||
| 52119-42080B0 |
SXA11,16 UNPAINTED,GRAY,056 ,1B9 ,202 ,3M8 ,4J6 ,6P3 ,760 ,8L5 ,K62 ,K71 ,KD4 |
1 | ||
| 52119-42080B0 |
SXA11,16 L PACKAGE;UNPAINTED,GRAY,K18 ,K98 ,KA3 |
1 | ||
| 52119-42100B3 |
SXA11,16 SILVER ME.,KA0 ,KA1 ,KA2 ,K96 ,K98 |
1 | ||
| 52119-42120B0 |
SXA11 UNPAINTED & W(OVER FENDER),GRAY,K71 ,056 ,1B9 ,202 ,3M8 ,4J6 ,6P3 ,760 ,8L5 |
1 | ||
| 52119-42011 |
SXA1# |
1 | ||
| 52119-42100B1 |
SXA11,16 MD. GRAY ME.,K62 ,K71 ,K95 |
1 | ||
| 52121B - BRACKET, FRONT LICENCE PLATE MOUNTING | ||||
| 52121-42010 |
SXA1# |
2 | ||
| 52143D - BRACKET, FRONT BUMPER SIDE, RH | ||||
| 52143-42010 |
SXA1# |
1 | ||
| 52144D - BRACKET, FRONT BUMPER SIDE, LH | ||||
| 52144-42010 |
SXA1# |
1 | ||
| 53851E - PAD, FRONT WHEEL OPENING EXTENSION, NO.1 | ||||
| 53851-42010B0 |
SXA11 GRAY,KA0 ,KA1 ,KA2 ,K62 ,K71 ,K95 ,K96 ,K98 |
2 | ||
| 53851-42010C0 |
SXA11 BLACK,056 ,1B9 ,202 ,3M8 ,4J6 ,6P3 ,760 ,8L5 |
2 | ||
| 53851-42010B1 |
SXA11 GRAY,056 ,199 ,202 ,3J8 ,6N5 ,748 ,8K4 ,8K5 ,925 |
2 | ||
| 53851-42010B0 |
SXA11 GRAY,K60 ,K61 ,K62 ,K64 ,K66 ,K68 ,K70 ,K71 |
2 | ||
| 53851-42010C0 |
SXA11 BLACK,056 ,199 ,202 ,3J8 ,4J6 ,6P3 ,8K5 ,8L5 |
2 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-42011 |
SXA10,11 |
6 | ||
| Common parts | ||||
| 90109-06184 | ||||
| 90119-08A30 | ||||
| 90149-60080 | ||||
| 90159-50311 | ||||
| 90163-60009 | ||||
| 90179-05102 | ||||
| 90179-08241 | ||||
| 90467-00002 | ||||
| 90467-04022 | ||||
| 90467-09101 | ||||
| 91635-B0618 | ||||
| 91645-80618 | ||||

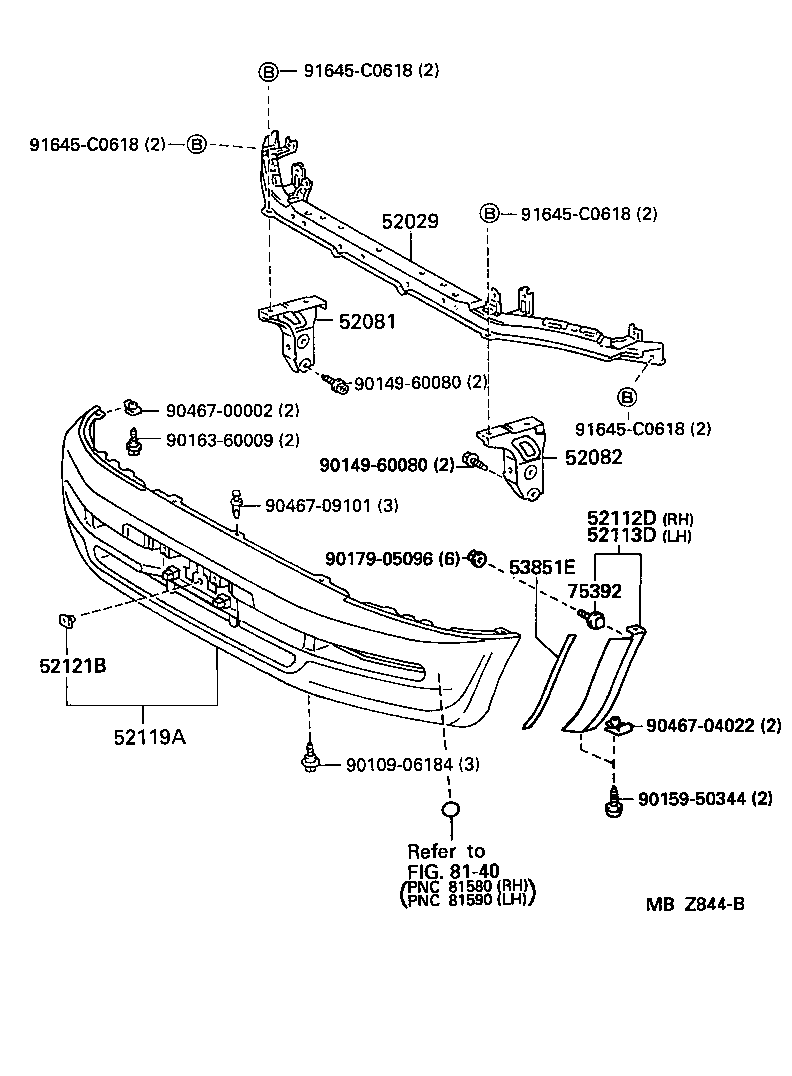

(9511-9709)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52029 - REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER | ||||
| 52029-42050 |
SXA1# |
1 | ||
| 52029-42011 |
SXA1# |
1 | ||
| 52081 - STAY SUB-ASSY, FRONT BUMPER | ||||
| 52145-42010 |
SXA1# |
1 | ||
| 52082 - STAY SUB-ASSY, FRONT BUMPER, LH | ||||
| 52146-42010 |
SXA1# |
1 | ||
| 52112D - EXTENSION, FRONT BUMPER, RH | ||||
| 52102-42900 |
SXA10,11 |
1 | ||
| 52113D - EXTENSION, FRONT BUMPER, LH | ||||
| 52103-42900 |
SXA10,11 |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-42050 |
SXA10,11 W(BUMPER EXTENTION) |
1 | ||
| 52119-42100E0 |
SXA11,16 WARM GRAY ME.,K60 ,K64 ,K66 ,K68 |
1 | ||
| 52119-42120B0 |
SXA11 UNPAINTED & W(OVER FENDER);L PACKAGE,GRAY,K18 ,K98 ,KA3 |
1 | ||
| 52119-42080B0 |
SXA11,16 L PACKAGE;UNPAINTED,GRAY,K18 |
1 | ||
| 52119-42100B1 |
SXA11,16 MD. GRAY ME.,K61 ,K62 ,K70 ,K71 |
1 | ||
| 52119-42080B0 |
SXA11,16 UNPAINTED,GRAY,TRIM1#&K60 ,K61 ,K62 ,K64 ,K66 ,K68 ,K70 ,K71 ,056 ,199 ,202 ,3J8 ,4J6 ,6P3 ,8K5 ,8L5 |
1 | ||
| 52119-42120B0 |
SXA11,16 UNPAINTED & W(OVER FENDER);L PACKAGE,GRAY,K18 |
1 | ||
| 52119-42120B0 |
SXA11 UNPAINTED & W(OVER FENDER),GRAY,TRIM1#&K60 ,K61 ,K62 ,K64 ,K66 ,K68 ,K70 ,K71 ,056 ,199 ,202 ,3J8 ,4J6 ,6P3 ,8K5 ,8L5 |
1 | ||
| 52119-42080B0 |
SXA11,16 UNPAINTED,GRAY,056 ,1B9 ,202 ,3M8 ,4J6 ,6P3 ,760 ,8L5 ,K62 ,K71 ,KD4 |
1 | ||
| 52119-42080B0 |
SXA11,16 L PACKAGE;UNPAINTED,GRAY,K18 ,K98 ,KA3 |
1 | ||
| 52119-42100B3 |
SXA11,16 SILVER ME.,KA0 ,KA1 ,KA2 ,K96 ,K98 |
1 | ||
| 52119-42120B0 |
SXA11 UNPAINTED & W(OVER FENDER),GRAY,K71 ,056 ,1B9 ,202 ,3M8 ,4J6 ,6P3 ,760 ,8L5 |
1 | ||
| 52119-42011 |
SXA1# |
1 | ||
| 52119-42100B1 |
SXA11,16 MD. GRAY ME.,K62 ,K71 ,K95 |
1 | ||
| 52121B - BRACKET, FRONT LICENCE PLATE MOUNTING | ||||
| 52121-42010 |
SXA1# |
2 | ||
| 53851E - PAD, FRONT WHEEL OPENING EXTENSION, NO.1 | ||||
| 53851-42010B0 |
SXA11 GRAY,KA0 ,KA1 ,KA2 ,K62 ,K71 ,K95 ,K96 ,K98 |
2 | ||
| 53851-42010C0 |
SXA11 BLACK,056 ,1B9 ,202 ,3M8 ,4J6 ,6P3 ,760 ,8L5 |
2 | ||
| 53851-42010B1 |
SXA11 GRAY,056 ,199 ,202 ,3J8 ,6N5 ,748 ,8K4 ,8K5 ,925 |
2 | ||
| 53851-42010B0 |
SXA11 GRAY,K60 ,K61 ,K62 ,K64 ,K66 ,K68 ,K70 ,K71 |
2 | ||
| 53851-42010C0 |
SXA11 BLACK,056 ,199 ,202 ,3J8 ,4J6 ,6P3 ,8K5 ,8L5 |
2 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-42011 |
SXA10,11 |
6 | ||
| Common parts | ||||
| 90109-06184 | ||||
| 90149-60080 | ||||
| 90159-50344 | ||||
| 90163-60009 | ||||
| 90179-05096 | ||||
| 90467-00002 | ||||
| 90467-04022 | ||||
| 90467-09101 | ||||
| 91645-C0618 | ||||
| Linked diagrams | ||||
| 8140 | ||||
