SXA11L-AWMGKA (1995)

Toyota Rav4

Production Nov 1995 - Aug 2000
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9709- )

Click highlighted areas on diagram

diagram 25601 25601A 25601F 25620 25627 25628 25690 25690A 25691 9017908153 9040420014 9151160614 9162160610 9211240820
Part # Description Qty Price
25601 - PIPE SUB-ASSY, EGR, NO.1
25611-74060

3SFE..SXA1#

 1
25611-74050

3SFE..SXA1#

 1
25601A - SLEEVE, BALL, EGR PIPE, NO.1
90410-12042

3SFE..SXA1#

 2
90410-12042

3SFE..SXA1#

 1
25601F - UNION(FOR EGR PIPE, NO.1)
90402-20073

3SFE..SXA1#

 1
25620 - VALVE ASSY, EGR
25620-74320

3SFE..SXA1#..MTM

 1
25620-74300

3SFE..SXA1#..MTM

 1
25627 - GASKET, EGR VALVE
25627-74011

3SFE..SXA1#

 1
25628 - GASKET, EGR INLET
25628-74010

3SFE..SXA1#

 1
25690 - MODULATOR ASSY, EGR VACUUM
25870-74090

3SFE..SXA1#

 1
25690A - HOSE(FOR EGR VACUUM MODULATOR)
25695-74040

3SFE..SXA1#

 1
25691 - BRACKET, EGR VACUUM MODULATOR
25691-74090

3SFE..SXA1#

 1
25691-74070

3SFE..SXA1#

 1
Common parts
90179-08153
90404-20014
91511-60614
91621-60610
92112-40820

(9608-9709)

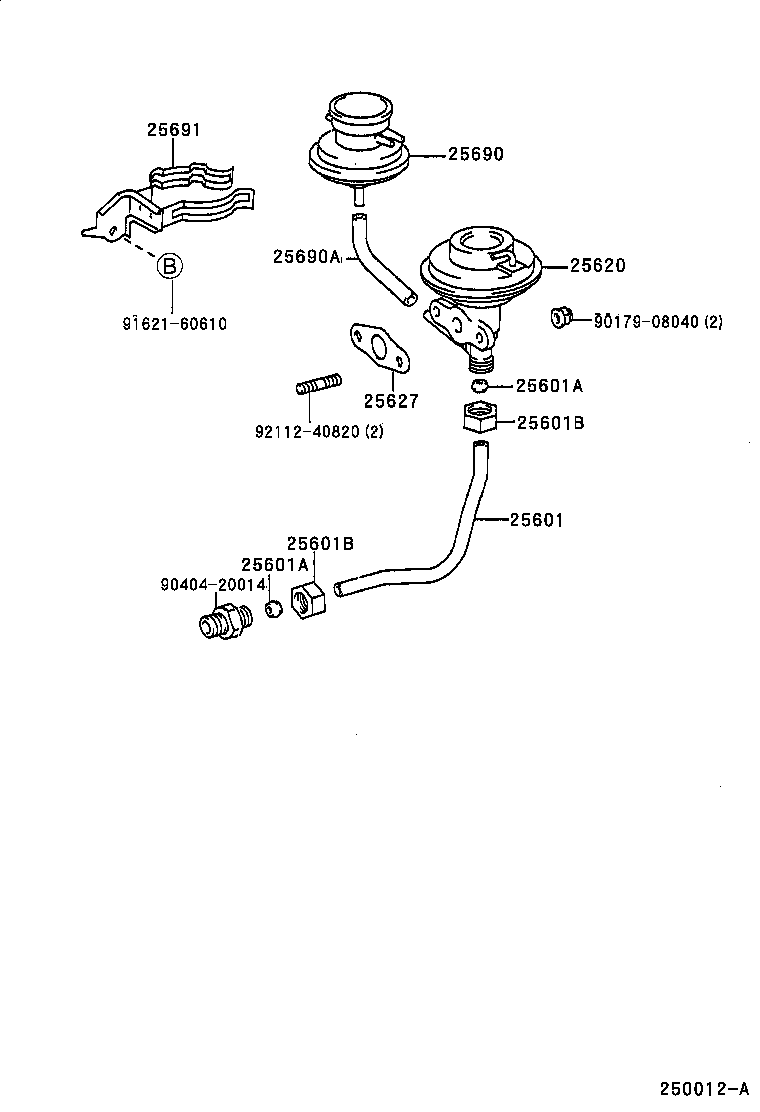

Click highlighted areas on diagram

diagram 25601 25601A 25601A 25601B 25601B 25620 25627 25690 25690A 25691 9017908040 9040420014 9162160610 9211240820
Part # Description Qty Price
Common parts
90179-08040
90404-20014
91621-60610
92112-40820

(9404-9608)

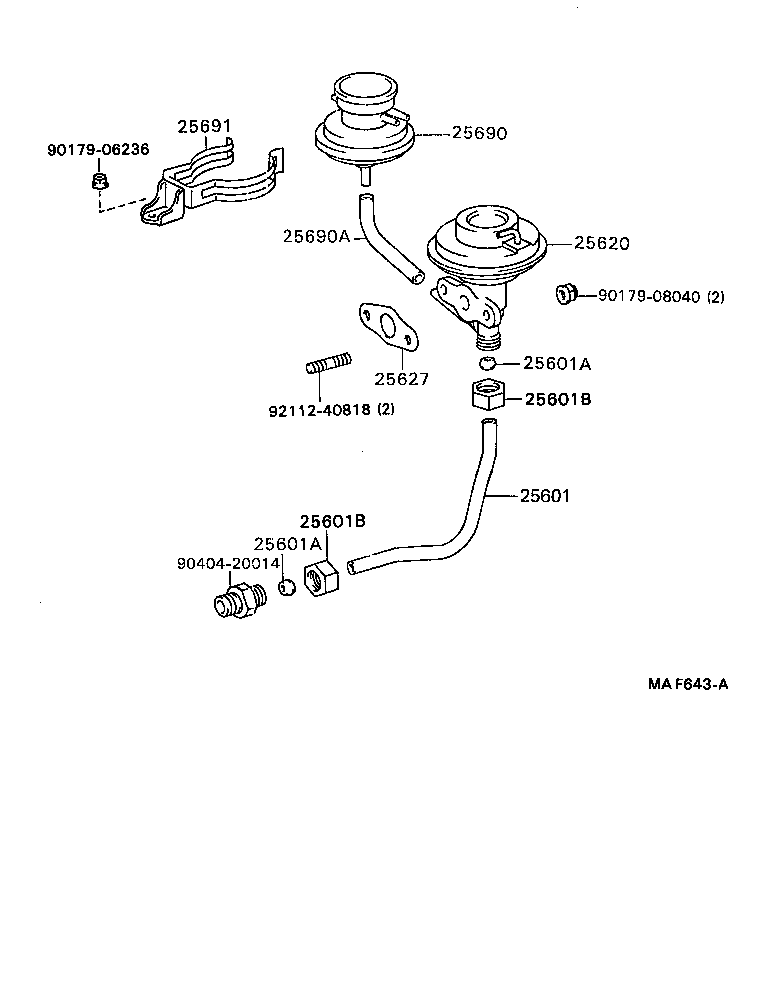

Click highlighted areas on diagram

diagram 25601 25601A 25601A 25601B 25601B 25620 25627 25690 25690A 25691 9017906236 9017908040 9040420014 9211240818
Part # Description Qty Price
Common parts
90179-06236
90179-08040
90404-20014
92112-40818

(9709- )

Click highlighted areas on diagram

diagram 25601 25601A 25601F 25620 25627 25628 25690 25690A 25691 9017908153 9040420014 9151160614 9162160610 9211240820
Part # Description Qty Price
25601 - PIPE SUB-ASSY, EGR, NO.1
25611-74060

3SFE..SXA1#

 1
25611-74050

3SFE..SXA1#

 1
25601A - SLEEVE, BALL, EGR PIPE, NO.1
90410-12042

3SFE..SXA1#

 2
90410-12042

3SFE..SXA1#

 1
25601F - UNION(FOR EGR PIPE, NO.1)
90402-20073

3SFE..SXA1#

 1
25620 - VALVE ASSY, EGR
25620-74320

3SFE..SXA1#..MTM

 1
25620-74300

3SFE..SXA1#..MTM

 1
25627 - GASKET, EGR VALVE
25627-74011

3SFE..SXA1#

 1
25628 - GASKET, EGR INLET
25628-74010

3SFE..SXA1#

 1
25690 - MODULATOR ASSY, EGR VACUUM
25870-74090

3SFE..SXA1#

 1
25690A - HOSE(FOR EGR VACUUM MODULATOR)
25695-74040

3SFE..SXA1#

 1
25691 - BRACKET, EGR VACUUM MODULATOR
25691-74090

3SFE..SXA1#

 1
25691-74070

3SFE..SXA1#

 1
Common parts
90179-08153
90404-20014
91511-60614
91621-60610
92112-40820

(9511-9709)

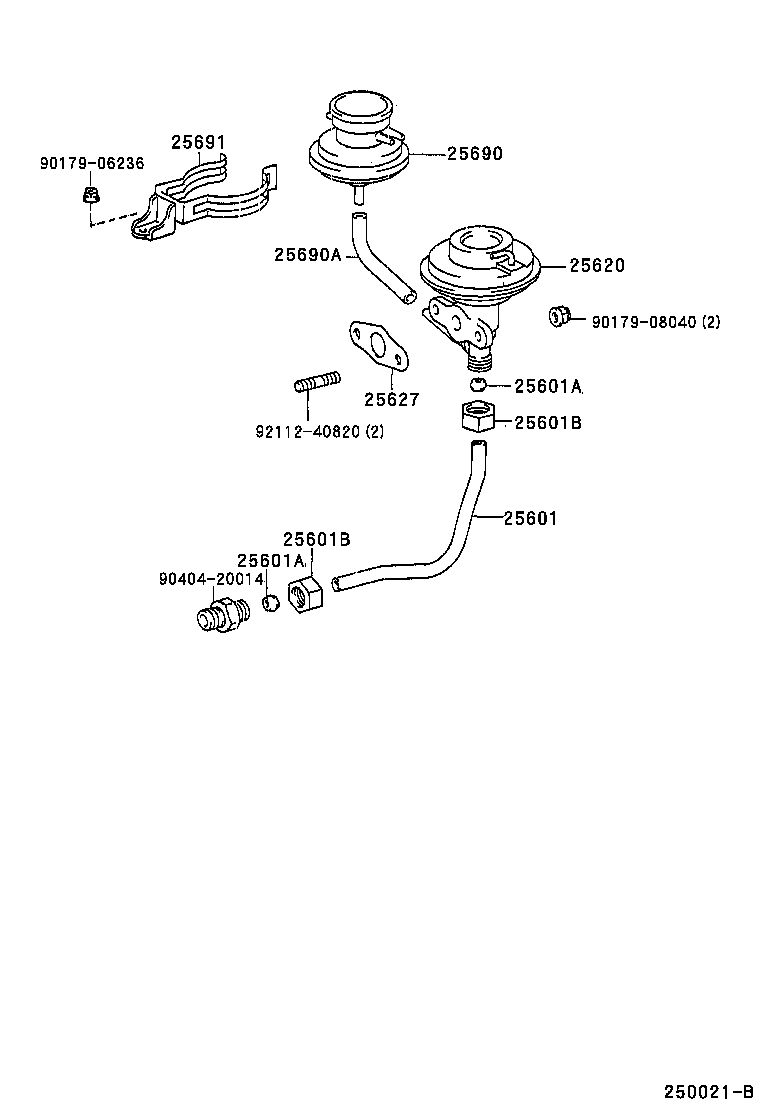

Click highlighted areas on diagram

diagram 25601 25601A 25601A 25601B 25601B 25620 25627 25690 25690A 25691 9017906236 9017908040 9040420014 9211240820
Part # Description Qty Price
25601 - PIPE SUB-ASSY, EGR, NO.1
25611-74060

3SFE..SXA1#

 1
25611-74050

3SFE..SXA1#

 1
25601A - SLEEVE, BALL, EGR PIPE, NO.1
90410-12042

3SFE..SXA1#

 2
90410-12042

3SFE..SXA1#

 1
25601A - SLEEVE, BALL, EGR PIPE, NO.1
90410-12042

3SFE..SXA1#

 2
90410-12042

3SFE..SXA1#

 1
25601B - NUT, UNION, EGR PIPE, NO.1
90402-20073

3SFE..SXA1#

 2
25601B - NUT, UNION, EGR PIPE, NO.1
90402-20073

3SFE..SXA1#

 2
25620 - VALVE ASSY, EGR
25620-74320

3SFE..SXA1#..MTM

 1
25620-74300

3SFE..SXA1#..MTM

 1
25627 - GASKET, EGR VALVE
25627-74011

3SFE..SXA1#

 1
25690 - MODULATOR ASSY, EGR VACUUM
25870-74090

3SFE..SXA1#

 1
25690A - HOSE(FOR EGR VACUUM MODULATOR)
25695-74040

3SFE..SXA1#

 1
25691 - BRACKET, EGR VACUUM MODULATOR
25691-74090

3SFE..SXA1#

 1
25691-74070

3SFE..SXA1#

 1
Common parts
90179-06236
90179-08040
90404-20014
92112-40820
