SXA11L-AWMGKA (1995)

Toyota Rav4

Production Nov 1995 - Aug 2000
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9608-9709)3SFE..EUR,GCC,GEN ; (9709- )

Click highlighted areas on diagram

diagram 17139A 19100P 19500D 19500E 19539 19539 19539 19539 19901 19901B 19901C 19901D 19901E 9011910725 9017908153 9017908153 9046400556 9046400740 9046905006 9046905008 9162160818 9164380620 9164380620 9211240820 9211240820
Part # Description Qty Price
17139A - STAY, MANIFOLD, NO.1
17139-74180

3SFE..SXA1#

 1
19100P - PLUG, SPARK
90919-01194

3SFE..SXA1#

PK20TR11

 4
90919-01178

3SFE..SXA1#

PK20R11

 4
90919-01195

3SFE..SXA1#

BKR6EKPB11

 4
19500D - COIL, IGNITION, NO.1
90919-02217

3SFE..SXA1#

 1
19500E - COIL, IGNITION, NO.2
90919-02218

3SFE..SXA1#

 1
19539 - HOLDER, RESISTIVE CODE, NO.4
19539-74050

3SFE..SXA1#

 4
19539 - HOLDER, RESISTIVE CODE, NO.4
19539-74050

3SFE..SXA1#

 4
19539 - HOLDER, RESISTIVE CODE, NO.4
19539-74050

3SFE..SXA1#

 4
19539 - HOLDER, RESISTIVE CODE, NO.4
19539-74050

3SFE..SXA1#

 4
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-22386

3SFE..SXA1#

 1
90919-21598

3SFE..SXA1#

 1
90919-21609

3SFE..SXA1#

 1
90919-22400

3SFE..SXA1#

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-15400

3SFE..SXA1#

 1
90919-15546

3SFE..SXA1#

 1
90919-15466

3SFE..SXA1#

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-15401

3SFE..SXA1#

 1
90919-15465

3SFE..SXA1#

 1
90919-15547

3SFE..SXA1#

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-15402

3SFE..SXA1#

 1
90919-15464

3SFE..SXA1#

 1
90919-15548

3SFE..SXA1#

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-15349

3SFE..SXA1#

 1
90919-15549

3SFE..SXA1#

 1
90919-15463

3SFE..SXA1#

 1
Common parts
90119-10725
90179-08153
90464-00556
90464-00740
90469-05006
90469-05008
91621-60818
91643-80620
92112-40820

(9709- )

Click highlighted areas on diagram

diagram 17139A 19100P 19500D 19500E 19539 19539 19539 19539 19901 19901B 19901C 19901D 19901E 9011910725 9017908153 9017908153 9046400556 9046400740 9046905006 9046905008 9162160818 9164380620 9164380620 9211240820 9211240820
Part # Description Qty Price
17139A - STAY, MANIFOLD, NO.1
17139-74180

3SFE..SXA1#

 1
19100P - PLUG, SPARK
90919-01194

3SFE..SXA1#

PK20TR11

 4
90919-01178

3SFE..SXA1#

PK20R11

 4
90919-01195

3SFE..SXA1#

BKR6EKPB11

 4
19500D - COIL, IGNITION, NO.1
90919-02217

3SFE..SXA1#

 1
19500E - COIL, IGNITION, NO.2
90919-02218

3SFE..SXA1#

 1
19539 - HOLDER, RESISTIVE CODE, NO.4
19539-74050

3SFE..SXA1#

 4
19539 - HOLDER, RESISTIVE CODE, NO.4
19539-74050

3SFE..SXA1#

 4
19539 - HOLDER, RESISTIVE CODE, NO.4
19539-74050

3SFE..SXA1#

 4
19539 - HOLDER, RESISTIVE CODE, NO.4
19539-74050

3SFE..SXA1#

 4
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-22386

3SFE..SXA1#

 1
90919-21598

3SFE..SXA1#

 1
90919-21609

3SFE..SXA1#

 1
90919-22400

3SFE..SXA1#

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-15400

3SFE..SXA1#

 1
90919-15546

3SFE..SXA1#

 1
90919-15466

3SFE..SXA1#

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-15401

3SFE..SXA1#

 1
90919-15465

3SFE..SXA1#

 1
90919-15547

3SFE..SXA1#

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-15402

3SFE..SXA1#

 1
90919-15464

3SFE..SXA1#

 1
90919-15548

3SFE..SXA1#

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-15349

3SFE..SXA1#

 1
90919-15549

3SFE..SXA1#

 1
90919-15463

3SFE..SXA1#

 1
Common parts
90119-10725
90179-08153
90464-00556
90464-00740
90469-05006
90469-05008
91621-60818
91643-80620
92112-40820

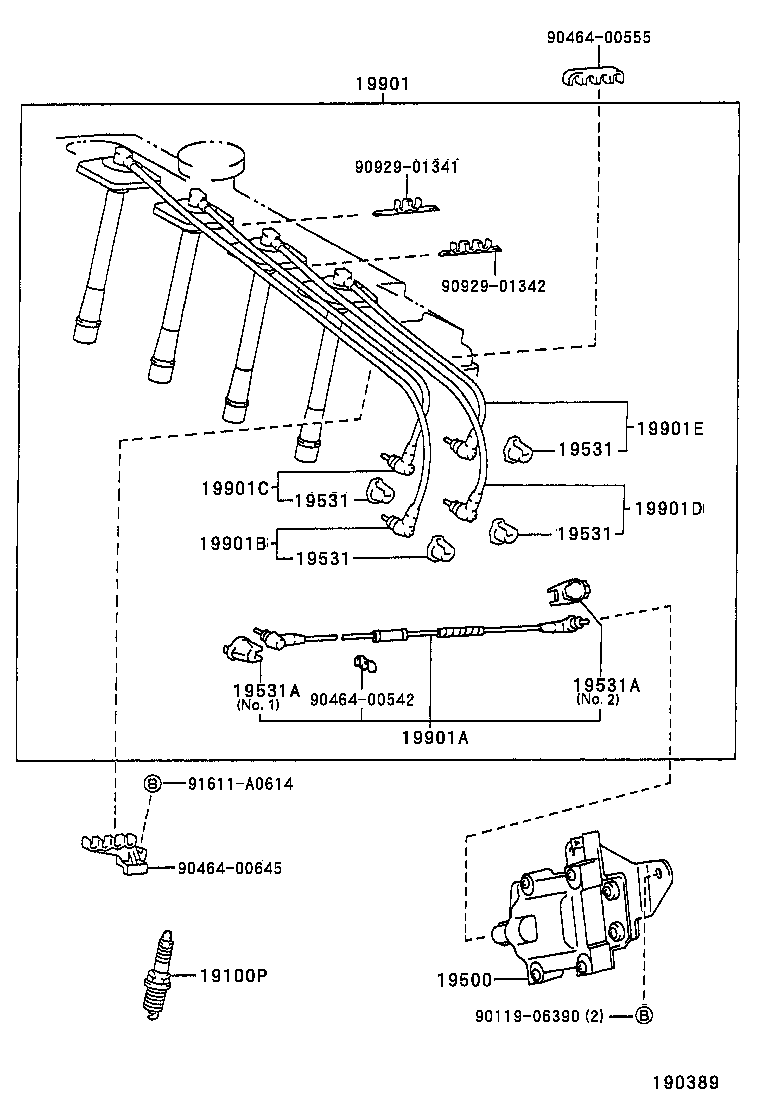

(9608-9709)

Click highlighted areas on diagram

diagram 19100P 19500 19531 19531 19531 19531 19531A 19531A 19901 19901A 19901B 19901C 19901D 19901E 9011906390 9046400542 9046400555 9046400645 9092901341 9092901342 91611A0614
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01194

3SFE..SXA1#

PK20TR11

 4
90919-01178

3SFE..SXA1#

PK20R11

 4
90919-01195

3SFE..SXA1#

BKR6EKPB11

 4
19500 - COIL ASSY, IGNITION
90919-02209

3SFE..SXA1#

 1
19500-74120

3SFE..SXA1#

 1
19531 - HOLDER, RESISTIVE CORD, NO.1
19531-74010

3SFE..SXA1#

 4
19531 - HOLDER, RESISTIVE CORD, NO.1
19531-74010

3SFE..SXA1#

 4
19531 - HOLDER, RESISTIVE CORD, NO.1
19531-74010

3SFE..SXA1#

 4
19531 - HOLDER, RESISTIVE CORD, NO.1
19531-74010

3SFE..SXA1#

 4
19531A - HOLDER, RESISTIVE CODE, NO.3
19531-74010

3SFE..SXA1#

 1
19531-74010

3SFE..SXA1#

NO.1

 1
19531-74020

3SFE..SXA1#

NO.2

 1
19531A - HOLDER, RESISTIVE CODE, NO.3
19531-74010

3SFE..SXA1#

 1
19531-74010

3SFE..SXA1#

NO.1

 1
19531-74020

3SFE..SXA1#

NO.2

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-22386

3SFE..SXA1#

 1
90919-21598

3SFE..SXA1#

 1
90919-21609

3SFE..SXA1#

 1
90919-22400

3SFE..SXA1#

 1
19901A - CORD, COIL RESISTIVE
19590-74300

3SFE..SXA1#

 1
19590-74280

3SFE..SXA1#

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-15400

3SFE..SXA1#

 1
90919-15546

3SFE..SXA1#

 1
90919-15466

3SFE..SXA1#

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-15401

3SFE..SXA1#

 1
90919-15465

3SFE..SXA1#

 1
90919-15547

3SFE..SXA1#

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-15402

3SFE..SXA1#

 1
90919-15464

3SFE..SXA1#

 1
90919-15548

3SFE..SXA1#

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-15349

3SFE..SXA1#

 1
90919-15549

3SFE..SXA1#

 1
90919-15463

3SFE..SXA1#

 1
Common parts
90119-06390
90464-00542
90464-00555
90464-00645
90929-01341
90929-01342
91611-A0614

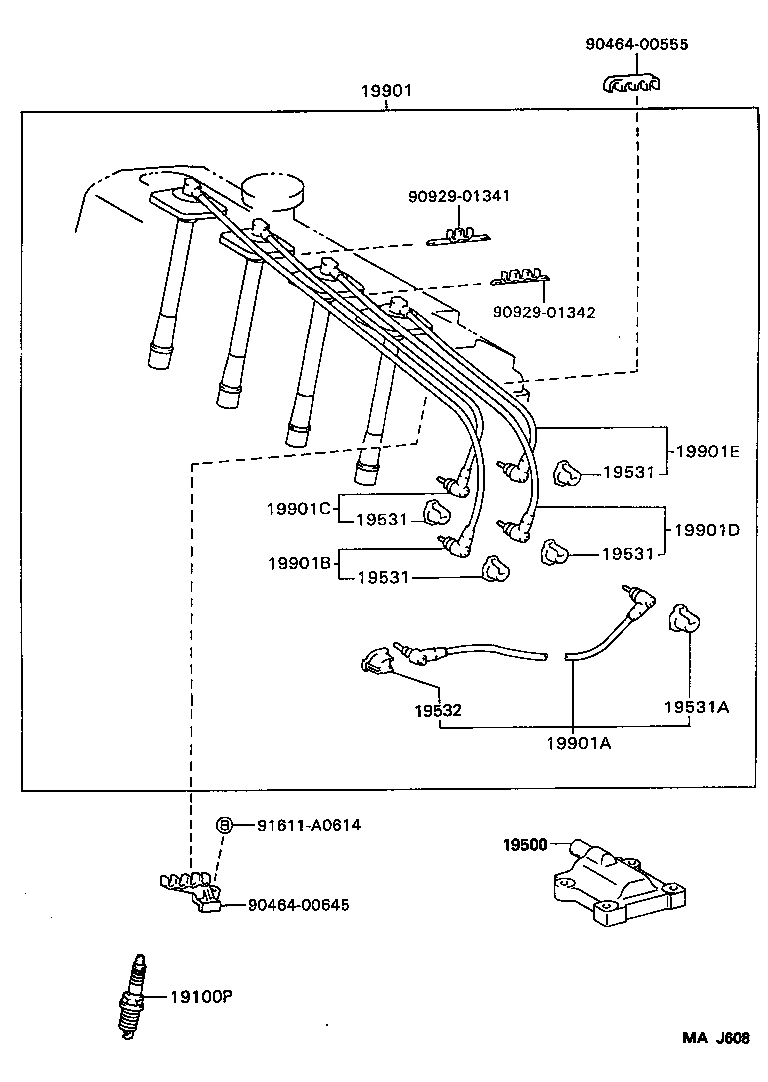

(9511-9608)

Click highlighted areas on diagram

diagram 19100P 19500 19531 19531 19531 19531 19531A 19532 19901 19901A 19901B 19901C 19901D 19901E 9046400555 9046400645 9092901341 9092901342 91611A0614
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01194

3SFE..SXA1#

PK20TR11

 4
90919-01178

3SFE..SXA1#

PK20R11

 4
90919-01195

3SFE..SXA1#

BKR6EKPB11

 4
19500 - COIL ASSY, IGNITION
90919-02209

3SFE..SXA1#

 1
19500-74120

3SFE..SXA1#

 1
19531 - HOLDER, RESISTIVE CORD, NO.1
19531-74010

3SFE..SXA1#

 4
19531 - HOLDER, RESISTIVE CORD, NO.1
19531-74010

3SFE..SXA1#

 4
19531 - HOLDER, RESISTIVE CORD, NO.1
19531-74010

3SFE..SXA1#

 4
19531 - HOLDER, RESISTIVE CORD, NO.1
19531-74010

3SFE..SXA1#

 4
19531A - HOLDER, RESISTIVE CODE, NO.3
19531-74010

3SFE..SXA1#

 1
19531-74010

3SFE..SXA1#

NO.1

 1
19531-74020

3SFE..SXA1#

NO.2

 1
19532 - HOLDER, RESISTIVE CODE, NO.2
19532-50010

3SFE..SXA1#

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-22386

3SFE..SXA1#

 1
90919-21598

3SFE..SXA1#

 1
90919-21609

3SFE..SXA1#

 1
90919-22400

3SFE..SXA1#

 1
19901A - CORD, COIL RESISTIVE
19590-74300

3SFE..SXA1#

 1
19590-74280

3SFE..SXA1#

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-15400

3SFE..SXA1#

 1
90919-15546

3SFE..SXA1#

 1
90919-15466

3SFE..SXA1#

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-15401

3SFE..SXA1#

 1
90919-15465

3SFE..SXA1#

 1
90919-15547

3SFE..SXA1#

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-15402

3SFE..SXA1#

 1
90919-15464

3SFE..SXA1#

 1
90919-15548

3SFE..SXA1#

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-15349

3SFE..SXA1#

 1
90919-15549

3SFE..SXA1#

 1
90919-15463

3SFE..SXA1#

 1
Common parts
90464-00555
90464-00645
90929-01341
90929-01342
91611-A0614
