SXA10R-AZPGKW (1994)

Toyota Rav4

Production Apr 1994 - May 2000
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9404- )ATM

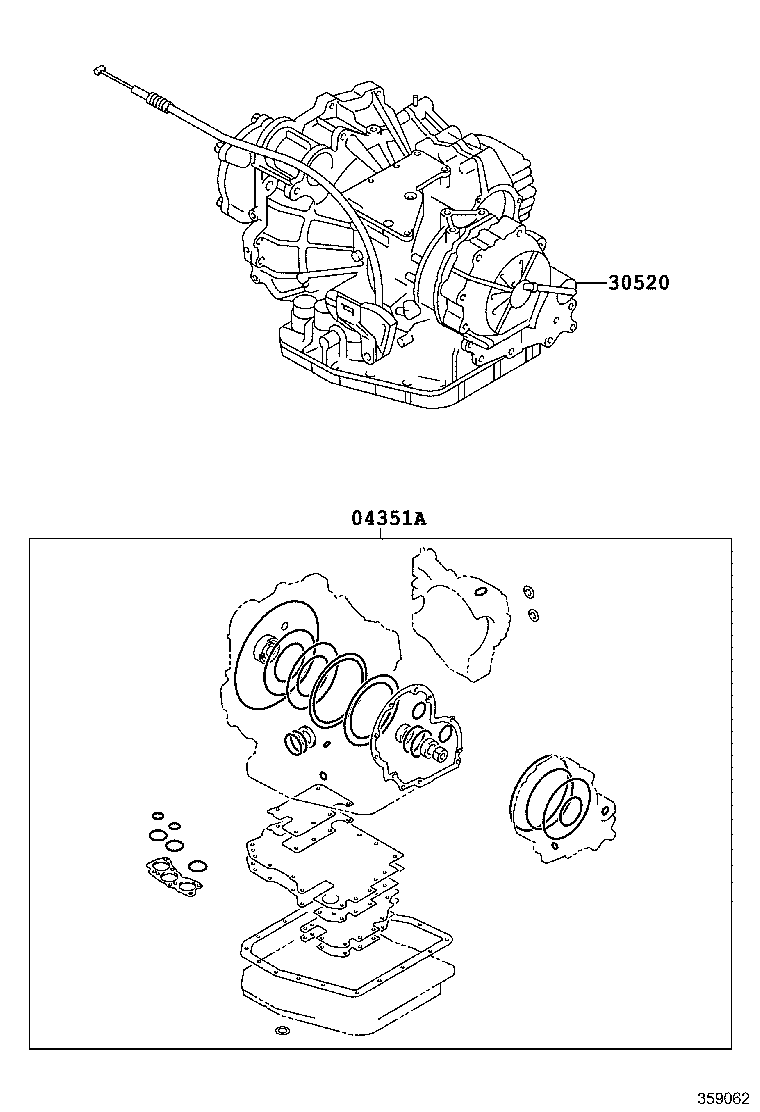

Click highlighted areas on diagram

A540H

diagram 04351A 30520
Part # Description Qty Price
04351A - GASKET KIT, TRANSAXLE OVERHAUL(ATM)
04351-42010

SXA1#..ATM

 1
30520 - TRANSAXLE ASSY, AUTOMATIC W/TRANSFER
30520-42010

SXA10..ATM

 1
30520-42012

SXA1#..ATM

 1
30520-42011

SXA10..ATM

 1
30520-42030

SXA1#..ATM..(EUR,GCC,GEN)

 1
30520-42030

SXA1#..ATM

 1
30520-42013

SXA1#..ATM

 1

(9511- )SXA10,11..ATM

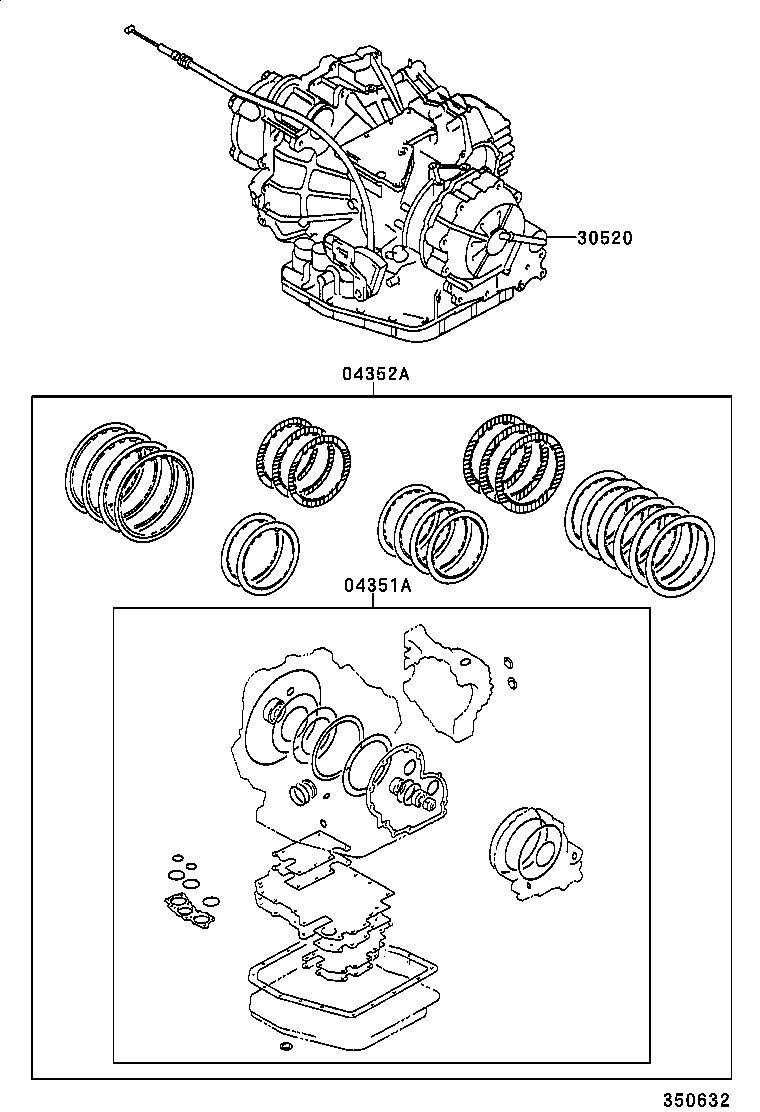

Click highlighted areas on diagram

A540H

diagram 04351A 04352A 30520
Part # Description Qty Price
