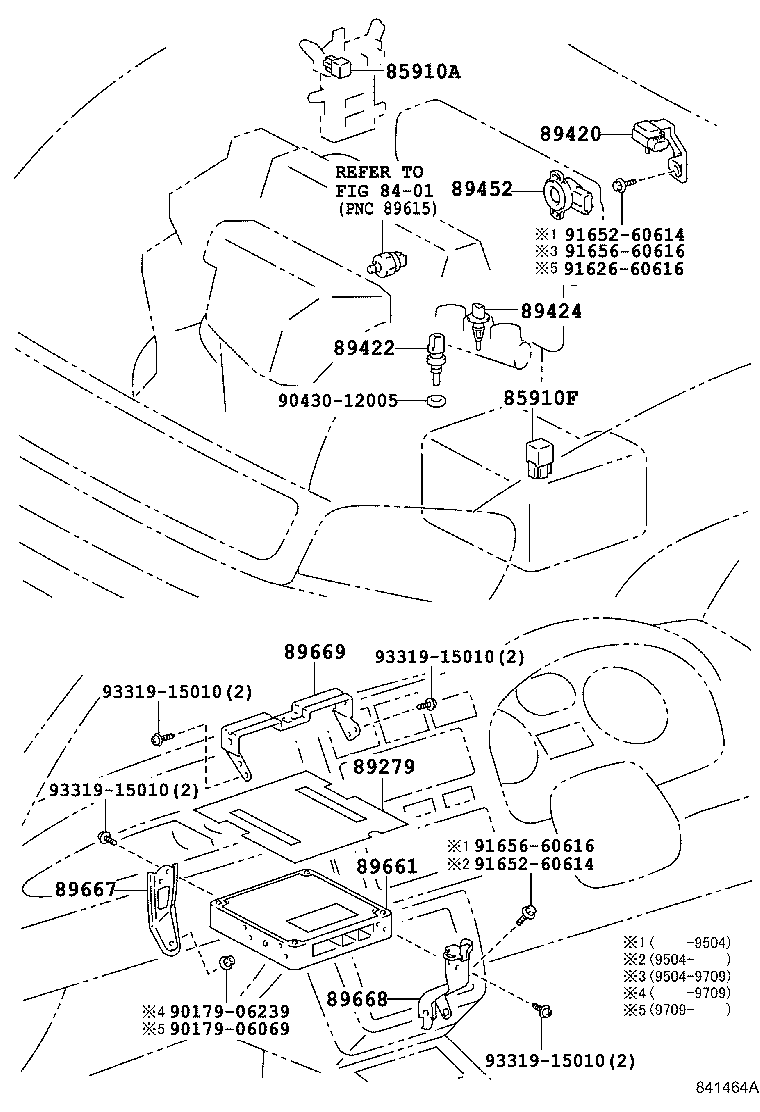

Toyota Rav4 SXA10 ELECTRONIC FUEL INJECTION SYSTEM

Part #	Description	Period	Qty
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
90987-02009	SXA1#	04/1994 - 09/1997	1
90987-02012	SXA1#	09/1997 - 12/2999	1
85910F - RELAY, COMPUTER (FOR EFI)
90987-02009	SXA1#	04/1994 - 12/2999	1
89279 - COVER, ENGINE CONTROL COMPUTER
89279-42010	SXA1#	04/1994 - 12/2999	1
89420 - SENSOR ASSY, VACUUM
89420-0W050	SXA1#	09/1997 - 12/2999	1
89420-0W030	SXA1# DELCO	06/1996 - 08/1996	1
89420-42010	SXA1#	04/1994 - 06/1996	1
89420-42010	SXA1# NIPPONDENSO	06/1996 - 08/1996	1
89420-0W050	SXA1# DELCO	08/1996 - 09/1997	1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-20010	SXA1#	04/1994 - 09/1997	1
89422-35010	SXA1#..ARL	09/1997 - 12/2999	1
89424 - SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)
89424-12010	SXA1#	04/1994 - 12/2999	1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-22090	SXA1#..ARL	08/1996 - 09/1997	1
89452-22090	SXA1#	04/1994 - 08/1996	1
89452-20130	SXA1#	09/1997 - 12/2999	1
89661 - COMPUTER, ENGINE CONTROL
89661-42350	SXA1#..ATM..ARL	09/1997 - 12/2999	1
89661-42040	SXA1#..ATM..ARL	04/1994 - 09/1997	1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-42010	SXA1#	04/1994 - 12/2999	1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-42010	SXA1#	04/1994 - 12/2999	1
89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3
89669-42020	SXA1#	09/1997 - 12/2999	1
89669-42010	SXA1#	04/1994 - 09/1997	1
Common parts
90179-06069
90179-06239
90430-12005
91626-60616
91652-60614
91656-60616
93319-15010
Linked diagrams
8401

SXA10R-AZPGKQ (1994)
