SXA10L-AZPGKW (1994)
Toyota Rav4
ILLUST NO. 1 OF 3(9404- )
COMPRESSOR & MAGNET CLUTCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-44010 |
SXA1# |
1 | ||
| 88412-2A010 |
SXA1# |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-43010 |
SXA1#..ARL,EUR,GEN |
1 | ||
| 88411-43010 |
SXA1#..GEN;SXA1#..LHD..EUR |
1 | ||
| 88411-42010 |
SXA1# |
1 | ||
| 88411-2A030 |
SXA1# |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-42010 |
SXA1#..ARL,EUR,GEN |
1 | ||
| 88320-42011 |
SXA1#..ARL,EUR,GEN |
1 | ||
| 88320-42011 |
SXA1#..GEN;SXA1#..LHD..EUR |
1 | ||
| 88320-42050 |
SXA1#..ARL,EUR,GEN |
1 | ||
| 88320-42070 |
SXA1#..GCC;SXA1#..LHD..ATM..EUR MIDDLE EAST SPEC |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-12050 |
SXA10;SXA11..RHD;SXA11..LHD..MTM |
1 | ||
| 88335-12050 |
SXA1#..GCC,GEN;SXA10..LHD..EUR;SXA11..LHD..MTM..EUR |
1 | ||
| 88335-14020 |
SXA1#..ARL,GCC;SXA1#..LHD..ATM..EUR |
1 | ||
| 88335-14020 |
SXA1#..ARL,EUR,GEN |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-12030 |
SXA1# |
1 | ||
| 88403-30290 |
SXA1# |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-42010 |
SXA1# |
1 | ||
| 88410-44010 |
SXA1# |
1 | ||
| 88410-42030 |
SXA1#..ARL,EUR,GEN |
1 | ||
| Common parts | ||||
| 90099-04349 | ||||
| 90099-07065 | ||||
| 90099-07087 | ||||
| 90099-07114 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
ILLUST NO. 2 OF 3(9404- )
BOLT,NUT & SLIDER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88688N - BRACKET, COOLER | ||||
| 88688-21020 |
SXA1#..ARL,EUR |
1 | ||
| 88688-33260 |
SXA1#..ARL,GCC;SXA1#..LHD..ATM..EUR..HT |
1 | ||
| Common parts | ||||
| 16385-64011 | ||||
| 88688-22180 | ||||
| 88899-22260 | ||||
| 90091-00584 | ||||
| 90099-04356 | ||||
| 90119-08299 | ||||
| 90179-08025 | ||||
| 93319-15008 | ||||

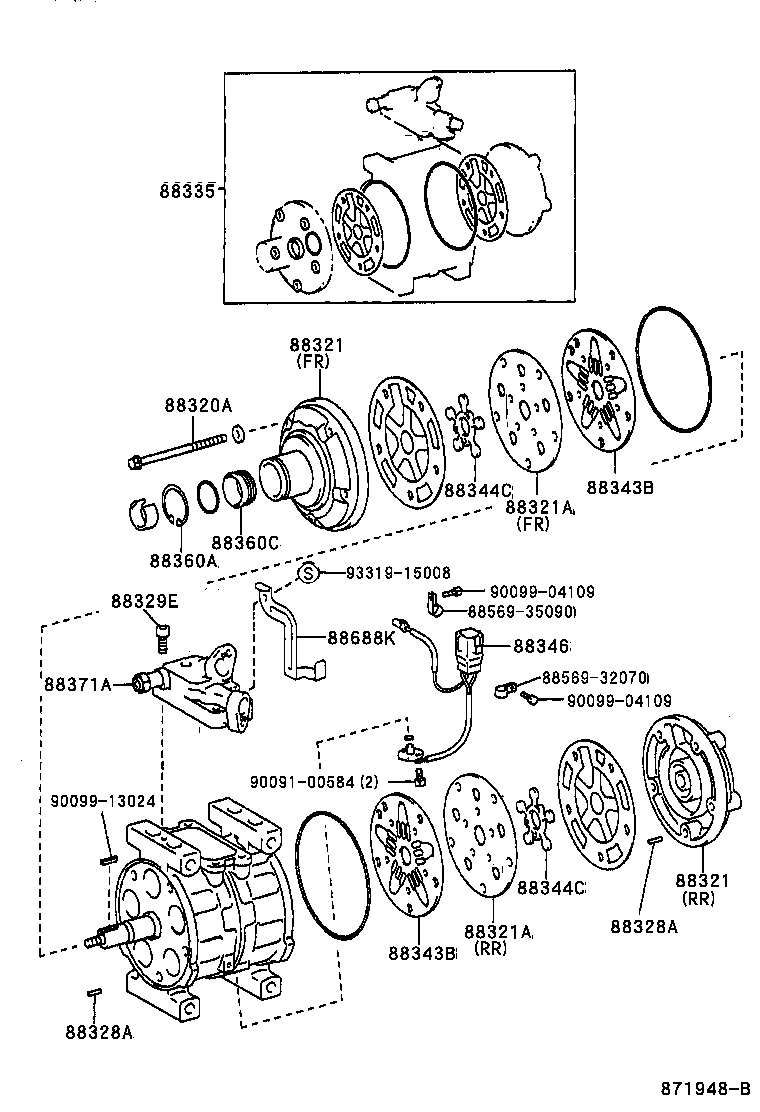

ILLUST NO. 3 OF 3(9404- )ARL,EUR,GEN
COMPRESSOR COMPONENT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88320A - BOLT, THROUGH | ||||
| 90099-04968 |
SXA1# |
5 | ||
| 90099-04370 |
SXA1# |
5 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-2B010 |
SXA1# FRONT |
1 | ||
| 88322-14011 |
SXA1# REAR |
1 | ||
| 88321-30300 |
SXA1# FRONT |
1 | ||
| 88322-32040 |
SXA1# REAR |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-2B010 |
SXA1# FRONT |
1 | ||
| 88322-14011 |
SXA1# REAR |
1 | ||
| 88321-30300 |
SXA1# FRONT |
1 | ||
| 88322-32040 |
SXA1# REAR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88341-28260 |
SXA1#..ARL,EUR,GEN FRONT |
1 | ||
| 88341-22010 |
SXA10..CVT;SXA1#..(ARL,GCC,GEN)..HT;SXA1#..LHD..ATM..EUR..HT FRONT |
1 | ||
| 88342-22010 |
SXA10..CVT;SXA1#..(ARL,GCC,GEN)..HT;SXA1#..LHD..ATM..EUR..HT REAR |
1 | ||
| 88342-28260 |
SXA1#..ARL,EUR,GEN REAR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88341-28260 |
SXA1#..ARL,EUR,GEN FRONT |
1 | ||
| 88341-22010 |
SXA10..CVT;SXA1#..(ARL,GCC,GEN)..HT;SXA1#..LHD..ATM..EUR..HT FRONT |
1 | ||
| 88342-22010 |
SXA10..CVT;SXA1#..(ARL,GCC,GEN)..HT;SXA1#..LHD..ATM..EUR..HT REAR |
1 | ||
| 88342-28260 |
SXA1#..ARL,EUR,GEN REAR |
1 | ||
| 88328A - PIN, COMPRESSOR | ||||
| 90099-08058 |
SXA10..CVT;SXA1#..(ARL,GCC,GEN)..HT;SXA1#..LHD..ATM..EUR..HT |
4 | ||
| 90099-08058 |
SXA1# |
4 | ||
| 88328A - PIN, COMPRESSOR | ||||
| 90099-08058 |
SXA10..CVT;SXA1#..(ARL,GCC,GEN)..HT;SXA1#..LHD..ATM..EUR..HT |
4 | ||
| 90099-08058 |
SXA1# |
4 | ||
| 88329E - BOLT, COMPRESSOR, NO.1 | ||||
| 90099-04255 |
SXA1# |
4 | ||
| 90099-04924 |
SXA1# |
4 | ||
| 88335 - GASKET KIT, OVERHAUL | ||||
| 88335-28020 |
SXA1# |
1 | ||
| 88343B - REED, SUCTION VALVE | ||||
| 88343-14011 |
SXA1# |
2 | ||
| 88343B - REED, SUCTION VALVE | ||||
| 88343-14011 |
SXA1# |
2 | ||
| 88344C - REED, DISCHARGE VALVE | ||||
| 88344-22010 |
SXA10..CVT;SXA1#..(ARL,GCC,GEN)..HT;SXA1#..LHD..ATM..EUR..HT |
2 | ||
| 88344-14011 |
SXA1# |
2 | ||
| 88344C - REED, DISCHARGE VALVE | ||||
| 88344-22010 |
SXA10..CVT;SXA1#..(ARL,GCC,GEN)..HT;SXA1#..LHD..ATM..EUR..HT |
2 | ||
| 88344-14011 |
SXA1# |
2 | ||
| 88346 - SENSOR,COMPRESSOR | ||||
| 88336-42070 |
SXA1#..ARL,EUR,GEN |
1 | ||
| 88336-42020 |
SXA1#..ARL,EUR,GEN |
1 | ||
| 88336-42070 |
SXA1#..EUR,GEN |
1 | ||
| 88336-42100 |
SXA1#..GCC;SXA1#..LHD..ATM..EUR LOCK SENSOR |
1 | ||
| 88336-42110 |
SXA1#..GCC;SXA1#..LHD..ATM..EUR TEMPERATURE SENSOR |
1 | ||
| 88336-30110 |
SXA1#..ARL,EUR,GEN |
1 | ||
| 88360A - RING, COMPRESSOR SEAL PLATE SNAP | ||||
| 90096-90022 |
SXA1# |
1 | ||
| 90096-90022 |
SXA10..CVT;SXA1#..(ARL,GCC,GEN)..HT;SXA1#..LHD..ATM..EUR..HT |
1 | ||
| 88360C - SEAL ASSY, SHAFT | ||||
| 88360-30310 |
SXA1#..ARL,EUR,GCC |
1 | ||
| 88360-30310 |
SXA10;SXA11..RHD;SXA11..LHD..MTM |
1 | ||
| 88360-30310 |
SXA1# |
1 | ||
| 88360-30310 |
SXA1# |
1 | ||
| 88371A - VALVE, SUCTION | ||||
| 88371-42010 |
SXA1#..ARL,EUR,GEN |
1 | ||
| 88371-42060 |
SXA1#..GCC;SXA1#..LHD..ATM..EUR MIDDLE EAST SPEC |
1 | ||
| 88688K - BRACKET, COOLER COMPRESSOR | ||||
| 88688-42080 |
SXA1#..ARL,EUR,GEN |
1 | ||
| 88688-42210 |
SXA1#..ARL,EUR,GEN |
1 | ||
| 88688-42210 |
SXA1#..GEN;SXA1#..LHD..EUR |
1 | ||
| Common parts | ||||
| 88569-32070 | ||||
| 88569-35090 | ||||
| 90091-00584 | ||||
| 90099-04109 | ||||
| 90099-13024 | ||||
| 93319-15008 | ||||
ILLUST NO. 3 OF 3(9511- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 88569-32070 | ||||
| 88569-35090 | ||||
| 90091-00584 | ||||
| 90099-04109 | ||||
| 90099-13024 | ||||
| 93319-15008 | ||||
ILLUST NO. 2 OF 3(9511- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 16385-64011 | ||||
| 88688-22180 | ||||
| 88899-22260 | ||||
| 90091-00584 | ||||
| 90099-04356 | ||||
| 90119-08299 | ||||
| 90179-08025 | ||||
| 93319-15008 | ||||
ILLUST NO. 1 OF 2(9511- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-04349 | ||||
| 90099-07065 | ||||
| 90099-07087 | ||||
| 90099-07114 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
