SXA10L-AZMGKV (1996)

Toyota Rav4

Production Jan 1996 - Aug 2000
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9404-9608)

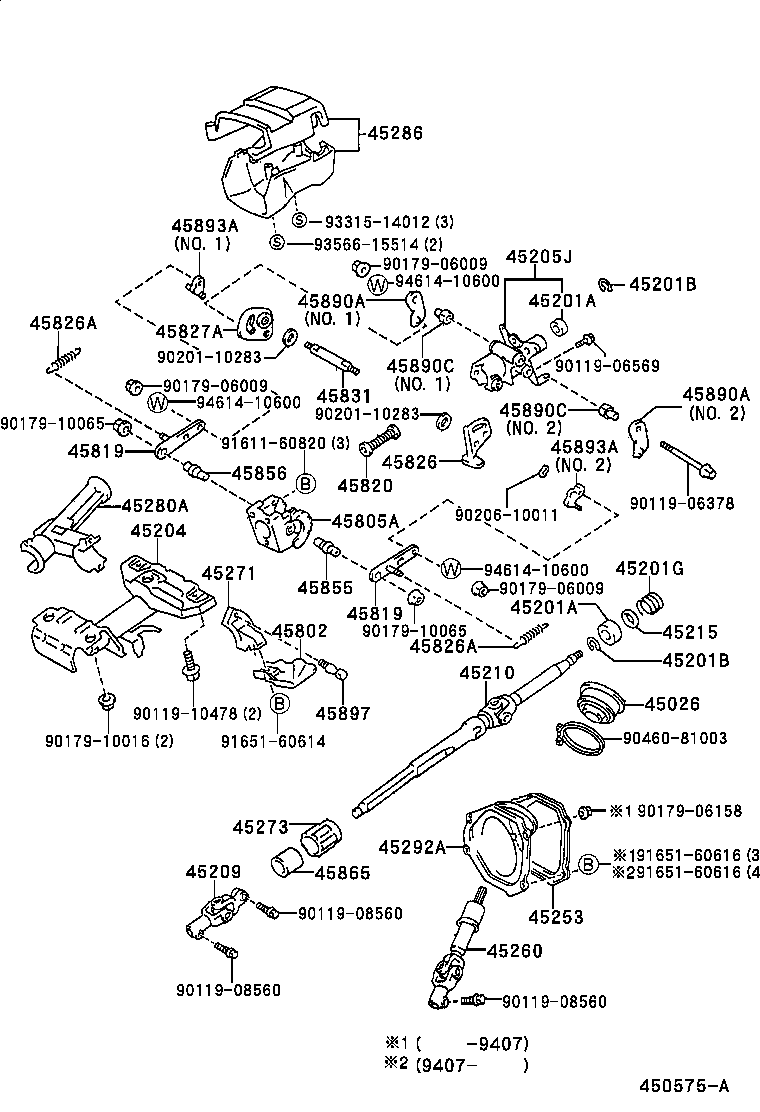

Click highlighted areas on diagram

W(TILT STEERING)

diagram 45026 45201A 45201A 45201B 45201B 45201G 45204 45205J 45209 45210 45215 45253 45260 45271 45273 45280A 45286 45292A 45802 45805A 45819 45819 45820 45826 45826A 45826A 45827A 45831 45855 45856 45865 45890A 45890A 45890C 45890C 45893A 45893A 45897 9011906378 9011906569 9011908560 9011908560 9011908560 9011910478 9017906009 9017906009 9017906009 9017906158 9017910016 9017910065 9017910065 9020110283 9020110283 9020610011 9046081003 9161160820 9165160614 9165160616 9165160616 9331514012 9356615514 9461410600 9461410600 9461410600
Part # Description Qty Price
45026 - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2
45026-42010

SXA1#

 1
45201A - BEARING(FOR STEERING MAIN SHAFT)
90363-18005

SXA1#

 2
90363-18005

SXA1#

LOWER

 1
90363-18009

SXA1#

UPPER

 1
45201A - BEARING(FOR STEERING MAIN SHAFT)
90363-18005

SXA1#

 2
90363-18005

SXA1#

LOWER

 1
90363-18009

SXA1#

UPPER

 1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17042

SXA1#

T=1.20,W(TILT STEERING)

 2
90520-17042

SXA1#

T=1.20,NO.2

 1
90520-17042

SXA1#

T=1.20,W(TILT STEERING)

 1
90520-17269

SXA1#

T=1.20,NO.1

 1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17042

SXA1#

T=1.20,W(TILT STEERING)

 2
90520-17042

SXA1#

T=1.20,NO.2

 1
90520-17042

SXA1#

T=1.20,W(TILT STEERING)

 1
90520-17269

SXA1#

T=1.20,NO.1

 1
45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT)
90501-40017

SXA1#

 1
45204 - TUBE ASSY, STEERING COLUMN, LOWER
45204-42020

SXA1#..LHD

 1
45205J - TUBE SUB-ASSY, STEERING COLUMN, UPPER
45205-42010

SXA1#..LHD

 1
45205-42030

SXA1#

 1
45209 - YOKE SUB-ASSY, STEERING SLIDING
45209-32010

SXA1#

 1
45210 - SHAFT ASSY, STEERING MAIN
45210-35170

SXA1#

W(TILT STEERING)

 1
45210-12400

SXA1#

W(TILT STEERING)

 1
45210-20260

SXA1#

W/O(TILT STEERING)

 1
45215 - COLLAR, MAIN SHAFT BEARING THRUST
45215-12010

SXA1#

 1
45253 - COVER, STEERING COLUMN HOLE
45253-42010

SXA1#..LHD

 1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-42010

SXA1#..LHD

 1
45260-42030

SXA1#..LHD

 1
45271 - CLAMP, STEERING COLUMN, UPPER
45271-12070

SXA1#

W/O(TILT STEERING)

 1
45271-12080

SXA1#

W(TILT STEERING)

 1
45273 - BUSH, STEERING MAIN SHAFT
45273-20040

SXA1#

W(TILT STEERING)

 1
45273-20030

SXA1#

W/O(TILT STEERING)

 1
45280A - BRACKET ASSY, STEERING COLUMN, UPPER
45280-42030

SXA10

W/O(TILT STEERING)

 1
45280-42050

SXA1#

W(TILT STEERING)

 1
45280-42070

SXA1#

W/O(TILT STEERING)

 1
45280-42010

SXA10

W(TILT STEERING)

 1
45286 - COVER, STEERING COLUMN
45286-42901C0

SXA10..LHD

BLACK,TRIM1#

 1
45286-42903C0

SXA10..LHD

W(TILT STEERING),BLACK,TRIM1#

 1
45292A - COVER, MAIN SHAFT LOWER DUST
45292-42010

SXA1#..LHD

 1
45802 - PROTECTOR SUB-ASSY, STEERING COLUMN, NO.1
45802-12020

SXA10

 1
45802-12020

SXA1#

 1
45805A - SUPPORT SUB-ASSY, TILT STEERING
45805-12010

SXA1#

 1
45819 - RETAINER, TILT LEVER
45819-42010

SXA1#

 1
45819-12020

SXA1#

 2
45819 - RETAINER, TILT LEVER
45819-42010

SXA1#

 1
45819-12020

SXA1#

 2
45820 - SPRING ASSY, TILT STEERING SUPPORT
45820-12020

SXA1#

 1
45826 - LEVER, STEERING TILT
45826-12021

SXA1#

 1
45826A - SPRING, TENSION(FOR STEERING TILT LEVER)
90507-12029

SXA1#

 2
90506-25005

SXA1#

 1
45826A - SPRING, TENSION(FOR STEERING TILT LEVER)
90507-12029

SXA1#

 2
90506-25005

SXA1#

 1
45827A - LEVER, STEERING TILT SUB
45827-12020

SXA1#

 1
45831 - BOLT, TILT LEVER LOCK, NO.1
45831-12010

SXA1#

 1
45855 - BOLT, TILT STEERING, NO.1
45855-35010

SXA1#

OD=10

 2
45855-12040

SXA1#

OD=9.998-10.007

 1
45855-12030

SXA1#

OD=9.989-9.998

 1
45856 - BOLT, TILT STEERING, NO.2
45856-12040

SXA1#

OD=9.998-10.007

 1
45856-12030

SXA1#

OD=9.989-9.998

 1
45865 - COLLAR, STEERING MAIN SHAFT
45865-12060

SXA1#

 1
45890A - PAWL ASSY, TILT STEERING
45890-35010

SXA1#

 1
45890-12031

SXA1#

NO.1

 1
45890-12021

SXA1#

NO.2

 1
45890A - PAWL ASSY, TILT STEERING
45890-35010

SXA1#

 1
45890-12031

SXA1#

NO.1

 1
45890-12021

SXA1#

NO.2

 1
45890C - COLLAR(FOR TILT STEERING PAWL)
90389-07004

SXA1#

MARK 0,NO.1

 1
90389-07007

SXA1#

MARK 4,NO.1

 1
90389-07006

SXA1#

MARK 3,NO.1

 1
90389-07008

SXA1#

MARK A,NO.2

 1
90389-07010

SXA1#

MARK 7,NO.2

 1
90389-07005

SXA1#

MARK 2,NO.1

 1
90389-07011

SXA1#

MARK 8,NO.2

 1
90389-07009

SXA1#

MARK 6,NO.2

 1
45890C - COLLAR(FOR TILT STEERING PAWL)
90389-07004

SXA1#

MARK 0,NO.1

 1
90389-07007

SXA1#

MARK 4,NO.1

 1
90389-07006

SXA1#

MARK 3,NO.1

 1
90389-07008

SXA1#

MARK A,NO.2

 1
90389-07010

SXA1#

MARK 7,NO.2

 1
90389-07005

SXA1#

MARK 2,NO.1

 1
90389-07011

SXA1#

MARK 8,NO.2

 1
90389-07009

SXA1#

MARK 6,NO.2

 1
45893A - STOPPER, TILT STEERING PAWL
45893-12120

SXA1#

MARK B,NO.2

 1
45893-12021

SXA1#

MARK A,NO.2

 1
45893-12140

SXA1#

MARK D,NO.2

 1
45893-12130

SXA1#

MARK C,NO.2

 1
45893-12160

SXA1#

MARK G OR 12,NO.1

 1
45893-12180

SXA1#

MARK I OR 14,NO.1

 1
45893-12190

SXA1#

MARK J OR 15,NO.1

 1
45893-12071

SXA1#

MARK F OR 11,NO.1

 1
45893-12170

SXA1#

MARK H OR 13,NO.1

 1
45893-12150

SXA1#

MARK E,NO.2

 1
45893A - STOPPER, TILT STEERING PAWL
45893-12120

SXA1#

MARK B,NO.2

 1
45893-12021

SXA1#

MARK A,NO.2

 1
45893-12140

SXA1#

MARK D,NO.2

 1
45893-12130

SXA1#

MARK C,NO.2

 1
45893-12160

SXA1#

MARK G OR 12,NO.1

 1
45893-12180

SXA1#

MARK I OR 14,NO.1

 1
45893-12190

SXA1#

MARK J OR 15,NO.1

 1
45893-12071

SXA1#

MARK F OR 11,NO.1

 1
45893-12170

SXA1#

MARK H OR 13,NO.1

 1
45893-12150

SXA1#

MARK E,NO.2

 1
45897 - BOLT, STEERING LOCK SET
45897-12020

SXA1#

 2
Common parts
90119-06378
90119-06569
90119-08560
90119-10478
90179-06009
90179-06158
90179-10016
90179-10065
90201-10283
90206-10011
90460-81003
91611-60820
91651-60614
91651-60616
93315-14012
93566-15514
94614-10600

(9608- )

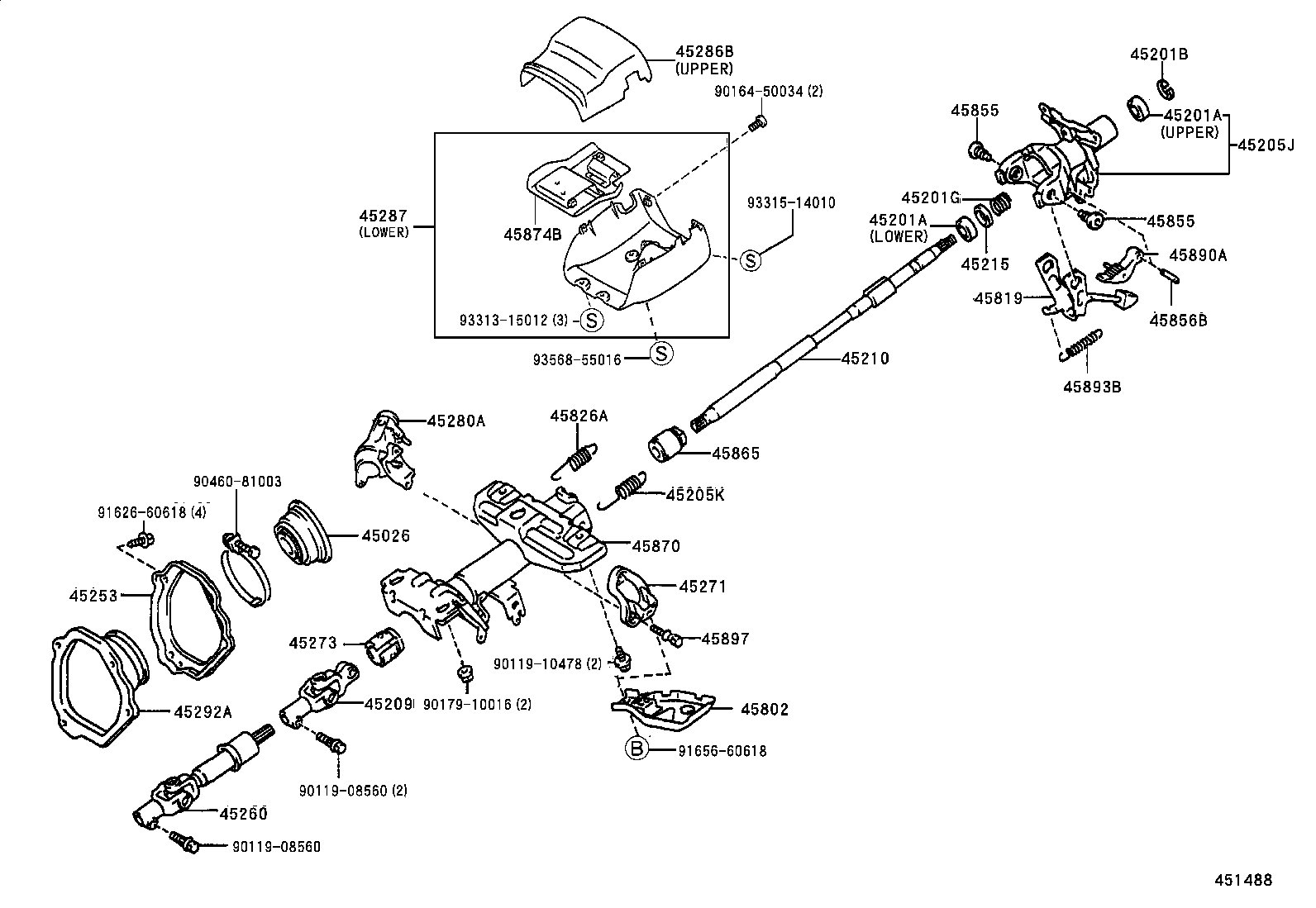

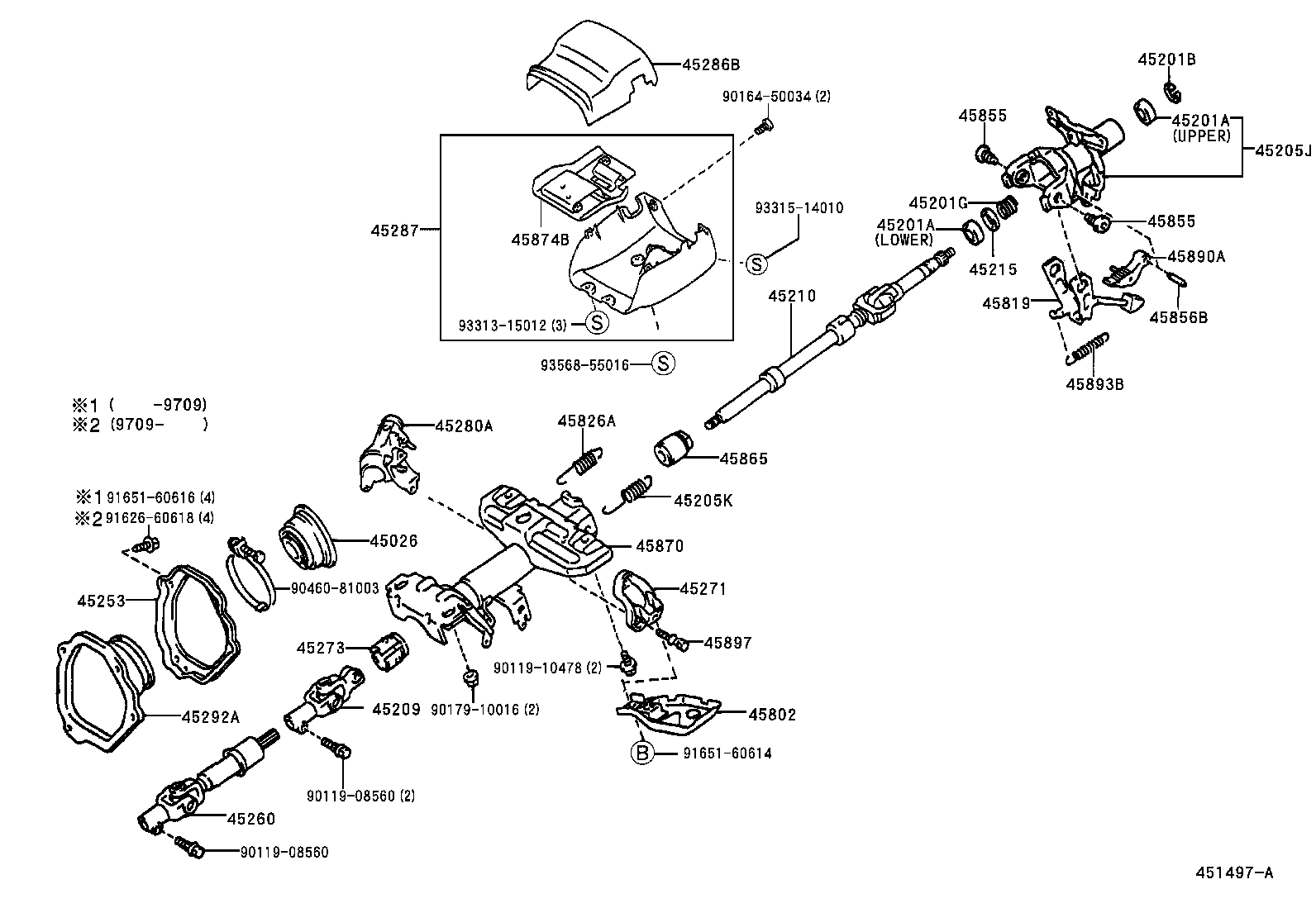

Click highlighted areas on diagram

W(TILT STEERING)

diagram 45026 45201A 45201A 45201B 45201G 45205J 45205K 45209 45210 45215 45253 45260 45271 45273 45280A 45286B 45287 45292A 45802 45819 45826A 45855 45855 45856B 45865 45870 45874B 45890A 45893B 45897 9011908560 9011908560 9011910478 9016450034 9017910016 9046081003 9162660618 9165160614 9165160616 9331315012 9331514010 9356855016
Part # Description Qty Price
45026 - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2
45026-42010

SXA1#

 1
45201A - BEARING(FOR STEERING MAIN SHAFT)
90363-18005

SXA1#

 2
90363-18005

SXA1#

LOWER

 1
90363-18009

SXA1#

UPPER

 1
45201A - BEARING(FOR STEERING MAIN SHAFT)
90363-18005

SXA1#

 2
90363-18005

SXA1#

LOWER

 1
90363-18009

SXA1#

UPPER

 1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17042

SXA1#

T=1.20,W(TILT STEERING)

 2
90520-17042

SXA1#

T=1.20,NO.2

 1
90520-17042

SXA1#

T=1.20,W(TILT STEERING)

 1
90520-17269

SXA1#

T=1.20,NO.1

 1
45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT)
90501-40017

SXA1#

 1
45205J - TUBE SUB-ASSY, STEERING COLUMN, UPPER
45205-42010

SXA1#..LHD

 1
45205-42030

SXA1#

 1
45205K - SPRING(FOR STEERING COLUMN TUBE)
90506-25004

SXA1#

 1
45209 - YOKE SUB-ASSY, STEERING SLIDING
45209-32010

SXA1#

 1
45210 - SHAFT ASSY, STEERING MAIN
45210-35170

SXA1#

W(TILT STEERING)

 1
45210-12400

SXA1#

W(TILT STEERING)

 1
45210-20260

SXA1#

W/O(TILT STEERING)

 1
45215 - COLLAR, MAIN SHAFT BEARING THRUST
45215-12010

SXA1#

 1
45253 - COVER, STEERING COLUMN HOLE
45253-42010

SXA1#..LHD

 1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-42010

SXA1#..LHD

 1
45260-42030

SXA1#..LHD

 1
45271 - CLAMP, STEERING COLUMN, UPPER
45271-12070

SXA1#

W/O(TILT STEERING)

 1
45271-12080

SXA1#

W(TILT STEERING)

 1
45273 - BUSH, STEERING MAIN SHAFT
45273-20040

SXA1#

W(TILT STEERING)

 1
45273-20030

SXA1#

W/O(TILT STEERING)

 1
45280A - BRACKET ASSY, STEERING COLUMN, UPPER
45280-42030

SXA10

W/O(TILT STEERING)

 1
45280-42050

SXA1#

W(TILT STEERING)

 1
45280-42070

SXA1#

W/O(TILT STEERING)

 1
45280-42010

SXA10

W(TILT STEERING)

 1
45286B - COVER, STEERING COLUMN, UPR
45286-42050C0

SXA1#..LHD

BLACK,TRIM1#

 1
45287 - COVER, STEERING COLUMN, LWR
45287-42060C0

SXA1#..LHD

W(TILT STEERING),BLACK,TRIM1#

 1
45287-42050C0

SXA1#..LHD

BLACK,TRIM1#

 1
45292A - COVER, MAIN SHAFT LOWER DUST
45292-42010

SXA1#..LHD

 1
45802 - PROTECTOR SUB-ASSY, STEERING COLUMN, NO.1
45802-12020

SXA10

 1
45802-12020

SXA1#

 1
45819 - RETAINER, TILT LEVER
45819-42010

SXA1#

 1
45819-12020

SXA1#

 2
45826A - SPRING, TENSION(FOR STEERING TILT LEVER)
90507-12029

SXA1#

 2
90506-25005

SXA1#

 1
45855 - BOLT, TILT STEERING, NO.1
45855-35010

SXA1#

OD=10

 2
45855-12040

SXA1#

OD=9.998-10.007

 1
45855-12030

SXA1#

OD=9.989-9.998

 1
45855 - BOLT, TILT STEERING, NO.1
45855-35010

SXA1#

OD=10

 2
45855-12040

SXA1#

OD=9.998-10.007

 1
45855-12030

SXA1#

OD=9.989-9.998

 1
45856B - SHAFT, T1LT STEERING, NO.2
45856-42010

SXA1#

 1
45865 - COLLAR, STEERING MAIN SHAFT
45865-12060

SXA1#

 1
45870 - TUBE ASSY, STEERING COLUMN
45870-42020

SXA1#..LHD

 1
45870-42090

SXA1#

W(TILT STEERING)

 1
45870-42070

SXA1#

W/O(TILT STEERING)

 1
45874B - PROTECTOR, STEERING COLUMN, NO.1
45874-42020

SXA1#

W(TILT STEERING)

 1
45874-42010

SXA1#..LHD

W/O(TILT STEERING)

 1
45890A - PAWL ASSY, TILT STEERING
45890-35010

SXA1#

 1
45890-12031

SXA1#

NO.1

 1
45890-12021

SXA1#

NO.2

 1
45893B - SPRING, TENSION(FOR TILT STEERING PAWL STOPPER)
90905-07013

SXA1#

 1
45897 - BOLT, STEERING LOCK SET
45897-12020

SXA1#

 2
Common parts
90119-08560
90119-10478
90164-50034
90179-10016
90460-81003
91626-60618
91651-60614
91651-60616
93313-15012
93315-14010
93568-55016

(9709- )

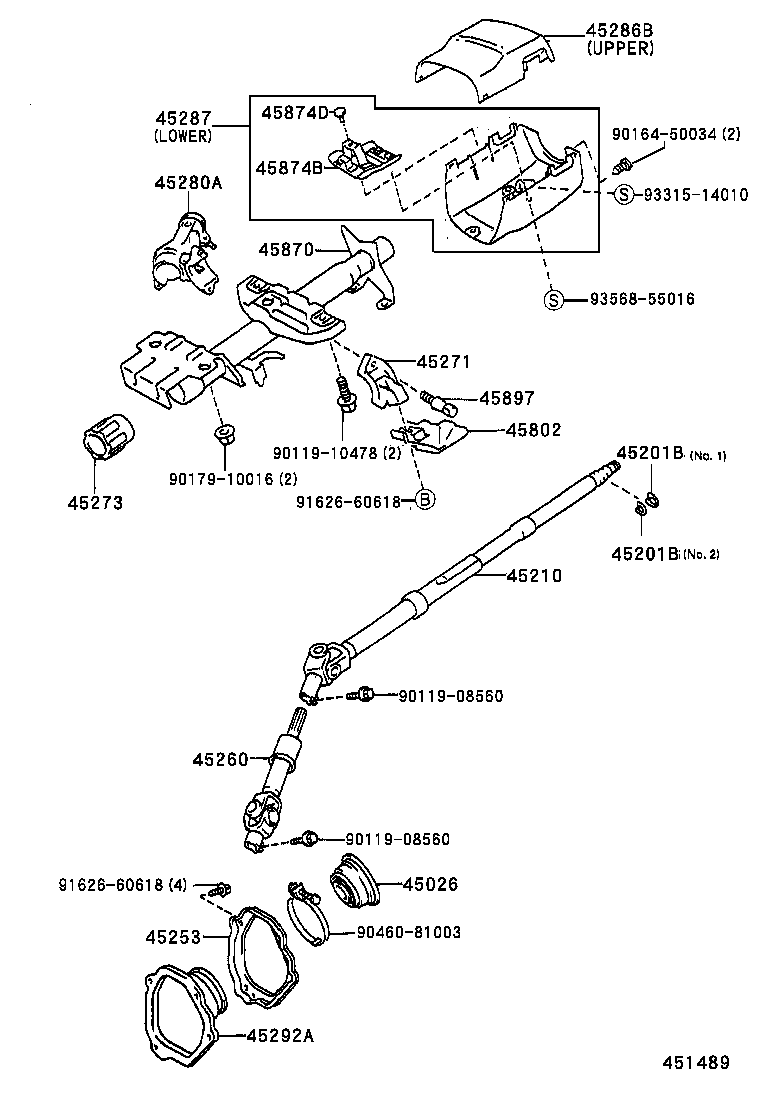

Click highlighted areas on diagram

W/O(TILT STEERING:USA TYPE)

diagram 45026 45201B 45201B 45209 45210 45246A 45246A 45253 45257A 45257A 45260 45271 45273 45279A 45280A 45286B 45287 45291A 45292A 45801A 45801A 45870 45874B 45874D 45879A 45879A 45897 9011908560 9011908560 9016450034 9017910016 9046081003 9162160814 9162660618 9162660618 9331514010 9356855016
Part # Description Qty Price
Common parts
90119-08560
90164-50034
90179-10016
90460-81003
91621-60814
91626-60618
93315-14010
93568-55016

(9709- )

Click highlighted areas on diagram

W(TILT STEERING:USA TYPE)

diagram 45026 45201B 45201B 45205K 45209 45210 45246A 45246A 45253 45257A 45257A 45260 45271 45273 45277A 45280A 45286B 45287 45292A 45801A 45801A 45813 45813 45821B 45826 45827A 45831 45833 45870 45874B 45878 45879A 45879A 45880A 45897 45897A 9011908560 9011908560 9011910478 9016450034 9017910016 9046081003 9162140612 9162660618 9331514010 9356855016 9418360601 9461310601
Part # Description Qty Price
Common parts
90119-08560
90119-10478
90164-50034
90179-10016
90460-81003
91621-40612
91626-60618
93315-14010
93568-55016
94183-60601
94613-10601

(9709- )

Click highlighted areas on diagram

W(TILT STEERING:CANADA TYPE)

diagram 45026 45201A 45201A 45201B 45201G 45205J 45205K 45209 45210 45215 45253 45260 45271 45273 45280A 45286B 45287 45292A 45802 45819 45826A 45855 45855 45856B 45865 45870 45874B 45890A 45893B 45897 9011908560 9011908560 9011910478 9016450034 9017910016 9046081003 9162660618 9165660618 9331315012 9331514010 9356855016
Part # Description Qty Price
Common parts
90119-08560
90119-10478
90164-50034
90179-10016
90460-81003
91626-60618
91656-60618
93313-15012
93315-14010
93568-55016

(9709- )

Click highlighted areas on diagram

W/O(TILT STEERING:CANADA TYPE)

diagram 45026 45201B 45201B 45210 45253 45260 45271 45273 45280A 45286B 45287 45292A 45802 45870 45874B 45874D 45897 9011908560 9011908560 9011910478 9016450034 9017910016 9046081003 9162660618 9162660618 9331514010 9356855016
Part # Description Qty Price
Common parts
90119-08560
90119-10478
90164-50034
90179-10016
90460-81003
91626-60618
93315-14010
93568-55016

(9511-9709)

Click highlighted areas on diagram

W(TILT STEERING)

diagram 45026 45201A 45201A 45201B 45201G 45205J 45205K 45209 45210 45215 45253 45260 45271 45273 45280A 45286B 45287 45292A 45802 45819 45826A 45855 45855 45856B 45865 45870 45874B 45890A 45893B 45897 9011908560 9011908560 9011910478 9016450034 9017910016 9046081003 9162660618 9165660618 9331315012 9331514010 9356855016
Part # Description Qty Price
Common parts
90119-08560
90119-10478
90164-50034
90179-10016
90460-81003
91626-60618
91656-60618
93313-15012
93315-14010
93568-55016

(9511-9709)

Click highlighted areas on diagram

W/O(TILT STEERING)

diagram 45026 45201B 45201B 45210 45253 45260 45271 45273 45280A 45286B 45287 45292A 45802 45870 45874B 45874D 45897 9011908560 9011908560 9011910478 9016450034 9017910016 9046081003 9162660618 9162660618 9331514010 9356855016
Part # Description Qty Price
Common parts
90119-08560
90119-10478
90164-50034
90179-10016
90460-81003
91626-60618
93315-14010
93568-55016
