SXA10L-AZMGKA (1995)
Toyota Rav4

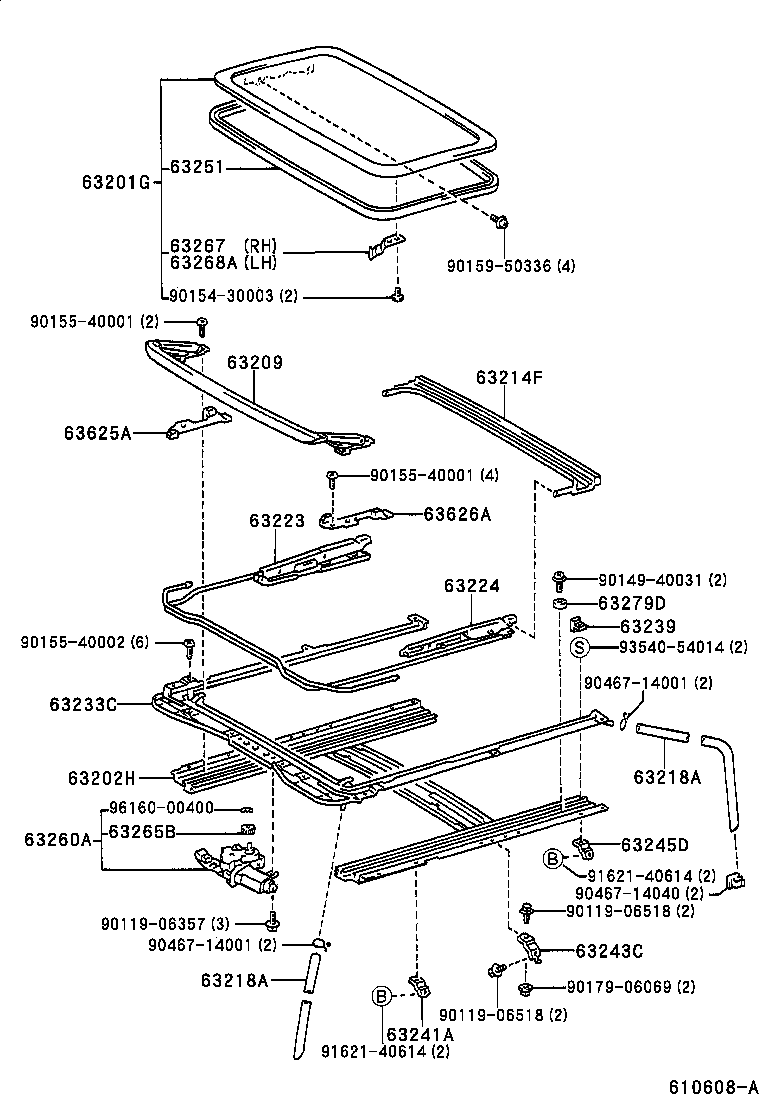

ILLUST NO. 2 OF 2(9709- )SXA10..HT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63201G - GLASS SUB-ASSY, SLIDING ROOF | ||||
| 63201-42040 |
SXA10,15..HT *TT,T=4.0,GRAY |
1 | ||
| 63202H - RAIL SUB-ASSY, SLIDE ROOF | ||||
| 63202-42020 |
SXA10,15..HT |
1 | ||
| 63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR | ||||
| 63209-42010 |
SXA10,15 |
1 | ||
| 63209-42030 |
SXA10,15..HT |
1 | ||
| 63214F - CHANNEL, ROOF DRIP, REAR | ||||
| 63214-42020 |
SXA10,15..HT |
1 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-42030 |
SXA10,15 L=260,REAR |
2 | ||
| 63249-42020 |
SXA10,15 L=1202,CENTER |
2 | ||
| 63249-42010 |
SXA10,15 L=1551,FRONT |
2 | ||
| 63249-42060 |
SXA10,15..HT L=1350 |
2 | ||
| 63249-42040 |
SXA10,15..HT L=1551 |
2 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-42030 |
SXA10,15 L=260,REAR |
2 | ||
| 63249-42020 |
SXA10,15 L=1202,CENTER |
2 | ||
| 63249-42010 |
SXA10,15 L=1551,FRONT |
2 | ||
| 63249-42060 |
SXA10,15..HT L=1350 |
2 | ||
| 63249-42040 |
SXA10,15..HT L=1551 |
2 | ||
| 63223 - CABLE, SLIDING ROOF DRIVE, RH | ||||
| 63223-42010 |
SXA10,15..HT |
1 | ||
| 63224 - CABLE, SLIDING ROOF DRIVE, LH | ||||
| 63224-42010 |
SXA10,15..HT |
1 | ||
| 63233C - PANEL, SLIDING ROOF HOUSING | ||||
| 63233-42020 |
SXA10,15..HT |
1 | ||
| 63239 - STOPPER, SLIDING ROOF PANEL | ||||
| 63239-12030 |
SXA10,15..HT |
2 | ||
| 63241A - BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, RH | ||||
| 63241-42020 |
SXA10,15..HT |
2 | ||
| 63243C - BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, RH | ||||
| 63243-42020 |
SXA10,15..HT |
2 | ||
| 63245D - BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, RH | ||||
| 63245-42020 |
SXA10,15..HT |
2 | ||
| 63251 - WEATHERSTRIP, SLIDING ROOF PANEL OR REMOVABLE ROOF | ||||
| 63251-12140 |
SXA10,15..HT |
1 | ||
| 63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-12090 |
SXA10,15..HT |
1 | ||
| 63265B - GEAR, SLIDING ROOF DRIVE | ||||
| 63265-12040 |
SXA10,15..HT |
1 | ||
| 63267 - PROTECTOR, SLIDING ROOF WEATHERSTRIP | ||||
| 63267-12040 |
SXA10,15..HT |
1 | ||
| 63268A - PROTECTOR, SLIDING ROOF WEATHERSTRIP, LH | ||||
| 63268-12040 |
SXA10,15..HT |
1 | ||
| 63279D - STOPPER, SLIDING ROOF GUIDE RAIL | ||||
| 63279-12030 |
SXA10,15..HT |
2 | ||
| 63625A - BLOCK, SLIDING ROOF GUIDE, RH | ||||
| 63625-12050 |
SXA10,15..HT |
1 | ||
| 63626A - BLOCK, SLIDING ROOF GUIDE, LH | ||||
| 63626-12050 |
SXA10,15..HT |
1 | ||
| Common parts | ||||
| 90119-06357 | ||||
| 90119-06518 | ||||
| 90149-40031 | ||||
| 90154-30003 | ||||
| 90155-40001 | ||||
| 90155-40002 | ||||
| 90159-50336 | ||||
| 90179-06069 | ||||
| 90467-14001 | ||||
| 90467-14040 | ||||
| 91621-40614 | ||||
| 93540-54014 | ||||
| 96160-00400 | ||||

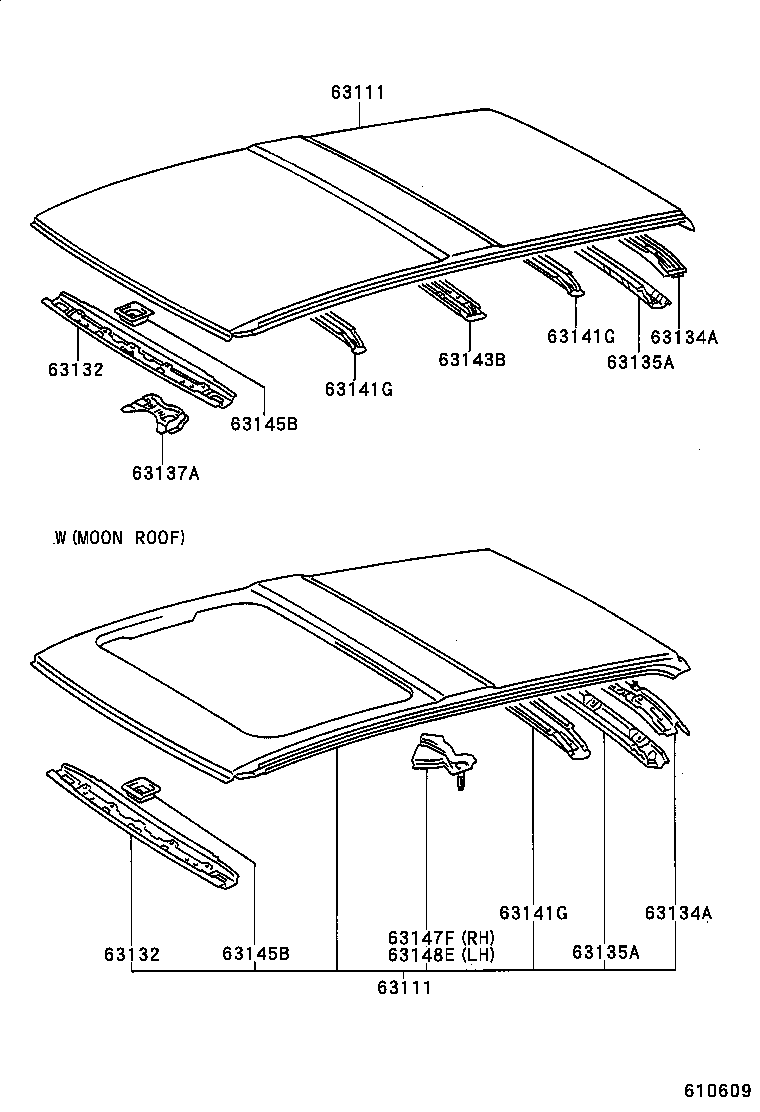

ILLUST NO. 1 OF 2(9709- )SXA10..HT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63111 - PANEL, ROOF | ||||
| 63111-42010 |
SXA10,15..HT |
1 | ||
| 63101-42020 |
SXA10,15 W(REMOVABLE ROOF) |
1 | ||
| 63101-42900 |
SXA10,15..HT W(MOON ROOF) |
1 | ||
| 63101-42021 |
SXA10,15 W(REMOVABLE ROOF) |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-42010 |
SXA10,15..HT |
1 | ||
| 63101-42020 |
SXA10,15 W(REMOVABLE ROOF) |
1 | ||
| 63101-42900 |
SXA10,15..HT W(MOON ROOF) |
1 | ||
| 63101-42021 |
SXA10,15 W(REMOVABLE ROOF) |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-42010 |
SXA10,15 |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-42010 |
SXA10,15 |
1 | ||
| 63134A - FRAME, BACK DOOR OPENING, UPPER | ||||
| 63134-42010 |
SXA1#..HT |
1 | ||
| 63134A - FRAME, BACK DOOR OPENING, UPPER | ||||
| 63134-42010 |
SXA1#..HT |
1 | ||
| 63135A - FRAME, BACK DOOR OPENING, LOWER | ||||
| 63135-42010 |
SXA1# |
1 | ||
| 63135-42011 |
SXA1#..HT |
1 | ||
| 63135A - FRAME, BACK DOOR OPENING, LOWER | ||||
| 63135-42010 |
SXA1# |
1 | ||
| 63135-42011 |
SXA1#..HT |
1 | ||
| 63137A - BRACKET, DOME LAMP, NO.1 | ||||
| 63137-42010 |
SXA1#..HT |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-42010 |
SXA10,15..HT |
2 | ||
| 63141-42010 |
SXA10,15..HT W(MOON ROOF) |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-42010 |
SXA10,15..HT |
2 | ||
| 63141-42010 |
SXA10,15..HT W(MOON ROOF) |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-42010 |
SXA10,15..HT |
2 | ||
| 63141-42010 |
SXA10,15..HT W(MOON ROOF) |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-42010 |
SXA10,15..HT |
1 | ||
| 63145B - REINFORCEMENT, WINDSHIELD HEADER PANEL | ||||
| 63145-42010 |
SXA10,15 |
1 | ||
| 63145B - REINFORCEMENT, WINDSHIELD HEADER PANEL | ||||
| 63145-42010 |
SXA10,15 |
1 | ||
| 63147F - BRACKET, ROOF PANEL REINFORCEMENT, RH | ||||
| 63147-42010 |
SXA10,15..HT |
1 | ||
| 63148E - BRACKET, ROOF PANEL REINFORCEMENT, LH | ||||
| 63148-42010 |
SXA10,15..HT |
1 | ||

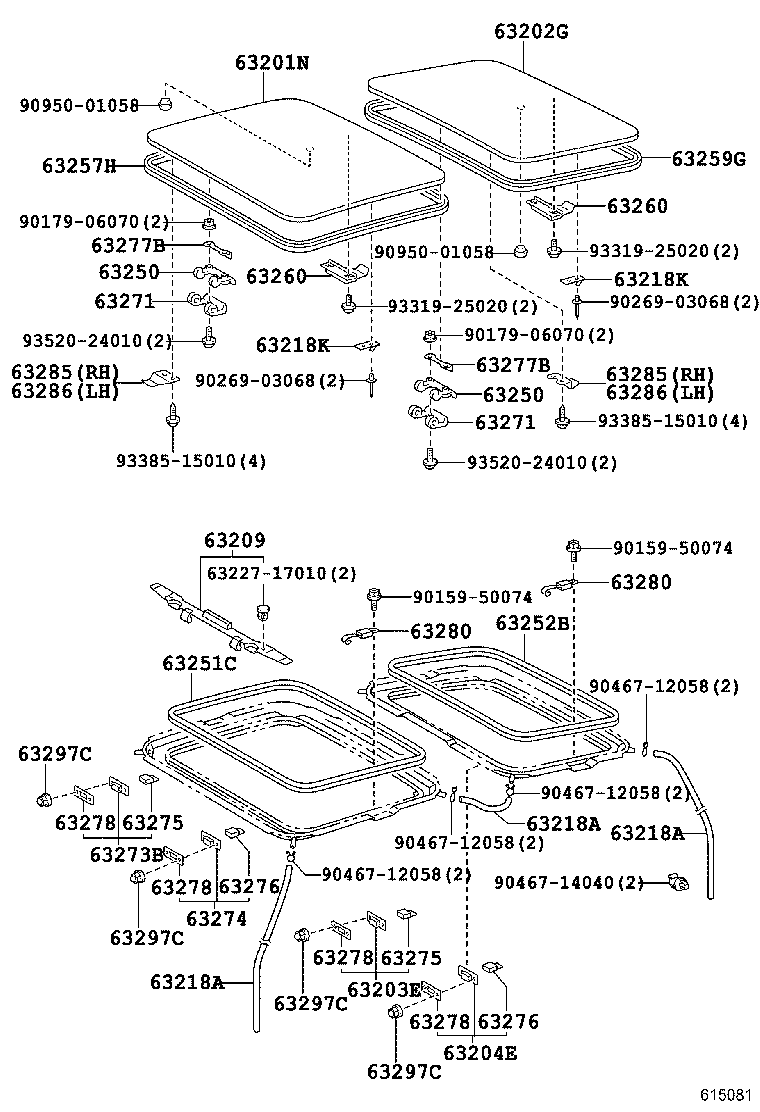

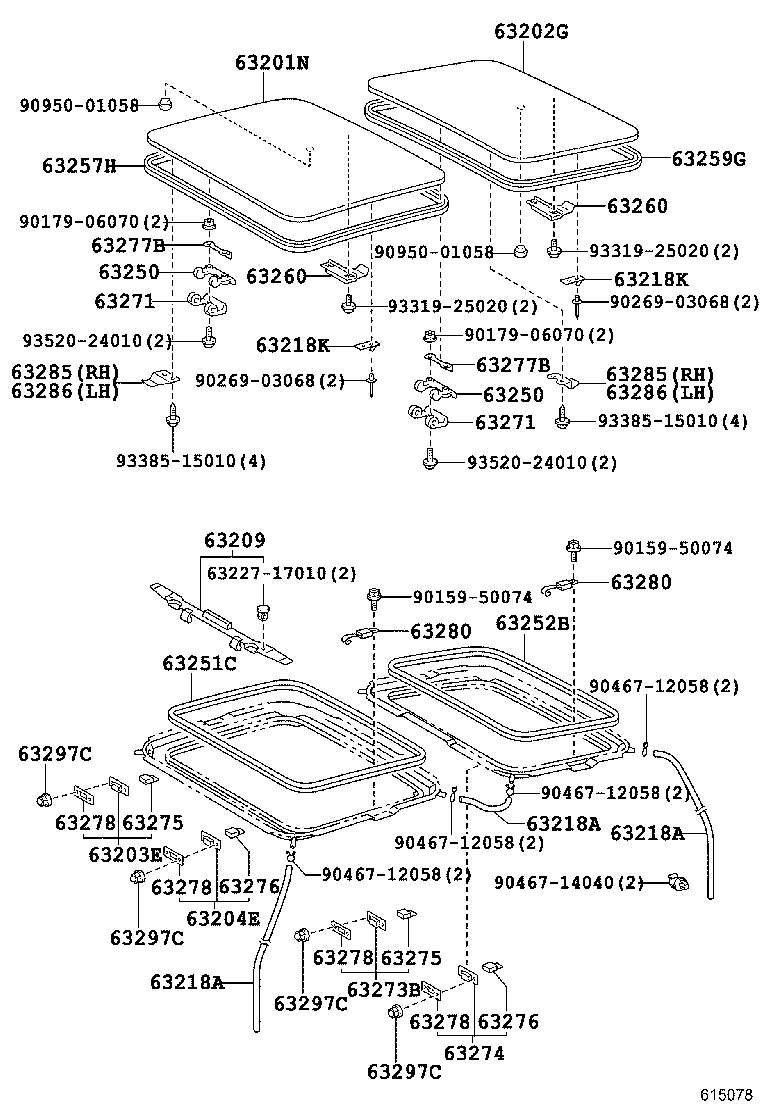

ILLUST NO. 2 OF 2(9404-9709)SXA10
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 63227-17010 | ||||
| 90159-50074 | ||||
| 90179-06070 | ||||
| 90269-03068 | ||||
| 90467-12058 | ||||
| 90467-14040 | ||||
| 90950-01058 | ||||
| 93319-25020 | ||||
| 93385-15010 | ||||
| 93520-24010 | ||||

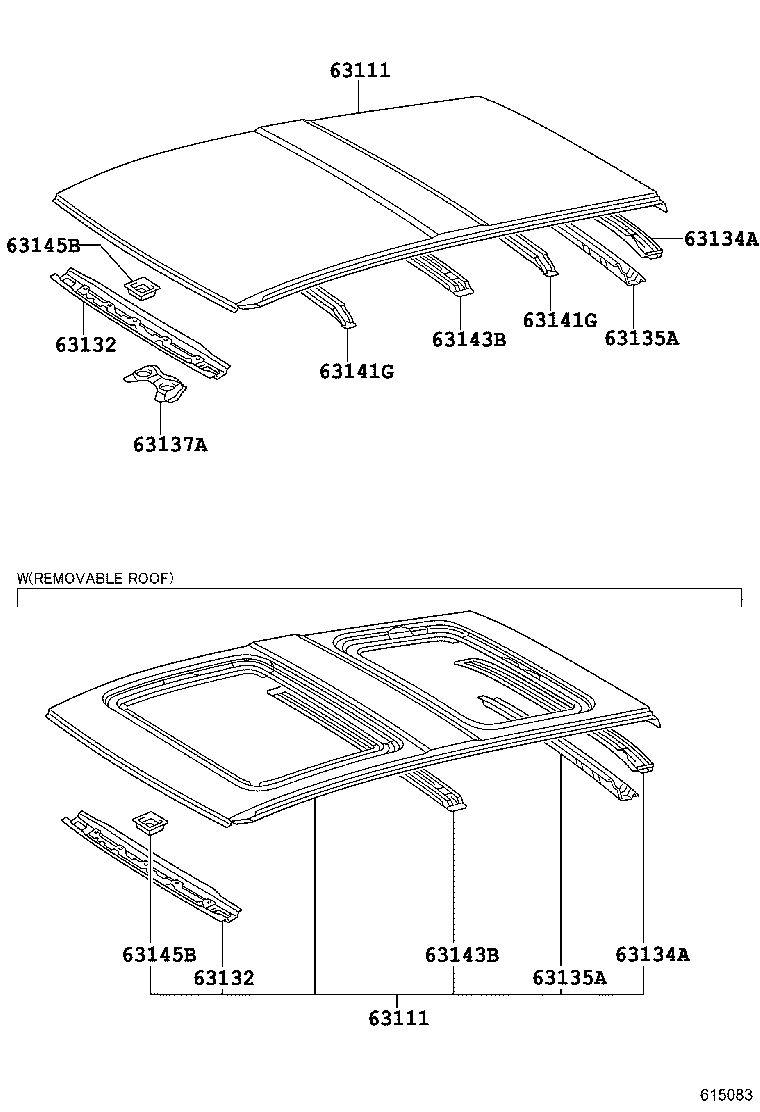

ILLUST NO. 1 OF 2(9404-9709)SXA10
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63111 - PANEL, ROOF | ||||
| 63111-42010 |
SXA10,15..HT |
1 | ||
| 63101-42020 |
SXA10,15 W(REMOVABLE ROOF) |
1 | ||
| 63101-42900 |
SXA10,15..HT W(MOON ROOF) |
1 | ||
| 63101-42021 |
SXA10,15 W(REMOVABLE ROOF) |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-42010 |
SXA10,15..HT |
1 | ||
| 63101-42020 |
SXA10,15 W(REMOVABLE ROOF) |
1 | ||
| 63101-42900 |
SXA10,15..HT W(MOON ROOF) |
1 | ||
| 63101-42021 |
SXA10,15 W(REMOVABLE ROOF) |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-42010 |
SXA10,15 |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-42010 |
SXA10,15 |
1 | ||
| 63134A - FRAME, BACK DOOR OPENING, UPPER | ||||
| 63134-42010 |
SXA1#..HT |
1 | ||
| 63134A - FRAME, BACK DOOR OPENING, UPPER | ||||
| 63134-42010 |
SXA1#..HT |
1 | ||
| 63135A - FRAME, BACK DOOR OPENING, LOWER | ||||
| 63135-42010 |
SXA1# |
1 | ||
| 63135-42011 |
SXA1#..HT |
1 | ||
| 63135A - FRAME, BACK DOOR OPENING, LOWER | ||||
| 63135-42010 |
SXA1# |
1 | ||
| 63135-42011 |
SXA1#..HT |
1 | ||
| 63137A - BRACKET, DOME LAMP, NO.1 | ||||
| 63137-42010 |
SXA1#..HT |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-42010 |
SXA10,15..HT |
2 | ||
| 63141-42010 |
SXA10,15..HT W(MOON ROOF) |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-42010 |
SXA10,15..HT |
2 | ||
| 63141-42010 |
SXA10,15..HT W(MOON ROOF) |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-42010 |
SXA10,15..HT |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-42010 |
SXA10,15..HT |
1 | ||
| 63145B - REINFORCEMENT, WINDSHIELD HEADER PANEL | ||||
| 63145-42010 |
SXA10,15 |
1 | ||
| 63145B - REINFORCEMENT, WINDSHIELD HEADER PANEL | ||||
| 63145-42010 |
SXA10,15 |
1 | ||
ILLUST NO. 2 OF 2(9709- )SXA10,15..HT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63201G - GLASS SUB-ASSY, SLIDING ROOF | ||||
| 63201-42040 |
SXA10,15..HT *TT,T=4.0,GRAY |
1 | ||
| 63202H - RAIL SUB-ASSY, SLIDE ROOF | ||||
| 63202-42020 |
SXA10,15..HT |
1 | ||
| 63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR | ||||
| 63209-42010 |
SXA10,15 |
1 | ||
| 63209-42030 |
SXA10,15..HT |
1 | ||
| 63214F - CHANNEL, ROOF DRIP, REAR | ||||
| 63214-42020 |
SXA10,15..HT |
1 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-42030 |
SXA10,15 L=260,REAR |
2 | ||
| 63249-42020 |
SXA10,15 L=1202,CENTER |
2 | ||
| 63249-42010 |
SXA10,15 L=1551,FRONT |
2 | ||
| 63249-42060 |
SXA10,15..HT L=1350 |
2 | ||
| 63249-42040 |
SXA10,15..HT L=1551 |
2 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-42030 |
SXA10,15 L=260,REAR |
2 | ||
| 63249-42020 |
SXA10,15 L=1202,CENTER |
2 | ||
| 63249-42010 |
SXA10,15 L=1551,FRONT |
2 | ||
| 63249-42060 |
SXA10,15..HT L=1350 |
2 | ||
| 63249-42040 |
SXA10,15..HT L=1551 |
2 | ||
| 63223 - CABLE, SLIDING ROOF DRIVE, RH | ||||
| 63223-42010 |
SXA10,15..HT |
1 | ||
| 63224 - CABLE, SLIDING ROOF DRIVE, LH | ||||
| 63224-42010 |
SXA10,15..HT |
1 | ||
| 63233C - PANEL, SLIDING ROOF HOUSING | ||||
| 63233-42020 |
SXA10,15..HT |
1 | ||
| 63239 - STOPPER, SLIDING ROOF PANEL | ||||
| 63239-12030 |
SXA10,15..HT |
2 | ||
| 63241A - BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, RH | ||||
| 63241-42020 |
SXA10,15..HT |
2 | ||
| 63243C - BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, RH | ||||
| 63243-42020 |
SXA10,15..HT |
2 | ||
| 63245D - BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, RH | ||||
| 63245-42020 |
SXA10,15..HT |
2 | ||
| 63251 - WEATHERSTRIP, SLIDING ROOF PANEL OR REMOVABLE ROOF | ||||
| 63251-12140 |
SXA10,15..HT |
1 | ||
| 63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-12090 |
SXA10,15..HT |
1 | ||
| 63265B - GEAR, SLIDING ROOF DRIVE | ||||
| 63265-12040 |
SXA10,15..HT |
1 | ||
| 63267 - PROTECTOR, SLIDING ROOF WEATHERSTRIP | ||||
| 63267-12040 |
SXA10,15..HT |
1 | ||
| 63268A - PROTECTOR, SLIDING ROOF WEATHERSTRIP, LH | ||||
| 63268-12040 |
SXA10,15..HT |
1 | ||
| 63279D - STOPPER, SLIDING ROOF GUIDE RAIL | ||||
| 63279-12030 |
SXA10,15..HT |
2 | ||
| 63625A - BLOCK, SLIDING ROOF GUIDE, RH | ||||
| 63625-12050 |
SXA10,15..HT |
1 | ||
| 63626A - BLOCK, SLIDING ROOF GUIDE, LH | ||||
| 63626-12050 |
SXA10,15..HT |
1 | ||
| Common parts | ||||
| 90119-06357 | ||||
| 90119-06518 | ||||
| 90149-40031 | ||||
| 90154-30003 | ||||
| 90155-40001 | ||||
| 90155-40002 | ||||
| 90159-50336 | ||||
| 90179-06069 | ||||
| 90467-14001 | ||||
| 90467-14040 | ||||
| 91621-40614 | ||||
| 93540-54014 | ||||
| 96160-00400 | ||||
ILLUST NO. 1 OF 2(9709- )SXA10,15..HT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63111 - PANEL, ROOF | ||||
| 63111-42010 |
SXA10,15..HT |
1 | ||
| 63101-42020 |
SXA10,15 W(REMOVABLE ROOF) |
1 | ||
| 63101-42900 |
SXA10,15..HT W(MOON ROOF) |
1 | ||
| 63101-42021 |
SXA10,15 W(REMOVABLE ROOF) |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-42010 |
SXA10,15..HT |
1 | ||
| 63101-42020 |
SXA10,15 W(REMOVABLE ROOF) |
1 | ||
| 63101-42900 |
SXA10,15..HT W(MOON ROOF) |
1 | ||
| 63101-42021 |
SXA10,15 W(REMOVABLE ROOF) |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-42010 |
SXA10,15 |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-42010 |
SXA10,15 |
1 | ||
| 63134A - FRAME, BACK DOOR OPENING, UPPER | ||||
| 63134-42010 |
SXA1#..HT |
1 | ||
| 63134A - FRAME, BACK DOOR OPENING, UPPER | ||||
| 63134-42010 |
SXA1#..HT |
1 | ||
| 63135A - FRAME, BACK DOOR OPENING, LOWER | ||||
| 63135-42010 |
SXA1# |
1 | ||
| 63135-42011 |
SXA1#..HT |
1 | ||
| 63135A - FRAME, BACK DOOR OPENING, LOWER | ||||
| 63135-42010 |
SXA1# |
1 | ||
| 63135-42011 |
SXA1#..HT |
1 | ||
| 63137A - BRACKET, DOME LAMP, NO.1 | ||||
| 63137-42010 |
SXA1#..HT |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-42010 |
SXA10,15..HT |
2 | ||
| 63141-42010 |
SXA10,15..HT W(MOON ROOF) |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-42010 |
SXA10,15..HT |
2 | ||
| 63141-42010 |
SXA10,15..HT W(MOON ROOF) |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-42010 |
SXA10,15..HT |
2 | ||
| 63141-42010 |
SXA10,15..HT W(MOON ROOF) |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-42010 |
SXA10,15..HT |
1 | ||
| 63145B - REINFORCEMENT, WINDSHIELD HEADER PANEL | ||||
| 63145-42010 |
SXA10,15 |
1 | ||
| 63145B - REINFORCEMENT, WINDSHIELD HEADER PANEL | ||||
| 63145-42010 |
SXA10,15 |
1 | ||
| 63147F - BRACKET, ROOF PANEL REINFORCEMENT, RH | ||||
| 63147-42010 |
SXA10,15..HT |
1 | ||
| 63148E - BRACKET, ROOF PANEL REINFORCEMENT, LH | ||||
| 63148-42010 |
SXA10,15..HT |
1 | ||
ILLUST NO. 2 OF 2(9511-9709)SXA10,15
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63201N - PANEL SUB-ASSY, REMOVABLE ROOF | ||||
| 63201-42010 |
SXA10,15 |
1 | ||
| 63202G - PANEL SUB-ASSY, SLIDE ROOF, REAR | ||||
| 63202-42010 |
SXA10,15 |
1 | ||
| 63203E - LOCK SUB-ASSY, REMOVABLE ROOF, RH | ||||
| 63203-42020 |
SXA10,15 |
1 | ||
| 63204E - LOCK SUB-ASSY, REMOVABLE ROOF, LH | ||||
| 63204-42020 |
SXA10,15 |
1 | ||
| 63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR | ||||
| 63209-42010 |
SXA10,15 |
1 | ||
| 63209-42030 |
SXA10,15..HT |
1 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-42030 |
SXA10,15 L=260,REAR |
2 | ||
| 63249-42020 |
SXA10,15 L=1202,CENTER |
2 | ||
| 63249-42010 |
SXA10,15 L=1551,FRONT |
2 | ||
| 63249-42060 |
SXA10,15..HT L=1350 |
2 | ||
| 63249-42040 |
SXA10,15..HT L=1551 |
2 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-42030 |
SXA10,15 L=260,REAR |
2 | ||
| 63249-42020 |
SXA10,15 L=1202,CENTER |
2 | ||
| 63249-42010 |
SXA10,15 L=1551,FRONT |
2 | ||
| 63249-42060 |
SXA10,15..HT L=1350 |
2 | ||
| 63249-42040 |
SXA10,15..HT L=1551 |
2 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-42030 |
SXA10,15 L=260,REAR |
2 | ||
| 63249-42020 |
SXA10,15 L=1202,CENTER |
2 | ||
| 63249-42010 |
SXA10,15 L=1551,FRONT |
2 | ||
| 63249-42060 |
SXA10,15..HT L=1350 |
2 | ||
| 63249-42040 |
SXA10,15..HT L=1551 |
2 | ||
| 63218K - HOOK, REMOVABLE ROOF AUXILIARY | ||||
| 63218-42010 |
SXA10,15 |
2 | ||
| 63218K - HOOK, REMOVABLE ROOF AUXILIARY | ||||
| 63218-42010 |
SXA10,15 |
2 | ||
| 63250 - BASE ASSY, REMOVABLE ROOF LOCK | ||||
| 63250-16020 |
SXA10,15 FRONT |
1 | ||
| 63250-42010 |
SXA10,15 REAR |
1 | ||
| 63250 - BASE ASSY, REMOVABLE ROOF LOCK | ||||
| 63250-16020 |
SXA10,15 FRONT |
1 | ||
| 63250-42010 |
SXA10,15 REAR |
1 | ||
| 63251C - WEATHERSTRIP, REMOVABLE ROOF | ||||
| 63251-42010 |
SXA10,15 |
1 | ||
| 63252B - WEATHERSTRIP, REMOVABLE ROOF, REAR | ||||
| 63252-42010 |
SXA10,15 |
1 | ||
| 63257H - SEAL, REMOVABLE ROOF | ||||
| 63257-42010 |
SXA10,15 |
1 | ||
| 63259G - SEAL, REMOVABLE ROOF, NO.2 | ||||
| 63259-42010 |
SXA10,15 |
1 | ||
| 63260 - HANDLE ASSY, REMOVABLE ROOF LOCK | ||||
| 63260-42041B0 |
SXA10,15 LT.BLUISH GRAY,TRIM1#,REAR |
1 | ||
| 63260-42060B0 |
SXA10,15 LT.BLUISH GRAY |
1 | ||
| 63260-42040B0 |
SXA10,15 LT. BLUISH GRAY,TRIM1#,REAR |
1 | ||
| 63260-42020B0 |
SXA10,15 LT.BLUISH GRAY,TRIM1#,FRONT |
1 | ||
| 63260 - HANDLE ASSY, REMOVABLE ROOF LOCK | ||||
| 63260-42041B0 |
SXA10,15 LT.BLUISH GRAY,TRIM1#,REAR |
1 | ||
| 63260-42060B0 |
SXA10,15 LT.BLUISH GRAY |
1 | ||
| 63260-42040B0 |
SXA10,15 LT. BLUISH GRAY,TRIM1#,REAR |
1 | ||
| 63260-42020B0 |
SXA10,15 LT.BLUISH GRAY,TRIM1#,FRONT |
1 | ||
| 63271 - GARNISH, REMOVABLE ROOF LOCK | ||||
| 63271-16010B0 |
SXA10,15 LT.BLUISH GRAY,TRIM1# |
2 | ||
| 63271 - GARNISH, REMOVABLE ROOF LOCK | ||||
| 63271-16010B0 |
SXA10,15 LT.BLUISH GRAY,TRIM1# |
2 | ||
| 63273B - RETAINER, ROOF WINDOW HINGE | ||||
| 63273-17040 |
SXA10,15 |
1 | ||
| 63274 - CASE, REMOVABLE ROOF HINGE, LH | ||||
| 63274-17040 |
SXA10,15 |
1 | ||
| 63275 - HOLDER, REMOVABLE ROOF HINGE, RH | ||||
| 63275-17010 |
SXA10,15 |
2 | ||
| 63275 - HOLDER, REMOVABLE ROOF HINGE, RH | ||||
| 63275-17010 |
SXA10,15 |
2 | ||
| 63276 - HOLDER, REMOVABLE ROOF HINGE, LH | ||||
| 63276-17010 |
SXA10,15 |
2 | ||
| 63276 - HOLDER, REMOVABLE ROOF HINGE, LH | ||||
| 63276-17010 |
SXA10,15 |
2 | ||
| 63277B - SPACER, REMOVABLE ROOF LOCK BASE | ||||
| 63277-16030 |
SXA10,15 |
1 | ||
| 63277B - SPACER, REMOVABLE ROOF LOCK BASE | ||||
| 63277-16030 |
SXA10,15 |
1 | ||
| 63278 - SEAL, REMOVABLE ROOF HINGE CASE | ||||
| 63278-12010 |
SXA10,15 |
4 | ||
| 63278 - SEAL, REMOVABLE ROOF HINGE CASE | ||||
| 63278-12010 |
SXA10,15 |
4 | ||
| 63278 - SEAL, REMOVABLE ROOF HINGE CASE | ||||
| 63278-12010 |
SXA10,15 |
4 | ||
| 63278 - SEAL, REMOVABLE ROOF HINGE CASE | ||||
| 63278-12010 |
SXA10,15 |
4 | ||
| 63280 - CATCH ASSY, REMOVABLE ROOF AUXILIARY, LH | ||||
| 63280-17010 |
SXA10,15 |
2 | ||
| 63280 - CATCH ASSY, REMOVABLE ROOF AUXILIARY, LH | ||||
| 63280-17010 |
SXA10,15 |
2 | ||
| 63285 - HINGE, REMOVABLE ROOF, RH | ||||
| 63285-42020 |
SXA10,15 FRONT |
1 | ||
| 63285-42011 |
SXA10,15 REAR |
1 | ||
| 63285 - HINGE, REMOVABLE ROOF, RH | ||||
| 63285-42020 |
SXA10,15 FRONT |
1 | ||
| 63285-42011 |
SXA10,15 REAR |
1 | ||
| 63286 - HINGE, REMOVABLE ROOF, LH | ||||
| 63286-42020 |
SXA10,15 FRONT |
1 | ||
| 63286-42011 |
SXA10,15 REAR |
1 | ||
| 63286 - HINGE, REMOVABLE ROOF, LH | ||||
| 63286-42020 |
SXA10,15 FRONT |
1 | ||
| 63286-42011 |
SXA10,15 REAR |
1 | ||
| 63297C - BOLT, REMOVABLE ROOF HINGE CASE | ||||
| 63297-42010 |
SXA10,15 |
8 | ||
| 63297C - BOLT, REMOVABLE ROOF HINGE CASE | ||||
| 63297-42010 |
SXA10,15 |
8 | ||
| 63297C - BOLT, REMOVABLE ROOF HINGE CASE | ||||
| 63297-42010 |
SXA10,15 |
8 | ||
| 63297C - BOLT, REMOVABLE ROOF HINGE CASE | ||||
| 63297-42010 |
SXA10,15 |
8 | ||
| Common parts | ||||
| 63227-17010 | ||||
| 90159-50074 | ||||
| 90179-06070 | ||||
| 90269-03068 | ||||
| 90467-12058 | ||||
| 90467-14040 | ||||
| 90950-01058 | ||||
| 93319-25020 | ||||
| 93385-15010 | ||||
| 93520-24010 | ||||
ILLUST NO. 1 OF 2(9511-9709)SXA10,15
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63111 - PANEL, ROOF | ||||
| 63111-42010 |
SXA10,15..HT |
1 | ||
| 63101-42020 |
SXA10,15 W(REMOVABLE ROOF) |
1 | ||
| 63101-42900 |
SXA10,15..HT W(MOON ROOF) |
1 | ||
| 63101-42021 |
SXA10,15 W(REMOVABLE ROOF) |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-42010 |
SXA10,15..HT |
1 | ||
| 63101-42020 |
SXA10,15 W(REMOVABLE ROOF) |
1 | ||
| 63101-42900 |
SXA10,15..HT W(MOON ROOF) |
1 | ||
| 63101-42021 |
SXA10,15 W(REMOVABLE ROOF) |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-42010 |
SXA10,15 |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-42010 |
SXA10,15 |
1 | ||
| 63134A - FRAME, BACK DOOR OPENING, UPPER | ||||
| 63134-42010 |
SXA1#..HT |
1 | ||
| 63134A - FRAME, BACK DOOR OPENING, UPPER | ||||
| 63134-42010 |
SXA1#..HT |
1 | ||
| 63135A - FRAME, BACK DOOR OPENING, LOWER | ||||
| 63135-42010 |
SXA1# |
1 | ||
| 63135-42011 |
SXA1#..HT |
1 | ||
| 63135A - FRAME, BACK DOOR OPENING, LOWER | ||||
| 63135-42010 |
SXA1# |
1 | ||
| 63135-42011 |
SXA1#..HT |
1 | ||
| 63137A - BRACKET, DOME LAMP, NO.1 | ||||
| 63137-42010 |
SXA1#..HT |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-42010 |
SXA10,15..HT |
2 | ||
| 63141-42010 |
SXA10,15..HT W(MOON ROOF) |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-42010 |
SXA10,15..HT |
2 | ||
| 63141-42010 |
SXA10,15..HT W(MOON ROOF) |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-42010 |
SXA10,15..HT |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-42010 |
SXA10,15..HT |
1 | ||
| 63145B - REINFORCEMENT, WINDSHIELD HEADER PANEL | ||||
| 63145-42010 |
SXA10,15 |
1 | ||
| 63145B - REINFORCEMENT, WINDSHIELD HEADER PANEL | ||||
| 63145-42010 |
SXA10,15 |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
