SXA10L-AZMGK (1994)
Toyota Rav4
ILLUST NO. 6 OF 6(9404- )
ROOF,DOOR,FLOOR SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-49065 |
SXA1# FUEL VENT TUBE |
1 | ||
| 83320-49055 |
SXA1#..EUR,GCC,GEN FUEL PUMP ASSY |
1 | ||
| 83320-49155 |
SXA1# FUEL VENT TUBE |
1 | ||
| 83320-49145 |
SXA1#..EUR,GCC,GEN FUEL PUMP ASSY |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-49065 |
SXA1# FUEL VENT TUBE |
1 | ||
| 83320-49055 |
SXA1#..EUR,GCC,GEN FUEL PUMP ASSY |
1 | ||
| 83320-49155 |
SXA1# FUEL VENT TUBE |
1 | ||
| 83320-49145 |
SXA1#..EUR,GCC,GEN FUEL PUMP ASSY |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-32040 |
SXA1# |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-32040 |
SXA1# |
2 | ||
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84231-42010 |
SXA11;SXA10..ARL..HT;SXA10..EUR,GCC,GEN POWER WINDOW(W/O POWER KEY-OFF) |
1 | ||
| 84231-42020 |
SXA1#..EUR,GCC,GEN |
1 | ||
| 84231-42020 |
SXA1#..GCC,GEN |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-16060 |
SXA1# |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-12080 |
SXA1# |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-16060 |
SXA10..LHD |
1 | ||
| 84820-10070 |
SXA10..LHD |
1 | ||
| 84820-42030 |
SXA10..LHD |
1 | ||
| 84862 - SWITCH, SLIDE ROOF MOTOR | ||||
| 84862-20050B2 |
SXA10..HT LT.GRAY,TRIM10,11 |
1 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84931-10090 |
SXA10..LHD |
1 | ||
| 84931-10090 |
SXA10..LHD..(GCC,GEN) |
1 | ||
| 84931-10090 |
SXA10 LH |
1 | ||
| 84931-10071 |
SXA10 RH |
1 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84931-10090 |
SXA10..LHD |
1 | ||
| 84931-10090 |
SXA10..LHD..(GCC,GEN) |
1 | ||
| 84931-10090 |
SXA10 LH |
1 | ||
| 84931-10071 |
SXA10 RH |
1 | ||
| 85921 - RELAY, SLIDING ROOF CONTROL | ||||
| 85921-12070 |
SXA10..HT |
1 | ||
| 85940B - RELAY ASSY, REAR WIPER | ||||
| 85940-42010 |
SXA1# |
1 | ||
| 85999C - BRACKET, RELAY, NO.3 | ||||
| 85999-42030 |
SXA1# |
1 | ||
| Common parts | ||||
| 82711-10380 | ||||
| 90119-06601 | ||||
| 90164-40103 | ||||
| 91511-60612 | ||||
| 91626-60616 | ||||
| 91656-60616 | ||||
| 93315-14012 | ||||
| 93319-14008 | ||||
| 93540-44012 | ||||
| 93540-54012 | ||||
ILLUST NO. 1 OF 6(9404- )
ENGINE,TRANSMISSON,TRANSFER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16040 |
SXA1# DENSO |
1 | ||
| 83420-20040 |
SXA1# DENSO |
1 | ||
| 83420-AA010 |
SXA1# AMERICAN YAZAKI |
1 | ||
| 83420-AA010 |
SXA1#..EUR,GCC,GEN AMERICAN YAZAKI |
1 | ||
| 83420-20040 |
SXA1#..EUR,GCC,GEN DENSO |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30090 |
SXA1# DENSO |
1 | ||
| 83530-30090 |
SXA1# |
1 | ||
| 83530-28020 |
SXA1# DENSO |
1 | ||
| 83530-60020 |
SXA1# YAZAKI |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
SXA1#..MTM |
1 | ||
| 84222 - SWITCH, TRANSFER INDICATOR, NO.1 | ||||
| 84222-12010 |
SXA1#..MTM |
1 | ||
| Common parts | ||||
| 90179-08059 | ||||
| 90301-11008 | ||||
| 90430-18008 | ||||
| 90950-01060 | ||||
| 91611-60616 | ||||
| 91651-40620 | ||||
ILLUST NO. 2 OF 6(9404- )
ENGINE ROOM RELAY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-10020 |
3SFE..SXA1# |
1 | ||
| 28371C - RELAY, IGNITION, NO.2 | ||||
| 90987-02012 |
3SFE..SXA1# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09009 |
SXA1# 10A,MINI FUSE,RED |
5 | ||
| 90982-09007 |
SXA1# 5A,MINI FUSE,TAN |
1 | ||
| 90982-09008 |
SXA1# 7.5A,MINI FUSE,BRN |
6 | ||
| 90982-09007 |
SXA1# 5A,MINI FUSE,TAN |
1 | ||
| 90982-09010 |
SXA1# 15A,MINI FUSE,BLUE |
5 | ||
| 90982-09008 |
SXA1# 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09009 |
SXA1# 10A,MINI FUSE,RED |
1 | ||
| 90982-09010 |
SXA1# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09011 |
SXA1# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09011 |
SXA1# 20A,MINI FUSE,YELLOW |
1 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-10002 |
SXA1# 40A,GREEN |
1 | ||
| 90982-10001 |
SXA1# 30A,PINK |
3 | ||
| 90982-10002 |
SXA1# 40A,GREEN |
1 | ||
| 90982-10001 |
SXA1# 30A,PINK |
1 | ||
| 82613 - COVER, FUSE BLOCK | ||||
| 82613-42020 |
SXA1#..LHD |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-20010 |
SXA1# |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-42020 |
SXA11;SXA10..RHD;SXA10..LHD..(GCC,GEN) NO.1 |
1 | ||
| 82662-42090 |
SXA1# NO.1 |
1 | ||
| 82662-42031 |
SXA1# NO.2 |
1 | ||
| 82662-42091 |
SXA1# NO.1 |
1 | ||
| 82662-42030 |
SXA1# NO.2 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-42020 |
SXA11;SXA10..RHD;SXA10..LHD..(GCC,GEN) NO.1 |
1 | ||
| 82662-42090 |
SXA1# NO.1 |
1 | ||
| 82662-42031 |
SXA1# NO.2 |
1 | ||
| 82662-42091 |
SXA1# NO.1 |
1 | ||
| 82662-42030 |
SXA1# NO.2 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-42020 |
SXA1# NO.2 |
1 | ||
| 82663-42010 |
SXA1# NO.1 |
1 | ||
| 82663-42030 |
SXA1# NO.1 |
1 | ||
| 82663-42040 |
SXA1# NO.2 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-42020 |
SXA1# NO.2 |
1 | ||
| 82663-42010 |
SXA1# NO.1 |
1 | ||
| 82663-42030 |
SXA1# NO.1 |
1 | ||
| 82663-42040 |
SXA1# NO.2 |
1 | ||
| 82740 - BLOCK ASSY, ENGINE ROOM RELAY | ||||
| 82740-42010 |
SXA1# |
1 | ||
| 82740-42021 |
SXA1# |
1 | ||
| 82740-42022 |
SXA1# |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82742-42010 |
SXA1# |
1 | ||
| 82742-42020 |
SXA1# |
1 | ||
| 85440A - SOLENOID ASSY, FOUR WHEEL DRIVE CONTROL | ||||
| 85440-42010 |
SXA10..MTM |
1 | ||
| 85440-42020 |
SXA1#..MTM |
1 | ||
| 85440-42011 |
SXA1#..MTM |
1 | ||
| 85440-42021 |
SXA1#..MTM |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-04002 |
SXA1# |
1 | ||
| 85925-17010 |
SXA1# |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02006 |
SXA1# |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-03003 |
SXA1# |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-02012 |
SXA1# DEALER OPTION |
1 | ||
| 90987-04003 |
SXA1# |
1 | ||
| 85927B - RELAY, COOLING FAN, NO.3 | ||||
| 90987-02009 |
SXA1# |
1 | ||
| 90987-04004 |
SXA1# MAKER OPTION |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 86530-20070 |
SXA1# |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 90987-02009 |
SXA1# |
1 | ||
| 90987-02012 |
SXA1#..HT DEALER OPTION |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-33010 |
SXA1#..EUR,GCC,GEN |
1 | ||
| 89428-33010 |
SXA1# |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-33020 |
SXA1# DENSO |
1 | ||
| 89615-32030 |
SXA1# DENSO |
1 | ||
| 89615-20030 |
SXA1# TOYOTA |
1 | ||
| 89615-32040 |
SXA1# TOYOTA |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89621-26010 |
SXA1#..LHD |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89621-26010 |
SXA1#..LHD |
1 | ||
| 89629 - BRACKET, IGNITER ASSY | ||||
| 89629-42010 |
SXA1#..LHD |
1 | ||
| 89629 - BRACKET, IGNITER ASSY | ||||
| 89629-42010 |
SXA1#..LHD |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90167-20001 | ||||
| 90463-12570 | ||||
| 90982-09008 | ||||
| 90982-09010 | ||||
| 91612-60616 | ||||
| 91626-60616 | ||||
| 91652-60614 | ||||
| 91656-60616 | ||||
ILLUST NO. 3 OF 6(9404- )LHD
COWL,INSTRUMENT PANEL RELAY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02009 |
3SFE..SXA1# |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-12110 |
SXA1# |
1 | ||
| 81980-12070 |
SXA1# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09009 |
SXA1# 10A,MINI FUSE,RED |
5 | ||
| 90982-09007 |
SXA1# 5A,MINI FUSE,TAN |
1 | ||
| 90982-09008 |
SXA1# 7.5A,MINI FUSE,BRN |
6 | ||
| 90982-09007 |
SXA1# 5A,MINI FUSE,TAN |
1 | ||
| 90982-09010 |
SXA1# 15A,MINI FUSE,BLUE |
5 | ||
| 90982-09008 |
SXA1# 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09009 |
SXA1# 10A,MINI FUSE,RED |
1 | ||
| 90982-09010 |
SXA1# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09011 |
SXA1# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09011 |
SXA1# 20A,MINI FUSE,YELLOW |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09009 |
SXA1# 10A,MINI FUSE,RED |
5 | ||
| 90982-09007 |
SXA1# 5A,MINI FUSE,TAN |
1 | ||
| 90982-09008 |
SXA1# 7.5A,MINI FUSE,BRN |
6 | ||
| 90982-09007 |
SXA1# 5A,MINI FUSE,TAN |
1 | ||
| 90982-09010 |
SXA1# 15A,MINI FUSE,BLUE |
5 | ||
| 90982-09008 |
SXA1# 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09009 |
SXA1# 10A,MINI FUSE,RED |
1 | ||
| 90982-09010 |
SXA1# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09011 |
SXA1# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09011 |
SXA1# 20A,MINI FUSE,YELLOW |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09009 |
SXA1# 10A,MINI FUSE,RED |
5 | ||
| 90982-09007 |
SXA1# 5A,MINI FUSE,TAN |
1 | ||
| 90982-09008 |
SXA1# 7.5A,MINI FUSE,BRN |
6 | ||
| 90982-09007 |
SXA1# 5A,MINI FUSE,TAN |
1 | ||
| 90982-09010 |
SXA1# 15A,MINI FUSE,BLUE |
5 | ||
| 90982-09008 |
SXA1# 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09009 |
SXA1# 10A,MINI FUSE,RED |
1 | ||
| 90982-09010 |
SXA1# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09011 |
SXA1# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09011 |
SXA1# 20A,MINI FUSE,YELLOW |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09009 |
SXA1# 10A,MINI FUSE,RED |
5 | ||
| 90982-09007 |
SXA1# 5A,MINI FUSE,TAN |
1 | ||
| 90982-09008 |
SXA1# 7.5A,MINI FUSE,BRN |
6 | ||
| 90982-09007 |
SXA1# 5A,MINI FUSE,TAN |
1 | ||
| 90982-09010 |
SXA1# 15A,MINI FUSE,BLUE |
5 | ||
| 90982-09008 |
SXA1# 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09009 |
SXA1# 10A,MINI FUSE,RED |
1 | ||
| 90982-09010 |
SXA1# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09011 |
SXA1# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09011 |
SXA1# 20A,MINI FUSE,YELLOW |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09009 |
SXA1# 10A,MINI FUSE,RED |
5 | ||
| 90982-09007 |
SXA1# 5A,MINI FUSE,TAN |
1 | ||
| 90982-09008 |
SXA1# 7.5A,MINI FUSE,BRN |
6 | ||
| 90982-09007 |
SXA1# 5A,MINI FUSE,TAN |
1 | ||
| 90982-09010 |
SXA1# 15A,MINI FUSE,BLUE |
5 | ||
| 90982-09008 |
SXA1# 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09009 |
SXA1# 10A,MINI FUSE,RED |
1 | ||
| 90982-09010 |
SXA1# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09011 |
SXA1# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09011 |
SXA1# 20A,MINI FUSE,YELLOW |
1 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82683-42050 |
SXA1# |
1 | ||
| 82683-42010 |
SXA1# |
1 | ||
| 82683-42070 |
SXA1# |
1 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-10002 |
SXA1# 40A,GREEN |
1 | ||
| 90982-10001 |
SXA1# 30A,PINK |
3 | ||
| 90982-10002 |
SXA1# 40A,GREEN |
1 | ||
| 90982-10001 |
SXA1# 30A,PINK |
1 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-10002 |
SXA1# 40A,GREEN |
1 | ||
| 90982-10001 |
SXA1# 30A,PINK |
3 | ||
| 90982-10002 |
SXA1# 40A,GREEN |
1 | ||
| 90982-10001 |
SXA1# 30A,PINK |
1 | ||
| 82610A - BLOCK ASSY, FUSE | ||||
| 82610-42050 |
SXA1#..LHD |
1 | ||
| 82610-42020 |
SXA1#..LHD |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-20190 |
SXA1#..GEN GENERAL UP GRADE PACKAGE |
1 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82732-42011 |
SXA1#..GEN |
1 | ||
| 82732-42020 |
SXA10 |
1 | ||
| 82732-42040 |
SXA1#..GEN W(*80) |
1 | ||
| 82732-42060 |
SXA1# |
1 | ||
| 82671B - BLOCK, JUNCTION | ||||
| 82733-42020 |
SXA10..LHD |
1 | ||
| 82733-42020 |
SXA1#..LHD..(EUR,GEN) NO.2 |
1 | ||
| 82733-42020 |
SXA1#..LHD NO.2 |
1 | ||
| 82671C - BLOCK, JUNCTION | ||||
| 82671-12150 |
SXA11..ARL;SXA11..MTM..GEN;SXA10..(ARL,GEN)..HT W(*80) |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-42050 |
SXA1#..LHD..GEN W(*80) |
1 | ||
| 82672-42010 |
SXA1# |
1 | ||
| 82672-42010 |
SXA1#..ARL,GEN |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-42040 |
SXA1#..LHD |
1 | ||
| 82673-42020 |
SXA1#..LHD |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32090 |
SXA1# |
1 | ||
| 85530A - RELAY, POWER OUTLET SOCKET | ||||
| 90987-02012 |
SXA1# |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02009 |
SXA1# |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-02009 |
SXA1# |
1 | ||
| 85930 - RELAY ASSY, POWER WINDOW | ||||
| 90987-02009 |
SXA1#..GEN POWER WINDOW(W/O POWER KEY-OFF) |
1 | ||
| 90987-02012 |
SXA1# |
1 | ||
| 90987-02009 |
SXA1#..GEN;SXA10..LHD..EUR POWER WINDOW(W/O POWER KEY-OFF) |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-42010 |
SXA11..LHD;SXA10..LHD..(GCC,GEN) |
1 | ||
| 85980-42010 |
SXA1#..LHD |
1 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 90987-04002 |
SXA1# |
1 | ||
| Common parts | ||||
| 91626-60616 | ||||
| 91656-60616 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 8301 | ||||

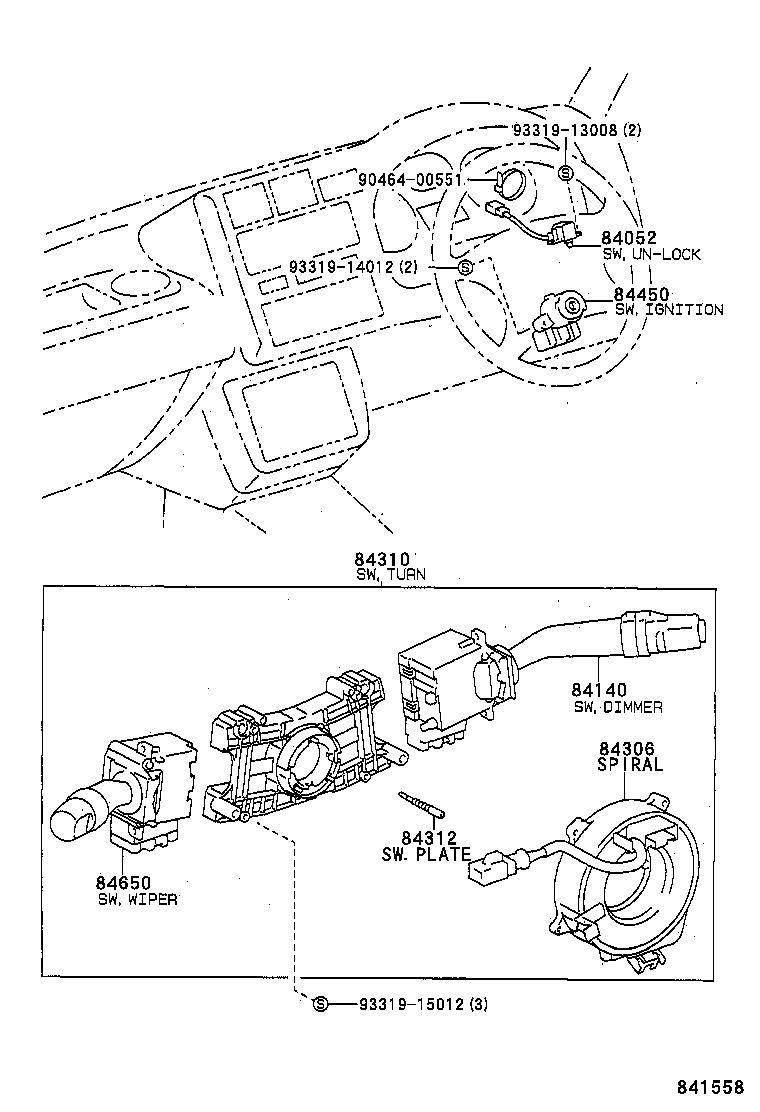

ILLUST NO. 5 OF 6(9608- )
IGNITION, COMBINATION SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-12060 |
SXA1# |
1 | ||
| 84052-20050 |
SXA1# |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-12340 |
SXA1#..LHD |
1 | ||
| 84140-26140 |
SXA1#..EUR,GCC;SXA1#..LHD..GEN |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-35010 |
SXA1# |
1 | ||
| 84306-35011 |
SXA1# |
1 | ||
| 84306-12070 |
SXA1# |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-42060 |
SXA1#..LHD..GEN W(MIST) |
1 | ||
| 84310-35660 |
SXA1#..LHD..GEN W(*80) |
1 | ||
| 84310-42051 |
SXA1#..LHD..GEN W(*80 & *IW) |
1 | ||
| 84310-42010 |
SXA1#..LHD..(GCC,GEN) |
1 | ||
| 84310-42020 |
SXA1#..LHD..(GCC,GEN) W(MIST) |
1 | ||
| 84310-35620 |
SXA1#..LHD..GEN |
1 | ||
| 84310-42190 |
SXA1#..LHD..GEN W(*80,DRIVER SIDE & PASSENGER SIDE) |
1 | ||
| 84310-42170 |
SXA1#..LHD..GEN W(*80,DRIVER SIDE & PASSENGER SIDE & WASHER LINKED WIPER) |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-12040 |
SXA1# |
1 | ||
| 84312-26010 |
SXA1# |
1 | ||
| 84312-26010 |
SXA1#..ARL,GEN |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-41010 |
SXA1# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-42010 |
SXA1#..LHD..(GCC,GEN) |
1 | ||
| 84652-42020 |
SXA1#..LHD..(GCC,GEN) W(MIST) |
1 | ||
| 84652-42050 |
SXA11..LHD..GEN;SXA10..LHD..(GCC,GEN) W(MIST) |
1 | ||
| 84652-35510 |
SXA1#..LHD..GEN W(*80,DRIVER SIDE & PASSENGER SIDE) |
1 | ||
| Common parts | ||||
| 90464-00551 | ||||
| 93319-13008 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||
ILLUST NO. 4 OF 6(9404- )LHD
INSTRUMENT PANEL SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84118 - KNOB, LIGHT CONTROL RHEOSTAT | ||||
| 84118-2001122 |
SXA1#..GEN GENERAL UP GRADE PACKAGE,BLACK,TRIM1# |
1 | ||
| 84118-2001122 |
SXA10 BLACK,TRIM10,11 |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-20082 |
SXA10..GEN;SXA11..MTM..GEN GENERAL UP GRADE PACKAGE |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-42010 |
SXA1# |
1 | ||
| 84332-43010 |
SXA1# |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10860 |
SXA1# 14V 0.91W |
1 | ||
| 84999-10320 |
SXA1# 14V 0.84W |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-42010 |
SXA1# |
1 | ||
| 84660-42010 |
SXA1#..EUR,GCC,GEN |
1 | ||
| 84660-42011 |
SXA1# |
1 | ||
| 84660D - BULB(FOR COOLER SWITCH) | ||||
| 88607-16010 |
SXA1# 14V 0.065A |
1 | ||
| 88607-16010 |
SXA10..CVT;SXA1#..LHD..EUR..HT;SXA1#..(ARL,GCC,GEN)..HT 14V 0.065A |
1 | ||
| 84724 - SWITCH, 4 WHEEL DRIVE CONTROL | ||||
| 84724-42010 |
SXA1#..MTM |
1 | ||
| 84724B - BULB, 4 WHEEL DRIVE CONTROL SWITCH | ||||
| 84999-10320 |
SXA1#..MTM |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-89113 |
SXA10..LHD |
1 | ||
| 84732-42020 |
SXA1#..LHD |
1 | ||
| 84732-42020 |
SXA1#..LHD |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
SXA1# 14V 1.4W |
1 | ||
| 84730D - CAP, HEATER BLOWER SWITCH BULB | ||||
| 84998-10050 |
SXA11..RHD;SXA10..ARL,EUR,GEN |
1 | ||
| 84998-10050 |
SXA10..ARL,EUR,GEN |
1 | ||
| 84998-10050 |
SXA1# |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-42020 |
SXA1#..HT |
1 | ||
| 84790-42010 |
SXA1# |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10310 |
SXA1#..HT 14V 0.91W |
1 | ||
| 84999-10320 |
SXA1# 14V 0.84W |
2 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10310 |
SXA1#..HT 14V 0.91W |
1 | ||
| 84999-10320 |
SXA1# 14V 0.84W |
2 | ||
| 84790E - CAP, BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84998-10630 |
SXA1# |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-16020 |
SXA1# |
1 | ||
| 84870-20050 |
SXA1# |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-12150 |
SXA1#..ARL,EUR,GEN |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-28050 |
SXA1# |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-28010 |
SXA1# |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-30030 |
SXA1# |
1 | ||
| Common parts | ||||
| 55538-28010 | ||||
| 90170-09002 | ||||
| Linked diagrams | ||||
| 8410 | ||||

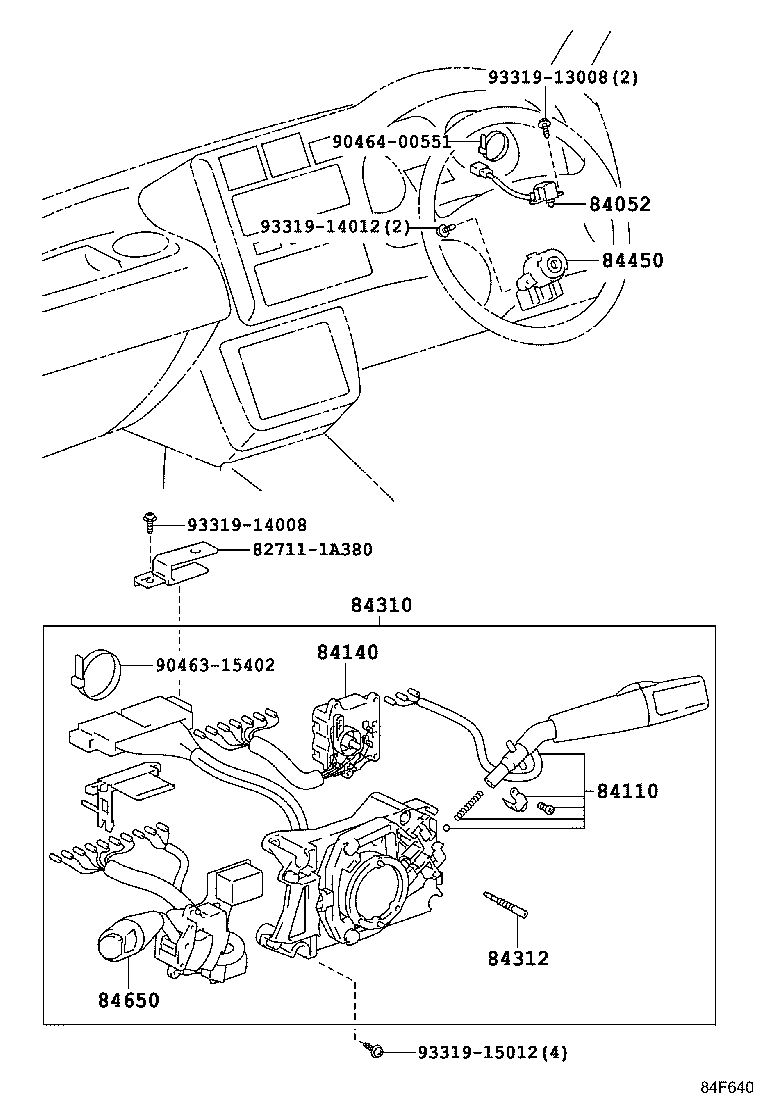

ILLUST NO. 5 OF 6(9404-9608)
IGNITION, COMBINATION SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-12060 |
SXA1# |
1 | ||
| 84052-20050 |
SXA1# |
1 | ||
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-49045 |
SXA1#..LHD |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-12340 |
SXA1#..LHD |
1 | ||
| 84140-26140 |
SXA1#..EUR,GCC;SXA1#..LHD..GEN |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-42060 |
SXA1#..LHD..GEN W(MIST) |
1 | ||
| 84310-35660 |
SXA1#..LHD..GEN W(*80) |
1 | ||
| 84310-42051 |
SXA1#..LHD..GEN W(*80 & *IW) |
1 | ||
| 84310-42010 |
SXA1#..LHD..(GCC,GEN) |
1 | ||
| 84310-42020 |
SXA1#..LHD..(GCC,GEN) W(MIST) |
1 | ||
| 84310-35620 |
SXA1#..LHD..GEN |
1 | ||
| 84310-42190 |
SXA1#..LHD..GEN W(*80,DRIVER SIDE & PASSENGER SIDE) |
1 | ||
| 84310-42170 |
SXA1#..LHD..GEN W(*80,DRIVER SIDE & PASSENGER SIDE & WASHER LINKED WIPER) |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-12040 |
SXA1# |
1 | ||
| 84312-26010 |
SXA1# |
1 | ||
| 84312-26010 |
SXA1#..ARL,GEN |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-41010 |
SXA1# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-42010 |
SXA1#..LHD..(GCC,GEN) |
1 | ||
| 84652-42020 |
SXA1#..LHD..(GCC,GEN) W(MIST) |
1 | ||
| 84652-42050 |
SXA11..LHD..GEN;SXA10..LHD..(GCC,GEN) W(MIST) |
1 | ||
| 84652-35510 |
SXA1#..LHD..GEN W(*80,DRIVER SIDE & PASSENGER SIDE) |
1 | ||
| Common parts | ||||
| 82711-1A380 | ||||
| 90463-15402 | ||||
| 90464-00551 | ||||
| 93319-13008 | ||||
| 93319-14008 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||
ILLUST NO. 4 OF 6(9511- )
ROOF,DOOR,FLOOR SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-10380 | ||||
| 90119-06601 | ||||
| 90164-40103 | ||||
| 91511-60612 | ||||
| 91626-60616 | ||||
| 91656-60616 | ||||
| 93315-14012 | ||||
| 93319-14008 | ||||
| 93540-44012 | ||||
| 93540-54012 | ||||
ILLUST NO. 3 OF 6(9511- )
INSTRUMENT SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 55538-28010 | ||||
| 90170-09002 | ||||
| Linked diagrams | ||||
| 8410 | ||||
ILLUST NO. 6 OF 6(9511- )
IGNITION SWITCH, CONBINATION SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90159-50265 | ||||
| 90464-00551 | ||||
| 93319-13008 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||
| 93560-14012 | ||||
ILLUST NO. 1 OF 6(9511- )
ENGINE TRANSMISSON TRANSFER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-08059 | ||||
| 90301-11008 | ||||
| 90430-18008 | ||||
| 90950-01060 | ||||
| 91611-60616 | ||||
| 91626-60616 | ||||
| 91651-40620 | ||||
| 91651-40625 | ||||
ILLUST NO. 2 OF 6(9511- )
ENGINE ROOM RELAY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06390 | ||||
| 90982-09008 | ||||
| 90982-09010 | ||||
| 91626-60616 | ||||
| 91656-60616 | ||||
ILLUST NO. 5 OF 6(9511- )
COWL,INSTRUMENT RELAY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 91626-60616 | ||||
| 91656-60616 | ||||
| 93567-55016 | ||||
| 94120-41000 | ||||
| Linked diagrams | ||||
| 8301 | ||||
| 8404 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
