SXA10L-AKPGKA (1997)

Toyota Rav4

Production Dec 1997 - Aug 2000
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9712- )SOT

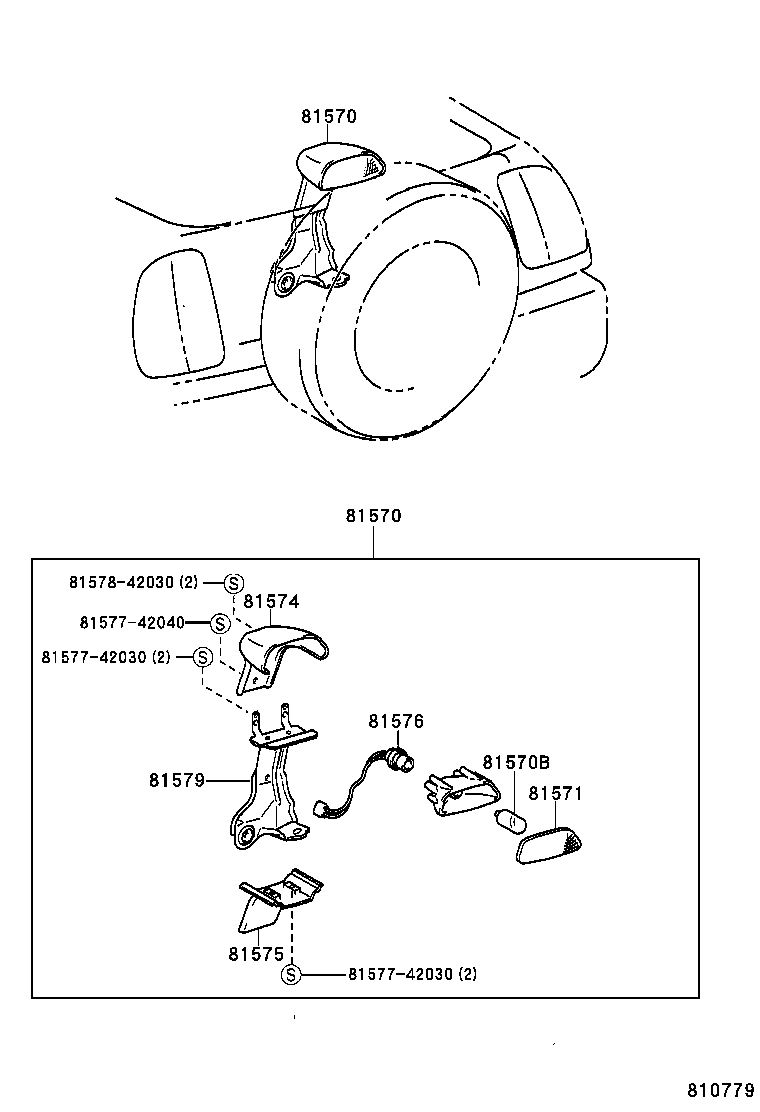

Click highlighted areas on diagram

diagram 81570 81570 81570B 81571 81574 81575 81576 8157742030 8157742030 8157742040 8157842030 81579
Part # Description Qty Price
81570 - LAMP ASSY, CENTER STOP
81570-42040

SXA10,15..SOT

 1
81570 - LAMP ASSY, CENTER STOP
81570-42040

SXA10,15..SOT

 1
81570B - BULB (FOR CENTER STOP LAMP)
90981-11042

SXA10,15..SOT

12V 21W

 1
81571 - LENS, CENTER STOP LAMP
81571-42030

SXA10,15..SOT

 1
81574 - COVER, CENTER STOP LAMP
81574-42030

SXA10,15..SOT

 1
81575 - COVER, CENTER STOP LAMP, NO.2
81575-42030

SXA10,15..SOT

 1
81576 - SOCKET & WIRE, CENTER STOP LAMP
81576-42030

SXA10,15..SOT

 1
81579 - BRACKET, CENTER STOP LAMP
81579-42040

SXA10,15..SOT

 1
Common parts
81577-42030
81577-42040
81578-42030
