SXA10L-AKPGKA (1997)

Toyota Rav4

Production Dec 1997 - Aug 2000
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9712- )SOT

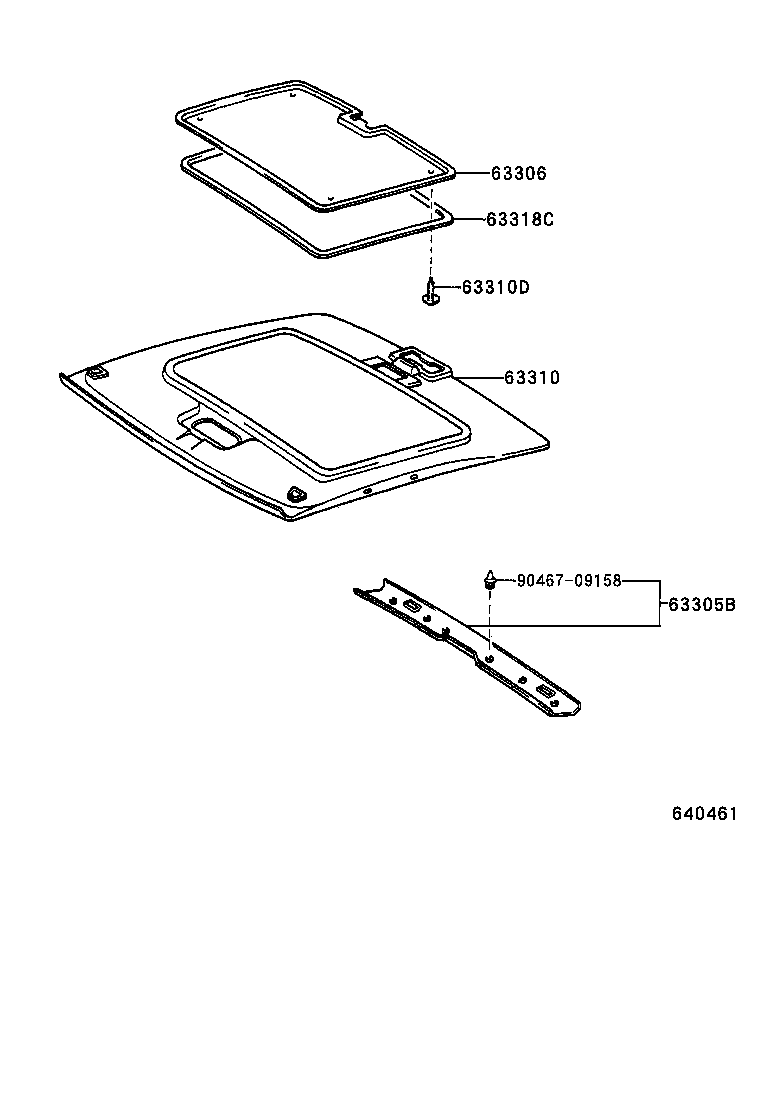

Click highlighted areas on diagram

diagram 63305B 63306 63310 63310D 63318C 9046709158
Part # Description Qty Price
63305B - TRIM SUB-ASSY, ROOF HEADLINING, REAR
63305-42020B0

SXA10,15..SOT

SHADOW GRAY,TRIM1#

 1
63305-42010B0

SXA1#

BLUISH GRAY,TRIM1#

 1
63306 - TRIM SUB-ASSY, SUNSHADE
63306-42010B0

SXA10,15

LT. BLUISH GRAY,TRIM1#

 1
63306-42010B2

SXA10,15..SOT

LT. GRAY,TRIM1#

 1
63310 - HEADLINING ASSY, ROOF
63310-42010B0

SXA10,15

LT. BLUISH GRAY,TRIM1#

 1
63310-42020B0

SXA10,15

W(REMOVABLE ROOF),LT. BLUISH GRAY,TRIM1#

 1
63310-42060B0

SXA10,15..SOT

LT. GRAY,TRIM1#

 1
63310D - CLIP, ROOF HEADLINING
90467-10016B3

SXA10,15..SOT

LT.GRAY,TRIM1#

 5
90467-10016B1

SXA10,15

LT.BLUISH GRAY,TRIM1#

 10
63318C - MOULDING, SUN ROOF OPENING TRIM
63318-42010B1

SXA10,15

L=2135,LT. BLUISH GRAY,TRIM1#

 1
63318-42030B0

SXA10,15..SOT

L=2135,LIGHT GRAY,TRIM1#

 1
Common parts
90467-09158
