GSA33R-ANAXKQ (2008)
Toyota Rav4

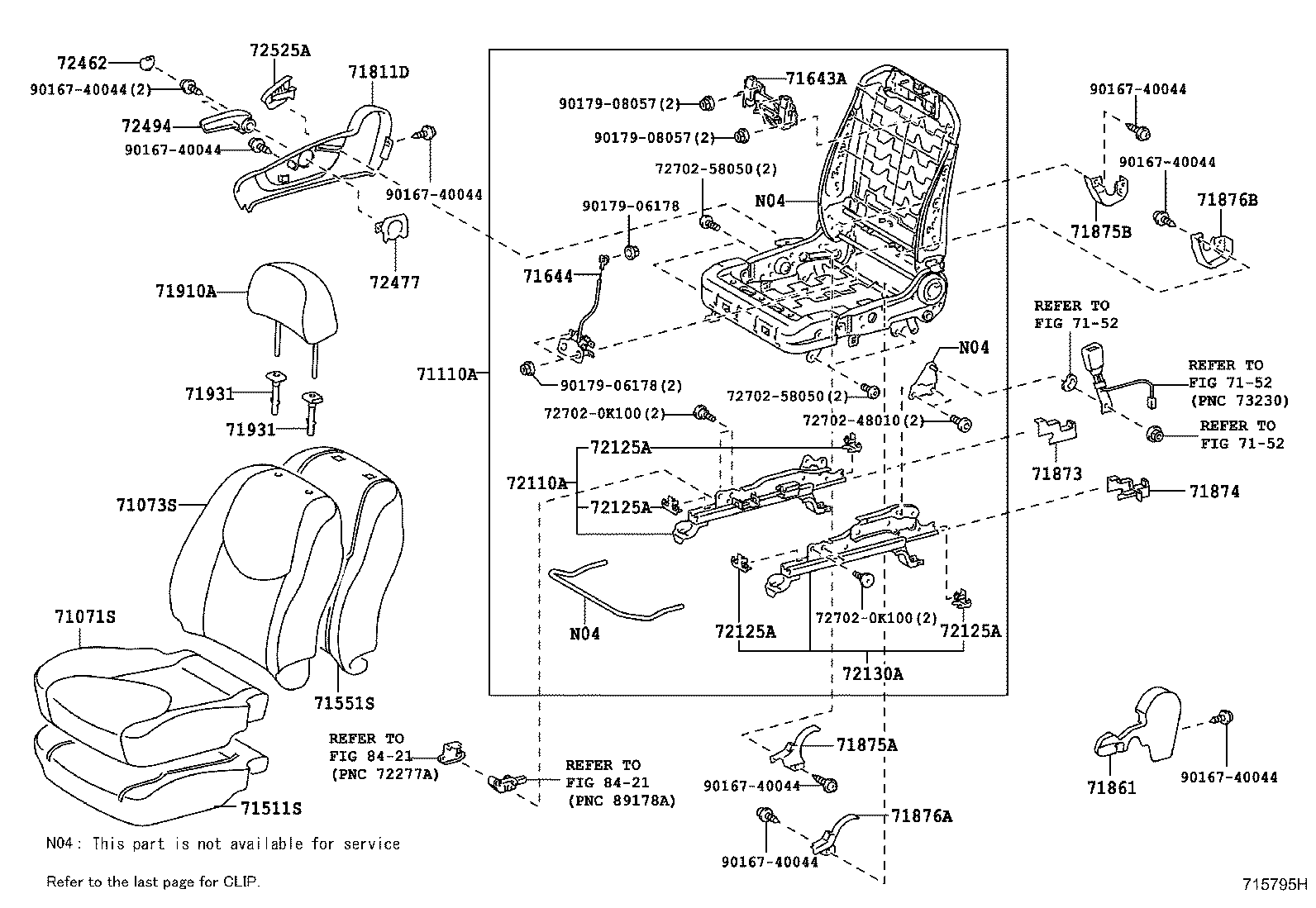

ILLUST NO. 1 OF 7(0808- )X..ARL
DRIVER SIDE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-42450B3 |
ACA30,33,ALA30,GSA33..RHD..G SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71071-42450B3 |
ACA33,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,DK.GRAY,TRIM1# |
1 | ||
| 71071-42460B2 |
ACA33,GSA33..X..ARL DK.GRAY,TRIM1# |
1 | ||
| 71071-42470B3 |
ACA30,33,ALA30,GSA33..RHD..G..(DCR,DCRE,HTWC) DK.GRAY,TRIM1# |
1 | ||
| 71071-42470B3 |
ACA30,33,ALA3#,GSA33,ZSA3#..RHD..G..(DCR,DCRE,HTWC,HTWVM) DK.GRAY,TRIM1# |
1 | ||
| 71071-42570B1 |
ACA33,38,GSA33..X..ARL DK.GRAY,TRIM1# |
1 | ||
| 71071-42451B3 |
ACA33,38,GSA33..G..ARL;ALA3#,ZSA3#..RHD..G..BTYPE SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71071-42571B1 |
ACA33,38,GSA33..X..ARL DK.GRAY,TRIM1# |
1 | ||
| 71071-42473B5 |
ACA3#,ALA3#,GSA33,ZSA3#..RHD..G DK.GRAY,TRIM1# |
1 | ||
| 71071-42451B4 |
ALA30..RHD..G..BTYPE;ACA33,38,ALA35,GSA33,ZSA3#..RHD..G..(DCRE,HTWC,HTWVM) SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-42380B0 |
ACA33,GSA33..G..ARL SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,DK.GRAY,TRIM1# |
1 | ||
| 71073-42100B0 |
ACA33,GSA33..X..ARL DK.GRAY,TRIM1# |
1 | ||
| 71073-42370B0 |
ACA33,GSA33..G..ARL DK.GRAY,TRIM1# |
1 | ||
| 71073-42470B2 |
ACA33,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,DK.GRAY,TRIM1# |
1 | ||
| 71073-42350B0 |
ACA33,GSA33..X..ARL SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,DK.GRAY,TRIM1# |
1 | ||
| 71073-42450B1 |
ACA33,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71073-42550B2 |
ACA33,GSA33..X..ARL SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE&KNEE),DK.GRAY,TRIM1# |
1 | ||
| 71073-42530B2 |
ACA33,GSA33..X..ARL DK.GRAY,TRIM1# |
1 | ||
| 71073-42650B1 |
ACA33,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71073-42590B0 |
ACA33..G..ARL;ACA30,ALA30,GSA33,ZSA3#..G..(DCR,DCRE,HTWC,HTWVM) DK.GRAY,TRIM1# |
1 | ||
| 71073-42552B2 |
GSA33..X SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE&KNEE),DK.GRAY,TRIM1# |
1 | ||
| 71073-42532B2 |
GSA33..X DK.GRAY,TRIM1# |
1 | ||
| 71073-42594B4 |
ACA33..G..ARL;ACA30,38,ALA3#,GSA33,ZSA3#..G..(ARL,EUR) DK.GRAY,TRIM1# |
1 | ||
| 71073-42651B1 |
ALA30..RHD..G..BTYPE;ACA33,38,ALA35,GSA33,ZSA3#..RHD..G SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71073-42552B2 |
GSA33..X DK.GRAY,TRIM1# |
1 | ||
| 71073-42553B2 |
GSA33..X DK.GRAY,TRIM1# |
1 | ||
| 71073-42595B4 |
ACA33..G..ARL;ACA30,38,ALA3#,GSA33,ZSA3#..G..(ARL,EUR) DK.GRAY,TRIM1# |
1 | ||
| 71073-42652B1 |
ALA30..RHD..G..BTYPE;ACA33,38,ALA35,GSA33,ZSA3#..RHD..G SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71073-42553B4 |
GSA33..X DK.GRAY,TRIM1# |
1 | ||
| 71073-42595B6 |
ACA33..G..ARL;ALA35..G..DCRE;ACA30,38,ALA30,GSA33,ZSA3#..G..(ARL,EUR) DK.GRAY,TRIM1# |
1 | ||
| 71073-42652B3 |
ALA30..RHD..G..BTYPE;ACA33,38,ALA35,GSA33,ZSA3#..RHD..G..(DCRE,HTWC,HTWVM) SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH | ||||
| 71110-42090 |
ACA33,GSA33..G..ARL |
1 | ||
| 71110-42100 |
ACA33,GSA33..G..ARL SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71110-42210 |
ACA33,GSA33..X..ARL |
1 | ||
| 71110-42120 |
ACA33,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71110-42130 |
ACA33,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71110-42230 |
ACA33,GSA33..X..ARL SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71110-42340 |
GSA33..X SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE&KNEE) |
1 | ||
| 71110-42280 |
ACA33,38,GSA33..G..ARL |
1 | ||
| 71110-42330 |
GSA33..X |
1 | ||
| 71110-42360 |
ACA33,38,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71110-42340 |
GSA33..X |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-42110 |
ACA33,GSA33..X..ARL |
1 | ||
| 71051-42030 |
ACA30,33,ALA30,GSA33..RHD..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71051-42030 |
ACA33,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71051-42030 |
ACA33,38,GSA33..G..ARL;ALA3#,ZSA3#..RHD..G..BTYPE SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71511-42120 |
ACA30,ALA30..RHD;ACA33,GSA33..G..ARL |
1 | ||
| 71511-42110 |
ACA33,38,GSA33..X..ARL |
1 | ||
| 71511-42120 |
ACA30,ALA3#,ZSA3#..RHD;ACA33,38,GSA33..G..ARL |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-42070 |
ACA33,38,GSA33..X SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71551-42130 |
ACA33,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71551-42120 |
ACA33,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71551-42080 |
ACA33,38,GSA33..G |
1 | ||
| 71551-42060 |
ACA33,38,GSA33..X |
1 | ||
| 71551-42100 |
ACA33,38,GSA33..G SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71551-42150 |
GSA33..X SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE&KNEE) |
1 | ||
| 71551-42170 |
ACA30,ALA3#,ZSA3#;ACA33,38,GSA33..G..(ARL,EUR) |
1 | ||
| 71551-42190 |
ACA33,38,GSA33..G..ARL;ALA3#,ZSA3#..RHD..G..BTYPE SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71551-42140 |
GSA33..X |
1 | ||
| 71551-42150 |
GSA33..X |
1 | ||
| 71643A - UNIT, ACTIVE HEADREST, UPR | ||||
| 71643-12011 |
ACA30,33,38,ALA3#,GSA33,ZSA3#..ARL,EUR |
2 | ||
| 71644 - UNIT, ACTIVE HEADREST, LWR | ||||
| 71644-12030 |
ACA30,33,38,ALA3#,GSA33,ZSA3#..ARL,EUR |
2 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-42100B0 |
ACA30,33,ALA30,GSA33..RHD..G SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71811-42090B0 |
ACA30,33,ALA30,GSA33..RHD DK.GRAY,TRIM1# |
1 | ||
| 71811-42090B0 |
ACA30,33,38,ALA3#,GSA33,ZSA3#..RHD DK.GRAY,TRIM1# |
1 | ||
| 71811-42100B0 |
ACA33,38,GSA33..G..ARL;ALA3#,ZSA3#..RHD..G..BTYPE SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71811-42100B0 |
ACA33,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,DK.GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-60110B0 |
ACA33,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,DK.GRAY,TRIM1# |
1 | ||
| 71861-42070B0 |
ACA30,33,38,ALA3#,GSA33,ZSA3#..ARL,EUR DK.GRAY,TRIM1# |
1 | ||
| 71861-60110B0 |
ACA30,33,ALA30,GSA33..RHD..G SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71861-60110B0 |
ACA33,38,GSA33..G..ARL;ALA3#,ZSA3#..RHD..G..BTYPE SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71861-42070B0 |
ACA30,31,33,ALA30,GSA33..ARL,EUR DK.GRAY,TRIM1# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-30070 |
ACA33,38,GSA33..G..ARL;ALA3#,ZSA3#..RHD..G..BTYPE SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71873-30070 |
ACA33,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71873-42030 |
ACA30,33,38,ALA3#,GSA33,ZSA3# |
1 | ||
| 71873-42030 |
ACA3#,ALA30,GSA33 |
1 | ||
| 71873-30070 |
ACA30,33,ALA30,GSA33..RHD..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-30020 |
ACA33,38,GSA33..G..ARL;ALA3#,ZSA3#..RHD..G..BTYPE SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71874-30020 |
ACA33,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71874-42020 |
ACA3#,ALA30,GSA33 |
1 | ||
| 71874-30020 |
ACA30,33,ALA30,GSA33..RHD..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71874-42020 |
ACA30,33,38,ALA3#,GSA33,ZSA3# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-60150B0 |
ACA33,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,DK.GRAY,TRIM1# |
1 | ||
| 71875-42050B0 |
ACA30,31,33,ALA30,GSA33..ARL,EUR DK.GRAY,TRIM1# |
1 | ||
| 71875-42050B0 |
ACA30,33,38,ALA3#,GSA33,ZSA3#..ARL,EUR DK.GRAY,TRIM1# |
1 | ||
| 71875-60150B0 |
ACA30,33,ALA30,GSA33..RHD..G SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71875-60150B0 |
ACA33,38,GSA33..G..ARL;ALA3#,ZSA3#..RHD..G..BTYPE SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-58050 |
ACA33,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71875-58050 |
ACA33,38,GSA33..G..ARL;ALA3#,ZSA3#..RHD..G..BTYPE SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71875-58060 |
ACA3#,ALA30,GSA33 |
1 | ||
| 71875-58050 |
ACA30,33,ALA30,GSA33..RHD..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71875-58060 |
ACA30,33,38,ALA3#,GSA33,ZSA3# |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71875-58030B2 |
ACA33,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,DK.GRAY,TRIM1# |
1 | ||
| 71876-42050B0 |
ACA30,31,33,ALA30,GSA33..ARL,EUR DK.GRAY,TRIM1# |
1 | ||
| 71875-58030B2 |
ACA33,38,GSA33..G..ARL;ALA3#,ZSA3#..RHD..G..BTYPE SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71875-58030B2 |
ACA30,33,ALA30,GSA33..RHD..G SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71876-42050B0 |
ACA30,33,38,ALA3#,GSA33,ZSA3#..ARL,EUR DK.GRAY,TRIM1# |
1 | ||
| 71876B - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-58050 |
ACA30,33,ALA30,GSA33..RHD..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71876-58060 |
ACA30,33,38,ALA3#,GSA33,ZSA3# |
1 | ||
| 71876-58050 |
ACA33,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71876-58060 |
ACA3#,ALA30,GSA33 |
1 | ||
| 71876-58050 |
ACA33,38,GSA33..G..ARL;ALA3#,ZSA3#..RHD..G..BTYPE SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-42130B2 |
ACA33,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,DK.GRAY,TRIM1# |
2 | ||
| 71910-42120B0 |
ACA30,33,ALA30,GSA33..G..(ARL,EUR) DK.GRAY,TRIM1# |
2 | ||
| 71910-42110B0 |
ACA30,33,ALA30,GSA33..X..(ARL,EUR) DK.GRAY,TRIM1# |
2 | ||
| 71910-42130B2 |
ACA30,33,ALA30,GSA33..RHD..G SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
2 | ||
| 71910-42160B0 |
ACA30,33,ALA30,GSA33,ZSA3#..X..(ARL,EUR) DK.GRAY,TRIM1# |
2 | ||
| 71910-42170B0 |
ACA33..G..ARL;ACA30,ALA30,GSA33,ZSA3#..G DK.GRAY,TRIM1# |
2 | ||
| 71910-42180B0 |
ACA33,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
2 | ||
| 71910-42171B0 |
ACA33..G..ARL;ACA30,ALA3#,GSA33,ZSA3#..G..(DCR,DCRE,HTWC,HTWVM) DK.GRAY,TRIM1# |
2 | ||
| 71910-42161B0 |
ACA3#,ALA3#,GSA33,ZSA3#..X..(ARL,EUR) DK.GRAY,TRIM1# |
2 | ||
| 71910-42181B0 |
ACA33,38,GSA33..G..ARL;ALA3#,ZSA3#..RHD..G..BTYPE SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
2 | ||
| 71910-42172B0 |
ACA33..G..ARL;ACA30,38,ALA3#,GSA33,ZSA3#..G..(ARL,EUR) DK.GRAY,TRIM1# |
2 | ||
| 71910-42172B3 |
ACA33..G..ARL;ALA35..G..DCRE;ACA30,38,ALA30,GSA33,ZSA3#..G..(ARL,EUR) DK.GRAY,TRIM1# |
2 | ||
| 71910-42161B2 |
ALA30..X..ATYPE;ACA3#,ALA3#,GSA33,ZSA3#..X..(DCRE,HTWC,HTWVM)..(ARL,EUR) DARK GRAY,TRIM1# |
2 | ||
| 71910-42181B2 |
ALA30..RHD..G..BTYPE;ACA33,38,ALA35,GSA33,ZSA3#..RHD..G..(DCRE,HTWC,HTWVM) SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B4 |
ACA30,31,33,ALA30,GSA33..ARL,EUR W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
ACA30,31,33,ALA30,GSA33..ARL,EUR W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1# |
2 | ||
| 71930-52030B0 |
ACA30,33,38,ALA3#,GSA33,ZSA3#..ARL,EUR W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
ACA30,33,38,ALA3#,GSA33,ZSA3#..ARL,EUR W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B4 |
ACA30,31,33,ALA30,GSA33..ARL,EUR W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
ACA30,31,33,ALA30,GSA33..ARL,EUR W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1# |
2 | ||
| 71930-52030B0 |
ACA30,33,38,ALA3#,GSA33,ZSA3#..ARL,EUR W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
ACA30,33,38,ALA3#,GSA33,ZSA3#..ARL,EUR W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1# |
2 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-42050 |
ACA33,GSA33..ARL |
1 | ||
| 72110-42050 |
ACA33,38,GSA33..ARL |
1 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-13040 |
ACA33,38..G..ARL;ACA30,ALA3#,GSA33,ZSA3# |
8 | ||
| 72125-13040 |
ALA3#,ZSA3#..RHD..G..BTYPE;ACA33,38,GSA33..G..(ARL,GCC) SEAT COVER MATERIAL-NATURAL LEATHER |
4 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-13040 |
ACA33,38..G..ARL;ACA30,ALA3#,GSA33,ZSA3# |
8 | ||
| 72125-13040 |
ALA3#,ZSA3#..RHD..G..BTYPE;ACA33,38,GSA33..G..(ARL,GCC) SEAT COVER MATERIAL-NATURAL LEATHER |
4 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-13040 |
ACA33,38..G..ARL;ACA30,ALA3#,GSA33,ZSA3# |
8 | ||
| 72125-13040 |
ALA3#,ZSA3#..RHD..G..BTYPE;ACA33,38,GSA33..G..(ARL,GCC) SEAT COVER MATERIAL-NATURAL LEATHER |
4 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-13040 |
ACA33,38..G..ARL;ACA30,ALA3#,GSA33,ZSA3# |
8 | ||
| 72125-13040 |
ALA3#,ZSA3#..RHD..G..BTYPE;ACA33,38,GSA33..G..(ARL,GCC) SEAT COVER MATERIAL-NATURAL LEATHER |
4 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-42050 |
ACA33,GSA33..ARL |
1 | ||
| 72130-42050 |
ACA33,38,GSA33..ARL |
1 | ||
| 72462 - COVER, VERTICAL ADJUSTER RH | ||||
| 72462-42010B0 |
ACA30,33,38,ALA3#,GSA33,ZSA3#..RHD DK.GRAY,TRIM1# |
1 | ||
| 72462-42010B0 |
ACA30,33,ALA30,GSA33..RHD DK.GRAY,TRIM1# |
1 | ||
| 72477 - SPACER, VERTICAL ADJUSTER | ||||
| 72477-52010B0 |
ACA33,GSA33..ARL DK.GRAY,TRIM1# |
1 | ||
| 72477-52010C0 |
ACA30,33,38,ALA3#,GSA33,ZSA3#..RHD BLACK |
1 | ||
| 72494 - HANDLE, VERTICAL ADJUSTING, RH | ||||
| 72494-42010B0 |
ACA30,33,ALA30,GSA33..RHD DK.GRAY,TRIM1# |
1 | ||
| 72494-42010B0 |
ACA30,33,38,ALA3#,GSA33,ZSA3#..RHD DK.GRAY,TRIM1# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-42020B0 |
ACA30,33,38,ALA3#,GSA33,ZSA3#..RHD DK.GRAY,TRIM1# |
1 | ||
| 72525-42020B0 |
ACA30,33,ALA30,GSA33..RHD DK.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 72702-0K100 | ||||
| 72702-48010 | ||||
| 72702-58050 | ||||
| 90167-40044 | ||||
| 90179-06178 | ||||
| 90179-08057 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8421 | ||||
ILLUST NO. 1 OF 7(0808- )ARL ; (0812- )ACA30,ALA3#,ZSA3#..RHD
DRIVER SIDE-W(SIDE AIR BAG)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-42450B3 |
ACA30,33,ALA30,GSA33..RHD..G SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71071-42450B3 |
ACA33,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,DK.GRAY,TRIM1# |
1 | ||
| 71071-42460B2 |
ACA33,GSA33..X..ARL DK.GRAY,TRIM1# |
1 | ||
| 71071-42470B3 |
ACA30,33,ALA30,GSA33..RHD..G..(DCR,DCRE,HTWC) DK.GRAY,TRIM1# |
1 | ||
| 71071-42470B3 |
ACA30,33,ALA3#,GSA33,ZSA3#..RHD..G..(DCR,DCRE,HTWC,HTWVM) DK.GRAY,TRIM1# |
1 | ||
| 71071-42570B1 |
ACA33,38,GSA33..X..ARL DK.GRAY,TRIM1# |
1 | ||
| 71071-42451B3 |
ACA33,38,GSA33..G..ARL;ALA3#,ZSA3#..RHD..G..BTYPE SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71071-42571B1 |
ACA33,38,GSA33..X..ARL DK.GRAY,TRIM1# |
1 | ||
| 71071-42473B5 |
ACA3#,ALA3#,GSA33,ZSA3#..RHD..G DK.GRAY,TRIM1# |
1 | ||
| 71071-42451B4 |
ALA30..RHD..G..BTYPE;ACA33,38,ALA35,GSA33,ZSA3#..RHD..G..(DCRE,HTWC,HTWVM) SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-42100B0 |
ACA33,GSA33..X..ARL DK.GRAY,TRIM1# |
1 | ||
| 71073-42380B0 |
ACA33,GSA33..G..ARL SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,DK.GRAY,TRIM1# |
1 | ||
| 71073-42370B0 |
ACA33,GSA33..G..ARL DK.GRAY,TRIM1# |
1 | ||
| 71073-42470B2 |
ACA33,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,DK.GRAY,TRIM1# |
1 | ||
| 71073-42350B0 |
ACA33,GSA33..X..ARL SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,DK.GRAY,TRIM1# |
1 | ||
| 71073-42450B1 |
ACA33,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71073-42550B2 |
ACA33,GSA33..X..ARL SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE&KNEE),DK.GRAY,TRIM1# |
1 | ||
| 71073-42530B2 |
ACA33,GSA33..X..ARL DK.GRAY,TRIM1# |
1 | ||
| 71073-42650B1 |
ACA33,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71073-42590B0 |
ACA33..G..ARL;ACA30,ALA30,GSA33,ZSA3#..G..(DCR,DCRE,HTWC,HTWVM) DK.GRAY,TRIM1# |
1 | ||
| 71073-42552B2 |
GSA33..X SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE&KNEE),DK.GRAY,TRIM1# |
1 | ||
| 71073-42532B2 |
GSA33..X DK.GRAY,TRIM1# |
1 | ||
| 71073-42594B4 |
ACA33..G..ARL;ACA30,38,ALA3#,GSA33,ZSA3#..G..(ARL,EUR) DK.GRAY,TRIM1# |
1 | ||
| 71073-42651B1 |
ALA30..RHD..G..BTYPE;ACA33,38,ALA35,GSA33,ZSA3#..RHD..G SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71073-42552B2 |
GSA33..X DK.GRAY,TRIM1# |
1 | ||
| 71073-42553B2 |
GSA33..X DK.GRAY,TRIM1# |
1 | ||
| 71073-42595B4 |
ACA33..G..ARL;ACA30,38,ALA3#,GSA33,ZSA3#..G..(ARL,EUR) DK.GRAY,TRIM1# |
1 | ||
| 71073-42652B1 |
ALA30..RHD..G..BTYPE;ACA33,38,ALA35,GSA33,ZSA3#..RHD..G SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71073-42553B4 |
GSA33..X DK.GRAY,TRIM1# |
1 | ||
| 71073-42595B6 |
ACA33..G..ARL;ALA35..G..DCRE;ACA30,38,ALA30,GSA33,ZSA3#..G..(ARL,EUR) DK.GRAY,TRIM1# |
1 | ||
| 71073-42652B3 |
ALA30..RHD..G..BTYPE;ACA33,38,ALA35,GSA33,ZSA3#..RHD..G..(DCRE,HTWC,HTWVM) SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71100S - SEAT ASSY, FRONT RH | ||||
| 71100-42D40B4 |
ACA33,GSA33..G..ARL SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,DK.GRAY,TRIM13 |
1 | ||
| 71100-42J70B1 |
ACA33,GSA33..X..ARL SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE&KNEE),DK.GRAY,TRIM1# |
1 | ||
| 71100-42J90B1 |
ACA33,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71100-42J70B2 |
ACA33,GSA33..X..ARL SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE&KNEE),DK.GRAY,TRIM1# |
1 | ||
| 71100-42K10B3 |
ACA33,GSA33..G..ARL DK.GRAY,TRIM1# |
1 | ||
| 71100-42K10B1 |
ACA33,GSA33..G..ARL DK.GRAY,TRIM1# |
1 | ||
| 71100-42J72B0 |
GSA33..X SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE&KNEE),DK.GRAY,TRIM1# |
1 | ||
| 71100-42J91B0 |
ACA33,38,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71100-42K14B3 |
ACA33,38,GSA33..G..ARL DK.GRAY,TRIM1# |
1 | ||
| 71100-42J72B0 |
GSA33..X DK.GRAY,TRIM1# |
1 | ||
| 71100-42J73B0 |
GSA33..X DK.GRAY,TRIM1# |
1 | ||
| 71100-42K15B1 |
ACA33,38,GSA33..G..ARL DK.GRAY,TRIM1# |
1 | ||
| 71100-42J92B0 |
ACA33,38,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71100-42J73B1 |
GSA33..X DK.GRAY,TRIM1# |
1 | ||
| 71100-42J92B1 |
ACA33,38,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71100-42K15B2 |
ACA33,38,GSA33..G..ARL DK.GRAY,TRIM1# |
1 | ||
| 71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH | ||||
| 71110-42090 |
ACA33,GSA33..G..ARL |
1 | ||
| 71110-42100 |
ACA33,GSA33..G..ARL SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71110-42210 |
ACA33,GSA33..X..ARL |
1 | ||
| 71110-42120 |
ACA33,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71110-42130 |
ACA33,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71110-42230 |
ACA33,GSA33..X..ARL SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71110-42340 |
GSA33..X SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE&KNEE) |
1 | ||
| 71110-42280 |
ACA33,38,GSA33..G..ARL |
1 | ||
| 71110-42330 |
GSA33..X |
1 | ||
| 71110-42360 |
ACA33,38,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71110-42340 |
GSA33..X |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-42110 |
ACA33,GSA33..X..ARL |
1 | ||
| 71051-42030 |
ACA30,33,ALA30,GSA33..RHD..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71051-42030 |
ACA33,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71051-42030 |
ACA33,38,GSA33..G..ARL;ALA3#,ZSA3#..RHD..G..BTYPE SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71511-42120 |
ACA30,ALA30..RHD;ACA33,GSA33..G..ARL |
1 | ||
| 71511-42110 |
ACA33,38,GSA33..X..ARL |
1 | ||
| 71511-42120 |
ACA30,ALA3#,ZSA3#..RHD;ACA33,38,GSA33..G..ARL |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-42070 |
ACA33,38,GSA33..X SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71551-42130 |
ACA33,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71551-42120 |
ACA33,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71551-42080 |
ACA33,38,GSA33..G |
1 | ||
| 71551-42060 |
ACA33,38,GSA33..X |
1 | ||
| 71551-42100 |
ACA33,38,GSA33..G SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71551-42150 |
GSA33..X SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE&KNEE) |
1 | ||
| 71551-42170 |
ACA30,ALA3#,ZSA3#;ACA33,38,GSA33..G..(ARL,EUR) |
1 | ||
| 71551-42190 |
ACA33,38,GSA33..G..ARL;ALA3#,ZSA3#..RHD..G..BTYPE SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71551-42140 |
GSA33..X |
1 | ||
| 71551-42150 |
GSA33..X |
1 | ||
| 71643A - UNIT, ACTIVE HEADREST, UPR | ||||
| 71643-12011 |
ACA30,33,38,ALA3#,GSA33,ZSA3#..ARL,EUR |
2 | ||
| 71644 - UNIT, ACTIVE HEADREST, LWR | ||||
| 71644-12030 |
ACA30,33,38,ALA3#,GSA33,ZSA3#..ARL,EUR |
2 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71771-42010B8 |
ACA33,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71771-42010B7 |
ACA33,GSA33..G..ARL DK.GRAY,TRIM13 |
1 | ||
| 71771-42010B8 |
ACA33,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,DK.GRAY,TRIM1# |
1 | ||
| 71771-42010B2 |
ACA33,GSA33..G..ARL DK.GRAY,TRIM13 |
1 | ||
| 71771-42010B8 |
ACA33,38,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71771-42010P4 |
ALA30..X..DCRE;ALA30..X..ATYPE;ACA30,ALA35,ZSA3#..DCRE,HTWC,HTWVM;ACA33,38,ALA30,GSA33..G..(ARL,EUR) DK.GRAY,TRIM1# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-42100B0 |
ACA30,33,ALA30,GSA33..RHD..G SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71811-42090B0 |
ACA30,33,ALA30,GSA33..RHD DK.GRAY,TRIM1# |
1 | ||
| 71811-42090B0 |
ACA30,33,38,ALA3#,GSA33,ZSA3#..RHD DK.GRAY,TRIM1# |
1 | ||
| 71811-42100B0 |
ACA33,38,GSA33..G..ARL;ALA3#,ZSA3#..RHD..G..BTYPE SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71811-42100B0 |
ACA33,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,DK.GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-60110B0 |
ACA33,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,DK.GRAY,TRIM1# |
1 | ||
| 71861-42070B0 |
ACA30,33,38,ALA3#,GSA33,ZSA3#..ARL,EUR DK.GRAY,TRIM1# |
1 | ||
| 71861-60110B0 |
ACA30,33,ALA30,GSA33..RHD..G SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71861-60110B0 |
ACA33,38,GSA33..G..ARL;ALA3#,ZSA3#..RHD..G..BTYPE SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71861-42070B0 |
ACA30,31,33,ALA30,GSA33..ARL,EUR DK.GRAY,TRIM1# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-30070 |
ACA33,38,GSA33..G..ARL;ALA3#,ZSA3#..RHD..G..BTYPE SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71873-30070 |
ACA33,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71873-42030 |
ACA30,33,38,ALA3#,GSA33,ZSA3# |
1 | ||
| 71873-42030 |
ACA3#,ALA30,GSA33 |
1 | ||
| 71873-30070 |
ACA30,33,ALA30,GSA33..RHD..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-30020 |
ACA33,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71874-42020 |
ACA3#,ALA30,GSA33 |
1 | ||
| 71874-30020 |
ACA33,38,GSA33..G..ARL;ALA3#,ZSA3#..RHD..G..BTYPE SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71874-30020 |
ACA30,33,ALA30,GSA33..RHD..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71874-42020 |
ACA30,33,38,ALA3#,GSA33,ZSA3# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-60150B0 |
ACA33,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,DK.GRAY,TRIM1# |
1 | ||
| 71875-42050B0 |
ACA30,31,33,ALA30,GSA33..ARL,EUR DK.GRAY,TRIM1# |
1 | ||
| 71875-42050B0 |
ACA30,33,38,ALA3#,GSA33,ZSA3#..ARL,EUR DK.GRAY,TRIM1# |
1 | ||
| 71875-60150B0 |
ACA30,33,ALA30,GSA33..RHD..G SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71875-60150B0 |
ACA33,38,GSA33..G..ARL;ALA3#,ZSA3#..RHD..G..BTYPE SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-58050 |
ACA33,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71875-58050 |
ACA33,38,GSA33..G..ARL;ALA3#,ZSA3#..RHD..G..BTYPE SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71875-58060 |
ACA3#,ALA30,GSA33 |
1 | ||
| 71875-58050 |
ACA30,33,ALA30,GSA33..RHD..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71875-58060 |
ACA30,33,38,ALA3#,GSA33,ZSA3# |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71875-58030B2 |
ACA33,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,DK.GRAY,TRIM1# |
1 | ||
| 71876-42050B0 |
ACA30,31,33,ALA30,GSA33..ARL,EUR DK.GRAY,TRIM1# |
1 | ||
| 71875-58030B2 |
ACA33,38,GSA33..G..ARL;ALA3#,ZSA3#..RHD..G..BTYPE SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71875-58030B2 |
ACA30,33,ALA30,GSA33..RHD..G SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71876-42050B0 |
ACA30,33,38,ALA3#,GSA33,ZSA3#..ARL,EUR DK.GRAY,TRIM1# |
1 | ||
| 71876B - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-58050 |
ACA30,33,ALA30,GSA33..RHD..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71876-58060 |
ACA30,33,38,ALA3#,GSA33,ZSA3# |
1 | ||
| 71876-58050 |
ACA33,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71876-58060 |
ACA3#,ALA30,GSA33 |
1 | ||
| 71876-58050 |
ACA33,38,GSA33..G..ARL;ALA3#,ZSA3#..RHD..G..BTYPE SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-42130B2 |
ACA33,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,DK.GRAY,TRIM1# |
2 | ||
| 71910-42120B0 |
ACA30,33,ALA30,GSA33..G..(ARL,EUR) DK.GRAY,TRIM1# |
2 | ||
| 71910-42110B0 |
ACA30,33,ALA30,GSA33..X..(ARL,EUR) DK.GRAY,TRIM1# |
2 | ||
| 71910-42130B2 |
ACA30,33,ALA30,GSA33..RHD..G SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
2 | ||
| 71910-42160B0 |
ACA30,33,ALA30,GSA33,ZSA3#..X..(ARL,EUR) DK.GRAY,TRIM1# |
2 | ||
| 71910-42170B0 |
ACA33..G..ARL;ACA30,ALA30,GSA33,ZSA3#..G DK.GRAY,TRIM1# |
2 | ||
| 71910-42180B0 |
ACA33,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
2 | ||
| 71910-42171B0 |
ACA33..G..ARL;ACA30,ALA3#,GSA33,ZSA3#..G..(DCR,DCRE,HTWC,HTWVM) DK.GRAY,TRIM1# |
2 | ||
| 71910-42161B0 |
ACA3#,ALA3#,GSA33,ZSA3#..X..(ARL,EUR) DK.GRAY,TRIM1# |
2 | ||
| 71910-42181B0 |
ACA33,38,GSA33..G..ARL;ALA3#,ZSA3#..RHD..G..BTYPE SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
2 | ||
| 71910-42172B0 |
ACA33..G..ARL;ACA30,38,ALA3#,GSA33,ZSA3#..G..(ARL,EUR) DK.GRAY,TRIM1# |
2 | ||
| 71910-42172B3 |
ACA33..G..ARL;ALA35..G..DCRE;ACA30,38,ALA30,GSA33,ZSA3#..G..(ARL,EUR) DK.GRAY,TRIM1# |
2 | ||
| 71910-42161B2 |
ALA30..X..ATYPE;ACA3#,ALA3#,GSA33,ZSA3#..X..(DCRE,HTWC,HTWVM)..(ARL,EUR) DARK GRAY,TRIM1# |
2 | ||
| 71910-42181B2 |
ALA30..RHD..G..BTYPE;ACA33,38,ALA35,GSA33,ZSA3#..RHD..G..(DCRE,HTWC,HTWVM) SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B4 |
ACA30,31,33,ALA30,GSA33..ARL,EUR W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
ACA30,31,33,ALA30,GSA33..ARL,EUR W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1# |
2 | ||
| 71930-52030B0 |
ACA30,33,38,ALA3#,GSA33,ZSA3#..ARL,EUR W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
ACA30,33,38,ALA3#,GSA33,ZSA3#..ARL,EUR W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B4 |
ACA30,31,33,ALA30,GSA33..ARL,EUR W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
ACA30,31,33,ALA30,GSA33..ARL,EUR W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1# |
2 | ||
| 71930-52030B0 |
ACA30,33,38,ALA3#,GSA33,ZSA3#..ARL,EUR W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
ACA30,33,38,ALA3#,GSA33,ZSA3#..ARL,EUR W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1# |
2 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-42050 |
ACA33,GSA33..ARL |
1 | ||
| 72110-42050 |
ACA33,38,GSA33..ARL |
1 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-13040 |
ACA33,38..G..ARL;ACA30,ALA3#,GSA33,ZSA3# |
8 | ||
| 72125-13040 |
ALA3#,ZSA3#..RHD..G..BTYPE;ACA33,38,GSA33..G..(ARL,GCC) SEAT COVER MATERIAL-NATURAL LEATHER |
4 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-13040 |
ACA33,38..G..ARL;ACA30,ALA3#,GSA33,ZSA3# |
8 | ||
| 72125-13040 |
ALA3#,ZSA3#..RHD..G..BTYPE;ACA33,38,GSA33..G..(ARL,GCC) SEAT COVER MATERIAL-NATURAL LEATHER |
4 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-13040 |
ACA33,38..G..ARL;ACA30,ALA3#,GSA33,ZSA3# |
8 | ||
| 72125-13040 |
ALA3#,ZSA3#..RHD..G..BTYPE;ACA33,38,GSA33..G..(ARL,GCC) SEAT COVER MATERIAL-NATURAL LEATHER |
4 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-13040 |
ACA33,38..G..ARL;ACA30,ALA3#,GSA33,ZSA3# |
8 | ||
| 72125-13040 |
ALA3#,ZSA3#..RHD..G..BTYPE;ACA33,38,GSA33..G..(ARL,GCC) SEAT COVER MATERIAL-NATURAL LEATHER |
4 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-42050 |
ACA33,GSA33..ARL |
1 | ||
| 72130-42050 |
ACA33,38,GSA33..ARL |
1 | ||
| 72462 - COVER, VERTICAL ADJUSTER RH | ||||
| 72462-42010B0 |
ACA30,33,38,ALA3#,GSA33,ZSA3#..RHD DK.GRAY,TRIM1# |
1 | ||
| 72462-42010B0 |
ACA30,33,ALA30,GSA33..RHD DK.GRAY,TRIM1# |
1 | ||
| 72477 - SPACER, VERTICAL ADJUSTER | ||||
| 72477-52010B0 |
ACA33,GSA33..ARL DK.GRAY,TRIM1# |
1 | ||
| 72477-52010C0 |
ACA30,33,38,ALA3#,GSA33,ZSA3#..RHD BLACK |
1 | ||
| 72494 - HANDLE, VERTICAL ADJUSTING, RH | ||||
| 72494-42010B0 |
ACA30,33,ALA30,GSA33..RHD DK.GRAY,TRIM1# |
1 | ||
| 72494-42010B0 |
ACA30,33,38,ALA3#,GSA33,ZSA3#..RHD DK.GRAY,TRIM1# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-42020B0 |
ACA30,33,38,ALA3#,GSA33,ZSA3#..RHD DK.GRAY,TRIM1# |
1 | ||
| 72525-42020B0 |
ACA30,33,ALA30,GSA33..RHD DK.GRAY,TRIM1# |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-42030 |
ACA33,38,GSA33 SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 73910-42030 |
ACA33,38,GSA33..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 73910-42030 |
ACA33,GSA33..X..ARL SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE&KNEE) |
1 | ||
| 73910-42031 |
GSA33..X SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE&KNEE) |
1 | ||
| 73910-42030 |
ACA33,GSA33..G..ARL |
1 | ||
| 73910-42031 |
ACA30,ALA3#,ZSA3#;ACA33,38,GSA33..G..(ARL,EUR) |
1 | ||
| 73910-42031 |
GSA33..X |
1 | ||
| Common parts | ||||
| 72702-0K100 | ||||
| 72702-48010 | ||||
| 72702-58050 | ||||
| 90167-40044 | ||||
| 90179-06178 | ||||
| 90179-08057 | ||||
| 93568-55016 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8421 | ||||
ILLUST NO. 1 OF 7(0808- )G..ARL ; (0812- )ACA30,ALA3#,ZSA3#..RHD..G
DRIVER SIDE-W(POWER SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-42450B3 |
ACA30,33,ALA30,GSA33..RHD..G SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71071-42450B3 |
ACA33,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,DK.GRAY,TRIM1# |
1 | ||
| 71071-42460B2 |
ACA33,GSA33..X..ARL DK.GRAY,TRIM1# |
1 | ||
| 71071-42470B3 |
ACA30,33,ALA30,GSA33..RHD..G..(DCR,DCRE,HTWC) DK.GRAY,TRIM1# |
1 | ||
| 71071-42470B3 |
ACA30,33,ALA3#,GSA33,ZSA3#..RHD..G..(DCR,DCRE,HTWC,HTWVM) DK.GRAY,TRIM1# |
1 | ||
| 71071-42570B1 |
ACA33,38,GSA33..X..ARL DK.GRAY,TRIM1# |
1 | ||
| 71071-42451B3 |
ACA33,38,GSA33..G..ARL;ALA3#,ZSA3#..RHD..G..BTYPE SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71071-42571B1 |
ACA33,38,GSA33..X..ARL DK.GRAY,TRIM1# |
1 | ||
| 71071-42473B5 |
ACA3#,ALA3#,GSA33,ZSA3#..RHD..G DK.GRAY,TRIM1# |
1 | ||
| 71071-42451B4 |
ALA30..RHD..G..BTYPE;ACA33,38,ALA35,GSA33,ZSA3#..RHD..G..(DCRE,HTWC,HTWVM) SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-42100B0 |
ACA33,GSA33..X..ARL DK.GRAY,TRIM1# |
1 | ||
| 71073-42380B0 |
ACA33,GSA33..G..ARL SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,DK.GRAY,TRIM1# |
1 | ||
| 71073-42370B0 |
ACA33,GSA33..G..ARL DK.GRAY,TRIM1# |
1 | ||
| 71073-42470B2 |
ACA33,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,DK.GRAY,TRIM1# |
1 | ||
| 71073-42350B0 |
ACA33,GSA33..X..ARL SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,DK.GRAY,TRIM1# |
1 | ||
| 71073-42450B1 |
ACA33,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71073-42550B2 |
ACA33,GSA33..X..ARL SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE&KNEE),DK.GRAY,TRIM1# |
1 | ||
| 71073-42530B2 |
ACA33,GSA33..X..ARL DK.GRAY,TRIM1# |
1 | ||
| 71073-42650B1 |
ACA33,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71073-42590B0 |
ACA33..G..ARL;ACA30,ALA30,GSA33,ZSA3#..G..(DCR,DCRE,HTWC,HTWVM) DK.GRAY,TRIM1# |
1 | ||
| 71073-42552B2 |
GSA33..X SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE&KNEE),DK.GRAY,TRIM1# |
1 | ||
| 71073-42532B2 |
GSA33..X DK.GRAY,TRIM1# |
1 | ||
| 71073-42594B4 |
ACA33..G..ARL;ACA30,38,ALA3#,GSA33,ZSA3#..G..(ARL,EUR) DK.GRAY,TRIM1# |
1 | ||
| 71073-42651B1 |
ALA30..RHD..G..BTYPE;ACA33,38,ALA35,GSA33,ZSA3#..RHD..G SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71073-42552B2 |
GSA33..X DK.GRAY,TRIM1# |
1 | ||
| 71073-42553B2 |
GSA33..X DK.GRAY,TRIM1# |
1 | ||
| 71073-42595B4 |
ACA33..G..ARL;ACA30,38,ALA3#,GSA33,ZSA3#..G..(ARL,EUR) DK.GRAY,TRIM1# |
1 | ||
| 71073-42652B1 |
ALA30..RHD..G..BTYPE;ACA33,38,ALA35,GSA33,ZSA3#..RHD..G SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71073-42553B4 |
GSA33..X DK.GRAY,TRIM1# |
1 | ||
| 71073-42595B6 |
ACA33..G..ARL;ALA35..G..DCRE;ACA30,38,ALA30,GSA33,ZSA3#..G..(ARL,EUR) DK.GRAY,TRIM1# |
1 | ||
| 71073-42652B3 |
ALA30..RHD..G..BTYPE;ACA33,38,ALA35,GSA33,ZSA3#..RHD..G..(DCRE,HTWC,HTWVM) SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71100S - SEAT ASSY, FRONT RH | ||||
| 71100-42D40B4 |
ACA33,GSA33..G..ARL SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,DK.GRAY,TRIM13 |
1 | ||
| 71100-42J70B1 |
ACA33,GSA33..X..ARL SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE&KNEE),DK.GRAY,TRIM1# |
1 | ||
| 71100-42J90B1 |
ACA33,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71100-42J70B2 |
ACA33,GSA33..X..ARL SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE&KNEE),DK.GRAY,TRIM1# |
1 | ||
| 71100-42K10B3 |
ACA33,GSA33..G..ARL DK.GRAY,TRIM1# |
1 | ||
| 71100-42K10B1 |
ACA33,GSA33..G..ARL DK.GRAY,TRIM1# |
1 | ||
| 71100-42J72B0 |
GSA33..X SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE&KNEE),DK.GRAY,TRIM1# |
1 | ||
| 71100-42J91B0 |
ACA33,38,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71100-42K14B3 |
ACA33,38,GSA33..G..ARL DK.GRAY,TRIM1# |
1 | ||
| 71100-42J72B0 |
GSA33..X DK.GRAY,TRIM1# |
1 | ||
| 71100-42J73B0 |
GSA33..X DK.GRAY,TRIM1# |
1 | ||
| 71100-42K15B1 |
ACA33,38,GSA33..G..ARL DK.GRAY,TRIM1# |
1 | ||
| 71100-42J92B0 |
ACA33,38,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71100-42J73B1 |
GSA33..X DK.GRAY,TRIM1# |
1 | ||
| 71100-42J92B1 |
ACA33,38,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71100-42K15B2 |
ACA33,38,GSA33..G..ARL DK.GRAY,TRIM1# |
1 | ||
| 71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH | ||||
| 71110-42090 |
ACA33,GSA33..G..ARL |
1 | ||
| 71110-42100 |
ACA33,GSA33..G..ARL SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71110-42210 |
ACA33,GSA33..X..ARL |
1 | ||
| 71110-42120 |
ACA33,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71110-42130 |
ACA33,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71110-42230 |
ACA33,GSA33..X..ARL SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71110-42340 |
GSA33..X SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE&KNEE) |
1 | ||
| 71110-42280 |
ACA33,38,GSA33..G..ARL |
1 | ||
| 71110-42330 |
GSA33..X |
1 | ||
| 71110-42360 |
ACA33,38,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71110-42340 |
GSA33..X |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-42110 |
ACA33,GSA33..X..ARL |
1 | ||
| 71051-42030 |
ACA30,33,ALA30,GSA33..RHD..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71051-42030 |
ACA33,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71051-42030 |
ACA33,38,GSA33..G..ARL;ALA3#,ZSA3#..RHD..G..BTYPE SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71511-42120 |
ACA30,ALA30..RHD;ACA33,GSA33..G..ARL |
1 | ||
| 71511-42110 |
ACA33,38,GSA33..X..ARL |
1 | ||
| 71511-42120 |
ACA30,ALA3#,ZSA3#..RHD;ACA33,38,GSA33..G..ARL |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-42070 |
ACA33,38,GSA33..X SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71551-42130 |
ACA33,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71551-42120 |
ACA33,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71551-42080 |
ACA33,38,GSA33..G |
1 | ||
| 71551-42060 |
ACA33,38,GSA33..X |
1 | ||
| 71551-42100 |
ACA33,38,GSA33..G SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71551-42150 |
GSA33..X SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE&KNEE) |
1 | ||
| 71551-42170 |
ACA30,ALA3#,ZSA3#;ACA33,38,GSA33..G..(ARL,EUR) |
1 | ||
| 71551-42190 |
ACA33,38,GSA33..G..ARL;ALA3#,ZSA3#..RHD..G..BTYPE SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71551-42140 |
GSA33..X |
1 | ||
| 71551-42150 |
GSA33..X |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71771-42010B8 |
ACA33,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71771-42010B7 |
ACA33,GSA33..G..ARL DK.GRAY,TRIM13 |
1 | ||
| 71771-42010B8 |
ACA33,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,DK.GRAY,TRIM1# |
1 | ||
| 71771-42010B2 |
ACA33,GSA33..G..ARL DK.GRAY,TRIM13 |
1 | ||
| 71771-42010B8 |
ACA33,38,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71771-42010P4 |
ALA30..X..DCRE;ALA30..X..ATYPE;ACA30,ALA35,ZSA3#..DCRE,HTWC,HTWVM;ACA33,38,ALA30,GSA33..G..(ARL,EUR) DK.GRAY,TRIM1# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-42100B0 |
ACA30,33,ALA30,GSA33..RHD..G SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71811-42090B0 |
ACA30,33,ALA30,GSA33..RHD DK.GRAY,TRIM1# |
1 | ||
| 71811-42090B0 |
ACA30,33,38,ALA3#,GSA33,ZSA3#..RHD DK.GRAY,TRIM1# |
1 | ||
| 71811-42100B0 |
ACA33,38,GSA33..G..ARL;ALA3#,ZSA3#..RHD..G..BTYPE SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71811-42100B0 |
ACA33,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,DK.GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-60110B0 |
ACA33,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,DK.GRAY,TRIM1# |
1 | ||
| 71861-42070B0 |
ACA30,33,38,ALA3#,GSA33,ZSA3#..ARL,EUR DK.GRAY,TRIM1# |
1 | ||
| 71861-60110B0 |
ACA30,33,ALA30,GSA33..RHD..G SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71861-60110B0 |
ACA33,38,GSA33..G..ARL;ALA3#,ZSA3#..RHD..G..BTYPE SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71861-42070B0 |
ACA30,31,33,ALA30,GSA33..ARL,EUR DK.GRAY,TRIM1# |
1 | ||
| 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-60020B2 |
ACA30,33,ALA30,GSA33..RHD..G SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71867-60020B2 |
ACA33,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,DK.GRAY,TRIM1# |
1 | ||
| 71867-60020B2 |
ACA33,38,GSA33..G..ARL;ALA30,ZSA3#..RHD..G..BTYPE;ALA35..RHD..G..DCRE..BTYPE SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-30070 |
ACA33,38,GSA33..G..ARL;ALA3#,ZSA3#..RHD..G..BTYPE SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71873-30070 |
ACA33,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71873-42030 |
ACA30,33,38,ALA3#,GSA33,ZSA3# |
1 | ||
| 71873-42030 |
ACA3#,ALA30,GSA33 |
1 | ||
| 71873-30070 |
ACA30,33,ALA30,GSA33..RHD..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-30020 |
ACA33,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71874-42020 |
ACA3#,ALA30,GSA33 |
1 | ||
| 71874-30020 |
ACA33,38,GSA33..G..ARL;ALA3#,ZSA3#..RHD..G..BTYPE SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71874-30020 |
ACA30,33,ALA30,GSA33..RHD..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71874-42020 |
ACA30,33,38,ALA3#,GSA33,ZSA3# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-60150B0 |
ACA33,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,DK.GRAY,TRIM1# |
1 | ||
| 71875-42050B0 |
ACA30,31,33,ALA30,GSA33..ARL,EUR DK.GRAY,TRIM1# |
1 | ||
| 71875-42050B0 |
ACA30,33,38,ALA3#,GSA33,ZSA3#..ARL,EUR DK.GRAY,TRIM1# |
1 | ||
| 71875-60150B0 |
ACA30,33,ALA30,GSA33..RHD..G SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71875-60150B0 |
ACA33,38,GSA33..G..ARL;ALA3#,ZSA3#..RHD..G..BTYPE SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-58050 |
ACA33,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71875-58050 |
ACA33,38,GSA33..G..ARL;ALA3#,ZSA3#..RHD..G..BTYPE SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71875-58060 |
ACA3#,ALA30,GSA33 |
1 | ||
| 71875-58050 |
ACA30,33,ALA30,GSA33..RHD..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71875-58060 |
ACA30,33,38,ALA3#,GSA33,ZSA3# |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71875-58030B2 |
ACA33,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,DK.GRAY,TRIM1# |
1 | ||
| 71876-42050B0 |
ACA30,31,33,ALA30,GSA33..ARL,EUR DK.GRAY,TRIM1# |
1 | ||
| 71875-58030B2 |
ACA33,38,GSA33..G..ARL;ALA3#,ZSA3#..RHD..G..BTYPE SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71875-58030B2 |
ACA30,33,ALA30,GSA33..RHD..G SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71876-42050B0 |
ACA30,33,38,ALA3#,GSA33,ZSA3#..ARL,EUR DK.GRAY,TRIM1# |
1 | ||
| 71876B - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-58050 |
ACA30,33,ALA30,GSA33..RHD..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71876-58060 |
ACA30,33,38,ALA3#,GSA33,ZSA3# |
1 | ||
| 71876-58050 |
ACA33,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71876-58060 |
ACA3#,ALA30,GSA33 |
1 | ||
| 71876-58050 |
ACA33,38,GSA33..G..ARL;ALA3#,ZSA3#..RHD..G..BTYPE SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-42130B2 |
ACA33,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,DK.GRAY,TRIM1# |
2 | ||
| 71910-42120B0 |
ACA30,33,ALA30,GSA33..G..(ARL,EUR) DK.GRAY,TRIM1# |
2 | ||
| 71910-42110B0 |
ACA30,33,ALA30,GSA33..X..(ARL,EUR) DK.GRAY,TRIM1# |
2 | ||
| 71910-42130B2 |
ACA30,33,ALA30,GSA33..RHD..G SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
2 | ||
| 71910-42160B0 |
ACA30,33,ALA30,GSA33,ZSA3#..X..(ARL,EUR) DK.GRAY,TRIM1# |
2 | ||
| 71910-42170B0 |
ACA33..G..ARL;ACA30,ALA30,GSA33,ZSA3#..G DK.GRAY,TRIM1# |
2 | ||
| 71910-42180B0 |
ACA33,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
2 | ||
| 71910-42171B0 |
ACA33..G..ARL;ACA30,ALA3#,GSA33,ZSA3#..G..(DCR,DCRE,HTWC,HTWVM) DK.GRAY,TRIM1# |
2 | ||
| 71910-42161B0 |
ACA3#,ALA3#,GSA33,ZSA3#..X..(ARL,EUR) DK.GRAY,TRIM1# |
2 | ||
| 71910-42181B0 |
ACA33,38,GSA33..G..ARL;ALA3#,ZSA3#..RHD..G..BTYPE SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
2 | ||
| 71910-42172B0 |
ACA33..G..ARL;ACA30,38,ALA3#,GSA33,ZSA3#..G..(ARL,EUR) DK.GRAY,TRIM1# |
2 | ||
| 71910-42172B3 |
ACA33..G..ARL;ALA35..G..DCRE;ACA30,38,ALA30,GSA33,ZSA3#..G..(ARL,EUR) DK.GRAY,TRIM1# |
2 | ||
| 71910-42161B2 |
ALA30..X..ATYPE;ACA3#,ALA3#,GSA33,ZSA3#..X..(DCRE,HTWC,HTWVM)..(ARL,EUR) DARK GRAY,TRIM1# |
2 | ||
| 71910-42181B2 |
ALA30..RHD..G..BTYPE;ACA33,38,ALA35,GSA33,ZSA3#..RHD..G..(DCRE,HTWC,HTWVM) SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B4 |
ACA30,31,33,ALA30,GSA33..ARL,EUR W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
ACA30,31,33,ALA30,GSA33..ARL,EUR W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1# |
2 | ||
| 71930-52030B0 |
ACA30,33,38,ALA3#,GSA33,ZSA3#..ARL,EUR W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
ACA30,33,38,ALA3#,GSA33,ZSA3#..ARL,EUR W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B4 |
ACA30,31,33,ALA30,GSA33..ARL,EUR W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
ACA30,31,33,ALA30,GSA33..ARL,EUR W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1# |
2 | ||
| 71930-52030B0 |
ACA30,33,38,ALA3#,GSA33,ZSA3#..ARL,EUR W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
ACA30,33,38,ALA3#,GSA33,ZSA3#..ARL,EUR W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1# |
2 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-48020 |
ACA33,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 72750-48020 |
ACA33,38,GSA33..G..ARL;ALA30,ZSA3#..RHD..G..BTYPE;ALA35..RHD..G..DCRE..BTYPE SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-42030 |
ACA33,38,GSA33 SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 73910-42030 |
ACA33,38,GSA33..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 73910-42030 |
ACA33,GSA33..X..ARL SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE&KNEE) |
1 | ||
| 73910-42031 |
GSA33..X SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE&KNEE) |
1 | ||
| 73910-42030 |
ACA33,GSA33..G..ARL |
1 | ||
| 73910-42031 |
ACA30,ALA3#,ZSA3#;ACA33,38,GSA33..G..(ARL,EUR) |
1 | ||
| 73910-42031 |
GSA33..X |
1 | ||
| 85820Y - MOTOR ASSY, POWER SEAT | ||||
| 85820-60130 |
ACA33,38,GSA33..G;ACA30,ALA30..RHD..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 85820-60130 |
ALA3#,ZSA3#..RHD..G..BTYPE;ACA33,38,GSA33..G..(ARL,GCC,GEN) SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 85820-60130 |
ACA33,38,GSA33..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 87510K - HEATER ASSY, FRONT SEAT CUSHION, RH | ||||
| 87510-42160 |
ACA33,38,GSA33..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 87510-42160 |
ACA33,38,GSA33..G;ACA30,ALA30..RHD..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 87510-42160 |
ALA3#,ZSA3#..RHD..G..BTYPE;ACA33,38,GSA33..G..(ARL,GCC,GEN) SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 87510M - HEATER ASSY, FRONT SEAT BACK, RH | ||||
| 87510-42120 |
ACA33,38,GSA33..G;ACA30,ALA30..RHD..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 87510-42120 |
ACA33,38,GSA33..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 87510-42120 |
ALA3#,ZSA3#..RHD..G..BTYPE;ACA33,38,GSA33..G..(ARL,GCC,GEN) SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| Common parts | ||||
| 90167-40044 | ||||
| 90389-10041 | ||||
| 93560-54012 | ||||
| 93568-55016 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
| 8401 | ||||
| 8421 | ||||
ILLUST NO. 2 OF 7(0808- )X..ARL
PASSENGER SIDE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-42280B3 |
ACA33,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,DK.GRAY,TRIM1# |
1 | ||
| 71072-42280B3 |
ACA30,33,ALA30,GSA33..RHD..G SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71072-42180B2 |
ACA33,GSA33..X..ARL DK.GRAY,TRIM1# |
1 | ||
| 71072-42210B3 |
ACA30,33,ALA30,GSA33..RHD..G..(DCR,DCRE,HTWC) DK.GRAY,TRIM1# |
1 | ||
| 71072-42210B3 |
ACA30,33,ALA3#,GSA33,ZSA3#..RHD..G..(DCR,DCRE,HTWC,HTWVM) DK.GRAY,TRIM1# |
1 | ||
| 71072-42370B1 |
ACA33,38,GSA33..X..ARL DK.GRAY,TRIM1# |
1 | ||
| 71072-42281B3 |
ACA33,38,GSA33..G..ARL;ALA3#,ZSA3#..RHD..G..BTYPE SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71072-42213B5 |
ACA3#,ALA3#,GSA33,ZSA3#..RHD..G DK.GRAY,TRIM1# |
1 | ||
| 71072-42371B1 |
ACA33,38,GSA33..X..ARL DK.GRAY,TRIM1# |
1 | ||
| 71072-42281B4 |
ALA30..RHD..G..BTYPE;ACA33,38,ALA35,GSA33,ZSA3#..RHD..G..(DCRE,HTWC,HTWVM) SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-42370B0 |
ACA33,GSA33..G..ARL DK.GRAY,TRIM1# |
1 | ||
| 71073-42450B1 |
ACA33,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71073-42100B0 |
ACA33,GSA33..X..ARL DK.GRAY,TRIM1# |
1 | ||
| 71074-42090B0 |
ACA33,GSA33..G..ARL SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,DK.GRAY,TRIM1# |
1 | ||
| 71074-42070B0 |
ACA33,GSA33..X..ARL SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,DK.GRAY,TRIM1# |
1 | ||
| 71074-42130B2 |
ACA33,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,DK.GRAY,TRIM1# |
1 | ||
| 71073-42530B2 |
ACA33,GSA33..X..ARL DK.GRAY,TRIM1# |
1 | ||
| 71074-42260B1 |
ACA33,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71074-42190B2 |
ACA33,GSA33..X..ARL SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE&KNEE),DK.GRAY,TRIM1# |
1 | ||
| 71074-42220B0 |
ACA33..G..ARL;ACA30,ALA30,GSA33,ZSA3#..G..(DCR,DCRE,HTWC,HTWVM) DK.GRAY,TRIM1# |
1 | ||
| 71074-42192B2 |
GSA33..X SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE&KNEE),DK.GRAY,TRIM1# |
1 | ||
| 71074-42360B0 |
GSA33..X DK.GRAY,TRIM1# |
1 | ||
| 71074-42261B1 |
ALA30..RHD..G..BTYPE;ACA33,38,ALA35,GSA33,ZSA3#..RHD..G SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71074-42224B4 |
ACA33..G..ARL;ACA30,38,ALA3#,GSA33,ZSA3#..G..(ARL,EUR) DK.GRAY,TRIM1# |
1 | ||
| 71074-42192B2 |
GSA33..X DK.GRAY,TRIM1# |
1 | ||
| 71074-42193B2 |
GSA33..X DK.GRAY,TRIM1# |
1 | ||
| 71074-42225B4 |
ACA33..G..ARL;ACA30,38,ALA3#,GSA33,ZSA3#..G..(ARL,EUR) DK.GRAY,TRIM1# |
1 | ||
| 71074-42262B1 |
ALA30..RHD..G..BTYPE;ACA33,38,ALA35,GSA33,ZSA3#..RHD..G SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71074-42193B4 |
GSA33..X DK.GRAY,TRIM1# |
1 | ||
| 71074-42225B6 |
ACA33..G..ARL;ALA35..G..DCRE;ACA30,38,ALA30,GSA33,ZSA3#..G..(ARL,EUR) DK.GRAY,TRIM1# |
1 | ||
| 71074-42262B3 |
ALA30..RHD..G..BTYPE;ACA33,38,ALA35,GSA33,ZSA3#..RHD..G..(DCRE,HTWC,HTWVM) SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71120B - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH | ||||
| 71120-42030 |
ACA33,GSA33..G..ARL |
1 | ||
| 71120-42040 |
ACA33,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71120-42040 |
ACA33,GSA33..G..ARL SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71120-42150 |
ACA33,GSA33..X..ARL SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71120-42130 |
ACA33,GSA33..X..ARL |
1 | ||
| 71120-42260 |
GSA33..X SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE&KNEE) |
1 | ||
| 71120-42230 |
GSA33..X |
1 | ||
| 71120-42250 |
ACA33,38,GSA33..G..ARL |
1 | ||
| 71120-42260 |
GSA33..X |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71052-42060 |
ACA30,33,ALA30..RHD..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71052-42050 |
ACA30,ALA30..RHD;ACA33,GSA33..G..ARL |
1 | ||
| 71052-42040 |
ACA33,GSA33..X..ARL |
1 | ||
| 71052-42050 |
ACA30,ALA3#,ZSA3#..RHD;ACA33,38,GSA33..G..ARL |
1 | ||
| 71052-42040 |
ACA33,38,GSA33..X..ARL |
1 | ||
| 71052-42061 |
ACA33,38,GSA33..G..ARL;ALA3#,ZSA3#..RHD..G..BTYPE SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-42020 |
ACA33,38,GSA33..X SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71552-42030 |
ACA33,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71551-42080 |
ACA33,38,GSA33..G |
1 | ||
| 71552-42030 |
ACA33,38,GSA33..G SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71551-42060 |
ACA33,38,GSA33..X |
1 | ||
| 71551-42140 |
GSA33..X |
1 | ||
| 71552-42070 |
ACA30,ALA3#,ZSA3#;ACA33,38,GSA33..G..ARL |
1 | ||
| 71552-42060 |
GSA33..X SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE&KNEE) |
1 | ||
| 71552-42060 |
GSA33..X |
1 | ||
| 71643A - UNIT, ACTIVE HEADREST, UPR | ||||
| 71643-12011 |
ACA30,33,38,ALA3#,GSA33,ZSA3#..ARL,EUR |
2 | ||
| 71644 - UNIT, ACTIVE HEADREST, LWR | ||||
| 71644-12030 |
ACA30,33,38,ALA3#,GSA33,ZSA3#..ARL,EUR |
2 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-42090B0 |
ACA30,33,ALA30,GSA33..RHD DK.GRAY,TRIM1# |
1 | ||
| 71812-42090B0 |
ACA30,33,38,ALA3#,GSA33,ZSA3#..RHD DK.GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-42060B0 |
ACA30,33,ALA30,GSA33..ARL,EUR DK.GRAY,TRIM1# |
1 | ||
| 71862-42060B0 |
ACA33..ARL;ACA30,38,ALA3#,GSA33,ZSA3#..ARL,EUR DK.GRAY,TRIM1# |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71873-42030 |
ACA30,33,38,ALA30,GSA33 |
1 | ||
| 71873-42030 |
ACA33..ARL,GCC,GEN;ACA30,38,ALA3#,GSA33,ZSA3# |
1 | ||
| 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-42020 |
ACA30,33,38,ALA30,GSA33 |
1 | ||
| 71874-42020 |
ACA33..ARL,GCC,GEN;ACA30,38,ALA3#,GSA33,ZSA3# |
1 | ||
| 71875E - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-58060 |
ACA30,33,38,ALA30,GSA33 |
1 | ||
| 71875-58060 |
ACA33..ARL,GCC,GEN;ACA30,38,ALA3#,GSA33,ZSA3# |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-42050B0 |
ACA30,33,ALA30,GSA33..ARL,EUR DK.GRAY,TRIM1# |
1 | ||
| 71875-42050B0 |
ACA33..ARL;ACA30,38,ALA3#,GSA33,ZSA3#..ARL,EUR DK.GRAY,TRIM1# |
1 | ||
| 71876E - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-58060 |
ACA30,33,38,ALA30,GSA33 |
1 | ||
| 71876-58060 |
ACA33..ARL,GCC,GEN;ACA30,38,ALA3#,GSA33,ZSA3# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-42050B0 |
ACA30,33,ALA30,GSA33..ARL,EUR DK.GRAY,TRIM1# |
1 | ||
| 71876-42050B0 |
ACA33..ARL;ACA30,38,ALA3#,GSA33,ZSA3#..ARL,EUR DK.GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-42130B2 |
ACA33,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,DK.GRAY,TRIM1# |
2 | ||
| 71910-42120B0 |
ACA30,33,ALA30,GSA33..G..(ARL,EUR) DK.GRAY,TRIM1# |
2 | ||
| 71910-42110B0 |
ACA30,33,ALA30,GSA33..X..(ARL,EUR) DK.GRAY,TRIM1# |
2 | ||
| 71910-42130B2 |
ACA30,33,ALA30,GSA33..RHD..G SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
2 | ||
| 71910-42160B0 |
ACA30,33,ALA30,GSA33,ZSA3#..X..(ARL,EUR) DK.GRAY,TRIM1# |
2 | ||
| 71910-42170B0 |
ACA33..G..ARL;ACA30,ALA30,GSA33,ZSA3#..G DK.GRAY,TRIM1# |
2 | ||
| 71910-42180B0 |
ACA33,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
2 | ||
| 71910-42171B0 |
ACA33..G..ARL;ACA30,ALA3#,GSA33,ZSA3#..G..(DCR,DCRE,HTWC,HTWVM) DK.GRAY,TRIM1# |
2 | ||
| 71910-42161B0 |
ACA3#,ALA3#,GSA33,ZSA3#..X..(ARL,EUR) DK.GRAY,TRIM1# |
2 | ||
| 71910-42181B0 |
ACA33,38,GSA33..G..ARL;ALA3#,ZSA3#..RHD..G..BTYPE SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
2 | ||
| 71910-42172B0 |
ACA33..G..ARL;ACA30,38,ALA3#,GSA33,ZSA3#..G..(ARL,EUR) DK.GRAY,TRIM1# |
2 | ||
| 71910-42172B3 |
ACA33..G..ARL;ALA35..G..DCRE;ACA30,38,ALA30,GSA33,ZSA3#..G..(ARL,EUR) DK.GRAY,TRIM1# |
2 | ||
| 71910-42161B2 |
ALA30..X..ATYPE;ACA3#,ALA3#,GSA33,ZSA3#..X..(DCRE,HTWC,HTWVM)..(ARL,EUR) DARK GRAY,TRIM1# |
2 | ||
| 71910-42181B2 |
ALA30..RHD..G..BTYPE;ACA33,38,ALA35,GSA33,ZSA3#..RHD..G..(DCRE,HTWC,HTWVM) SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B4 |
ACA30,31,33,ALA30,GSA33..ARL,EUR W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
ACA30,31,33,ALA30,GSA33..ARL,EUR W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1# |
2 | ||
| 71930-52030B0 |
ACA30,33,38,ALA3#,GSA33,ZSA3#..ARL,EUR W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
ACA30,33,38,ALA3#,GSA33,ZSA3#..ARL,EUR W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B4 |
ACA30,31,33,ALA30,GSA33..ARL,EUR W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
ACA30,31,33,ALA30,GSA33..ARL,EUR W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1# |
2 | ||
| 71930-52030B0 |
ACA30,33,38,ALA3#,GSA33,ZSA3#..ARL,EUR W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
ACA30,33,38,ALA3#,GSA33,ZSA3#..ARL,EUR W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1# |
2 | ||
| 72120 - TRACK ASSY, FRONT SEAT, OUTER LH | ||||
| 72120-42020 |
ACA33,38,GSA33..ARL |
1 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-13040 |
ACA33,38..G..ARL;ACA30,ALA3#,GSA33,ZSA3# |
8 | ||
| 72125-13040 |
ALA3#,ZSA3#..RHD..G..BTYPE;ACA33,38,GSA33..G..(ARL,GCC) SEAT COVER MATERIAL-NATURAL LEATHER |
4 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-13040 |
ACA33,38..G..ARL;ACA30,ALA3#,GSA33,ZSA3# |
8 | ||
| 72125-13040 |
ALA3#,ZSA3#..RHD..G..BTYPE;ACA33,38,GSA33..G..(ARL,GCC) SEAT COVER MATERIAL-NATURAL LEATHER |
4 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-13040 |
ACA33,38..G..ARL;ACA30,ALA3#,GSA33,ZSA3# |
8 | ||
| 72125-13040 |
ALA3#,ZSA3#..RHD..G..BTYPE;ACA33,38,GSA33..G..(ARL,GCC) SEAT COVER MATERIAL-NATURAL LEATHER |
4 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-13040 |
ACA33,38..G..ARL;ACA30,ALA3#,GSA33,ZSA3# |
8 | ||
| 72125-13040 |
ALA3#,ZSA3#..RHD..G..BTYPE;ACA33,38,GSA33..G..(ARL,GCC) SEAT COVER MATERIAL-NATURAL LEATHER |
4 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-42020 |
ACA33,38,GSA33..ARL |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-42010B0 |
ACA30,33,ALA30,GSA33..RHD DK.GRAY,TRIM1# |
1 | ||
| 72526-42010B0 |
ACA30,33,38,ALA3#,GSA33,ZSA3#..RHD DK.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 72702-48010 | ||||
| 72702-58050 | ||||
| 90167-40044 | ||||
| 90179-06178 | ||||
| 90179-08057 | ||||
| Linked diagrams | ||||
| 7152 | ||||
ILLUST NO. 2 OF 7(0808- )ARL ; (0812- )ACA30,ALA3#,ZSA3#..RHD
PASSENGER SIDE-W(SIDE AIR BAG)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-42280B3 |
ACA33,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,DK.GRAY,TRIM1# |
1 | ||
| 71072-42280B3 |
ACA30,33,ALA30,GSA33..RHD..G SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71072-42180B2 |
ACA33,GSA33..X..ARL DK.GRAY,TRIM1# |
1 | ||
| 71072-42210B3 |
ACA30,33,ALA30,GSA33..RHD..G..(DCR,DCRE,HTWC) DK.GRAY,TRIM1# |
1 | ||
| 71072-42210B3 |
ACA30,33,ALA3#,GSA33,ZSA3#..RHD..G..(DCR,DCRE,HTWC,HTWVM) DK.GRAY,TRIM1# |
1 | ||
| 71072-42370B1 |
ACA33,38,GSA33..X..ARL DK.GRAY,TRIM1# |
1 | ||
| 71072-42281B3 |
ACA33,38,GSA33..G..ARL;ALA3#,ZSA3#..RHD..G..BTYPE SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71072-42213B5 |
ACA3#,ALA3#,GSA33,ZSA3#..RHD..G DK.GRAY,TRIM1# |
1 | ||
| 71072-42371B1 |
ACA33,38,GSA33..X..ARL DK.GRAY,TRIM1# |
1 | ||
| 71072-42281B4 |
ALA30..RHD..G..BTYPE;ACA33,38,ALA35,GSA33,ZSA3#..RHD..G..(DCRE,HTWC,HTWVM) SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-42370B0 |
ACA33,GSA33..G..ARL DK.GRAY,TRIM1# |
1 | ||
| 71073-42450B1 |
ACA33,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71073-42100B0 |
ACA33,GSA33..X..ARL DK.GRAY,TRIM1# |
1 | ||
| 71074-42090B0 |
ACA33,GSA33..G..ARL SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,DK.GRAY,TRIM1# |
1 | ||
| 71074-42070B0 |
ACA33,GSA33..X..ARL SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,DK.GRAY,TRIM1# |
1 | ||
| 71074-42130B2 |
ACA33,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,DK.GRAY,TRIM1# |
1 | ||
| 71073-42530B2 |
ACA33,GSA33..X..ARL DK.GRAY,TRIM1# |
1 | ||
| 71074-42260B1 |
ACA33,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71074-42190B2 |
ACA33,GSA33..X..ARL SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE&KNEE),DK.GRAY,TRIM1# |
1 | ||
| 71074-42220B0 |
ACA33..G..ARL;ACA30,ALA30,GSA33,ZSA3#..G..(DCR,DCRE,HTWC,HTWVM) DK.GRAY,TRIM1# |
1 | ||
| 71074-42192B2 |
GSA33..X SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE&KNEE),DK.GRAY,TRIM1# |
1 | ||
| 71074-42360B0 |
GSA33..X DK.GRAY,TRIM1# |
1 | ||
| 71074-42261B1 |
ALA30..RHD..G..BTYPE;ACA33,38,ALA35,GSA33,ZSA3#..RHD..G SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71074-42224B4 |
ACA33..G..ARL;ACA30,38,ALA3#,GSA33,ZSA3#..G..(ARL,EUR) DK.GRAY,TRIM1# |
1 | ||
| 71074-42192B2 |
GSA33..X DK.GRAY,TRIM1# |
1 | ||
| 71074-42193B2 |
GSA33..X DK.GRAY,TRIM1# |
1 | ||
| 71074-42225B4 |
ACA33..G..ARL;ACA30,38,ALA3#,GSA33,ZSA3#..G..(ARL,EUR) DK.GRAY,TRIM1# |
1 | ||
| 71074-42262B1 |
ALA30..RHD..G..BTYPE;ACA33,38,ALA35,GSA33,ZSA3#..RHD..G SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71074-42193B4 |
GSA33..X DK.GRAY,TRIM1# |
1 | ||
| 71074-42225B6 |
ACA33..G..ARL;ALA35..G..DCRE;ACA30,38,ALA30,GSA33,ZSA3#..G..(ARL,EUR) DK.GRAY,TRIM1# |
1 | ||
| 71074-42262B3 |
ALA30..RHD..G..BTYPE;ACA33,38,ALA35,GSA33,ZSA3#..RHD..G..(DCRE,HTWC,HTWVM) SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71120B - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH | ||||
| 71120-42030 |
ACA33,GSA33..G..ARL |
1 | ||
| 71120-42040 |
ACA33,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71120-42040 |
ACA33,GSA33..G..ARL SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71120-42150 |
ACA33,GSA33..X..ARL SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71120-42130 |
ACA33,GSA33..X..ARL |
1 | ||
| 71120-42260 |
GSA33..X SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE&KNEE) |
1 | ||
| 71120-42230 |
GSA33..X |
1 | ||
| 71120-42250 |
ACA33,38,GSA33..G..ARL |
1 | ||
| 71120-42260 |
GSA33..X |
1 | ||
| 71200S - SEAT ASSY, FRONT LH | ||||
| 71200-42C80B4 |
ACA33,GSA33..G..ARL SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,DK.GRAY,TRIM1# |
1 | ||
| 71200-42J00B1 |
ACA33,GSA33..G..ARL DK.GRAY,TRIM1# |
1 | ||
| 71200-42G80B1 |
ACA33,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71200-42G60B1 |
ACA33,GSA33..X..ARL SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE&KNEE),DK.GRAY,TRIM1# |
1 | ||
| 71200-42G62B0 |
GSA33..X SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE&KNEE),DK.GRAY,TRIM1# |
1 | ||
| 71200-42G81B0 |
ACA33,38,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71200-42J04B3 |
ACA33,38,GSA33..G..ARL DK.GRAY,TRIM1# |
1 | ||
| 71200-42G62B0 |
GSA33..X DK.GRAY,TRIM1# |
1 | ||
| 71200-42G82B0 |
ACA33,38,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71200-42G63B0 |
GSA33..X DK.GRAY,TRIM1# |
1 | ||
| 71200-42J05B1 |
ACA33,38,GSA33..G..ARL DK.GRAY,TRIM1# |
1 | ||
| 71200-42G82B1 |
ACA33,38,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71200-42J05B2 |
ACA33,38,GSA33..G..ARL DK.GRAY,TRIM1# |
1 | ||
| 71200-42G63B1 |
GSA33..X DK.GRAY,TRIM1# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71052-42060 |
ACA30,33,ALA30..RHD..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71052-42050 |
ACA30,ALA30..RHD;ACA33,GSA33..G..ARL |
1 | ||
| 71052-42040 |
ACA33,GSA33..X..ARL |
1 | ||
| 71052-42050 |
ACA30,ALA3#,ZSA3#..RHD;ACA33,38,GSA33..G..ARL |
1 | ||
| 71052-42040 |
ACA33,38,GSA33..X..ARL |
1 | ||
| 71052-42061 |
ACA33,38,GSA33..G..ARL;ALA3#,ZSA3#..RHD..G..BTYPE SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-42020 |
ACA33,38,GSA33..X SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71552-42030 |
ACA33,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71551-42080 |
ACA33,38,GSA33..G |
1 | ||
| 71552-42030 |
ACA33,38,GSA33..G SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71551-42060 |
ACA33,38,GSA33..X |
1 | ||
| 71551-42140 |
GSA33..X |
1 | ||
| 71552-42070 |
ACA30,ALA3#,ZSA3#;ACA33,38,GSA33..G..ARL |
1 | ||
| 71552-42060 |
GSA33..X SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE&KNEE) |
1 | ||
| 71552-42060 |
GSA33..X |
1 | ||
| 71643A - UNIT, ACTIVE HEADREST, UPR | ||||
| 71643-12011 |
ACA30,33,38,ALA3#,GSA33,ZSA3#..ARL,EUR |
2 | ||
| 71644 - UNIT, ACTIVE HEADREST, LWR | ||||
| 71644-12030 |
ACA30,33,38,ALA3#,GSA33,ZSA3#..ARL,EUR |
2 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71771-42010B8 |
ACA33,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71771-42010B7 |
ACA33,GSA33..G..ARL DK.GRAY,TRIM13 |
1 | ||
| 71771-42010B8 |
ACA33,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,DK.GRAY,TRIM1# |
1 | ||
| 71771-42010B8 |
ACA33,38,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 71771-42010B2 |
ACA33,GSA33..G..ARL DK.GRAY,TRIM13 |
1 | ||
| 71771-42010P4 |
ALA30..X..DCRE;ALA30..X..ATYPE;ACA30,ALA35,ZSA3#..DCRE,HTWC,HTWVM;ACA33,38,ALA30,GSA33..G..(ARL,EUR) DK.GRAY,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-42090B0 |
ACA30,33,ALA30,GSA33..RHD DK.GRAY,TRIM1# |
1 | ||
| 71812-42090B0 |
ACA30,33,38,ALA3#,GSA33,ZSA3#..RHD DK.GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-42060B0 |
ACA30,33,ALA30,GSA33..ARL,EUR DK.GRAY,TRIM1# |
1 | ||
| 71862-42060B0 |
ACA33..ARL;ACA30,38,ALA3#,GSA33,ZSA3#..ARL,EUR DK.GRAY,TRIM1# |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71873-42030 |
ACA30,33,38,ALA30,GSA33 |
1 | ||
| 71873-42030 |
ACA33..ARL,GCC,GEN;ACA30,38,ALA3#,GSA33,ZSA3# |
1 | ||
| 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-42020 |
ACA30,33,38,ALA30,GSA33 |
1 | ||
| 71874-42020 |
ACA33..ARL,GCC,GEN;ACA30,38,ALA3#,GSA33,ZSA3# |
1 | ||
| 71875E - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-58060 |
ACA30,33,38,ALA30,GSA33 |
1 | ||
| 71875-58060 |
ACA33..ARL,GCC,GEN;ACA30,38,ALA3#,GSA33,ZSA3# |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-42050B0 |
ACA30,33,ALA30,GSA33..ARL,EUR DK.GRAY,TRIM1# |
1 | ||
| 71875-42050B0 |
ACA33..ARL;ACA30,38,ALA3#,GSA33,ZSA3#..ARL,EUR DK.GRAY,TRIM1# |
1 | ||
| 71876E - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-58060 |
ACA30,33,38,ALA30,GSA33 |
1 | ||
| 71876-58060 |
ACA33..ARL,GCC,GEN;ACA30,38,ALA3#,GSA33,ZSA3# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-42050B0 |
ACA30,33,ALA30,GSA33..ARL,EUR DK.GRAY,TRIM1# |
1 | ||
| 71876-42050B0 |
ACA33..ARL;ACA30,38,ALA3#,GSA33,ZSA3#..ARL,EUR DK.GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-42130B2 |
ACA33,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,DK.GRAY,TRIM1# |
2 | ||
| 71910-42120B0 |
ACA30,33,ALA30,GSA33..G..(ARL,EUR) DK.GRAY,TRIM1# |
2 | ||
| 71910-42110B0 |
ACA30,33,ALA30,GSA33..X..(ARL,EUR) DK.GRAY,TRIM1# |
2 | ||
| 71910-42130B2 |
ACA30,33,ALA30,GSA33..RHD..G SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
2 | ||
| 71910-42160B0 |
ACA30,33,ALA30,GSA33,ZSA3#..X..(ARL,EUR) DK.GRAY,TRIM1# |
2 | ||
| 71910-42170B0 |
ACA33..G..ARL;ACA30,ALA30,GSA33,ZSA3#..G DK.GRAY,TRIM1# |
2 | ||
| 71910-42180B0 |
ACA33,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
2 | ||
| 71910-42171B0 |
ACA33..G..ARL;ACA30,ALA3#,GSA33,ZSA3#..G..(DCR,DCRE,HTWC,HTWVM) DK.GRAY,TRIM1# |
2 | ||
| 71910-42161B0 |
ACA3#,ALA3#,GSA33,ZSA3#..X..(ARL,EUR) DK.GRAY,TRIM1# |
2 | ||
| 71910-42181B0 |
ACA33,38,GSA33..G..ARL;ALA3#,ZSA3#..RHD..G..BTYPE SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
2 | ||
| 71910-42172B0 |
ACA33..G..ARL;ACA30,38,ALA3#,GSA33,ZSA3#..G..(ARL,EUR) DK.GRAY,TRIM1# |
2 | ||
| 71910-42172B3 |
ACA33..G..ARL;ALA35..G..DCRE;ACA30,38,ALA30,GSA33,ZSA3#..G..(ARL,EUR) DK.GRAY,TRIM1# |
2 | ||
| 71910-42161B2 |
ALA30..X..ATYPE;ACA3#,ALA3#,GSA33,ZSA3#..X..(DCRE,HTWC,HTWVM)..(ARL,EUR) DARK GRAY,TRIM1# |
2 | ||
| 71910-42181B2 |
ALA30..RHD..G..BTYPE;ACA33,38,ALA35,GSA33,ZSA3#..RHD..G..(DCRE,HTWC,HTWVM) SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B4 |
ACA30,31,33,ALA30,GSA33..ARL,EUR W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
ACA30,31,33,ALA30,GSA33..ARL,EUR W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1# |
2 | ||
| 71930-52030B0 |
ACA30,33,38,ALA3#,GSA33,ZSA3#..ARL,EUR W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
ACA30,33,38,ALA3#,GSA33,ZSA3#..ARL,EUR W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B4 |
ACA30,31,33,ALA30,GSA33..ARL,EUR W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
ACA30,31,33,ALA30,GSA33..ARL,EUR W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1# |
2 | ||
| 71930-52030B0 |
ACA30,33,38,ALA3#,GSA33,ZSA3#..ARL,EUR W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
ACA30,33,38,ALA3#,GSA33,ZSA3#..ARL,EUR W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1# |
2 | ||
| 72120 - TRACK ASSY, FRONT SEAT, OUTER LH | ||||
| 72120-42020 |
ACA33,38,GSA33..ARL |
1 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-13040 |
ACA33,38..G..ARL;ACA30,ALA3#,GSA33,ZSA3# |
8 | ||
| 72125-13040 |
ALA3#,ZSA3#..RHD..G..BTYPE;ACA33,38,GSA33..G..(ARL,GCC) SEAT COVER MATERIAL-NATURAL LEATHER |
4 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-13040 |
ACA33,38..G..ARL;ACA30,ALA3#,GSA33,ZSA3# |
8 | ||
| 72125-13040 |
ALA3#,ZSA3#..RHD..G..BTYPE;ACA33,38,GSA33..G..(ARL,GCC) SEAT COVER MATERIAL-NATURAL LEATHER |
4 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-13040 |
ACA33,38..G..ARL;ACA30,ALA3#,GSA33,ZSA3# |
8 | ||
| 72125-13040 |
ALA3#,ZSA3#..RHD..G..BTYPE;ACA33,38,GSA33..G..(ARL,GCC) SEAT COVER MATERIAL-NATURAL LEATHER |
4 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-13040 |
ACA33,38..G..ARL;ACA30,ALA3#,GSA33,ZSA3# |
8 | ||
| 72125-13040 |
ALA3#,ZSA3#..RHD..G..BTYPE;ACA33,38,GSA33..G..(ARL,GCC) SEAT COVER MATERIAL-NATURAL LEATHER |
4 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-42020 |
ACA33,38,GSA33..ARL |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-42010B0 |
ACA30,33,ALA30,GSA33..RHD DK.GRAY,TRIM1# |
1 | ||
| 72526-42010B0 |
ACA30,33,38,ALA3#,GSA33,ZSA3#..RHD DK.GRAY,TRIM1# |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-42030 |
ACA33,38,GSA33..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 73920-42030 |
ACA33,GSA33..G..ARL |
1 | ||
| 73920-42031 |
GSA33..X |
1 | ||
| 73920-42030 |
ACA33,38,GSA33 SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 73920-42031 |
GSA33..X SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE&KNEE) |
1 | ||
| 73920-42030 |
ACA33,GSA33..X..ARL SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE&KNEE) |
1 | ||
| 73920-42031 |
ACA30,ALA3#,ZSA3#;ACA33,38,GSA33..G..(ARL,EUR) |
1 | ||
| 87510L - HEATER ASSY, FRONT SEAT CUSHION, LH | ||||
| 87510-42160 |
ACA33,38,GSA33..G;ACA30,ALA30..RHD..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 87510-42160 |
ACA33,38,GSA33..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 87510-42160 |
ALA3#,ZSA3#..RHD..G..BTYPE;ACA33,38,GSA33..G..(ARL,GCC,GEN) SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 87510N - HEATER ASSY, FRONT SEAT BACK, LH | ||||
| 87510-42120 |
ACA33,38,GSA33..G;ACA30,ALA30..RHD..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 87510-42120 |
ACA33,38,GSA33..G SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 87510-42120 |
ALA3#,ZSA3#..RHD..G..BTYPE;ACA33,38,GSA33..G..(ARL,GCC,GEN) SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| Common parts | ||||
| 72702-48010 | ||||
| 72702-58050 | ||||
| 90167-40044 | ||||
| 90179-06178 | ||||
| 90179-08057 | ||||
| 93568-55016 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7152 | ||||
ILLUST NO. 4 OF 7(0511-1212)G
FRONT POWER SEAT FRAME ASSY(LH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71120B - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH | ||||
| 71120-42030 |
ACA33,GSA33..G..ARL |
1 | ||
| 71120-42040 |
ACA33,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71120-42040 |
ACA33,GSA33..G..ARL SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71120-42150 |
ACA33,GSA33..X..ARL SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71120-42130 |
ACA33,GSA33..X..ARL |
1 | ||
| 71120-42260 |
GSA33..X SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE&KNEE) |
1 | ||
| 71120-42230 |
GSA33..X |
1 | ||
| 71120-42250 |
ACA33,38,GSA33..G..ARL |
1 | ||
| 71120-42260 |
GSA33..X |
1 | ||
| 71643A - UNIT, ACTIVE HEADREST, UPR | ||||
| 71643-12011 |
ACA30,33,38,ALA3#,GSA33,ZSA3#..ARL,EUR |
2 | ||
| 71644 - UNIT, ACTIVE HEADREST, LWR | ||||
| 71644-12030 |
ACA30,33,38,ALA3#,GSA33,ZSA3#..ARL,EUR |
2 | ||
| Common parts | ||||
| 41315-48010 | ||||
| 44159-48020 | ||||
| 90110-05011 | ||||
| 90110-05012 | ||||
| 90110-05013 | ||||
| 90148-80062 | ||||
| 90179-06178 | ||||
| 90179-08057 | ||||
ILLUST NO. 3 OF 7(0511-1212)G
FRONT POWER SEAT FRAME ASSY(RH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH | ||||
| 71110-42090 |
ACA33,GSA33..G..ARL |
1 | ||
| 71110-42100 |
ACA33,GSA33..G..ARL SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71110-42210 |
ACA33,GSA33..X..ARL |
1 | ||
| 71110-42120 |
ACA33,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71110-42130 |
ACA33,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71110-42230 |
ACA33,GSA33..X..ARL SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 71110-42340 |
GSA33..X SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE&KNEE) |
1 | ||
| 71110-42280 |
ACA33,38,GSA33..G..ARL |
1 | ||
| 71110-42330 |
GSA33..X |
1 | ||
| 71110-42360 |
ACA33,38,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71110-42340 |
GSA33..X |
1 | ||
| 71643A - UNIT, ACTIVE HEADREST, UPR | ||||
| 71643-12011 |
ACA30,33,38,ALA3#,GSA33,ZSA3#..ARL,EUR |
2 | ||
| 71644 - UNIT, ACTIVE HEADREST, LWR | ||||
| 71644-12030 |
ACA30,33,38,ALA3#,GSA33,ZSA3#..ARL,EUR |
2 | ||
| 85821H - MOTOR ASSY, POWER SEAT SLIDE, RH | ||||
| 85801-42010 |
ACA30,33,ALA30,GSA33..RHD..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 85801-42010 |
ACA33,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 85801-42010 |
ACA33,38,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 85821J - MOTOR ASSY, POWER SEAT RECLINING, RH | ||||
| 85801-58020 |
ACA33,38,GSA33..G..ARL;ALA3#,ZSA3#..RHD..G..BTYPE SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 85801-58020 |
ACA33,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 85801-58020 |
ACA30,33,ALA30,GSA33..RHD..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 85821K - MOTOR ASSY, POWER SEAT TILT, RH | ||||
| 85801-58040 |
ACA33,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 85801-58040 |
ACA30,33,ALA30,GSA33..RHD..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 85801-58040 |
ACA33,38,GSA33..G..ARL;ALA3#,ZSA3#..RHD..G..BTYPE SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 85821L - MOTOR ASSY, POWER SEAT LIFTER, RH | ||||
| 85801-58030 |
ACA30,33,ALA30,GSA33..RHD..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 85801-58030 |
ACA33,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 85801-58030 |
ACA33,38,GSA33..G..ARL;ALA3#,ZSA3#..RHD..G..BTYPE SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| Common parts | ||||
| 41315-48010 | ||||
| 44159-48020 | ||||
| 90110-05011 | ||||
| 90110-05012 | ||||
| 90110-05013 | ||||
| 90148-80062 | ||||
| 90179-06178 | ||||
| 90179-08057 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
