GSA33R-ANAXKQ (2007)
Toyota Rav4
(0708- )GSA33
U151F

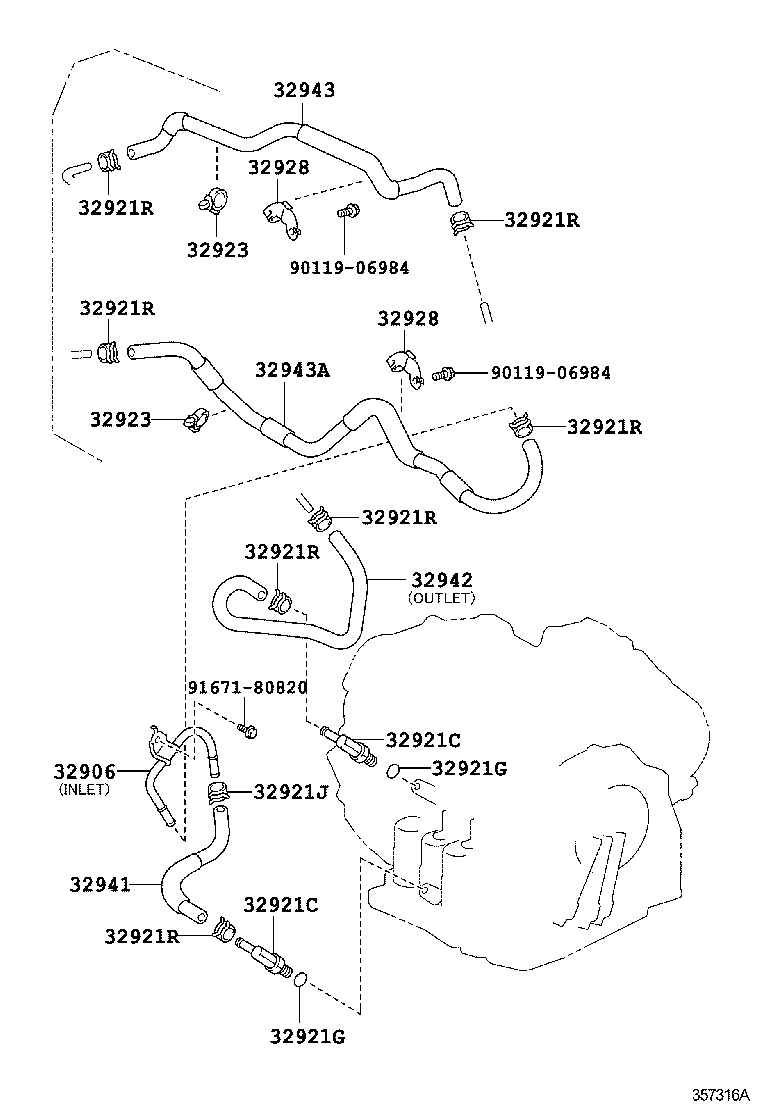

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32906 - TUBE SUB-ASSY, OIL COOLER | ||||
| 32907-42030 |
GSA33 |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-13009 |
GSA33 |
2 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-13009 |
GSA33 |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
ACA33..4FC..X;ACA38,GSA33..ATM;ACA33..4FC..G..(ARL,GEN) |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
ACA33..4FC..X;ACA38,GSA33..ATM;ACA33..4FC..G..(ARL,GEN) |
2 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16022 |
ACA33..4FC..X;ACA38,GSA33..ATM;ACA33..4FC..G..(ARL,GEN) |
1 | ||
| 32921R - CLIP, NO.2(FOR OIL COOLER HOSE) | ||||
| 90467-16022 |
ACA33..4FC..X;ACA38,GSA33..ATM;ACA33..4FC..G..(ARL,GEN) |
7 | ||
| 32921R - CLIP, NO.2(FOR OIL COOLER HOSE) | ||||
| 90467-16022 |
ACA33..4FC..X;ACA38,GSA33..ATM;ACA33..4FC..G..(ARL,GEN) |
7 | ||
| 32921R - CLIP, NO.2(FOR OIL COOLER HOSE) | ||||
| 90467-16022 |
ACA33..4FC..X;ACA38,GSA33..ATM;ACA33..4FC..G..(ARL,GEN) |
7 | ||
| 32921R - CLIP, NO.2(FOR OIL COOLER HOSE) | ||||
| 90467-16022 |
ACA33..4FC..X;ACA38,GSA33..ATM;ACA33..4FC..G..(ARL,GEN) |
7 | ||
| 32921R - CLIP, NO.2(FOR OIL COOLER HOSE) | ||||
| 90467-16022 |
ACA33..4FC..X;ACA38,GSA33..ATM;ACA33..4FC..G..(ARL,GEN) |
7 | ||
| 32921R - CLIP, NO.2(FOR OIL COOLER HOSE) | ||||
| 90467-16022 |
ACA33..4FC..X;ACA38,GSA33..ATM;ACA33..4FC..G..(ARL,GEN) |
7 | ||
| 32921R - CLIP, NO.2(FOR OIL COOLER HOSE) | ||||
| 90467-16022 |
ACA33..4FC..X;ACA38,GSA33..ATM;ACA33..4FC..G..(ARL,GEN) |
7 | ||
| 32923 - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE | ||||
| 82711-51020 |
ACA33..4FC..X;ACA38,GSA33..ATM;ACA33..4FC..G..(ARL,GEN) |
2 | ||
| 32923 - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE | ||||
| 82711-51020 |
ACA33..4FC..X;ACA38,GSA33..ATM;ACA33..4FC..G..(ARL,GEN) |
2 | ||
| 32928 - CLAMP, FLEXIBLE HOSE, NO.1 | ||||
| 32928-42010 |
ACA33..4FC..X;ACA38,GSA33..ATM;ACA33..4FC..G..(ARL,GEN) |
2 | ||
| 32928 - CLAMP, FLEXIBLE HOSE, NO.1 | ||||
| 32928-42010 |
ACA33..4FC..X;ACA38,GSA33..ATM;ACA33..4FC..G..(ARL,GEN) |
2 | ||
| 32941 - HOSE, OIL COOLER INLET, NO.1 | ||||
| 32942-42020 |
GSA33 |
1 | ||
| 32942 - HOSE, OIL COOLER OUTLET, NO.1 | ||||
| 32941-42030 |
GSA33 |
1 | ||
| 32943 - HOSE, TRANSMISSION OIL COOLER, NO.1 | ||||
| 32943-42030 |
GSA33 |
1 | ||
| 32943A - HOSE, TRANSMISSION OIL COOLER, NO.2 | ||||
| 32943-42020 |
ACA33..4FC..X;ACA38,GSA33..ATM;ACA33..4FC..G..(ARL,GEN) |
1 | ||
| Common parts | ||||
| 90119-06984 | ||||
| 91671-80820 | ||||
