GSA33R-ANAGKQ (2007)

Toyota Rav4

Production Aug 2007 - Aug 2008
Engine 2GRFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0708- )2GRFE

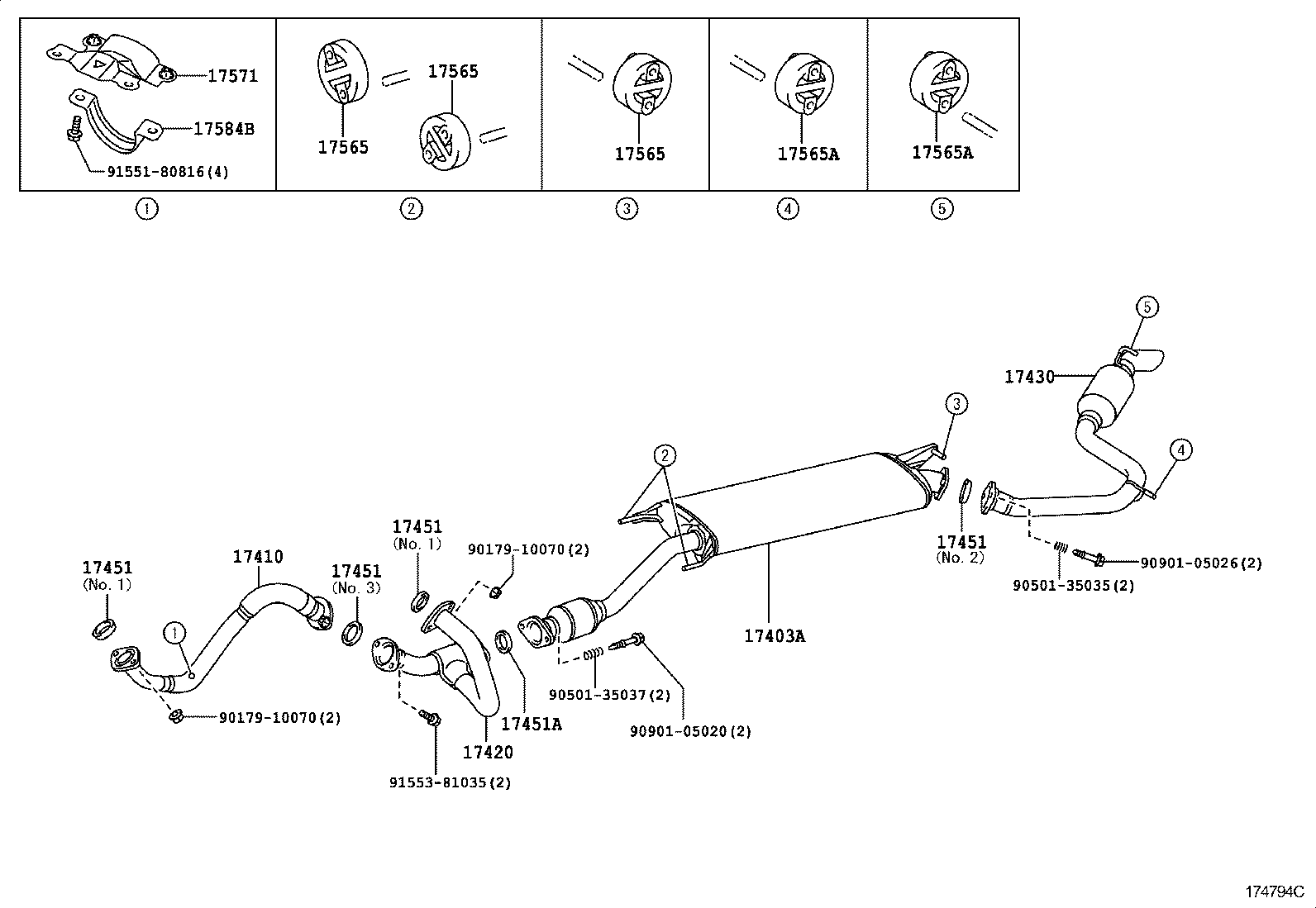

Click highlighted areas on diagram

diagram 17403A 17410 17420 17430 17451 17451 17451 17451 17451A 17565 17565 17565 17565A 17565A 17571 17584B 9017910070 9017910070 9050135035 9050135037 9090105020 9090105026 9155180816 9155381035
Part # Description Qty Price
17403A - PIPE SUB-ASSY, EXHAUST, CENTER NO.2
17404-31100

2GRFE..GSA33

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-31610

2GRFE..GSA33

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17403-31050

2GRFE..GSA33

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-31510

2GRFE..GSA33

 1
17430-31511

2GRFE..GSA33

 1
17451 - GASKET, EXHAUST PIPE
90917-06078

2AZFE..ACA33..X..GCC;2AZFE,2GRFE..ACA33,38,GSA33..ARL,GEN

NO.3

 1
17451-31010

1AZFE,2AZFE,2AD#,2GRFE..ACA3#,ALA30,GSA33

NO.2

 1
90917-06089

2GRFE..GSA33

NO.1

 2
17451-31011

2AZFE..ACA33..X..GCC;2AZFE,2GRFE..ACA33,38,GSA33..ARL,GEN

NO.2

 1
17451 - GASKET, EXHAUST PIPE
90917-06078

2AZFE..ACA33..X..GCC;2AZFE,2GRFE..ACA33,38,GSA33..ARL,GEN

NO.3

 1
17451-31010

1AZFE,2AZFE,2AD#,2GRFE..ACA3#,ALA30,GSA33

NO.2

 1
90917-06089

2GRFE..GSA33

NO.1

 2
17451-31011

2AZFE..ACA33..X..GCC;2AZFE,2GRFE..ACA33,38,GSA33..ARL,GEN

NO.2

 1
17451 - GASKET, EXHAUST PIPE
90917-06078

2AZFE..ACA33..X..GCC;2AZFE,2GRFE..ACA33,38,GSA33..ARL,GEN

NO.3

 1
17451-31010

1AZFE,2AZFE,2AD#,2GRFE..ACA3#,ALA30,GSA33

NO.2

 1
90917-06089

2GRFE..GSA33

NO.1

 2
17451-31011

2AZFE..ACA33..X..GCC;2AZFE,2GRFE..ACA33,38,GSA33..ARL,GEN

NO.2

 1
17451 - GASKET, EXHAUST PIPE
90917-06078

2AZFE..ACA33..X..GCC;2AZFE,2GRFE..ACA33,38,GSA33..ARL,GEN

NO.3

 1
17451-31010

1AZFE,2AZFE,2AD#,2GRFE..ACA3#,ALA30,GSA33

NO.2

 1
90917-06089

2GRFE..GSA33

NO.1

 2
17451-31011

2AZFE..ACA33..X..GCC;2AZFE,2GRFE..ACA33,38,GSA33..ARL,GEN

NO.2

 1
17451A - GASKET, EXHAUST PIPE, NO.2
17451-28040

2GRFE..GSA33

 1
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-22040

2AZFE..ACA33..X..GCC;2AZFE,2GRFE..ACA33,38,GSA33..ARL,GEN

 3
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-22040

2AZFE..ACA33..X..GCC;2AZFE,2GRFE..ACA33,38,GSA33..ARL,GEN

 3
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-22040

2AZFE..ACA33..X..GCC;2AZFE,2GRFE..ACA33,38,GSA33..ARL,GEN

 3
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-22030

2AZFE..ACA33..X..GCC;2AZFE,2GRFE..ACA33,38,GSA33..ARL,GEN

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-22030

2AZFE..ACA33..X..GCC;2AZFE,2GRFE..ACA33,38,GSA33..ARL,GEN

 2
17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17571-31190

2GRFE..GSA33

 1
17584B - BRACKET, EXHAUST PIPE NO.1 SUPPORT
17584-31040

2GRFE..GSA33

 1
Common parts
90179-10070
90501-35035
90501-35037
90901-05020
90901-05026
91551-80816
91553-81035
