GSA33R-ANAGKQ (2008)
Toyota Rav4
ILLUST NO. 9 OF10(0511- )ACA3#,GSA33
CABLE BOND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07205 |
ACA30,33,38 |
1 | ||
| 90980-07434 |
GSA33 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07205 |
ACA30,33,38 |
1 | ||
| 90980-07434 |
GSA33 |
1 | ||
| 82001C - CABLE, BOND, NO.2 | ||||
| 90980-07437 |
ACA30,33,38 |
1 | ||
| 90980-07435 |
GSA33 |
1 | ||
| 82001C - CABLE, BOND, NO.2 | ||||
| 90980-07437 |
ACA30,33,38 |
1 | ||
| 90980-07435 |
GSA33 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 91622-61016 | ||||
| 91671-80616 | ||||
ILLUST NO. 1 OF10(0511- )RHD
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-42J00 |
GSA33 |
1 | ||
| 82111-42J00 |
GSA33 PART NUMBER LABEL=82111-42J00 |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-30360 |
ACA33..X..GCC;ACA33,38,GSA33..ARL,GEN |
2 | ||
| 82671-30360 |
ACA30,33,38,ALA3#,GSA33,ZSA3# |
2 | ||
| 82671J - BLOCK, JUNCTION, NO.2 | ||||
| 82671-30370 |
ACA33..X..GCC;ACA33,38,GSA33..ARL,GEN |
2 | ||
| 82671-30370 |
ACA30,33,38,ALA3#,GSA33,ZSA3# |
1 | ||
| 82671J - BLOCK, JUNCTION, NO.2 | ||||
| 82671-30370 |
ACA33..X..GCC;ACA33,38,GSA33..ARL,GEN |
2 | ||
| 82671-30370 |
ACA30,33,38,ALA3#,GSA33,ZSA3# |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-47210 |
ZSA3#..BTYPE;ACA33,38..G..GEN;ALA30..6FC..BTYPE;ALA30..RHD..6FC..ATYPE;ACA3#,ALA3#,GSA33..(4FC,5F,5FC,6F)..(ARL,EUR,GCC) |
1 | ||
| 82824-47210 |
ACA33..X..GCC;ACA33,38,GSA33..ARL,GEN |
2 | ||
| 82824-47210 |
ALA30..RHD;ALA30..LHD..6F;ACA30,33,38,ALA35,GSA33 |
2 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-47210 |
ZSA3#..BTYPE;ACA33,38..G..GEN;ALA30..6FC..BTYPE;ALA30..RHD..6FC..ATYPE;ACA3#,ALA3#,GSA33..(4FC,5F,5FC,6F)..(ARL,EUR,GCC) |
1 | ||
| 82824-47210 |
ACA33..X..GCC;ACA33,38,GSA33..ARL,GEN |
2 | ||
| 82824-47210 |
ALA30..RHD;ALA30..LHD..6F;ACA30,33,38,ALA35,GSA33 |
2 | ||
| 82824G - CONNECTOR, WIRING HARNESS | ||||
| 82824-30220 |
ACA30,33,38,ALA3#,GSA33,ZSA3# |
1 | ||
| 82824K - CONNECTOR, WIRING HARNESS | ||||
| 82824-50340 |
ZSA3#..BTYPE;ALA30..6FC..BTYPE;ALA30..RHD..6FC..ATYPE;ACA3#,ALA3#,GSA33..4FC,5F,5FC,6F |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90179-06274 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 4 OF10(0511- )
DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-42890 |
ACA33,GSA33..ARL |
1 | ||
| 82151-42B21 |
ACA33,38,GSA33..ARL |
1 | ||
| 82151-42B20 |
ACA33,38,GSA33..ARL |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-42790 |
ACA33,GSA33..ARL |
1 | ||
| 82152-42A30 |
ACA33,38,GSA33..ARL |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-42130 |
ACA33,38,GSA33 |
1 | ||
| 82153-42130 |
ACA33,38,GSA33 |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82153-42130 |
ACA33,38,GSA33 |
1 | ||
| 82153-42130 |
ACA33,38,GSA33 |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-42300 |
ACA33,GSA33..ARL,GCC |
1 | ||
| 82184-42390 |
ACA33,38,GSA33..ARL,GCC |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| Linked diagrams | ||||
| 8504 | ||||
ILLUST NO. 5 OF10(0511- )
FLOOR,FRAME & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-42F70 |
ACA33,GSA33..ARL SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 82161-42F60 |
ACA33,GSA33..ARL |
1 | ||
| 82161-42J20 |
ACA33,GSA33..G..ARL MOON ROOF-WITH&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 82161-42L70 |
ACA33,38,GSA33..G..ARL |
1 | ||
| 82161-42F60 |
ACA33,GSA33..ARL PART NUMBER LABEL=82161-42F60 |
1 | ||
| 82161-42F70 |
ACA33,GSA33..ARL PART NUMBER LABEL=82161-42F70 |
1 | ||
| 82161-42J20 |
ACA33,GSA33..G..ARL PART NUMBER LABEL=82161-42J20 |
1 | ||
| 82161-42L70 |
ACA33,38,GSA33..G..ARL PART NUMBER LABEL=82161-42L70 |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-42200 |
ACA33,GSA33..ARL |
1 | ||
| 82162-42210 |
ACA33,GSA33..ARL SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 82162-42220 |
ACA33,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 82162-42230 |
ACA33,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 82162-42400 |
ACA33,GSA33..G..ARL MOON ROOF-WITH&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE |
1 | ||
| 82162-42410 |
ACA33,GSA33..G..ARL MOON ROOF-WITH&SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER& CURTAIN & SIDE |
1 | ||
| 82162-42740 |
ACA33,38,GSA33..G..ARL |
1 | ||
| 82162-42750 |
ACA33,38,GSA33..G..ARL SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 82162-42400 |
ACA33,GSA33..G..ARL PART NUMBER LABEL=82162-42400 |
1 | ||
| 82162-42230 |
ACA33,GSA33..G..ARL PART NUMBER LABEL=82162-42230 |
1 | ||
| 82162-42220 |
ACA33,GSA33..G..ARL PART NUMBER LABEL=82162-42220 |
1 | ||
| 82162-42210 |
ACA33,GSA33..ARL PART NUMBER LABEL=82162-42210 |
1 | ||
| 82162-42410 |
ACA33,GSA33..G..ARL PART NUMBER LABEL=82162-42410 |
1 | ||
| 82162-42200 |
ACA33,GSA33..ARL PART NUMBER LABEL=82162-42200 |
1 | ||
| 82162-42750 |
ACA33,38,GSA33..G..ARL PART NUMBER LABEL=82162-42750 |
1 | ||
| 82162-42740 |
ACA33,38,GSA33..G..ARL PART NUMBER LABEL=82162-42740 |
1 | ||
| 82164 - WIRE, FRAME | ||||
| 82164-42010 |
ACA30,33,ALA30,GSA33,ZSA30 |
1 | ||
| 82164-42010 |
ACA33,GSA33 |
1 | ||
| 82169 - WIRE FRAME, NO.3 | ||||
| 82169-42010 |
ACA33,GSA33 |
1 | ||
| 82169-42010 |
ACA30,33,ALA30,GSA33,ZSA30 |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-42410 |
ACA3#,ALA30,GSA33 |
1 | ||
| 82171-42450 |
ACA3#,ALA30,GSA33..G MOON ROOF-WITH |
1 | ||
| 82171-42560 |
GSA33..G |
1 | ||
| 82171-42460 |
GSA33..G INSIDE REAR VIEW MIRROR-AUTO-ANTI GLARE |
1 | ||
| 82171-42410 |
ACA3#,ALA30,GSA33 PART NUMBER LABEL=82171-42410 |
1 | ||
| 82171-42450 |
ACA3#,ALA30,GSA33..G PART NUMBER LABEL=82171-42450 |
1 | ||
| 82171-42460 |
GSA33..G PART NUMBER LABEL=82171-42460 |
1 | ||
| 82171-42560 |
GSA33..G PART NUMBER LABEL=82171-42560 |
1 | ||
| 82412 - WIRE, FUEL GAGE | ||||
| 82412-42040 |
ACA33,38,GSA33 |
1 | ||
| 82412-42040 |
ACA33,38,GSA33 |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-42200 |
ACA30,33,38,ALA3#,GSA33,ZSA3# |
1 | ||
| 82666-42200 |
ACA33,GSA33..ARL |
1 | ||
| 82666F - HOLDER, CONNECTOR NO.7 | ||||
| 82666-42270 |
ACA33,GSA33..ARL |
1 | ||
| 82666-42270 |
ACA30,33,38,ALA3#,GSA33,ZSA3#..RHD |
1 | ||
| 82666G - HOLDER, CONNECTOR NO.8 | ||||
| 82666-42210 |
ACA33..X..GCC;ACA33,38,GSA33..ARL,GEN |
1 | ||
| 82666-42210 |
ACA30,33,38,ALA3#,GSA33,ZSA3# |
1 | ||
| 82666L - HOLDER, CONNECTOR NO.9 | ||||
| 82666-42280 |
ACA33..X..GCC;ACA33,38,GSA33..ARL,GEN |
1 | ||
| 82666-42280 |
ACA30,33,38,ALA3#,GSA33,ZSA3# |
1 | ||
| 82671P - BLOCK, JUNCTION, NO.7 | ||||
| 82671-30360 |
ACA3#,ALA3#,GSA33,ZSA3# |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-42030 |
ACA33,38,GSA33..ARL,GCC |
1 | ||
| 82821-42030 |
ACA33..X..GCC;ACA33,GSA33..ARL |
1 | ||
| 82824N - CONNECTOR, WIRING HARNESS | ||||
| 82824-22080 |
ACA3#,ALA3#,GSA33,ZSA3# |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| Linked diagrams | ||||
| 4101 | ||||
| 5854 | ||||
| 8121 | ||||
ILLUST NO.10 OF10(0511- )
CONNECTOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-60460 | ||||
| 90080-98028 | ||||
| 90080-98298 | ||||
| 90980-10619 | ||||
| 90980-10797 | ||||
| 90980-11002 | ||||
| 90980-11003 | ||||
| 90980-11019 | ||||
| 90980-11030 | ||||
| 90980-11060 | ||||
| 90980-11073 | ||||
| 90980-11075 | ||||
| 90980-11095 | ||||
| 90980-11156 | ||||
| 90980-11162 | ||||
| 90980-WA052 | ||||
ILLUST NO. 6 OF10(0511- )
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82167 - WIRE, SEAT, NO.1 | ||||
| 82167-60270 |
ACA30,33,ALA30,GSA33..RHD..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 82191-42010 |
ALA35..RHD..G..ATYPE;ALA35..RHD..G..DCRE..BTYPE;ACA30,33,38,ALA30,GSA33,ZSA3#..RHD..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
ILLUST NO. 8 OF10(0511- )
CLAMP & BRACKET 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-16790 | ||||
| 82711-35520 | ||||
| 82715-21110 | ||||
| 82715-42850 | ||||
| 82715-42860 | ||||
| 91671-80612 | ||||
| 91671-80614 | ||||
| 91671-80816 | ||||

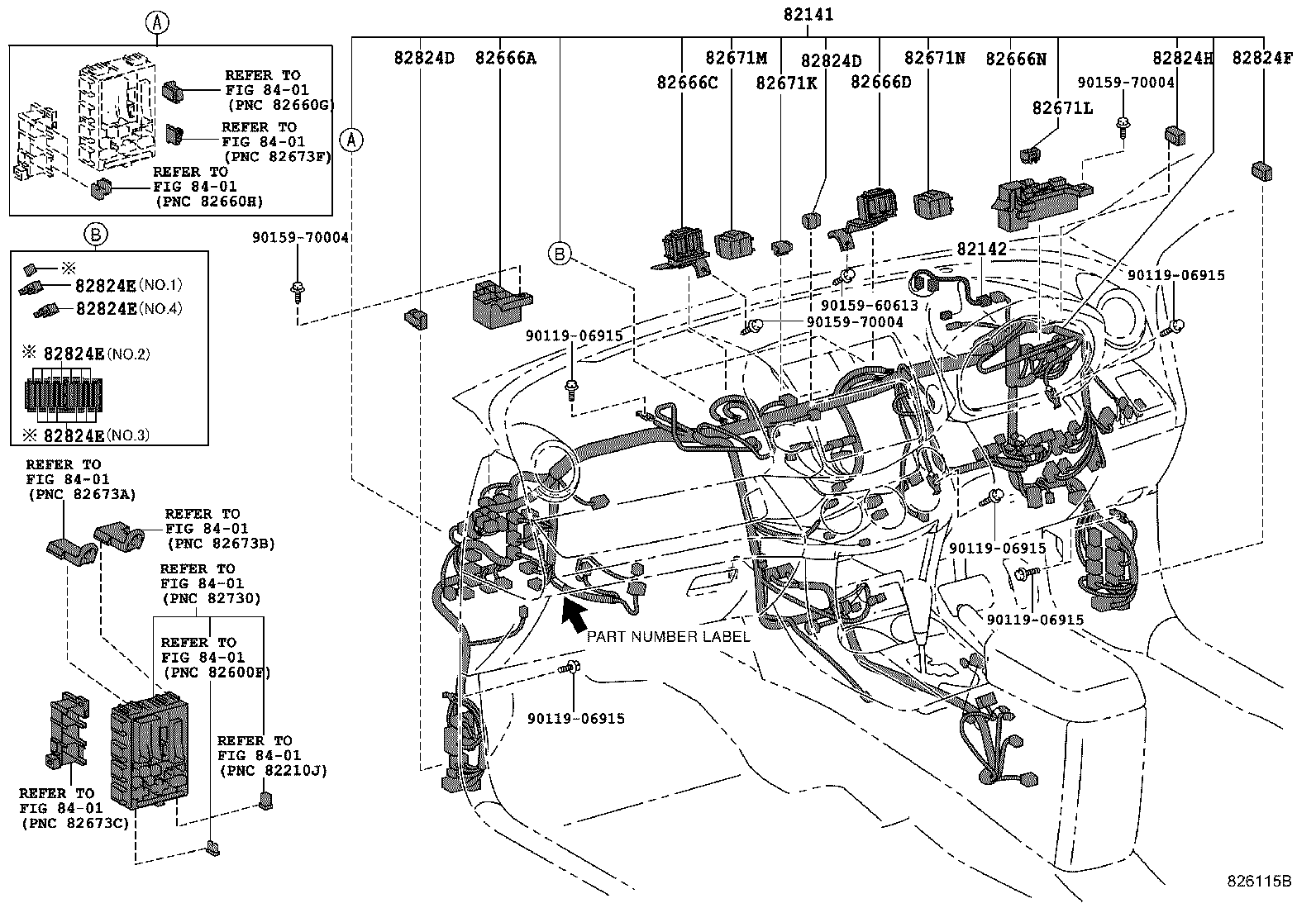

ILLUST NO. 3 OF10(0808- )ARL ; (0812- )ACA30,ALA3#,ZSA3#..RHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-4AD90 |
ACA33,GSA33..ATM..G..ARL |
1 | ||
| 82141-4AD91 |
ACA33,GSA33..ATM..G..ARL |
1 | ||
| 82141-4AD92 |
ACA33,38,GSA33..ATM..G..ARL |
1 | ||
| 82141-4AD93 |
GSA33;ACA33,38..4FC..G..ARL |
1 | ||
| 82141-4AD94 |
GSA33;ACA33,38..4FC..G..ARL |
1 | ||
| 82141-4AD95 |
GSA33;ACA33,38..4FC..G..ARL |
1 | ||
| 82141-4AD90 |
ACA33,GSA33..ATM..G..ARL PART NUMBER LABEL=82141-42X90 OR 82141-4AD90 |
1 | ||
| 82141-4AD91 |
ACA33,GSA33..ATM..G..ARL PART NUMBER LABEL=82141-42X91 OR 82141-4AD91 |
1 | ||
| 82141-4AD92 |
ACA33,38,GSA33..ATM..G..ARL PART NUMBER LABEL=82141-42X92 OR 82141-4AD92 |
1 | ||
| 82141-4AD93 |
GSA33;ACA33,38..4FC..G..ARL PART NUMBER LABEL=82141-42X93 OR 82141-4AD93 |
1 | ||
| 82141-4AD94 |
GSA33;ACA33,38..4FC..G..ARL PART NUMBER LABEL=82141-42X94 OR 82141-4AD94 |
1 | ||
| 82141-4AD95 |
GSA33;ACA33,38..4FC..G..ARL PART NUMBER LABEL=82141-42X95 OR 82141-4AD95 |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-42060 |
ACA33,GSA33..G..ARL |
1 | ||
| 82142-42070 |
ACA30,33,38,ALA3#,GSA33,ZSA3#..RHD..G |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-42180 |
ACA30,33,ALA30,GSA33..RHD |
1 | ||
| 82666-42180 |
ACA33,38,GSA33..ARL |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-42230 |
ACA3#,ALA30,GSA33 |
1 | ||
| 82666-42231 |
ACA38..LHD..X;ACA33,38,GSA33..ARL;ACA30,33..LHD..4FC..X |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-42240 |
ACA3#,ALA30,GSA33 |
1 | ||
| 82666-42241 |
ACA38..LHD..X;ACA33,38,GSA33..ARL;ACA30,33..LHD..4FC..X |
1 | ||
| 82666N - HOLDER, CONNECTOR NO.10 | ||||
| 82666-42190 |
ACA30,33,ALA30,GSA33..RHD |
1 | ||
| 82666-42190 |
ACA33,38,GSA33..ARL |
1 | ||
| 82671K - BLOCK, JUNCTION, NO.3 | ||||
| 82671-30370 |
ACA3#,ALA30,GSA33..G |
1 | ||
| 82671M - BLOCK, JUNCTION, NO.5 | ||||
| 82671-42090 |
ACA33,GSA33..ARL |
1 | ||
| 82671-42150 |
ACA33,38,GSA33..ARL |
1 | ||
| 82671N - BLOCK, JUNCTION, NO.6 | ||||
| 82671-42100 |
ACA33,GSA33..ARL |
1 | ||
| 82671-42160 |
ACA33,38,GSA33..ARL |
1 | ||
| 82824D - CONNECTOR, WIRING HARNESS | ||||
| 82824-47210 |
ACA3#,ALA30,GSA33 |
1 | ||
| 82824-50340 |
ACA38..LHD..X;ACA33,38,GSA33..ARL;ACA30,33..LHD..4FC..X |
2 | ||
| 82824-47210 |
ACA30,33,38,ALA3#,GSA33,ZSA3# |
2 | ||
| 82824D - CONNECTOR, WIRING HARNESS | ||||
| 82824-47210 |
ACA3#,ALA30,GSA33 |
1 | ||
| 82824-50340 |
ACA38..LHD..X;ACA33,38,GSA33..ARL;ACA30,33..LHD..4FC..X |
2 | ||
| 82824-47210 |
ACA30,33,38,ALA3#,GSA33,ZSA3# |
2 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-42190 |
ACA3#,ALA30,GSA33 NO.4 |
4 | ||
| 82824-42180 |
ACA38..LHD..X;ACA33,38,GSA33..ARL;ACA30,33..LHD..4FC..X NO.1 |
4 | ||
| 82824-42200 |
ACA38..LHD..X;ACA33,38,GSA33..ARL;ACA30,33..LHD..4FC..X NO.2 |
28 | ||
| 82824-42190 |
ACA38..LHD..X;ACA33,38,GSA33..ARL;ACA30,33..LHD..4FC..X NO.4 |
4 | ||
| 82824-42180 |
ACA3#,ALA30,GSA33 NO.1 |
4 | ||
| 82824-42210 |
ACA38..LHD..X;ACA33,38,GSA33..ARL;ACA30,33..LHD..4FC..X NO.3 |
24 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-42190 |
ACA3#,ALA30,GSA33 NO.4 |
4 | ||
| 82824-42180 |
ACA38..LHD..X;ACA33,38,GSA33..ARL;ACA30,33..LHD..4FC..X NO.1 |
4 | ||
| 82824-42200 |
ACA38..LHD..X;ACA33,38,GSA33..ARL;ACA30,33..LHD..4FC..X NO.2 |
28 | ||
| 82824-42190 |
ACA38..LHD..X;ACA33,38,GSA33..ARL;ACA30,33..LHD..4FC..X NO.4 |
4 | ||
| 82824-42180 |
ACA3#,ALA30,GSA33 NO.1 |
4 | ||
| 82824-42210 |
ACA38..LHD..X;ACA33,38,GSA33..ARL;ACA30,33..LHD..4FC..X NO.3 |
24 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-42190 |
ACA3#,ALA30,GSA33 NO.4 |
4 | ||
| 82824-42180 |
ACA38..LHD..X;ACA33,38,GSA33..ARL;ACA30,33..LHD..4FC..X NO.1 |
4 | ||
| 82824-42200 |
ACA38..LHD..X;ACA33,38,GSA33..ARL;ACA30,33..LHD..4FC..X NO.2 |
28 | ||
| 82824-42190 |
ACA38..LHD..X;ACA33,38,GSA33..ARL;ACA30,33..LHD..4FC..X NO.4 |
4 | ||
| 82824-42180 |
ACA3#,ALA30,GSA33 NO.1 |
4 | ||
| 82824-42210 |
ACA38..LHD..X;ACA33,38,GSA33..ARL;ACA30,33..LHD..4FC..X NO.3 |
24 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-42190 |
ACA3#,ALA30,GSA33 NO.4 |
4 | ||
| 82824-42180 |
ACA38..LHD..X;ACA33,38,GSA33..ARL;ACA30,33..LHD..4FC..X NO.1 |
4 | ||
| 82824-42200 |
ACA38..LHD..X;ACA33,38,GSA33..ARL;ACA30,33..LHD..4FC..X NO.2 |
28 | ||
| 82824-42190 |
ACA38..LHD..X;ACA33,38,GSA33..ARL;ACA30,33..LHD..4FC..X NO.4 |
4 | ||
| 82824-42180 |
ACA3#,ALA30,GSA33 NO.1 |
4 | ||
| 82824-42210 |
ACA38..LHD..X;ACA33,38,GSA33..ARL;ACA30,33..LHD..4FC..X NO.3 |
24 | ||
| 82824F - CONNECTOR, WIRING HARNESS | ||||
| 82824-28180 |
ACA30,33,ALA3#,GSA33,ZSA3#..RHD |
1 | ||
| 82824-52280 |
ACA33,38,GSA33..ARL |
2 | ||
| 82824-28180 |
ACA33,GSA33..ARL |
3 | ||
| 82824H - CONNECTOR, WIRING HARNESS | ||||
| 82824-12220 |
ACA30,33,ALA3#,GSA33,ZSA3#..RHD |
1 | ||
| 82824-12220 |
ACA33,38,GSA33..ARL |
2 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90159-60613 | ||||
| 90159-70004 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
