GSA33R-ANAGKQ (2008)

Toyota Rav4

Production Aug 2008 - Dec 2012
Engine 2GRFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0511- )5F..ARL

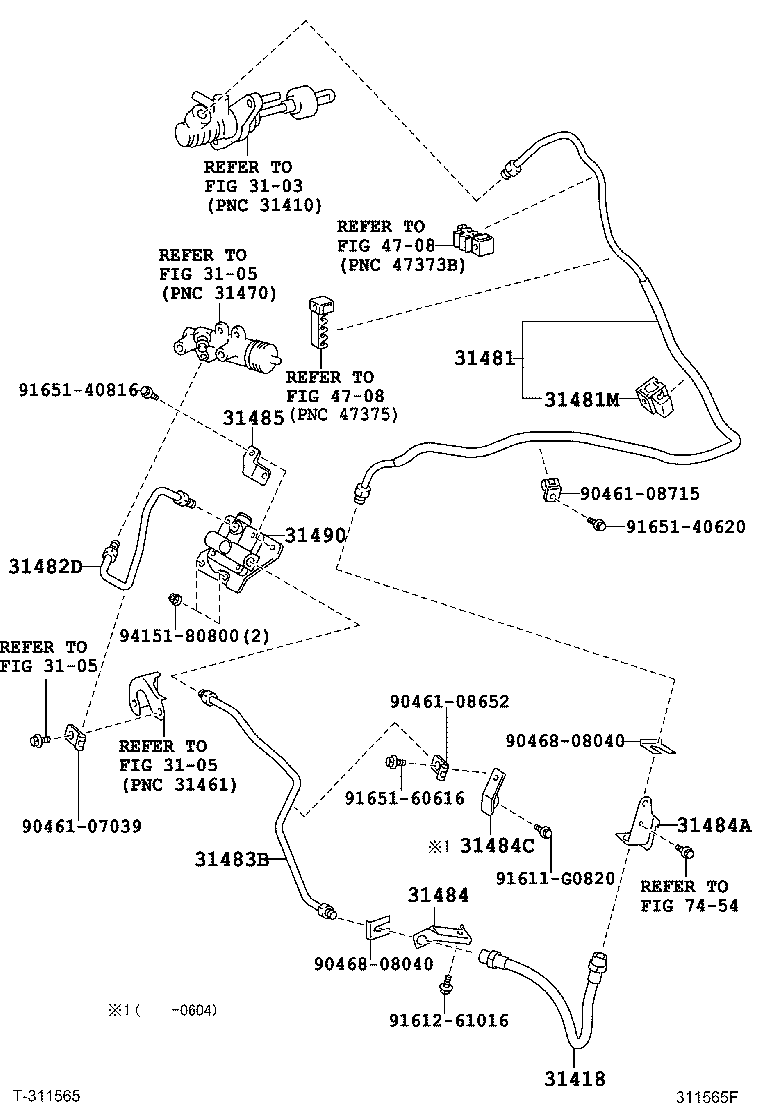

Click highlighted areas on diagram

diagram 3103 3105 3105 3105 31418 31481 31481M 31482D 31483B 31484 31484A 31484C 31485 31490 4708 4708 7454 9046107039 9046108652 9046108715 9046808040 9046808040 91611G0820 9161261016 9165140620 9165140816 9165160616 9415180800
Part # Description Qty Price
31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
31484-42110

ACA30,33,38..5F

 1
31484C - BRACKET, CLUTCH TUBE, NO.1
31484-20320

ACA30,33,38..5F

 1
Common parts
90461-07039
90461-08652
90461-08715
90468-08040
91611-G0820
91612-61016
91651-40620
91651-40816
91651-60616
94151-80800
Linked diagrams
3103
3105
4708
7454
