CLA21R-AWMNYW (2001)
Toyota Rav4
Production
May 2001
-
Nov 2005
Engine
1CDFTV
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 2 OF 2(0005-0307)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-32020 |
CLA2#,ZCA2# |
1 | ||
| 88322C - HEAD, CYLINDER, REAR | ||||
| 88322-32060 |
CLA2#,ZCA2# |
1 | ||
| 88328A - PIN, COMPRESSOR | ||||
| 90099-08058 |
ACA2#,CLA2#,ZCA2# |
4 | ||
| 88328A - PIN, COMPRESSOR | ||||
| 90099-08058 |
ACA2#,CLA2#,ZCA2# |
4 | ||
| 88329E - BOLT, COMPRESSOR, NO.1 | ||||
| 88329-32010 |
ACA2#,CLA2#,ZCA2# |
5 | ||
| 88329F - BOLT, COMPRESSOR, NO.2 | ||||
| 88329-16030 |
ACA2#,CLA2# |
2 | ||
| 88329F - BOLT, COMPRESSOR, NO.2 | ||||
| 88329-16030 |
ACA2#,CLA2# |
2 | ||
| 88329F - BOLT, COMPRESSOR, NO.2 | ||||
| 88329-16030 |
ACA2#,CLA2# |
2 | ||
| 88335 - GASKET KIT, OVERHAUL | ||||
| 88335-32030 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 88336 - SENSOR, COMPRESSOR | ||||
| 88336-42150 |
CLA2# |
1 | ||
| 88341 - PLATE, FRONT VALVE | ||||
| 88341-32010 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 88342 - PLATE, COMPRESSOR VALVE, RR | ||||
| 88342-32020 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 88343B - REED, SUCTION VALVE | ||||
| 88343-32020 |
ACA2#,CLA2#,ZCA2# |
2 | ||
| 88343B - REED, SUCTION VALVE | ||||
| 88343-32020 |
ACA2#,CLA2#,ZCA2# |
2 | ||
| 88344C - REED, DISCHARGE VALVE | ||||
| 88344-32010 |
ACA2#,CLA2#,ZCA2# |
2 | ||
| 88344C - REED, DISCHARGE VALVE | ||||
| 88344-32010 |
ACA2#,CLA2#,ZCA2# |
2 | ||
| 88360C - SEAL ASSY, SHAFT | ||||
| 88360-32010 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 88371A - VALVE, SUCTION | ||||
| 88371-42080 |
CLA2# |
1 | ||
| 88371A - VALVE, SUCTION | ||||
| 88371-42080 |
CLA2# |
1 | ||
| 88379B - VALVE, PRESSURE RELIEF | ||||
| 88379-32010 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| Common parts | ||||
| 88688-48050 | ||||
| 90091-00584 | ||||
| 90099-14143 | ||||
| 90099-14144 | ||||

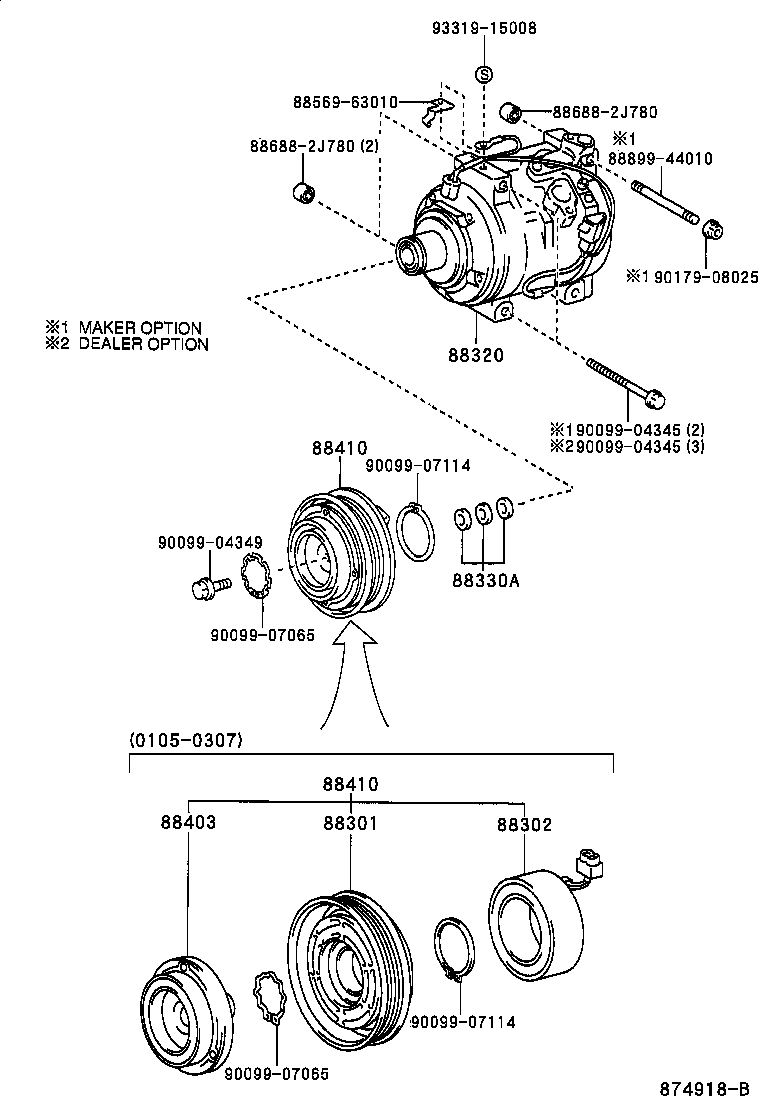

ILLUST NO. 1 OF 2(0105- )CLA2#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-32070 |
CLA2# |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-44010 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-42110 |
CLA2# |
1 | ||
| 88320-42110 |
CLA2# |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 88335-14020 |
ACA2#,CLA2#,ZCA2# |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-32010 |
ACA2#,CLA2# |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-42060 |
CLA2# |
1 | ||
| 88410-44060 |
CLA2# |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-42060 |
CLA2# |
1 | ||
| 88410-44060 |
CLA2# |
1 | ||
| Common parts | ||||
| 88569-63010 | ||||
| 88688-2J780 | ||||
| 88899-44010 | ||||
| 90099-04345 | ||||
| 90099-04349 | ||||
| 90099-07065 | ||||
| 90099-07114 | ||||
| 90179-08025 | ||||
| 93319-15008 | ||||
