AXAP54R-ANXMBW (2020)
Toyota Rav4
Production
Jun 2020
-
Sep 9999
Engine
A25AFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

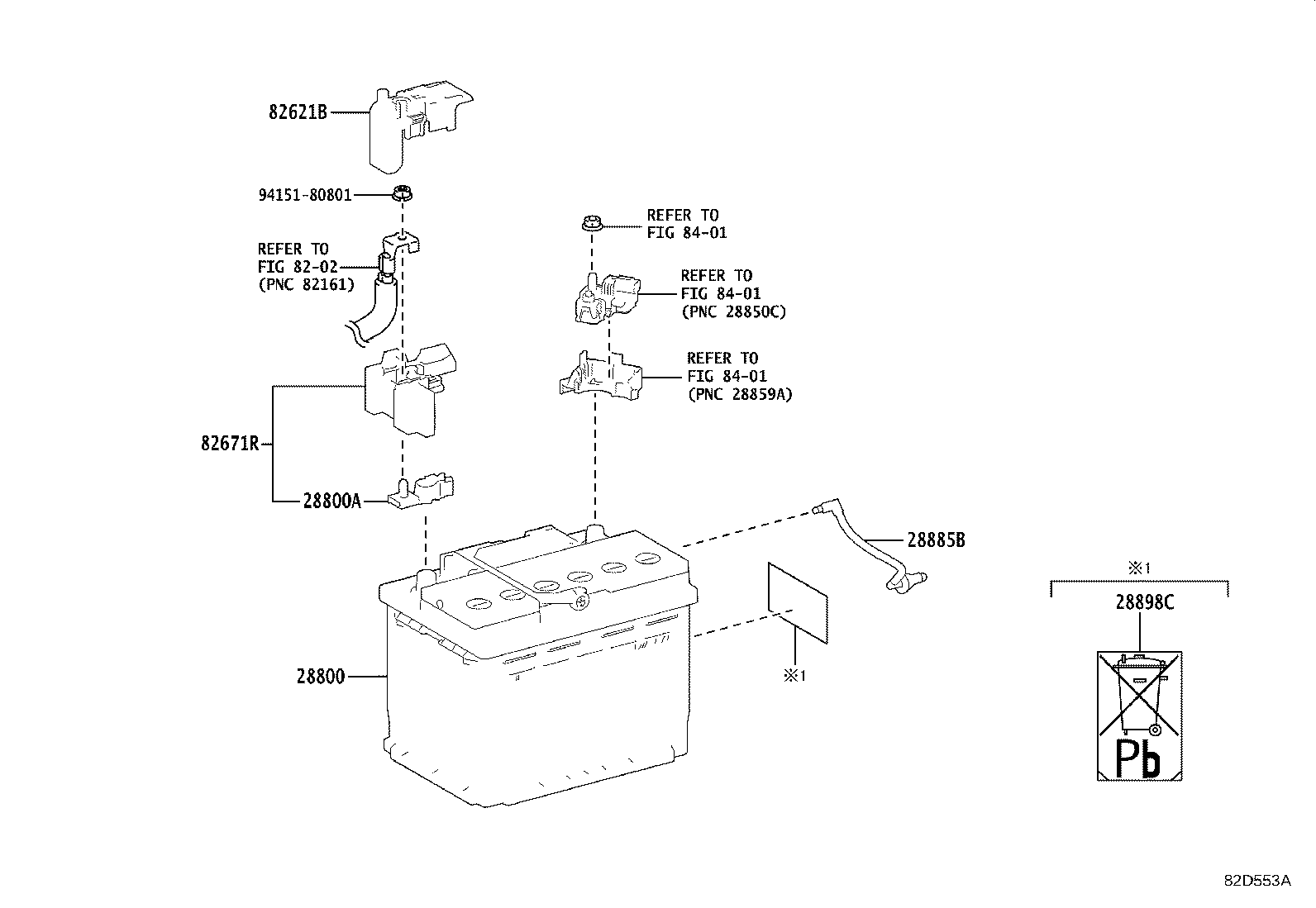

ILLUST NO. 1 OF 6(2006- )
Click highlighted areas on diagram
12V BATTERY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28800 - BATTERY | ||||
| 28800-25030 |
A25AFXS..AXAP54 LN2 |
1 | ||
| 28800A - TERMINAL, BATTERY POSITIVE | ||||
| 90982-05058 |
A25AFXS..AXAP54 |
1 | ||
| 28885B - HOSE, BATTERY | ||||
| 28885-25020 |
A25AFXS..AXAP54 |
1 | ||
| 28898C - PLATE, BATTERY | ||||
| 28898-46020 |
A25AFXS..AXAP54 |
1 | ||
| 82621B - COVER, FUSIBLE LINK | ||||
| 82621-42020 |
AXAP54 |
1 | ||
| 82671R - STOPPER, BATTERY TERMINAL | ||||
| 82670-42010 |
AXAP54 |
1 | ||
| Common parts | ||||
| 94151-80801 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8401 | ||||

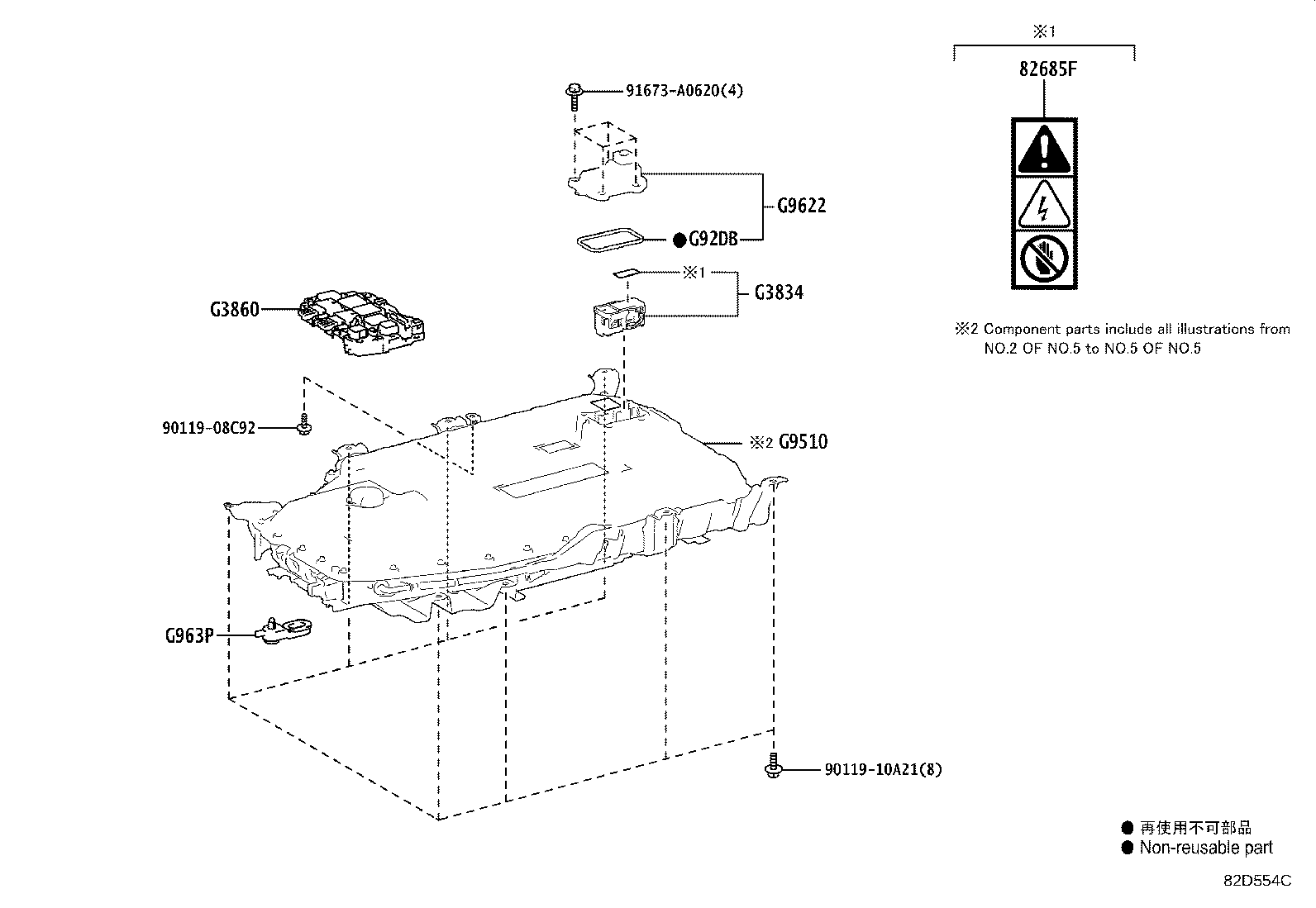

ILLUST NO. 2 OF 6(2006- )
Click highlighted areas on diagram
HV BATTERY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82685F - MAIN BATTERY CAUTION PLATE, NO.1 | ||||
| 82685-76020 |
AXAP54 |
1 | ||
| 82685-76021 |
AXAP54 |
1 | ||
| G3834 - GRIP, SERVICE PLUG | ||||
| G3855-42010 |
AXAP54 |
1 | ||
| G3860 - BOX ASSY, TRACTION BATTERY DEVICE, NO.2 | ||||
| G3860-42010 |
AXAP54 |
1 | ||
| G92DB - SEAL, HYBRID BATTERY, NO.1 | ||||
| G92DB-42010 |
AXAP54 |
1 | ||
| G9510 - BATTERY ASSY, HV SUPPLY | ||||
| G9510-42030 |
AXAP54 |
1 | ||
| G9622 - COVER, TRACTION BATTERY, NO.2 | ||||
| G9622-42010 |
AXAP54 |
1 | ||
| G963P - BRACKET, TRACTION BATTERY, NO.23 | ||||
| G963P-42010 |
AXAP54 |
1 | ||
| Common parts | ||||
| 90119-08C92 | ||||
| 90119-10A21 | ||||
| 91673-A0620 | ||||
ILLUST NO. 3 OF 6(2006- )
Click highlighted areas on diagram
HV BATTERY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89890A - COMPUTER ASSY, BATTERY | ||||
| 89890-42070 |
AXAP54 DENSO |
1 | ||
| 89892A - SENSOR, BATTERY VOLTAGE | ||||
| 89892-42040 |
AXAP54 |
1 | ||
| G929N - PLUG, BATTERY DRAIN | ||||
| G929N-10010 |
AXAP54 |
1 | ||
| G92DC - SEAL, HV BATTERY, NO.2 | ||||
| G92DC-42010 |
AXAP54 |
1 | ||
| G92DD - SEAL, HV BATTERY UPR COVER | ||||
| G92DD-42010 |
AXAP54 |
1 | ||
| G9502 - BATTERY SUB-ASSY, EV SUPPLY, UPR | ||||
| G9502-78010 |
AXAP54 |
1 | ||
| G9569A - LABEL, LITHIUM ION BATTERY CAUTION | ||||
| G9569-47120 |
AXAP54 |
1 | ||
| G9611 - CARRIER, TRACTION BATTERY, NO.1 | ||||
| G9611-42010 |
AXAP54 |
1 | ||
| G9621 - COVER, TRACTION BATTERY, NO.1 | ||||
| G9621-42010 |
AXAP54 |
1 | ||
| G963A - BRACKET, TRACTION BATTERY, NO.10 | ||||
| G963A-42010 |
AXAP54 |
1 | ||
| G963E - BRACKET, TRACTION BATTERY, NO.14 | ||||
| G963E-42010 |
AXAP54 |
1 | ||
| G963F - BRACKET, TRACTION BATTERY, NO.15 | ||||
| G963F-42010 |
AXAP54 |
1 | ||
| G963G - BRACKET, TRACTION BATTERY, NO.16 | ||||
| G963G-42010 |
AXAP54 |
1 | ||
| G963K - BRACKET, TRACTION BATTERY, NO.19 | ||||
| G963K-42010 |
AXAP54 |
1 | ||
| G963M - BRACKET, TRACTION BATTERY, NO.21 | ||||
| G963M-42010 |
AXAP54 |
1 | ||
| G96B1 - WIRE, TRACTION BATTERY, NO.1 | ||||
| G96B1-42010 |
AXAP54 |
1 | ||
| G96B2 - WIRE, TRACTION BATTERY, NO.2 | ||||
| G96B2-42010 |
AXAP54 |
1 | ||
| G96B3 - WIRE, TRACTION BATTERY, NO.3 | ||||
| G96B3-42010 |
AXAP54 |
1 | ||
| G96E8 - COVER, TRACTION BATTERY WIRE, NO.3 | ||||
| G96E8-42010 |
AXAP54 |
1 | ||
| G96J1 - RELAY, TRACTION BATTERY HEATER, NO.1 | ||||
| G96J1-42010 |
AXAP54 |
1 | ||
| Common parts | ||||
| 82711-1E350 | ||||
| 90105-06345 | ||||
| 90178-05002 | ||||
| 90178-06023 | ||||
| 90178-06026 | ||||
| 91551-80814 | ||||
| 91551-A0516 | ||||
| 91671-A0616 | ||||
| 91671-A0625 | ||||
| 91674-A0625 | ||||
ILLUST NO. 5 OF 6(2006- )
Click highlighted areas on diagram
HV BATTERY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04G9HA - HEATER KIT, TRACTION BATTERY, NO.2 | ||||
| 04G9H-42021 |
AXAP54 |
1 | ||
| 04G9H-42020 |
AXAP54 |
1 | ||
| 04G9N - CONDUCTOR KIT, TRACTION BATTERY COOLER | ||||
| 04G9N-42011 |
AXAP54 |
1 | ||
| 04G9N-42010 |
AXAP54 |
1 | ||
| G9509 - STACK SUB-ASSY, HV SUPPLY, NO.2 | ||||
| G9509-49015 |
AXAP54 |
1 | ||
| G9509-49016 |
AXAP54 |
1 | ||
| G950B - STACK SUB-ASSY, HV SUPPLY, NO.4 | ||||
| G950B-49015 |
AXAP54 |
1 | ||
| G950B-49016 |
AXAP54 |
1 | ||
| G96NA - SHEET, TRACTION BATTERY COOLER, NO.1 | ||||
| G96NA-42010 |
AXAP54 |
4 | ||
| Common parts | ||||
| 90119-08D66 | ||||
| 90467-07220 | ||||
| 94151-80801 | ||||

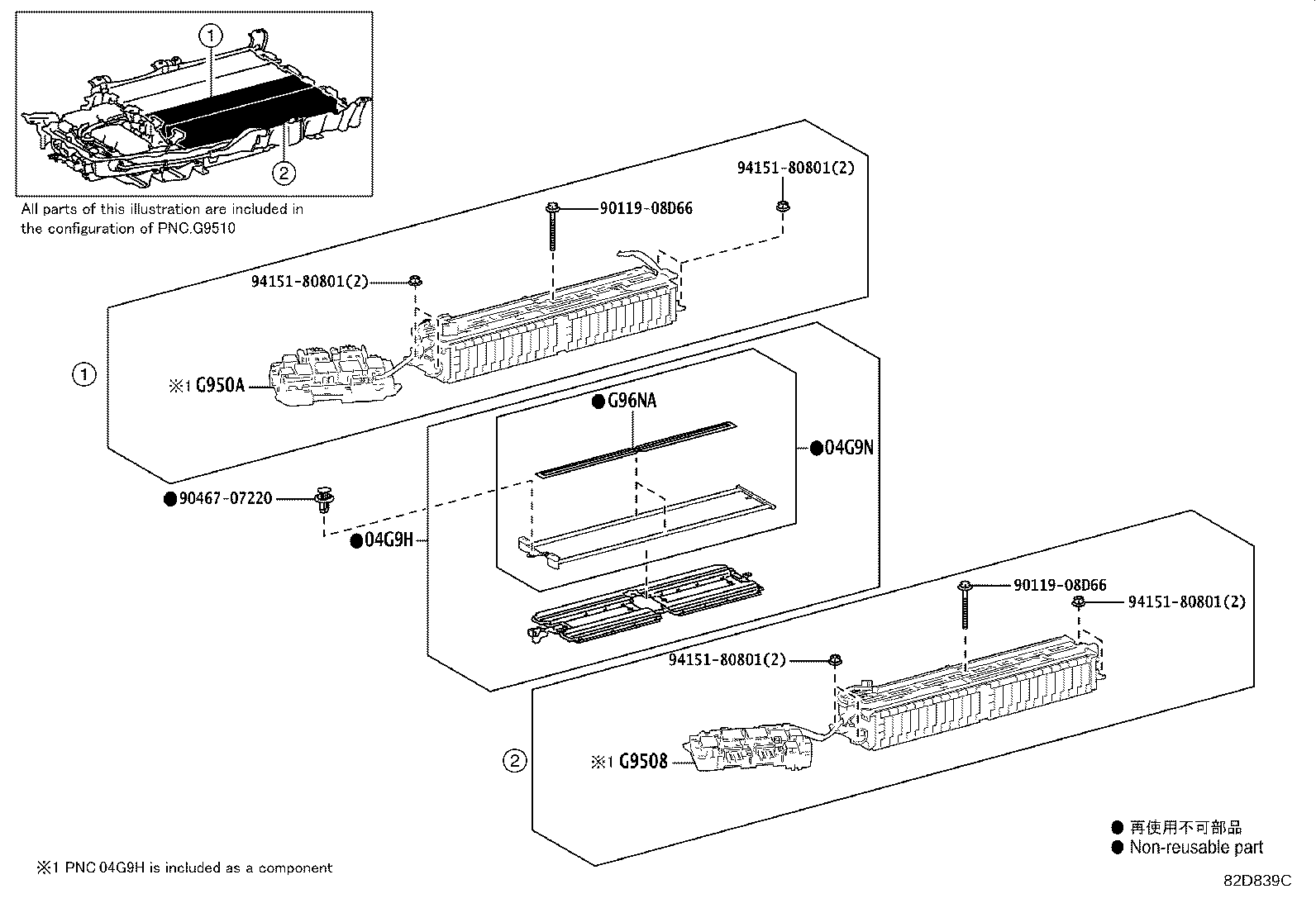

ILLUST NO. 6 OF 6(2006- )
Click highlighted areas on diagram
HV BATTERY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04G9H - HEATER KIT, TRACTION BATTERY | ||||
| 04G9H-42010 |
AXAP54 |
1 | ||
| 04G9H-42011 |
AXAP54 |
1 | ||
| 04G9N - CONDUCTOR KIT, TRACTION BATTERY COOLER | ||||
| 04G9N-42011 |
AXAP54 |
1 | ||
| 04G9N-42010 |
AXAP54 |
1 | ||
| G9508 - STACK SUB-ASSY, HV SUPPLY, NO.1 | ||||
| G9508-49375 |
AXAP54 |
1 | ||
| G9508-49376 |
AXAP54 |
1 | ||
| G950A - STACK SUB-ASSY, HV SUPPLY, NO.3 | ||||
| G950A-49016 |
AXAP54 |
1 | ||
| G950A-49015 |
AXAP54 |
1 | ||
| G96NA - SHEET, TRACTION BATTERY COOLER, NO.1 | ||||
| G96NA-42010 |
AXAP54 |
4 | ||
| Common parts | ||||
| 90119-08D66 | ||||
| 90467-07220 | ||||
| 94151-80801 | ||||
ILLUST NO. 4 OF 6(2006- )
Click highlighted areas on diagram
HV BATTERY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87615B - RETAINER, INSULATOR NO.1 | ||||
| 87615-42010 |
AXAP54 |
4 | ||
| 87615B - RETAINER, INSULATOR NO.1 | ||||
| 87615-42010 |
AXAP54 |
4 | ||
| 87615B - RETAINER, INSULATOR NO.1 | ||||
| 87615-42010 |
AXAP54 |
4 | ||
| 87615B - RETAINER, INSULATOR NO.1 | ||||
| 87615-42010 |
AXAP54 |
4 | ||
| 87615C - RETAINER, INSULATOR NO.2 | ||||
| 87615-42020 |
AXAP54 |
1 | ||
| 88620N - THERMISTOR ASSY, AIR CONDITIONER NO.1 | ||||
| 88620-42060 |
AXAP54 |
1 | ||
| 88620P - THERMISTOR ASSY, AIR CONDITIONER NO.2 | ||||
| 88620-42070 |
AXAP54 |
1 | ||
| 88705D - TUBE SUB-ASSY, DISCHARGE | ||||
| 88705-42190 |
AXAP54 |
1 | ||
| 88718S - CLAMP, PIPING NO.1 | ||||
| 88718-42140 |
AXAP54 |
4 | ||
| 88718S - CLAMP, PIPING NO.1 | ||||
| 88718-42140 |
AXAP54 |
4 | ||
| 88718S - CLAMP, PIPING NO.1 | ||||
| 88718-42140 |
AXAP54 |
4 | ||
| 88718S - CLAMP, PIPING NO.1 | ||||
| 88718-42140 |
AXAP54 |
4 | ||
| 88718T - CLAMP, PIPING NO.2 | ||||
| 88718-42150 |
AXAP54 |
4 | ||
| 88718T - CLAMP, PIPING NO.2 | ||||
| 88718-42150 |
AXAP54 |
4 | ||
| 88719C - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-11010 |
AXAP54 |
1 | ||
| 88F90 - VALVE ASSY, MAGNET NO.1 | ||||
| 88690-42070 |
AXAP54 |
1 | ||
| 88F90A - VALVE ASSY, MAGNET NO.2 | ||||
| 88690-42080 |
AXAP54 |
1 | ||
| 88F90B - VALVE ASSY, MAGNET NO.3 | ||||
| 88690-47040 |
AXAP54 |
1 | ||
| 88G16H - TUBE, LIQUID, NO.1 | ||||
| 88716-42A40 |
AXAP54 |
1 | ||
| 88G16J - TUBE, LIQUID, NO.2 | ||||
| 88716-42A50 |
AXAP54 |
1 | ||
| 88G16K - TUBE, LIQUID, NO.3 | ||||
| 88716-42A60 |
AXAP54 |
1 | ||
| 88G16L - TUBE, LIQUID, NO.4 | ||||
| 88716-42A70 |
AXAP54 |
1 | ||
| G96N1 - TUBE, TRACTION BATTERY COOLER, NO.1 | ||||
| G96N1-42010 |
AXAP54 |
1 | ||
| G96N2 - TUBE, TRACTION BATTERY COOLER, NO.2 | ||||
| G96N2-42010 |
AXAP54 |
1 | ||
| Common parts | ||||
| 90091-40632 | ||||
| 90091-40640 | ||||
| 90099-04629 | ||||
| 90099-14122 | ||||
| 90099-14155 | ||||
| 90099-14158 | ||||
| 90178-06023 | ||||
| 91671-A0625 | ||||
