AXAP54R-ANXMBW (2020)

Toyota Rav4

Production Jun 2020 - Sep 9999
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2006- )

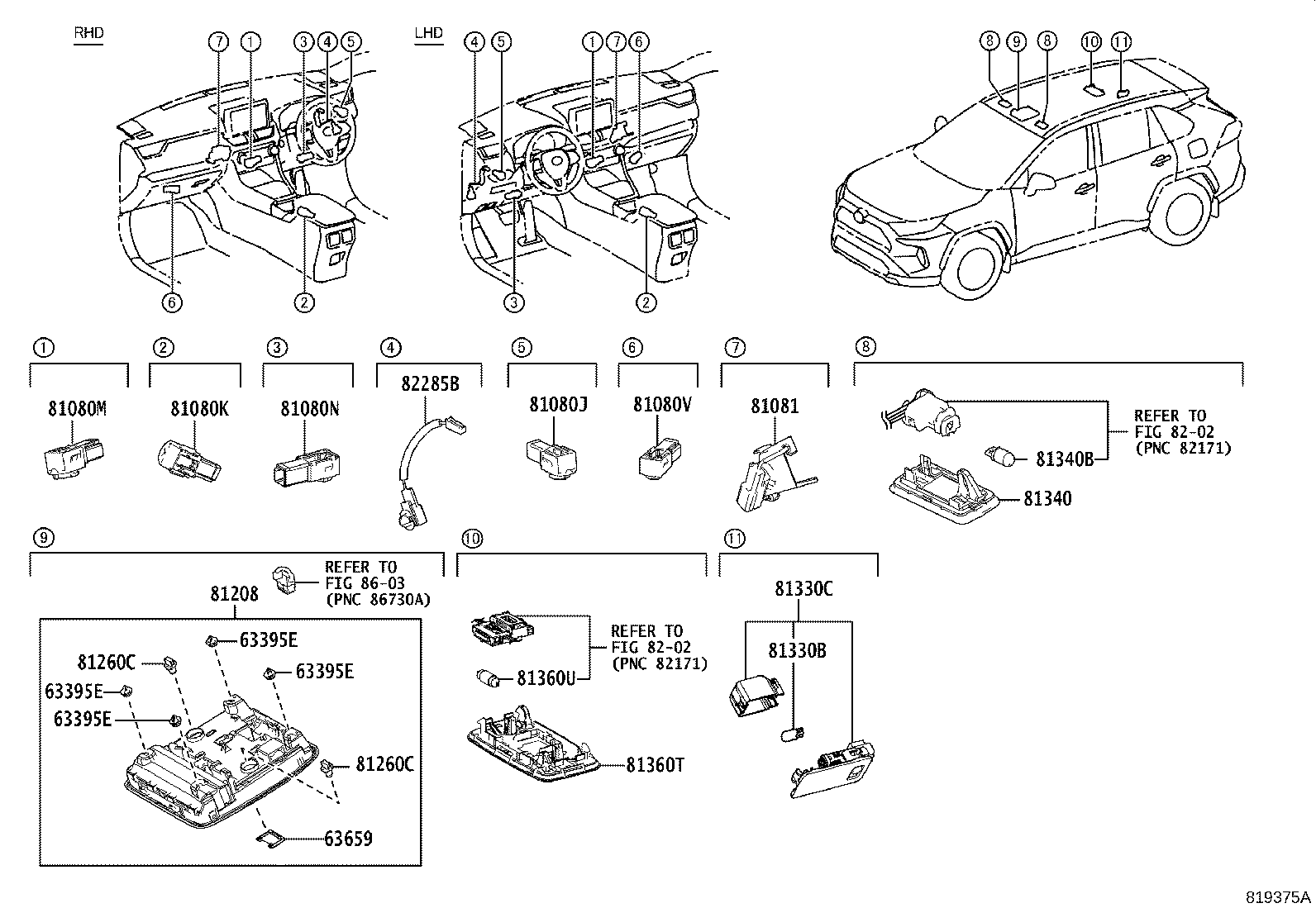

Click highlighted areas on diagram

diagram 63395E 63395E 63395E 63395E 63659 81080J 81080K 81080M 81080N 81080V 81081 81208 81260C 81260C 81330B 81330C 81340 81340B 81360T 81360U 8202 8202 82285B 8603
Part # Description Qty Price
63395E - CLIP(FOR MAP LAMP)
90467-09240

AXAP54

 4
63395E - CLIP(FOR MAP LAMP)
90467-09240

AXAP54

 4
63395E - CLIP(FOR MAP LAMP)
90467-09240

AXAP54

 4
63395E - CLIP(FOR MAP LAMP)
90467-09240

AXAP54

 4
63659 - CASE, ROOF CONSOLE COVER
63659-42020C0

AXAP54

BLACK,TRIM2#

 1
81080J - LAMP ASSY, INTERIOR ILLUMINATION, NO.1
81080-42040

AXAP54..M

ILLUMINATED ENTRY SYSTEM-WITH(FOOT & CUP HOLDER)

 1
81080-42040

AXAP54..G

 1
81080K - LAMP ASSY, CONSOLE BOX ILLUMINATION
81080-42040

AXAP54..M

ILLUMINATED ENTRY SYSTEM-WITH(FOOT & CUP HOLDER)

 1
81080-42040

AXAP54..G

 1
81080M - LAMP ASSY, INTERIOR ILLUMINATION, NO.1
81080-42040

AXAP54..G

 1
81080-42040

AXAP54..M

ILLUMINATED ENTRY SYSTEM-WITH(FOOT & CUP HOLDER)

 1
81080N - LAMP ASSY, INTERIOR ILLUMINATION, NO.1
81080-33280

AXAP54

 1
81080V - LAMP ASSY, INTERIOR ILLUMINATION, NO.2
81080-33280

AXAP54

 1
81081 - LAMP SUB-ASSY, INTERIOR ILLUMINATION
81081-42040

AXAP54..RHD..M

ILLUMINATED ENTRY SYSTEM-WITH(FOOT & CUP HOLDER)

 1
81081-42040

AXAP54..RHD..G

 1
81208 - LAMP SUB-ASSY, MAP
81208-42120C0

AXAP54

ANTI-THEFT SYSTEM-W(*IM & ALARM & *GBS(QUARTER/BACK DOOR))&AUDIO-JBL & 9INCH DISPLAY T1 & DAB (EU),BLACK,TRIM2#

 1
81208-42690C0

AXAP54

ANTI-THEFT SYSTEM-W(*IM & ALARM & *GBS(QUARTER/BACK DOOR))&MOON ROOF-WITH(PANORAMA ROOF),BLACK,TRIM2#

 1
81208-42110C0

AXAP54

ANTI-THEFT SYSTEM-W(*IM & ALARM & *GBS(QUARTER/BACK DOOR)),BLACK,TRIM2#

 1
81208-42120C0

AXAP54

ANTI-THEFT SYSTEM-W(*IM & ALARM & *GBS(QUARTER/BACK DOOR))&AUDIO-JBL & 9INCH DISPLAY T2 (EU),BLACK,TRIM2#

 1
81208-42700C0

AXAP54

ANTI-THEFT SYSTEM-W(*IM & ALARM & *GBS(QUARTER/BACK DOOR))&MOON ROOF-WITH(PANORAMA ROOF)&AUDIO-JBL & 9INCH DISPLAY T1 & DAB (EU),BLACK,TRIM2#

 1
81208-42080C0

AXAP54

BLACK,TRIM2#

 1
81208-42670C0

AXAP54

MOON ROOF-WITH(PANORAMA ROOF),BLACK,TRIM2#

 1
81208-42700C0

AXAP54

ANTI-THEFT SYSTEM-W(*IM & ALARM & *GBS(QUARTER/BACK DOOR))&MOON ROOF-WITH(PANORAMA ROOF)&AUDIO-JBL & 9INCH DISPLAY T2 (EU),BLACK,TRIM2#

 1
81260C - BULB(FOR MAP LAMP)
99132-12050

AXAP54

12V 5W

 2
81260C - BULB(FOR MAP LAMP)
99132-12050

AXAP54

12V 5W

 2
81330B - BULB, LUGGAGE COMPARTMENT LAMP
99132-12050

AXAP54

12V 5W

 1
81330C - LAMP ASSY, LUGGAGE COMPARTMENT
81330-58010

AXAP54

 1
81340 - LAMP ASSY, VANITY
81340-30110

AXAP54

 2
81340B - BULB (FOR VANITY LAMP)
90981-11062

AXAP54

12V 8W

 2
81360T - LAMP ASSY, SPOT
81360-42021C0

AXAP54

BLACK,TRIM2#

 1
81360U - BULB, SPOT LAMP
90981-14011

AXAP54

 1
82285B - WIRE, ILLUMINATION
82285-42040

AXAP54..RHD..G

 1
82285-42040

AXAP54..RHD..M

ILLUMINATED ENTRY SYSTEM-WITH(FOOT & CUP HOLDER)

 1
Linked diagrams
8202
8603
