AXAP54R-ANXMBW (2020)

Toyota Rav4

Production Jun 2020 - Sep 9999
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2006- )

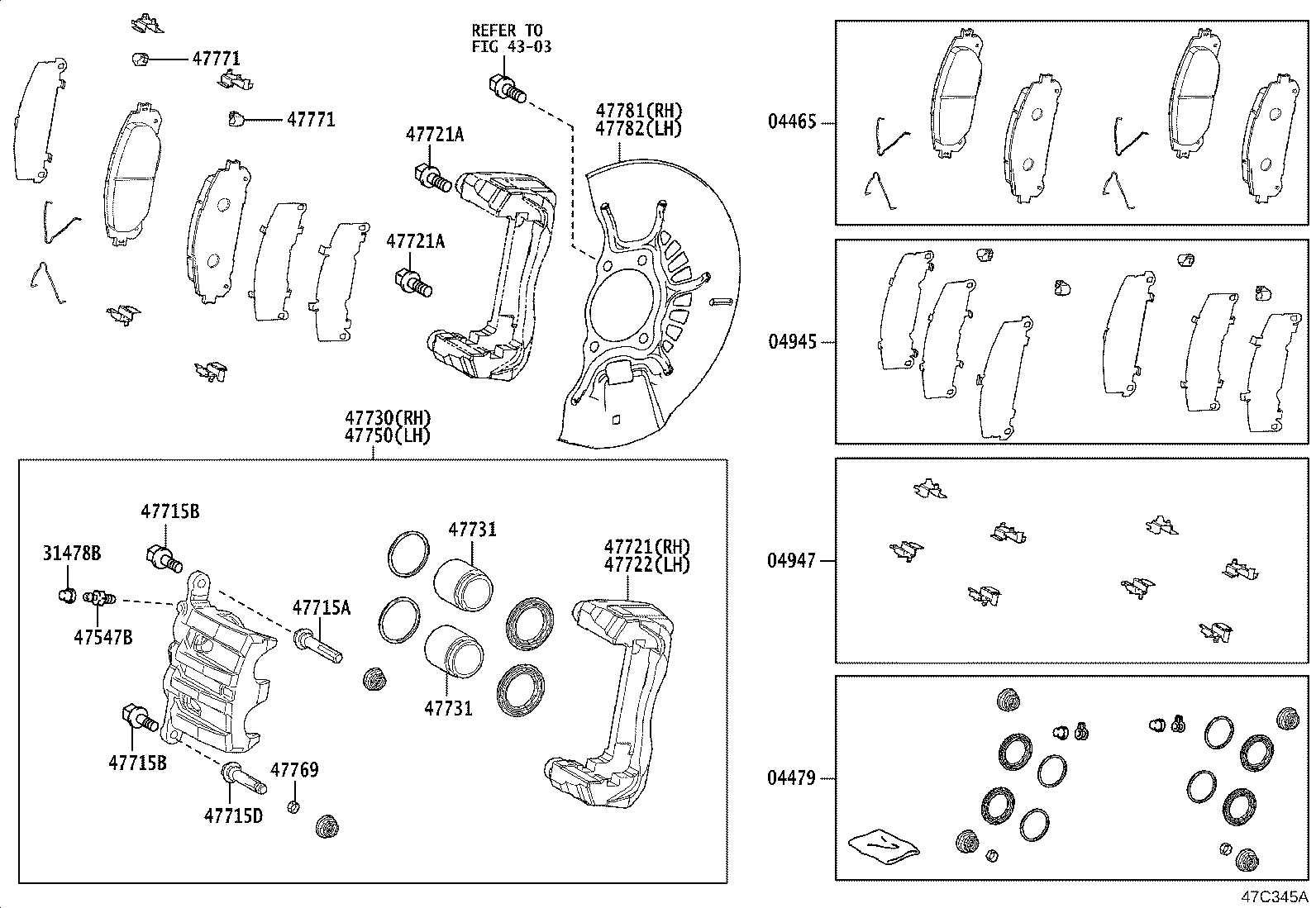

Click highlighted areas on diagram

diagram 04465 04479 04945 04947 31478B 4303 47547B 47715A 47715B 47715B 47715D 47721 47721A 47721A 47722 47730 47731 47731 47750 47769 47771 47771 47781 47782
Part # Description Qty Price
04465 - PAD KIT, DISC BRAKE, FRONT
04465-48240

AXAP54

MARK AKEBONO NS380H

 1
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04478-48210

AXAP54

 1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-48180

AXAP54

 1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-48090

AXAP54

 1
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010

AXAP54

 2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-20010

AXAP54

 2
47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE
47714-48200

AXAP54

 2
47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)
90015-AA605

AXAP54

 4
47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)
90015-AA605

AXAP54

 4
47715D - PIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2
47715-48200

AXAP54

 2
47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH
47721-48200

AXAP54

 1
47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90105-12401

AXAP54

*12-1.25PX35.5-30

 4
47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90105-12401

AXAP54

*12-1.25PX35.5-30

 4
47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47722-48170

AXAP54

 1
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-48200

AXAP54

 1
47731 - PISTON, FRONT DISC BRAKE
47731-48200

AXAP54

 4
47731 - PISTON, FRONT DISC BRAKE
47731-48200

AXAP54

 4
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-48170

AXAP54

 1
47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
47769-0E070

AXAP54

 2
47771 - PLATE, PAD WEAR INDICATOR, NO.1
47771-33380

AXAP54

 4
47771 - PLATE, PAD WEAR INDICATOR, NO.1
47771-33380

AXAP54

 4
47781 - COVER, DISC BRAKE DUST, FRONT RH
47781-42060

AXAP54

 1
47782 - COVER, DISC BRAKE DUST, FRONT LH
47782-42060

AXAP54

 1
Linked diagrams
4303
