AXAP54R-ANXMBW (2020)

Toyota Rav4

Production Jun 2020 - Sep 9999
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2006- )

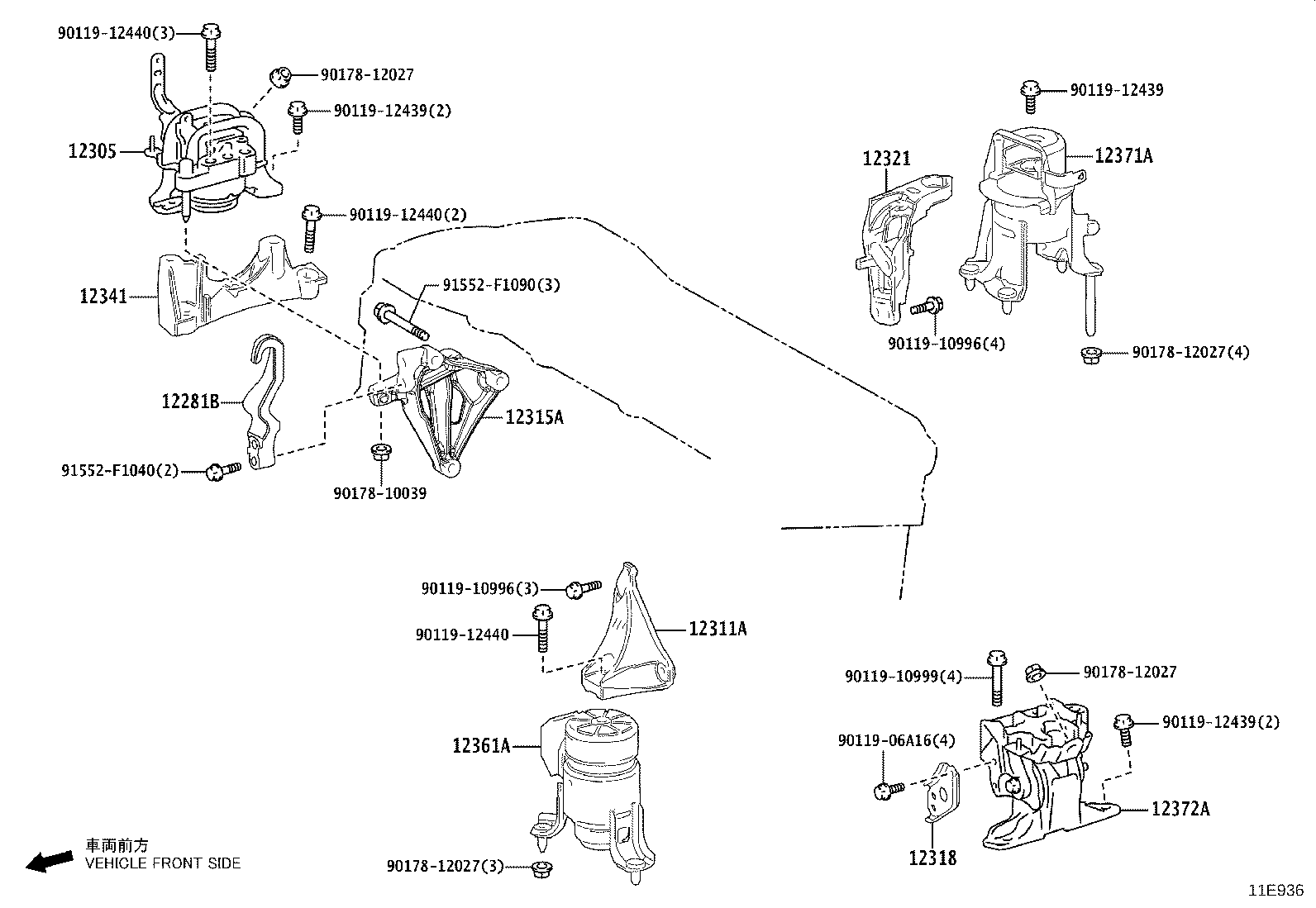

Click highlighted areas on diagram

diagram 12281B 12305 12311A 12315A 12318 12321 12341 12361A 12371A 12372A 9011906A16 9011910996 9011910996 9011910999 9011912439 9011912439 9011912439 9011912440 9011912440 9011912440 9017810039 9017812027 9017812027 9017812027 9017812027 91552F1040 91552F1090
Part # Description Qty Price
12281B - HANGER, ENGINE, NO.1
12281-25030

A25AFXS..AXAP54

 1
12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12305-25050

A25AFXS..AXAP54

 1
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-25120

A25AFXS..AXAP54

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-25031

A25AFXS..AXAP54

 1
12318 - STAY, ENGINE MOUNTING, LH
12318-25040

A25AFXS..AXAP54

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12321-25050

A25AFXS..AXAP54

 1
12341 - SPACER, ENGINE MOUNTING
12341-25010

A25AFXS..AXAP54

 1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-25110

A25AFXS..AXAP54

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-25100

A25AFXS..AXAP54

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12306-25040

A25AFXS..AXAP54

 1
Common parts
90119-06A16
90119-10996
90119-10999
90119-12439
90119-12440
90178-10039
90178-12027
91552-F1040
91552-F1090
