AXAP54L-ANXMBW (2020)
Toyota Rav4
Production
Jun 2020
-
Sep 9999
Engine
A25AFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(2006- )LHD

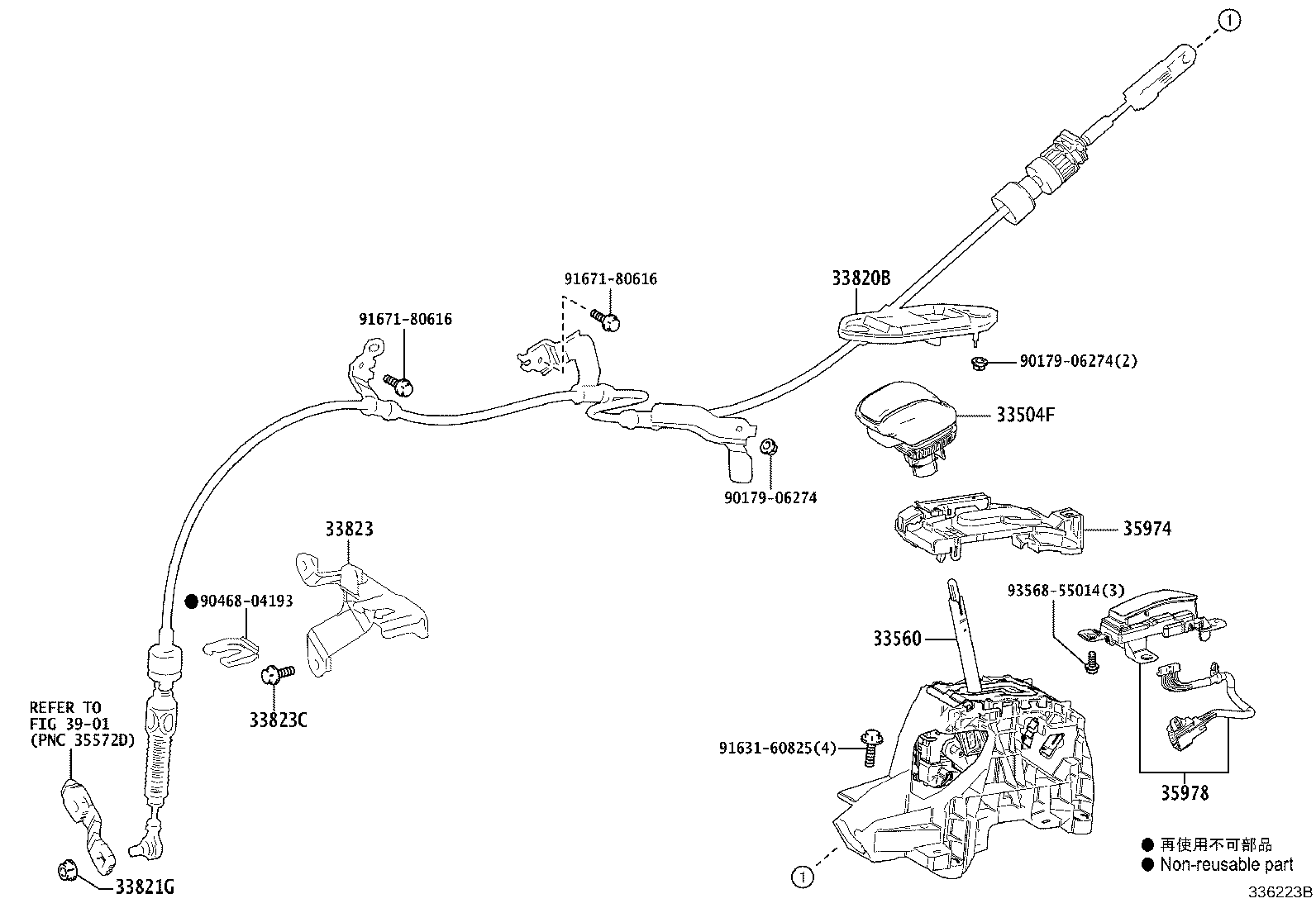

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-40050C0 |
AXAP54 BLACK,TRIM2# |
1 | ||
| 33560 - UNIT ASSY, SHIFT LOCK CONTROL | ||||
| 33560-12650 |
AXAP54..LHD |
1 | ||
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-42520 |
AXAP54 |
1 | ||
| 33821G - NUT (FOR TRANSMISSION CONTROL CABLE) | ||||
| 94151-80800 |
AXAP54 |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-42050 |
AXAP54 |
1 | ||
| 33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET) | ||||
| 91671-80820 |
AXAP54 |
2 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-42040 |
AXAP54..LHD |
1 | ||
| 35978 - INDICATOR, SHIFT POSITION | ||||
| 35978-42050 |
AXAP54..LHD |
1 | ||
| Common parts | ||||
| 90179-06274 | ||||
| 90468-04193 | ||||
| 91631-60825 | ||||
| 91671-80616 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 3901 | ||||
