AVA44L-ANXMBW (2015)

Toyota Rav4

Production Oct 2015 - Oct 2018
Engine 2ARFXE
Transmission A CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1510- )AVA4#..LHD

Click highlighted areas on diagram

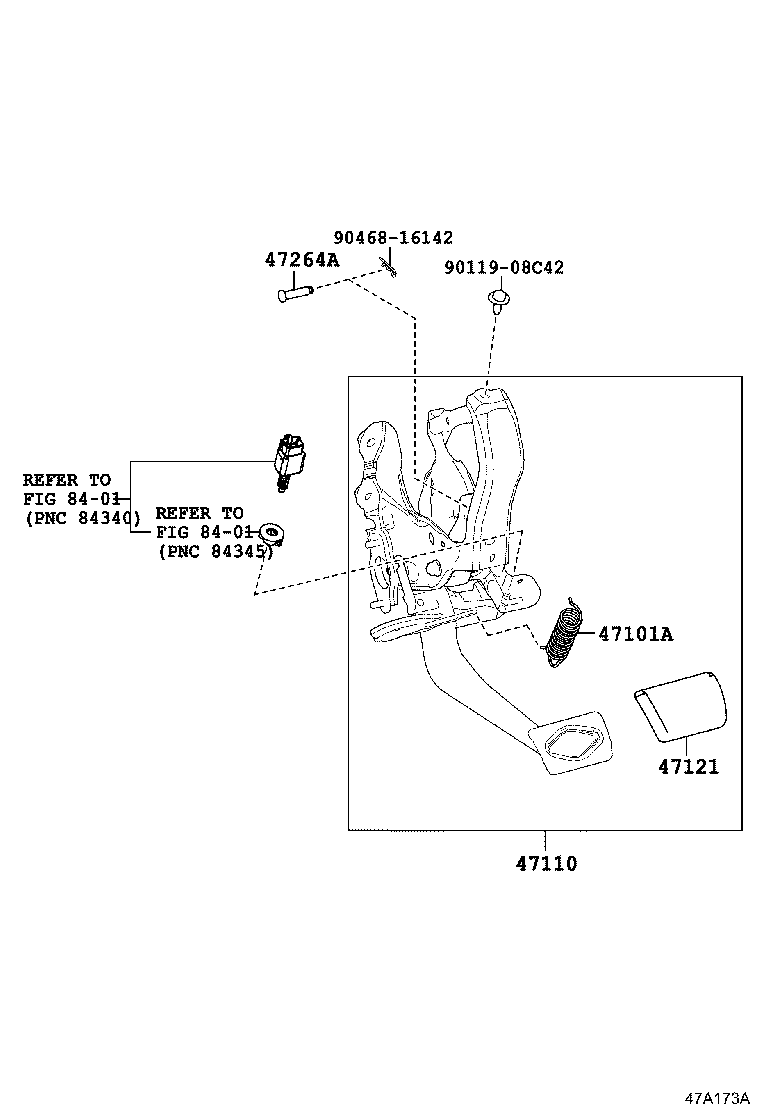

diagram 47101A 47110 47121 47264A 8401 8401 9011908C42 9046816142
Part # Description Qty Price
47101A - SPRING(FOR BRAKE PEDAL RETURN)
47146-78020

ASA44..X..EUR;AVA42..LHD..EUR;ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,AVA44,ZSA44..JPP..LHD..(DCRL,HTWC,HTWVM)

 1
47110 - SUPPORT ASSY, BRAKE PEDAL
47110-78030

AVA4#..LHD

 1
47121 - PAD, BRAKE PEDAL
47121-42010

ALA49,ASA44,AVA4#,ZSA4#..ATM,CVT

 1
47121-42020

AVA42..EUR;ASA44..X..EUR;ASA44..JPP..(G,M);ALA49,AVA44,ZSA4#..JPP..(ATM,CVT)

 1
47264A - PIN(FOR PUSH ROD)
90249-08256

AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M)

 1
Common parts
90119-08C42
90468-16142
Linked diagrams
8401
