ASA44L-ANTXKX (2015)

Toyota Rav4

Production Oct 2015 - Jul 2017
Engine 2ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1510- )ASA44

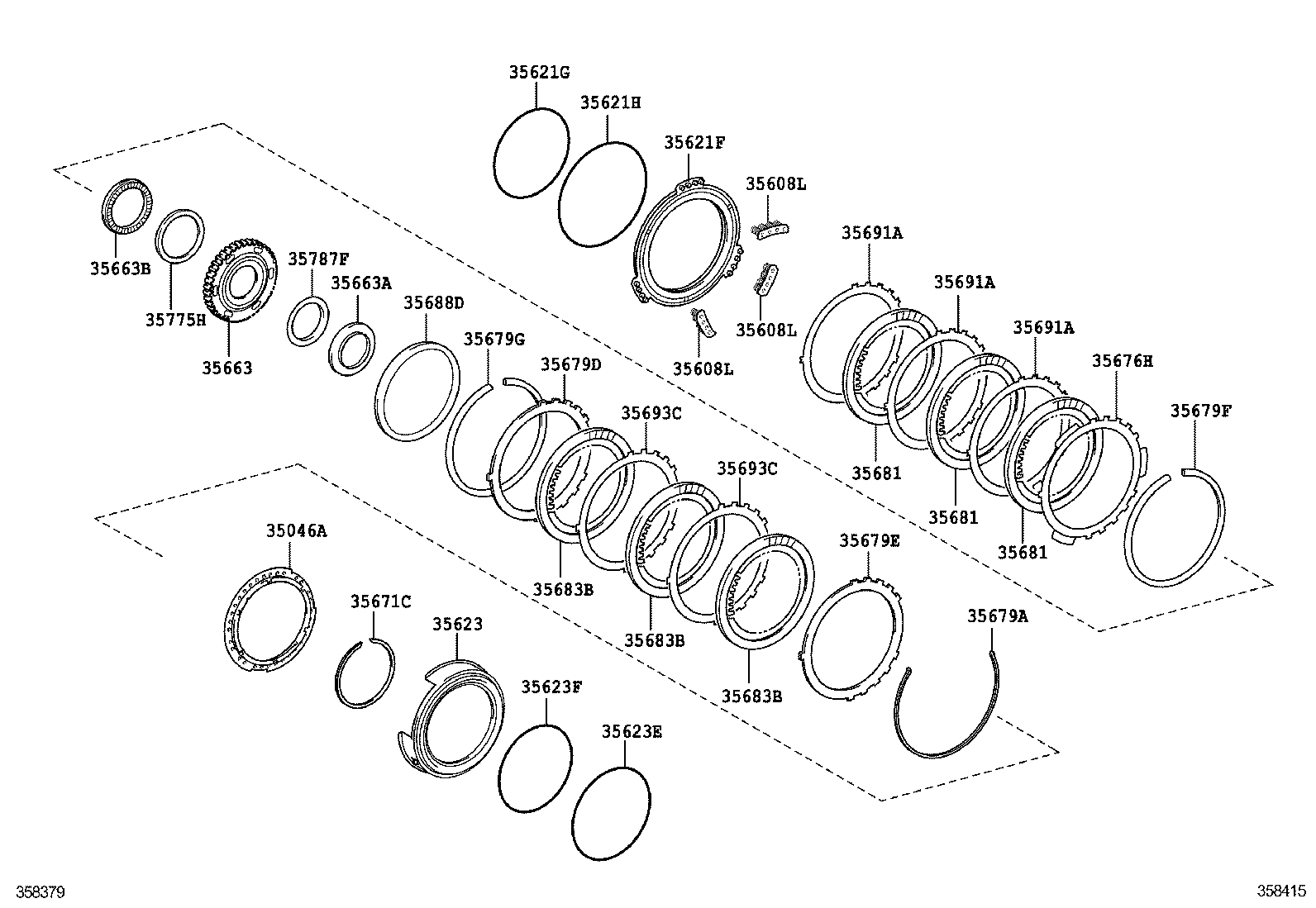

Click highlighted areas on diagram

U760F

diagram 35046A 35608L 35608L 35608L 35621F 35621G 35621H 35623 35623E 35623F 35663 35663A 35663B 35671C 35676H 35679A 35679D 35679E 35679F 35679G 35681 35681 35681 35683B 35683B 35683B 35688D 35691A 35691A 35691A 35693C 35693C 35775H 35787F
Part # Description Qty Price
35046A - SPRING SUB-ASSY, BRAKE PISTON RETURN, NO.3
35046-73010

ASA44..RUP;ASA44..JPP..X..RUS

 1
35608L - SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN
35608-73010

ASA44..RUP;ASA44..JPP..X..RUS

 3
35608L - SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN
35608-73010

ASA44..RUP;ASA44..JPP..X..RUS

 3
35608L - SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN
35608-73010

ASA44..RUP;ASA44..JPP..X..RUS

 3
35621G - RING, O (FOR BRAKE PISTON INNER)
90301-99190

ASA44..JPP..X..RUS;ALA49,ASA44..RUP..6FC

 1
35621H - RING, O (FOR BRAKE PISTON OUTER)
90301-99189

ASA44..JPP..X..RUS;ALA49,ASA44..RUP..6FC

 1
35623E - RING, O, NO.1 (FOR BRAKE PISTON)
90301-99190

ASA44..RUP;ASA44..JPP..X..RUS

 1
35623F - RING, O, NO.2 (FOR BRAKE PISTON)
90301-99194

ASA44..RUP;ASA44..JPP..X..RUS

 1
35663A - BEARING, THRUST NEEDLE ROLLER, NO.1
90374-60001

ASA44..RUP;ASA44..JPP..X..RUS

 1
35663B - BEARING, THRUST NEEDLE ROLLER, NO.2
90374-62010

ASA44..RUP;ASA44..JPP..X..RUS

 1
35671C - RING, SNAP (FOR BRAKE PISTON RETURN SPRING)
90520-99103

ASA44..JPP..X..RUS;ALA49,ASA44..RUP..6FC

 1
35676H - FLANGE, BRAKE, NO.1
35676-73020

ASA44..RUP;ASA44..JPP..X..RUS

T=3.1,MARK 31

 1
35676-73030

ASA44..RUP;ASA44..JPP..X..RUS

T=3.2,MARK 32

 1
35676-73040

ASA44..RUP;ASA44..JPP..X..RUS

T=3.3,MARK 33

 1
35676-73050

ASA44..RUP;ASA44..JPP..X..RUS

T=3.4,MARK 34

 1
35676-73010

ASA44..RUP;ASA44..JPP..X..RUS

T=3.0,MARK 30

 1
35676-73060

ASA44..RUP;ASA44..JPP..X..RUS

T=3.5,MARK 35

 1
35679A - RING, HOLE SNAP(FOR BRAKE FLANGE)
90521-99136

ASA44..JPP..X..RUS;ALA49,ASA44..RUP..6FC

 1
35679E - FRANGE, BRAKE, NO.3
35679-73040

ASA44..JPP..X..RUS;ALA49,ASA44..RUP..6FC

T=4.0,MARK 40

 1
35679-73020

ASA44..JPP..X..RUS;ALA49,ASA44..RUP..6FC

T=3.8,MARK 38

 1
35679-73070

ASA44..JPP..X..RUS;ALA49,ASA44..RUP..6FC

T=4.3,MARK 43

 1
35679-73030

ASA44..JPP..X..RUS;ALA49,ASA44..RUP..6FC

T=3.9,MARK 39

 1
35679-73060

ASA44..JPP..X..RUS;ALA49,ASA44..RUP..6FC

T=4.2,MARK 42

 1
35679-73050

ASA44..JPP..X..RUS;ALA49,ASA44..RUP..6FC

T=4.1,MARK 41

 1
35679F - RING, SNAP(FOR BRAKE FLANGE)
90520-99144

ASA44..RUP;ASA44..JPP..X..RUS

 1
35679G - RING, SNAP (FOR RAKE FLANGE NO.3)
90520-99136

ASA44..RUP;ASA44..JPP..X..RUS

 1
35681 - DISC, BRAKE, NO.1
35681-73010

ASA44..RUP;ASA44..JPP..X..RUS

 3
35681 - DISC, BRAKE, NO.1
35681-73010

ASA44..RUP;ASA44..JPP..X..RUS

 3
35681 - DISC, BRAKE, NO.1
35681-73010

ASA44..RUP;ASA44..JPP..X..RUS

 3
35683B - DISC, BRAKE, NO.3
35683-73010

ASA44..RUP;ASA44..JPP..X..RUS

 3
35683B - DISC, BRAKE, NO.3
35683-73010

ASA44..RUP;ASA44..JPP..X..RUS

 3
35683B - DISC, BRAKE, NO.3
35683-73010

ASA44..RUP;ASA44..JPP..X..RUS

 3
35688D - STOPPER, BRAKE SNAP RING
35688-73010

ASA44..RUP;ASA44..JPP..X..RUS

 1
35691A - PLATE, BRAKE, NO.1
35691-73010

ASA44..RUP;ASA44..JPP..X..RUS

 3
35691A - PLATE, BRAKE, NO.1
35691-73010

ASA44..RUP;ASA44..JPP..X..RUS

 3
35691A - PLATE, BRAKE, NO.1
35691-73010

ASA44..RUP;ASA44..JPP..X..RUS

 3
35693C - PLATE, BRAKE, NO.3
35693-73010

ASA44..RUP;ASA44..JPP..X..RUS

 2
35693C - PLATE, BRAKE, NO.3
35693-73010

ASA44..RUP;ASA44..JPP..X..RUS

 2
35775H - RACE, THRUST BEARING, NO.5
35775-33020

ASA44..RUP;ASA44..JPP..X..RUS

 1
35787F - RACE, THRUST BEARING, NO.2
35787-73010

ASA44..RUP;ASA44..JPP..X..RUS

 1
